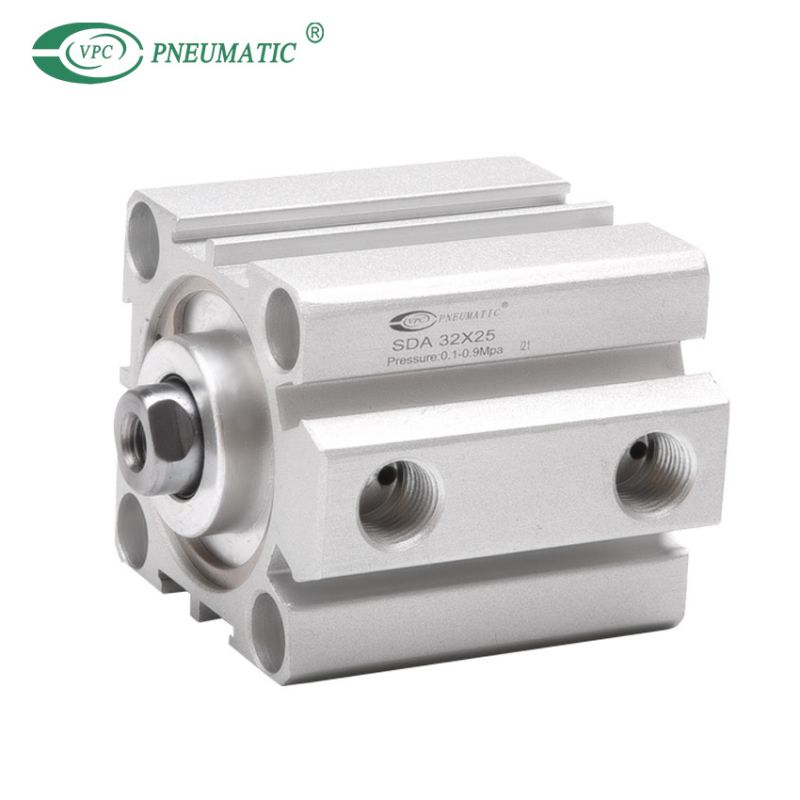

SDA Series Compact Cylinder

●The inner diameter of the body is treated with rolling followed by the treatment of hard anodizing, forming an excellent abrasion resistance and durability.
●The seal of piston adopts heterogeneous two-way seal structure. It has compact dimension and the function of grease reservation.
●There are magnetic switch slots around the cylinder body, which is convenient to install sensor switch.
●Mounting accessories with various specification are optional.
Working medium:
Acting type:
Guaranteed pressure:
Working temperature:
Speed range:
  • SDA
  • VPC Pneumatic
  • 8412310090

Product Description

SDA参数

Product Specifications

               Bore(mm)
12
16
20
25
32
40
50
    6380
100



            Acting type

                                                      Double acting
         Single Acting Spring Extend、Single Acting Spring Return
        Working medium
                                              Clean air(40μm Filteration)




Pressure range

Double acting
              0.1~0.9Mpa
Single acting
        0.2~0.9Mpa
 Guaranteed pressure
                   1.5Mpa(213Psi)
 Working temperature
                   -5~70℃




  Speed range

Double acting
      30~500mm/s
30~350mm/s
30~250mm/s
Single acting
     100-500mm/s
           Cushion type
                       Fixed Cushion
                Port size
M5X0.8
G1/8
G1/4
G3/8

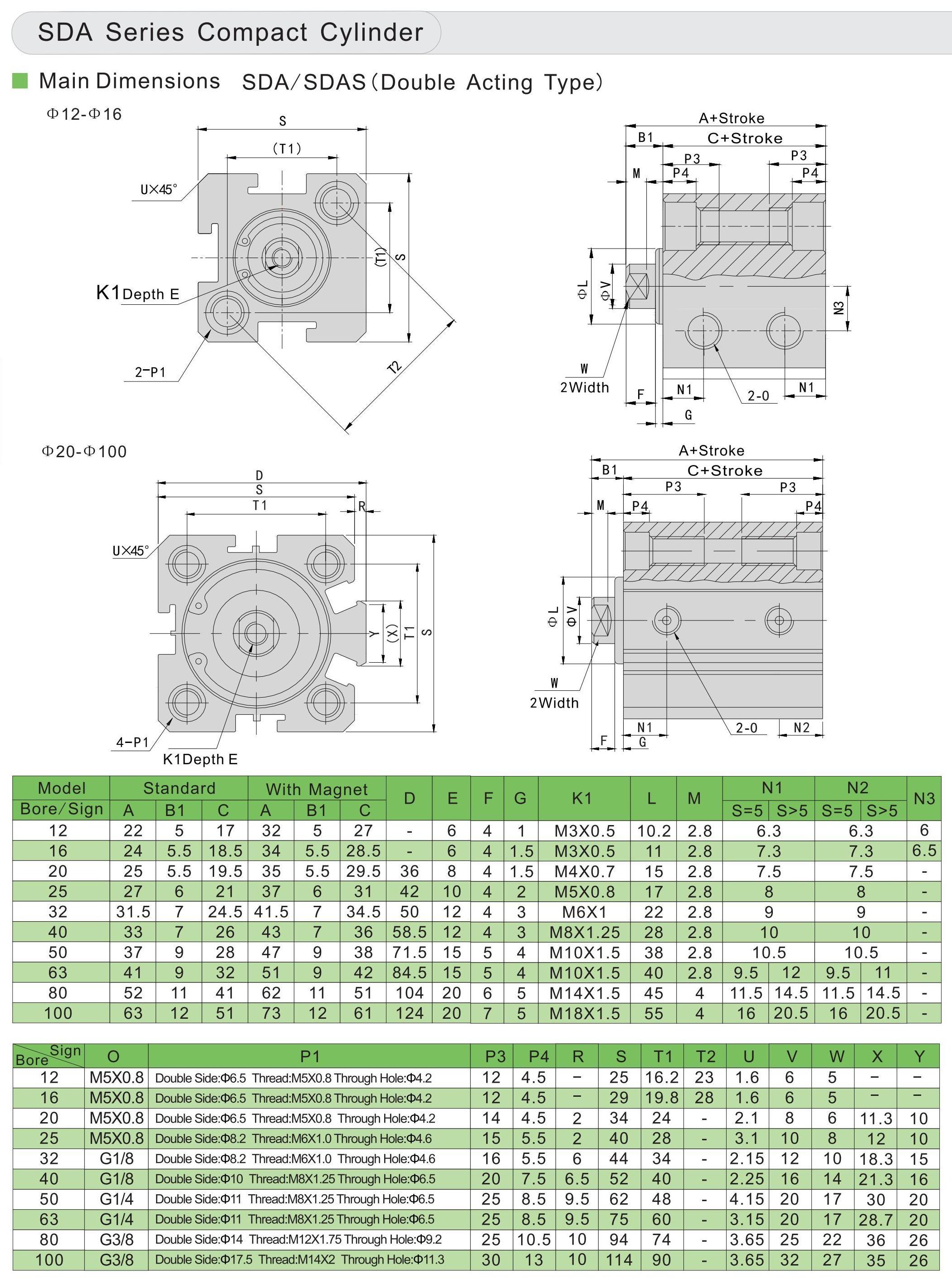

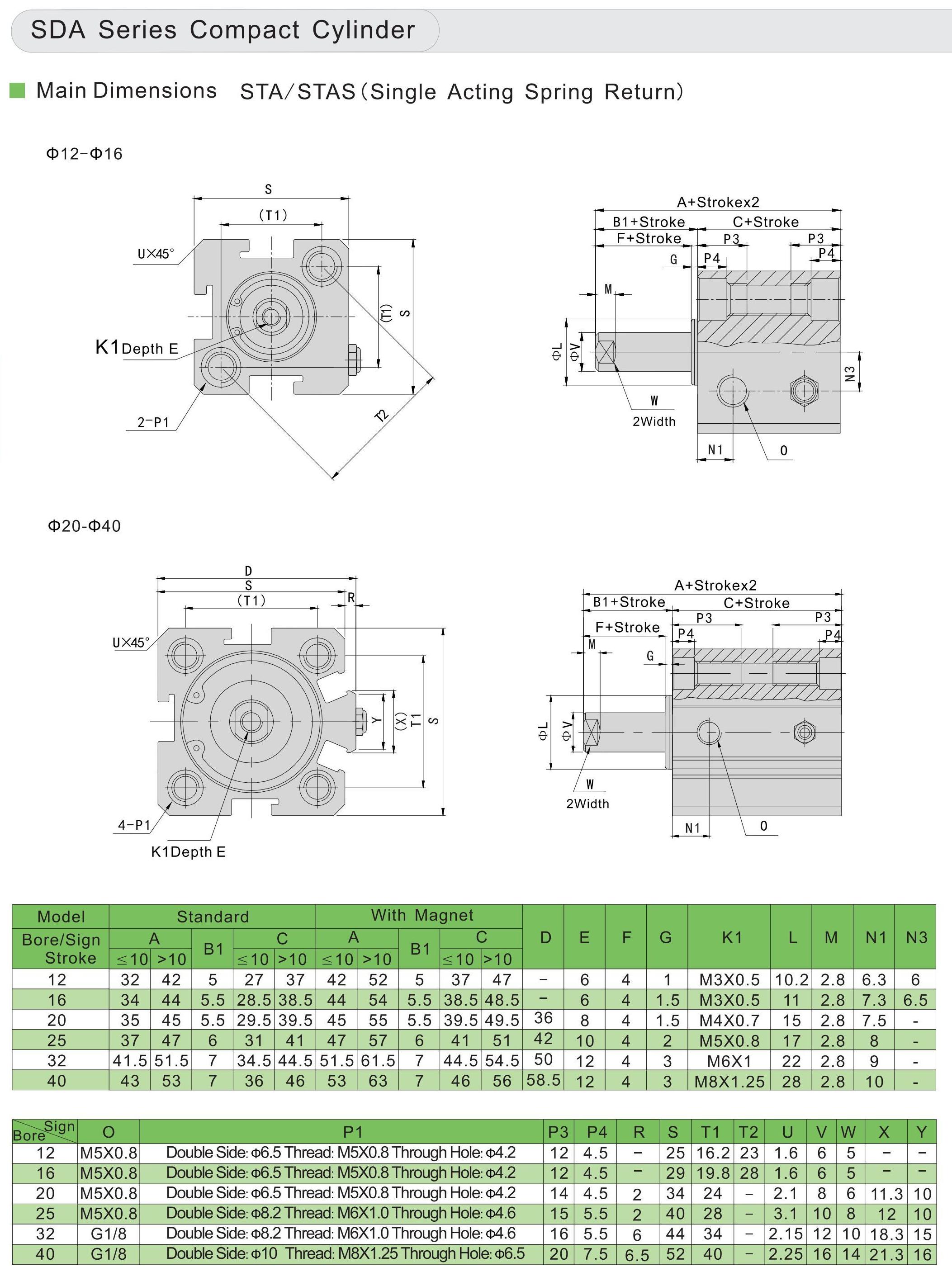

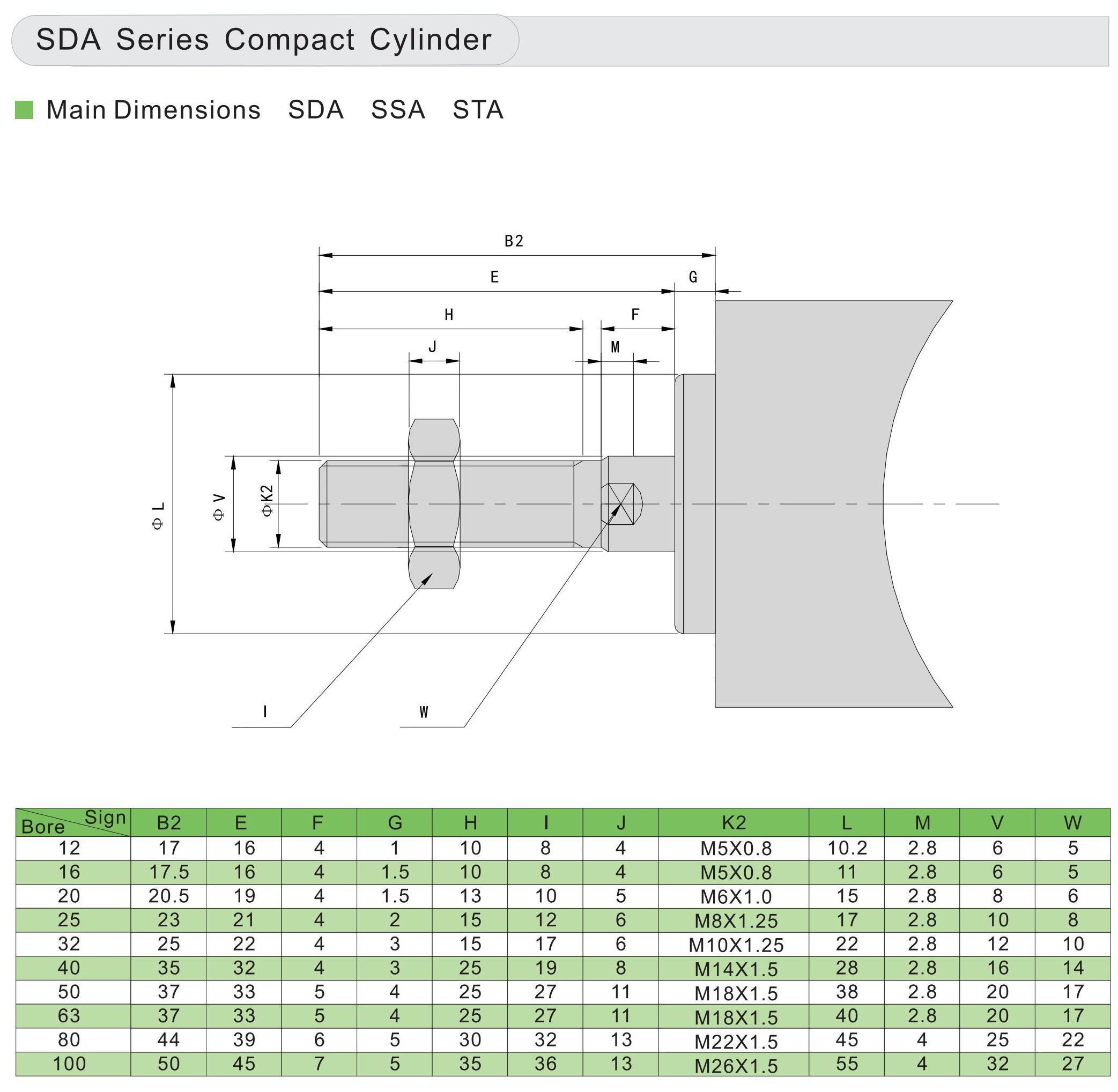

Main Dimensions

SDA参数-2SDA参数-3SDA参数-4SDA参数-5
