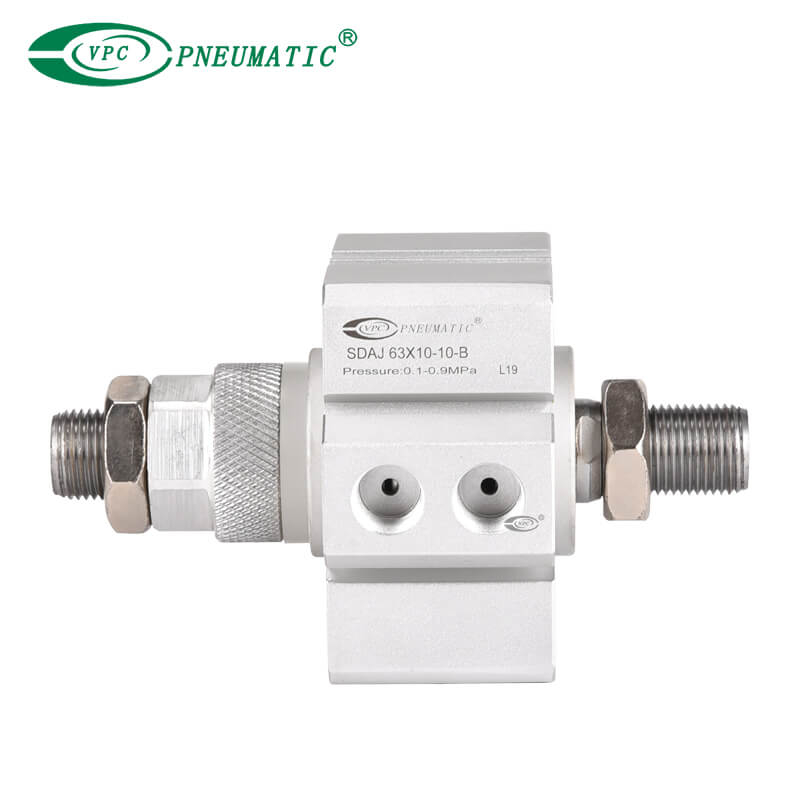

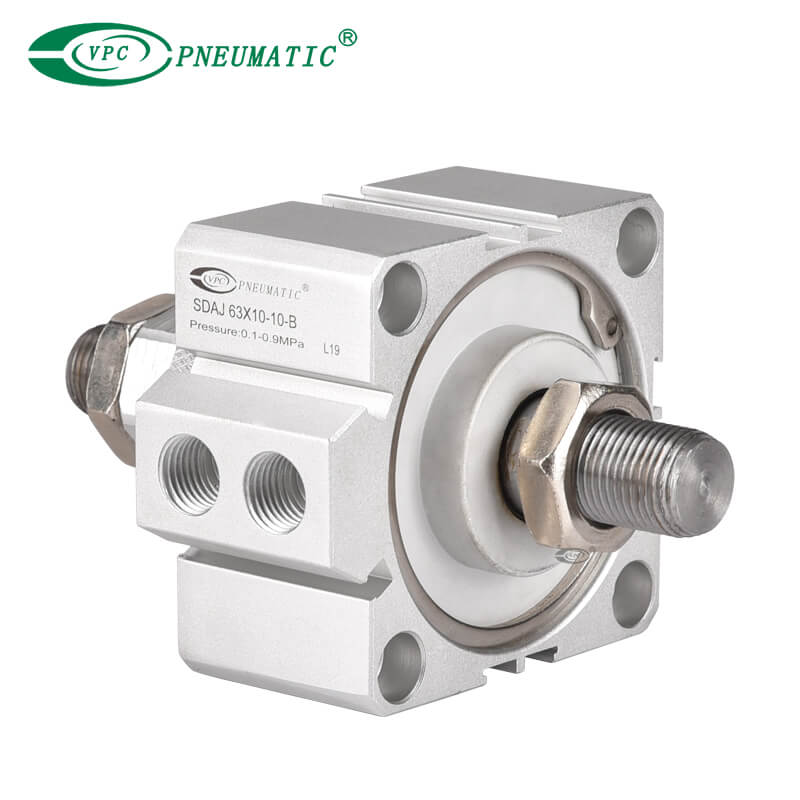

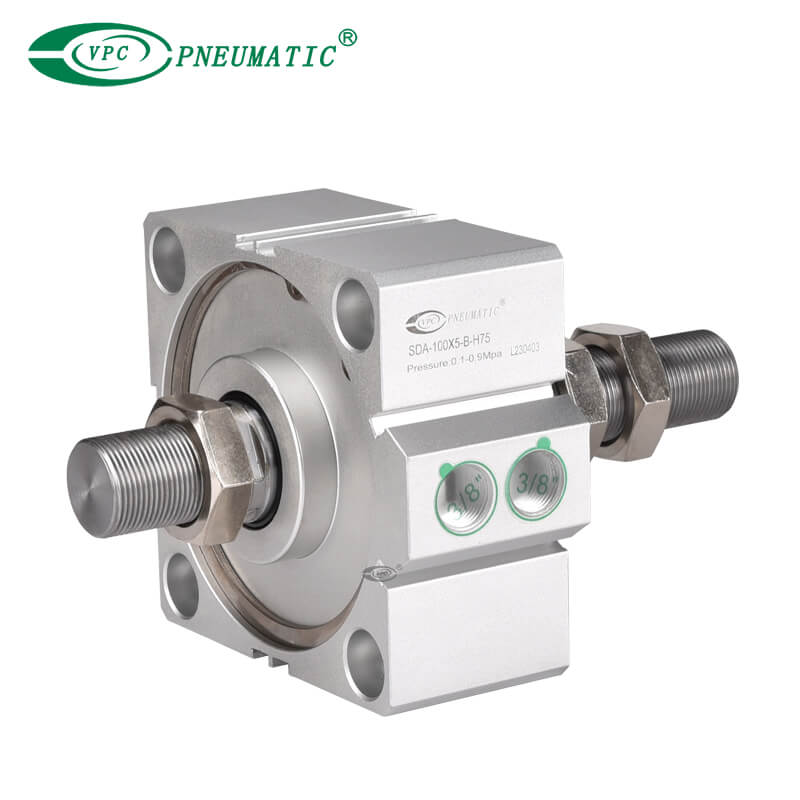

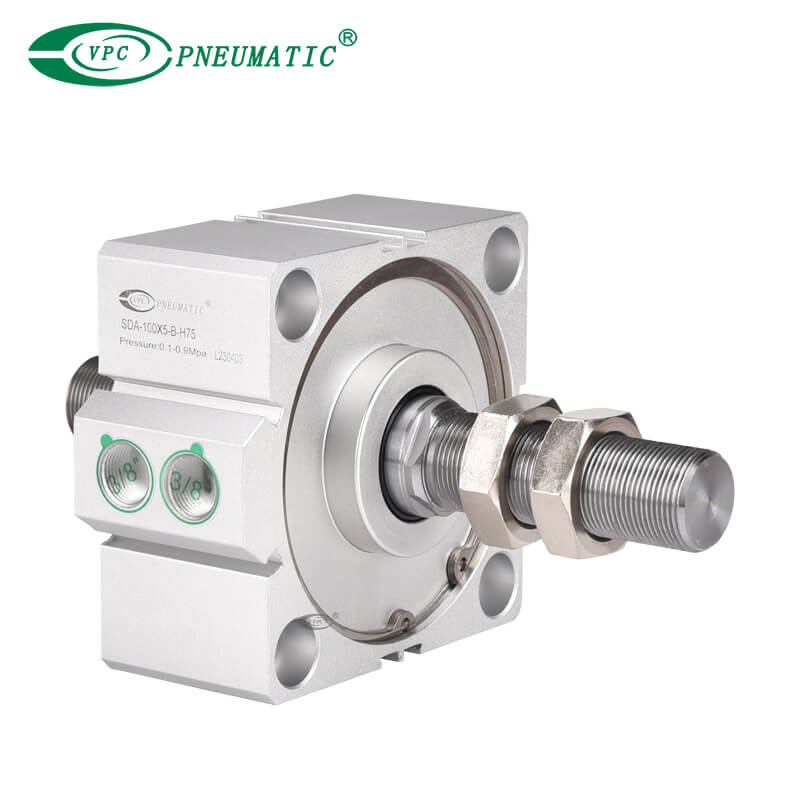

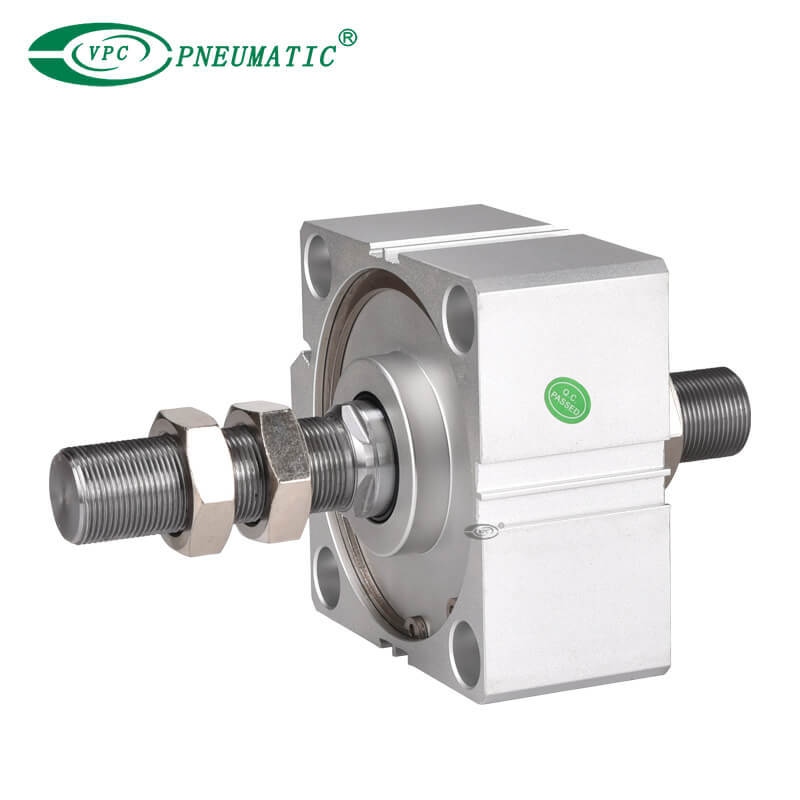

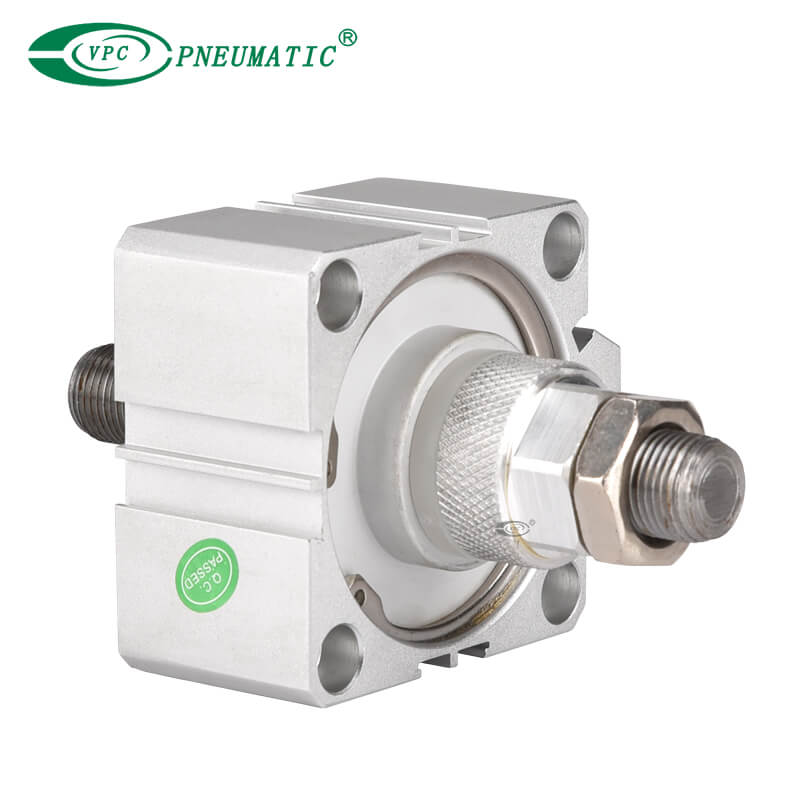

SDAJ Series Compact Pneumatic Cylinder with Adjustable Stroke

1. The design of the SDA compact cylinder incorporates a lightweight, compact structure, making it ideal for integration into tight spaces without sacrificing performance.
2. The double-acting mechanism ensures that the cylinder can exert force in both extension and retraction movements, providing versatility in various mechanical setups.
3. SDAJ small air cylinder double-shaft adjustability is achieved through a sophisticated arrangement of adjustment screws or knobs that enable the user to precisely control the cylinder's alignment along two separate axes.

Model:
SDAJ
Brand:
VPC Pneumatic

Stroke:	12 mm to 1000+ mm
Acting type:	Double acting Single acting
Adjustable stroke :	10 mm to 100 mm
Thread:	Female thread Male thread No thread
Speed range:	30 to 500 mm/s 100 to 500 mm/s
Availability:



Inquire Add to Basket

Product Description

■ Product Feature

1. SDA compact cylinders are available in compliance with both ISO 21287 and JIS standards.

2. Seals and gaskets within the cylinder are usually made from durable materials like polyurethane or nitrile rubber. The seal of the piston adopts a heterogeneous two-way seal structure. It is tightly sealed and has oil reservation function.

3. The thin cylinder design makes it an excellent choice for applications with limited space.

4. There are magnetic switch slots around the cylinder body, which is convenient for installing sensor switches.

5. Customized stroke, seals, bore, cylinder accessories and repair kits are available.

■ Symbol

small pneumatic cylinder

Product Specifications

Bore (mm)		12	16	20	25	32	40	50	63	80	100
Acting type		Double acting
		Single acting spring extend, Single acting spring return								—
Working medium		Clean air(40 μm Filteration)
Pressure range	Double acting	0.1 to 0.9 Mpa
	Single acting	0.2 to 0.9 Mpa								—
Guaranteed pressure		1.5 Mpa (213 Psi)
Working temperature		-5 to 70 ℃
Speed range	Double acting	30 to 500 mm/s						30 to 350 mm/s		30 to 250 mm/s
	Single acting	100 to 500 mm/s						—
Cushion type		Fixed Cushion
Port size		M5X0.8				G1/8		G1/4		G3/8
