SLC Series Water Dispenser Solenoid Valve
SLC Series Water Dispenser Solenoid Valve SLC Series Water Dispenser Solenoid Valve
SLC Series Water Dispenser Solenoid Valve SLC Series Water Dispenser Solenoid Valve
SLC Series Water Dispenser Solenoid Valve SLC Series Water Dispenser Solenoid Valve
SLC Series Water Dispenser Solenoid Valve SLC Series Water Dispenser Solenoid Valve

loading

SLC Series Water Dispenser Solenoid Valve

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

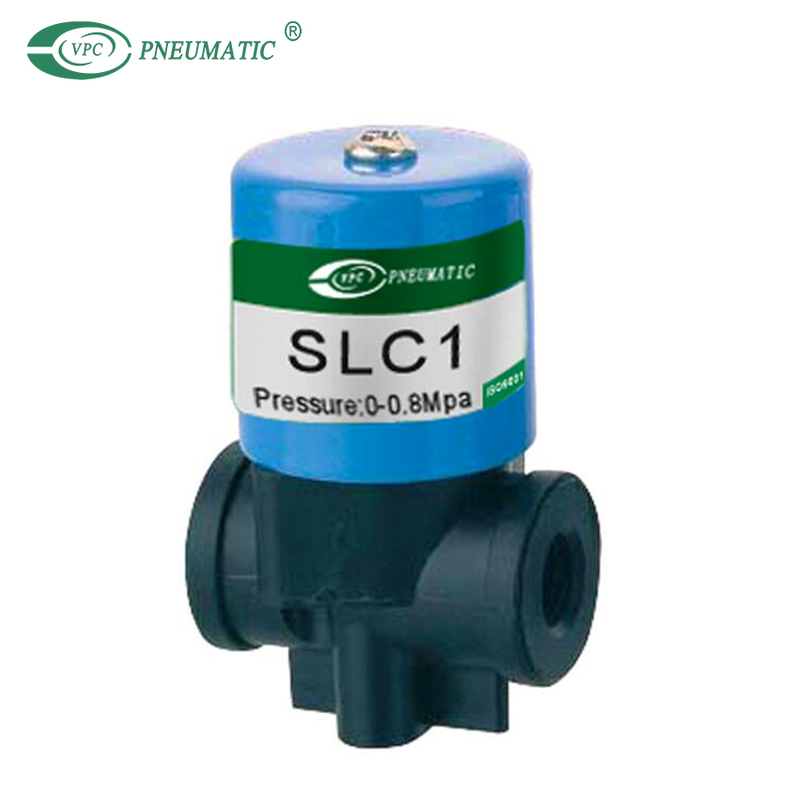

  • SLC series Plastic Solenoid Valve is mainly used in the field of water fountain, washing machine, and other drinking system etc.
  • Food level standard products, pipe connection and thread type connection, suitable for different requirements.
  • Oriffice have 2.5mm, 8mm and 9mm, thread sieze range from 1/8" to 1/4", The body materials can be made of PP and Nylon, depending on the differernt requirements.

  • SLC1

  • VPC Pneumatic

  • 8481804090

Working medium:
Water
Type:
Normal close
Working temperature:
0 to 60℃
Working pressure:
≤Ф50 0 to 0.6Mpa
≥Ф65 0.06 to 0.5Mpa
Body Material:
Brass
stainless steel ：SS304&SS316
Acting type:
Direct acting
Availability:
Inquire Add to Basket

Product Description

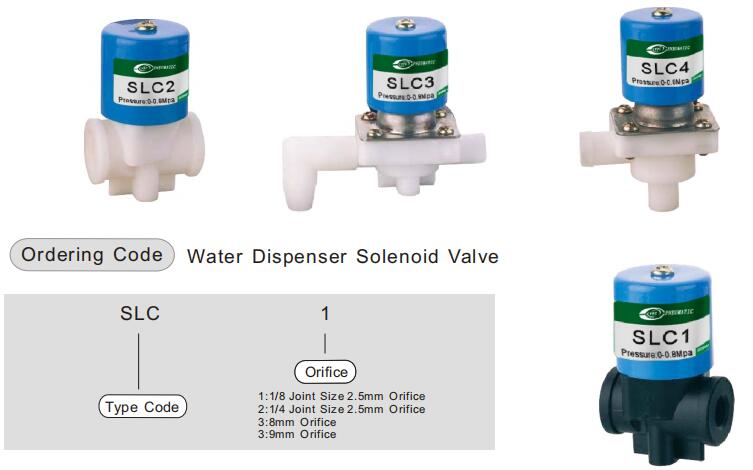

SLC-order code

Product Specifications

Model
SLC1
SLC2
SLC3
SLC4
Working Medium
Water
Acting Type
Direct Acting Type(N.C.)
Control Type
2 Position 2 Way
Orifice
2.5mm(3/32)
8mm
9mm
Joint Size
G1/8"
G1/4"
12mm
Working Pressure
0~0.8Mpa
Working Temperature
0~100℃
Ambient Temperature
-10~40℃
Valve Body Material
EPDM
Silicone Rubber
Seal Material
PP1/8(Black) 1/4(White) Nylon 66
PP

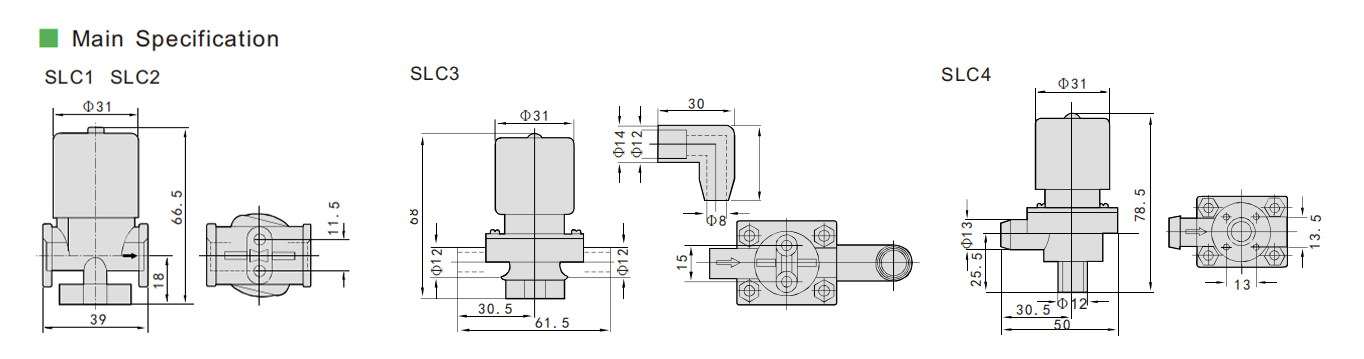

Main Dimensions
