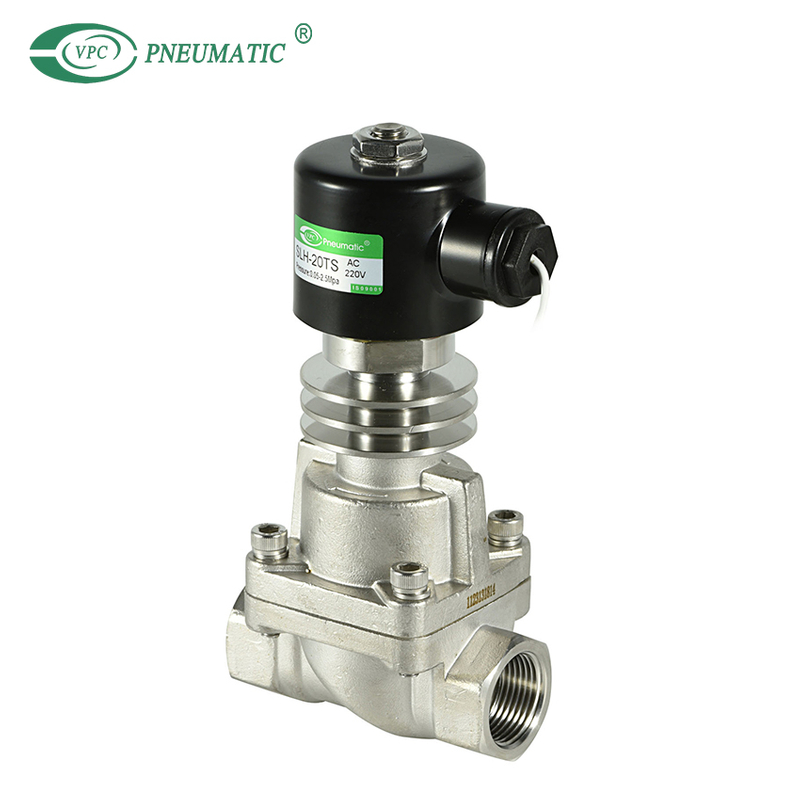

Product Description
Product Specifications
* Coil type:Standard H Class Metallic Housing,lead wires(W type);
* Medium Temperature:5°C~250°C(seals telfon+metal);
* Working Medium:Steam,heat-conducting oil etc(pls choose according to the related seals);
* Action:Pilot structure solenoid valve . started by operation pressure;
* Body Material:Stainless steel.

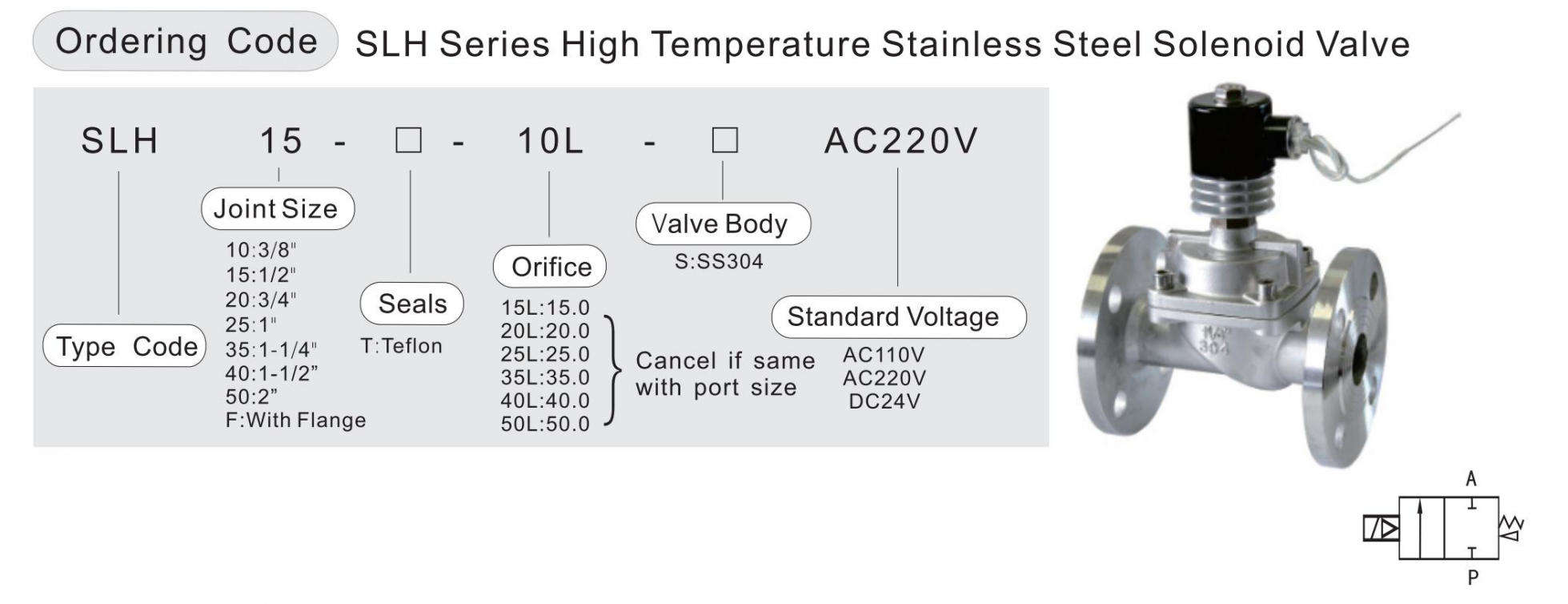

| Joint Size (G) | Orifice (mm) | CV Value | Pressure Differential(Bar) | Max Liquid Temperature (℃) | External Dimension | Model Code | ||
| Min. Pressure | Max.Working Pressure | |||||||
| Heat-conducting oil | Steam | LXWXH AXBXH | ||||||
| 3/8“ | 15 | 4.5 | 0.5 | 16 | 16 | 250 | 75X52X159 | SLH10T-15LS |
| 1/2” | 15 | 4.5 | 0.5 | 16 | 16 | 250 | 75X52X159 | SLH-15TS |
| 3/4“ | 20 | 8.0 | 0.5 | 16 | 16 | 250 | 85X60X171 | SLH-20TS |
| 1” | 25 | 12 | 0.5 | 16 | 16 | 250 | 100X70X178 | SLH-25TS |
| 1-1/4“ | 35 | 22 | 0.5 | 16 | 16 | 250 | 120X90X198 | SLH-35TS |
| 1-1/2” | 35 | 22 | 0.5 | 16 | 16 | 250 | 120X90X198 | SLH-40TS |
| 2“ | 50 | 45 | 0.5 | 16 | 16 | 250 | 150X110X220 | SLH-50TS |
| Flange Connec-tion | 25 | 12 | 0.5 | 16 | 16 | 250 | See Following List | SLHFT-25LS |
| 32 | 22 | 0.5 | 16 | 16 | 250 | SLHFT-32LS | ||
| 40 | 22 | 0.5 | 16 | 16 | 250 | SLHFT-40LS | ||
| 50 | 45 | 0.5 | 16 | 16 | 250 | SLHFT-50LS | ||

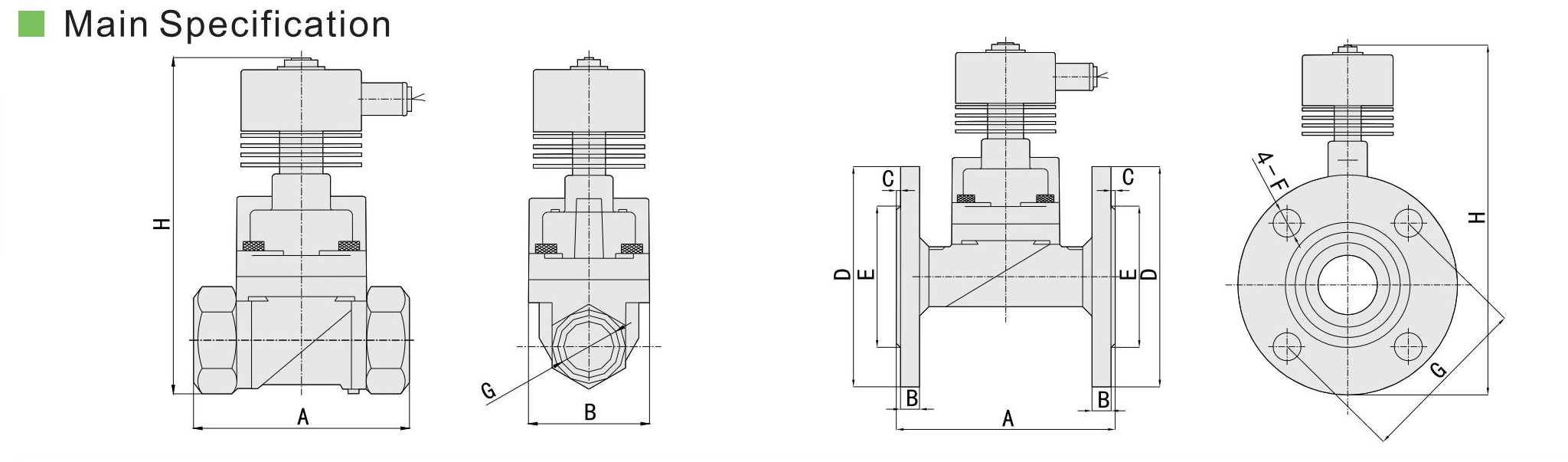

Flange Connection Selection List
| Model | A | B | C | ФD | ФE | ФF | ФG | H |
| DN25 | 134 | 13 | 2 | 110 | 58 | 14 | 80 | 215 |
| DN32 | 160 | 15 | 2 | 135 | 76 | 18 | 100 | 230 |
| DN40 | 160 | 15 | 2 | 145 | 84 | 18 | 125 | 235 |
| DN50 | 200 | 16 | 2 | 155 | 88 | 18 | 125 | 280 |
