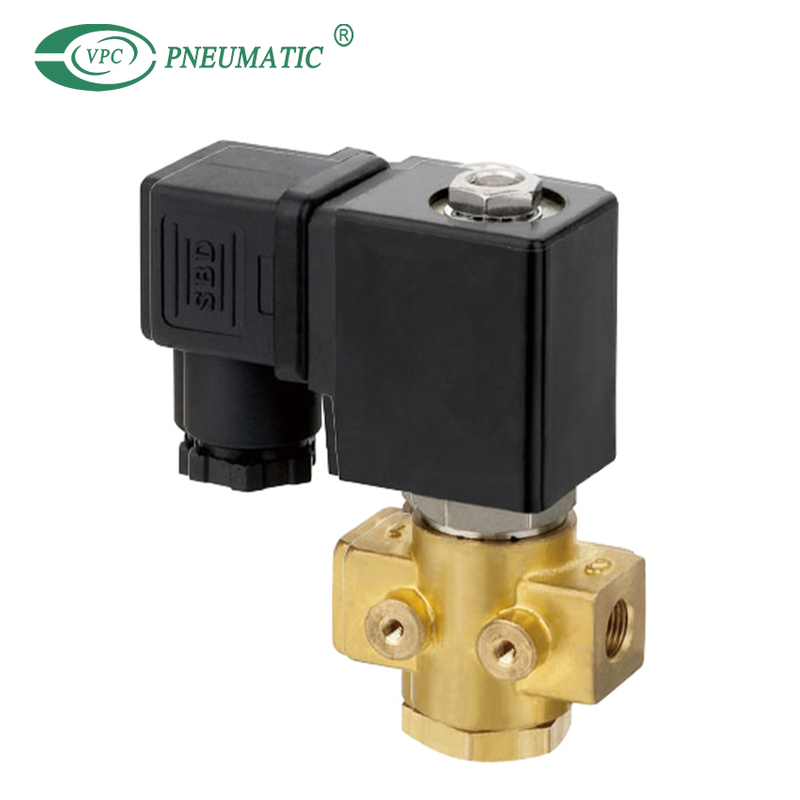

SLP Series 2/2 Way Normal Open Solenoid Valve

Share to:
  1. 2/2 way normal open solenoid valve,open when de-energized ,close when energized;
  2. There are NBR/VITON/EPDM etc to provide on-off control of various fluids;
  3. Body material:brass and ss316 are opitional;
  4. Joint size from 1/8" to 2", For stainless steel,flange connection is optional;
  5.  Voltage:AC24V/AC110V/AC220V/AC240V 50/60HZ;DC12V/DC24V according to the requirements to choose ,also can fix Germany Nass coil;
  6. Direction of flow as the arrow ,install in any position, but the best position is solenoid coil upright,horizontal direction installation for enhancing the service life.
  • SLP
  • VPC Pneumatic
  • 8481804090
Working medium:
Type:
Working temperature:
Ambient temperature:
Body Material:
Availability:

Product Description

SLP 参数-1NOSLP 参数-2NC

Product Specifications

Working MediumAir,Gas,Water,Oil
TypeNormal open
Ambient temperature0 to 65℃
Working temperature0 to 130℃
Seal materialNBR,EPDM,VITON
Body materialBrass,SS316


Mounting

Direction of flow as the arrow,install in any position,but the best position is solenoid coil upright,horizontal direction in stallation for enhancing the service life.


Main Dimensions

SLP 参数-2NOSLP参数-3NO
