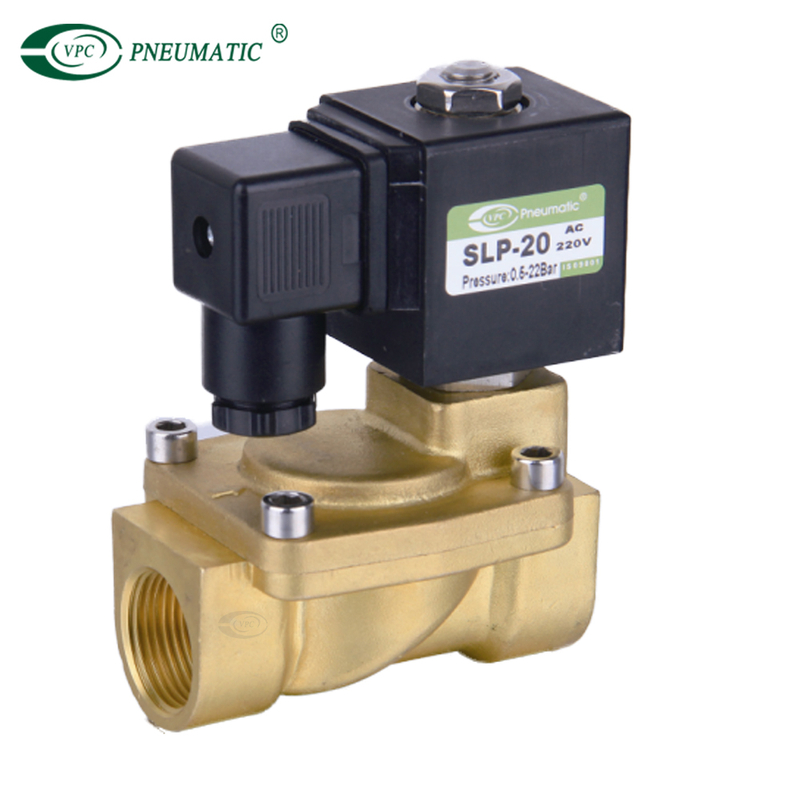

SLP Series Big Diameter 2/2 Way Normal Close Solenoid Valve

  1. 2-Way normally closed solenoid valve, closed when de-energized, open when energized.
  2. Serialized products, small in size, large flow rate, widely use.
  3. Body material: forged brass.316 stainless steel.
  4. Flow as the arrow, mounts in any position; Best position is solenoid vertical and upright direction.
  5.  Voltage: 220VAC/230VAC/240VAC/110VAC/24VAC 50/60HZ 24VDC/12VDC; Voltage Tolerance: +10% to -10% applicable voltage.
  6. This series valves are offered NBR、VITON、 EPDM etc for seals and diaphragm to provide on-off control of various fluids.
  7.  Coil can fix SM Coil. AC 220V/AC110V/AC24V/DC24V.
Working medium:
Type:
Working temperature:
Ambient temperature:
Body Material:
  • SLP-20L
  • VPC Pneumatic
  • 8481804090

Product Description

SLP 参数-1NCSLP 参数-2NC

Product Specifications

Working MediumAir,Gas,Water,Oil
TypeNormal close
Ambient temperature0 to 65℃
Working temperature0 to 130℃
Seal materialNBR,EPDM,VITON
Body materialBrass,SS316


Mounting

Direction of flow as the arrow,install in any position,but the best position is solenoid coil upright,horizontal direction in stallation for enhancing the service life.


Main Dimensions

SLP 参数-3NCSLP 参数-5NC
