SLP Series Small Diameter 2/2 Way Normal Close Solenoid Valve

SLP solenoid valve maintains a high working pressure of 16 bar, which is much higher than the usual 8 bar.
The connection size is from 1/8″ to 2″. A flange connection is not necessary for stainless steel.
According to different industry requirements, the SLP series solenoid valves offer 7 different voltage coils for your application.

Model:

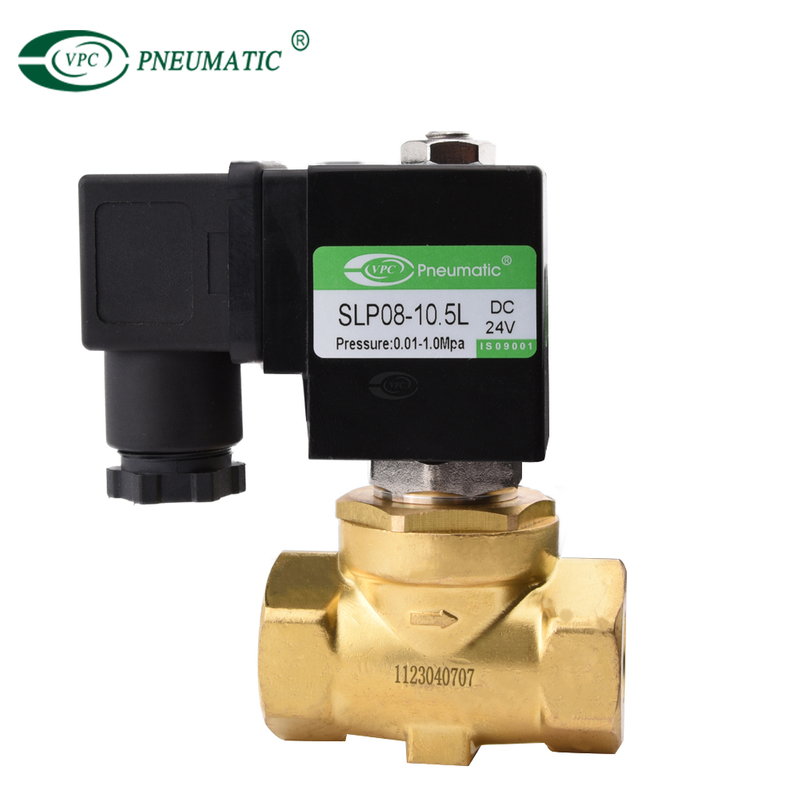

SLP08-10.5L
Brand:
VPC Pneumatic
Code:
8481804090

Working medium:	Air/Gas/Water/Oil
Type:	Normal close
Working temperature:	0 to 130℃
Ambient temperature:	0 to 65℃
Body Material:	Brass,SS316
Availability:



Inquire Add to Basket

Product Description

■ Product Feature

1. 2/2 way normally closed solenoid valve, close when de-energized, opens when energized.

2. Stainless steel valve and brass valve can be normally closed and normally open, with NBR seal, EPDM seal and VITON seal, applicable to any media such as air, gas, water, hot water, liquid, etc.

3. Voltage: DC12v, DC24v, AC24v, AC110v, AC220v, AC230v, AC240v. According to requirements to choose, also can fix Germania Nass coil.

■ Symbol

solenoid valve 12 volt 2 2 way solenoid valve

SLP 参数-1NC SLP 参数-2NC

Product Specifications

Working Medium	Air, Gas, Water, Oil
Type	Normal close
Ambient temperature	0 to 65℃
Working temperature	0 to 130℃
Seal material	NBR (EPDM and VITON are optional)
Body material	Brass,SS316
Mounting	Direction of flow is the arrow, installed in any position, but the best position is the solenoid coil upright, the horizontal direction in installation for enhancing the service life.
