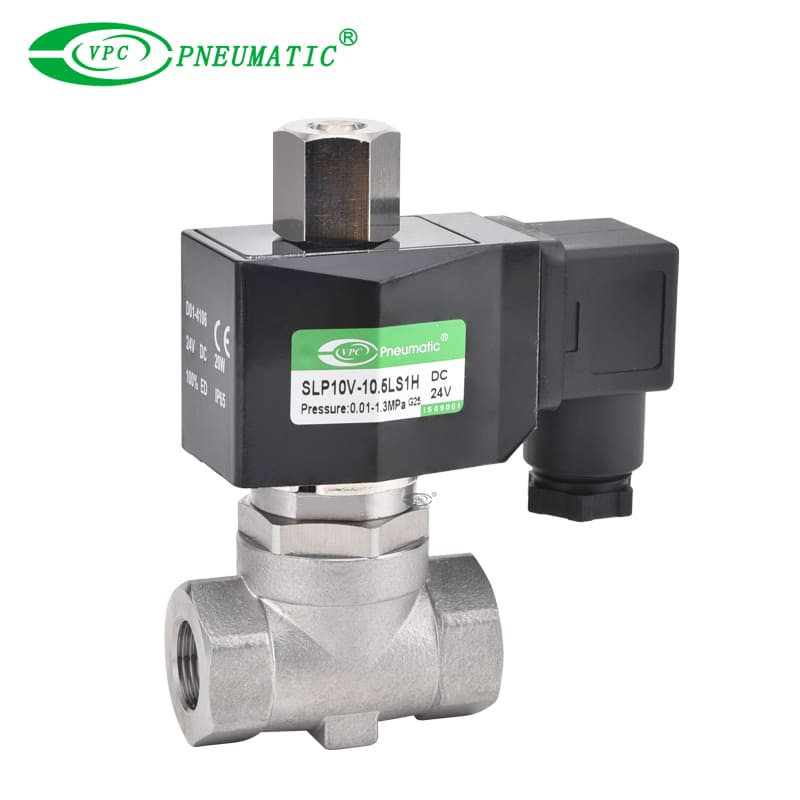

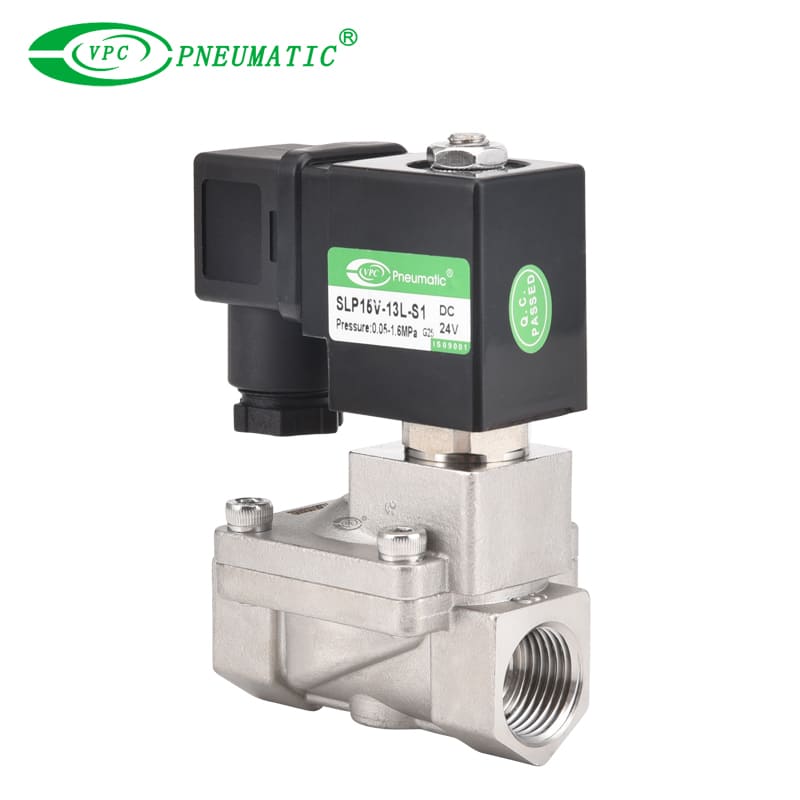

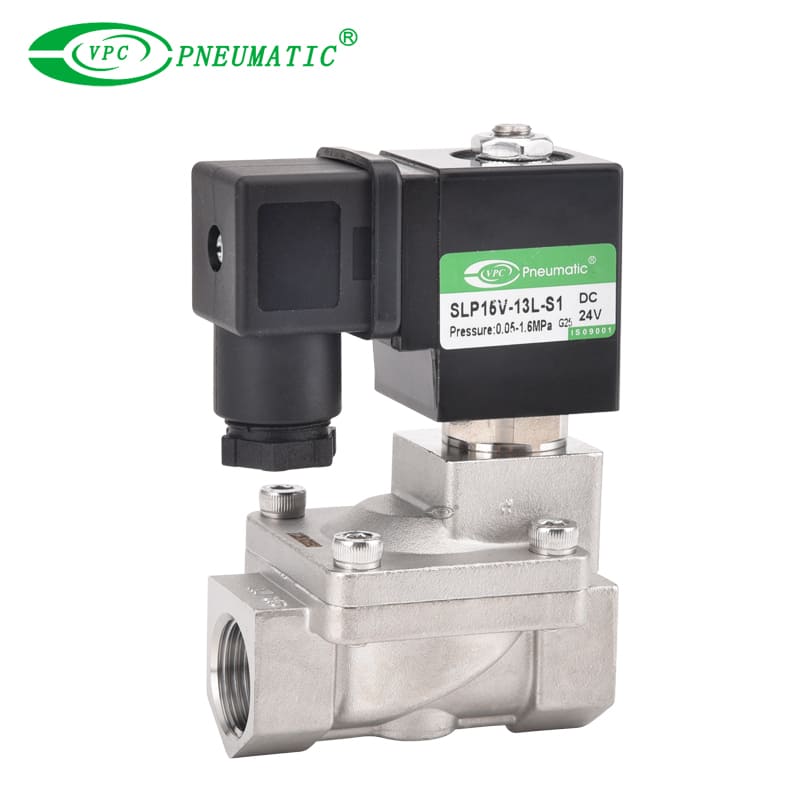

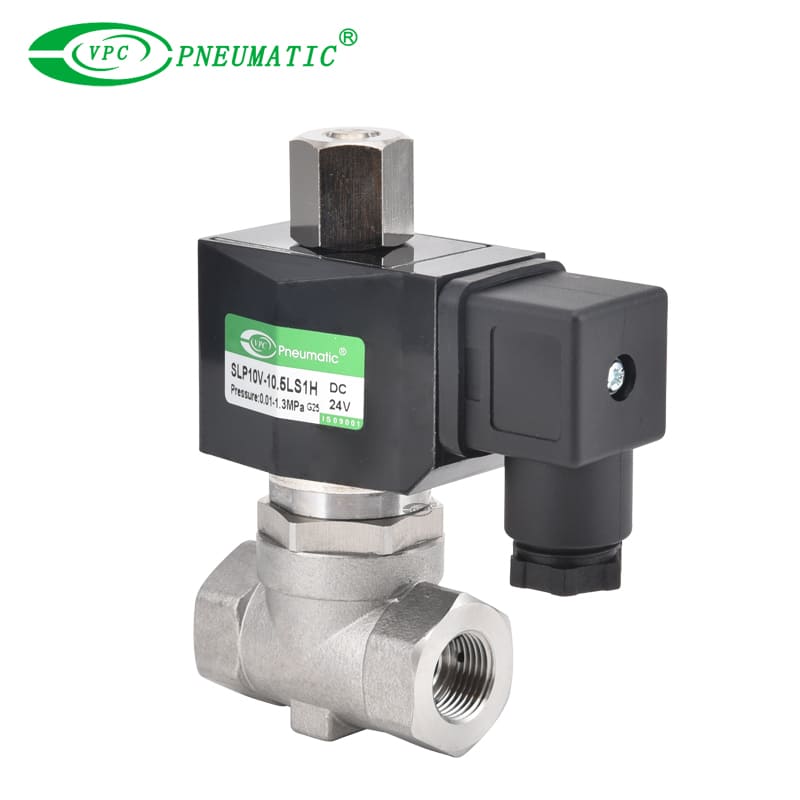

SLP Series Stainless Steel 2/2 Way Normal Close Solenoid Valve

Share to:
SLP series solenoid valves support high working pressure 16bar, which is much higher than normal 8bar. From 1/8” to 4”, SLP series solenoid valves now has a complete range of sizes for your options, including brass valve and stainless steel valve, both of SS valve and brass valve can be normal close valve and normal open valve, with NBR seal, EPDM seal and VITON seal, applicable for many kind of medium like air, gas, water, hot water, liquid, etc. According to different industry demand, the SLP series solenoid valve provides 10 different voltage coils for your use. Very popular around the world wide fluid control system, especially the low power solenoid valve with only 2~8 Watt, which gives the only solution for big overheat problem of solenoid valves at much lower temperature, longer life cycle, faster response, more safety use.
  • SLP08V-5LS
  • VPC Pneumatic
  • 8481804090
Working medium:
Type:
Working temperature:
Ambient temperature:
Body Material:
Availability:

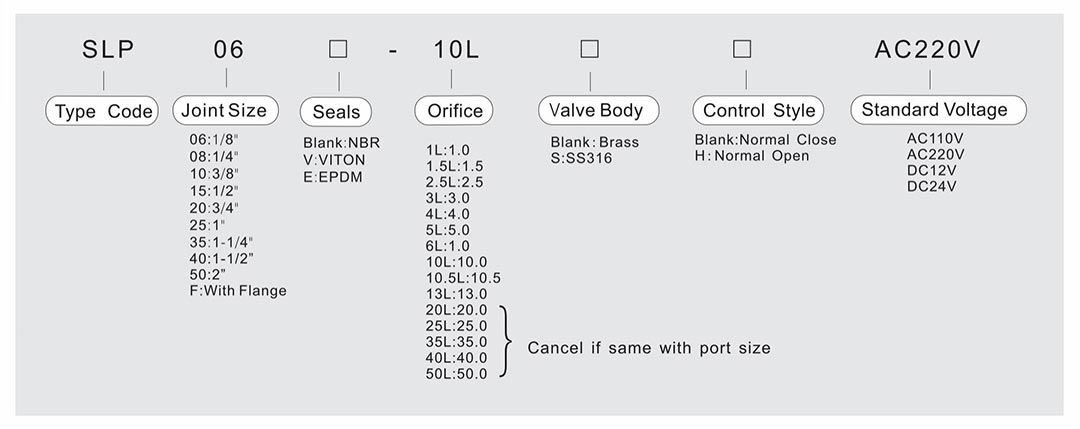

Product Description

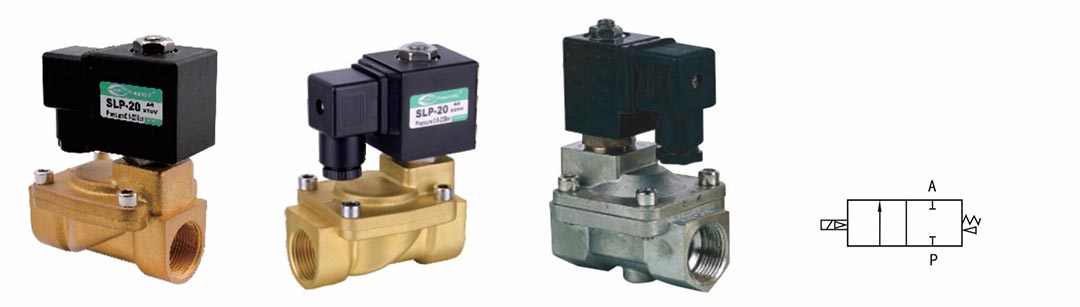

SLP 参数-1NCSLP 参数-2NC

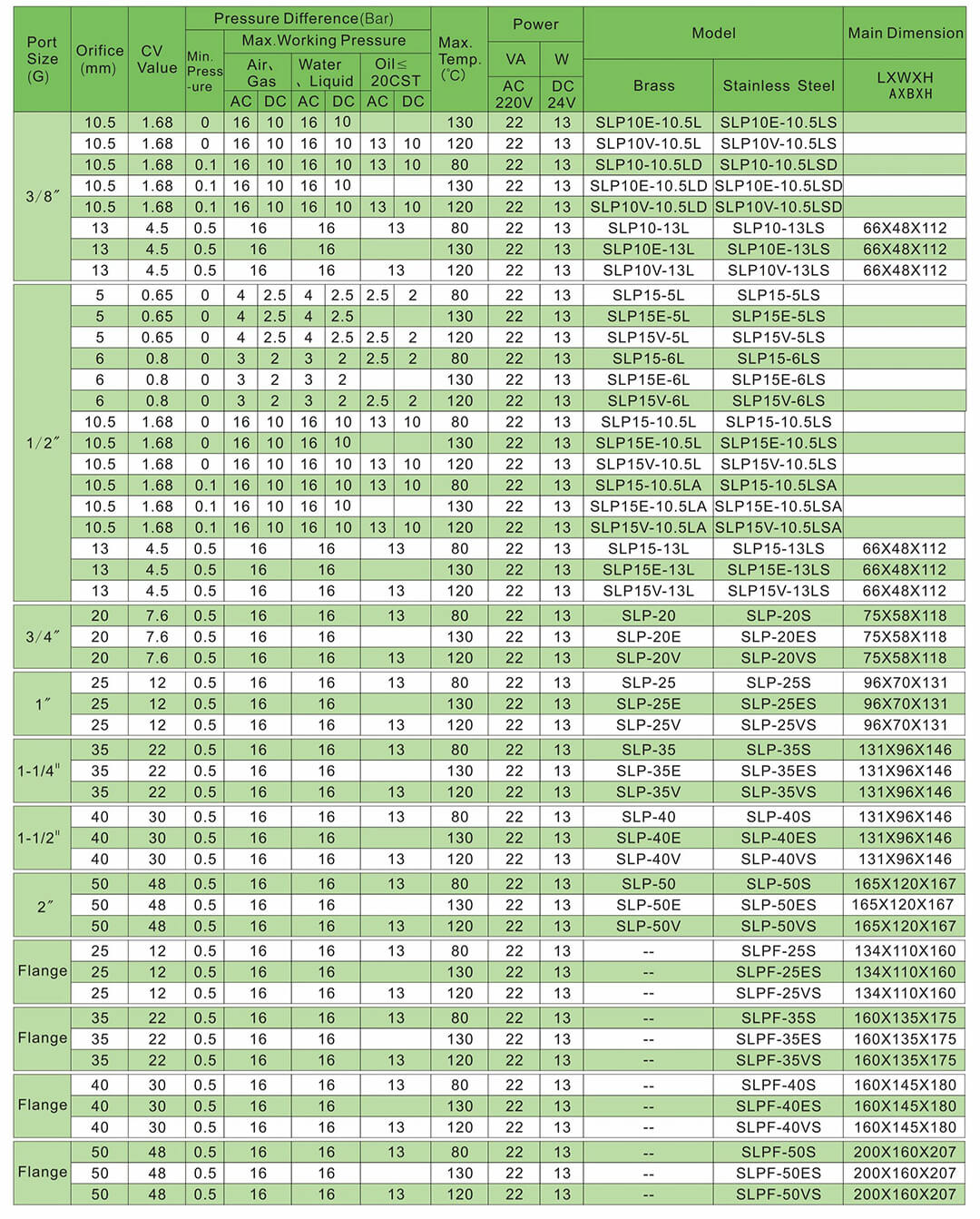

Product Specifications

Working MediumAir,Gas,Water,Oil
TypeNormal close
Ambient temperature0 to 65℃
Working temperature0 to 130℃
Seal materialNBR,EPDM,VITON
Body materialBrass,SS316


Mounting

Direction of flow as the arrow,install in any position,but the best position is solenoid coil upright,horizontal direction in stallation for enhancing the service life.

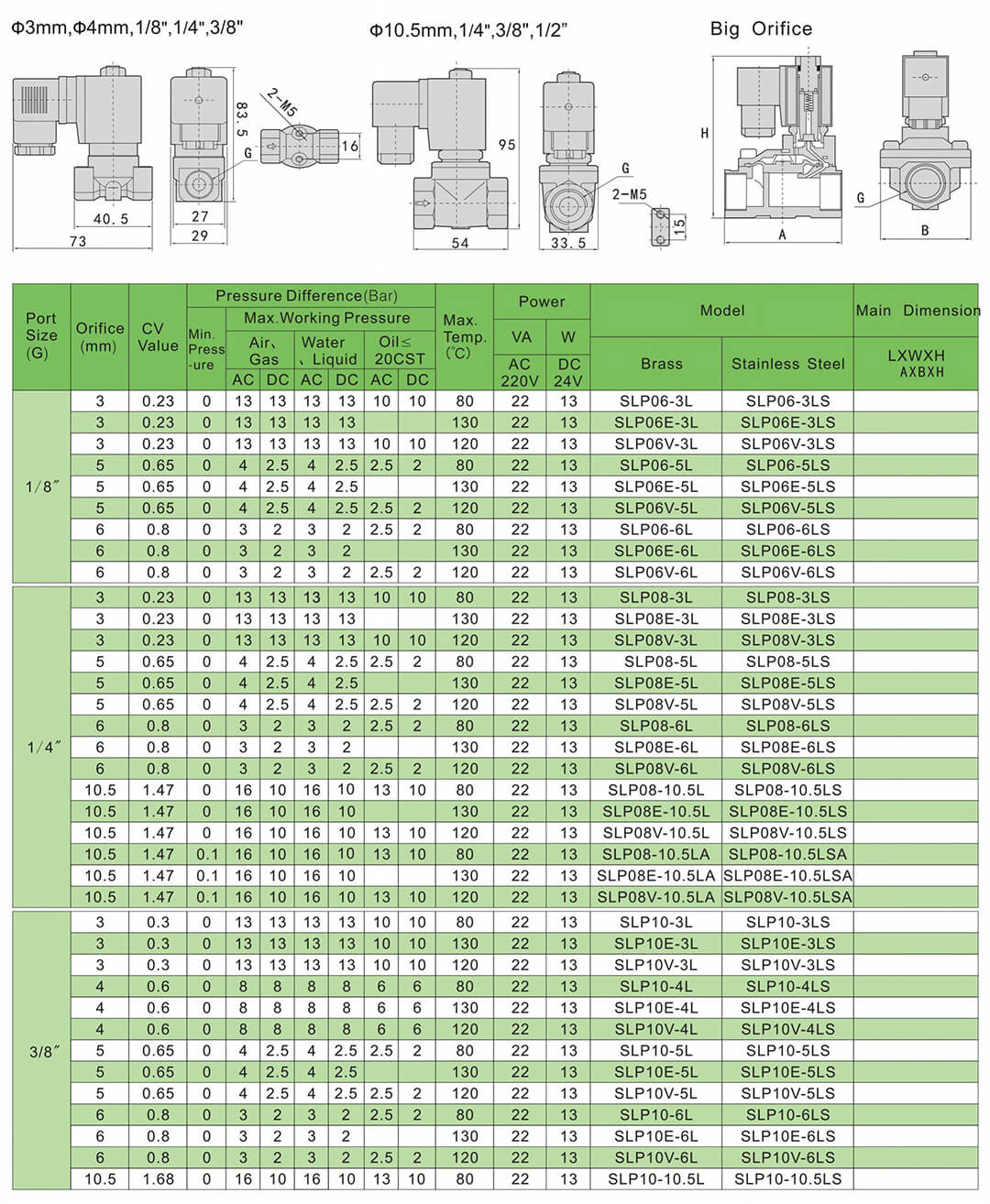

Main Dimensions

SLP 参数-3NCSLP 参数-5NC
