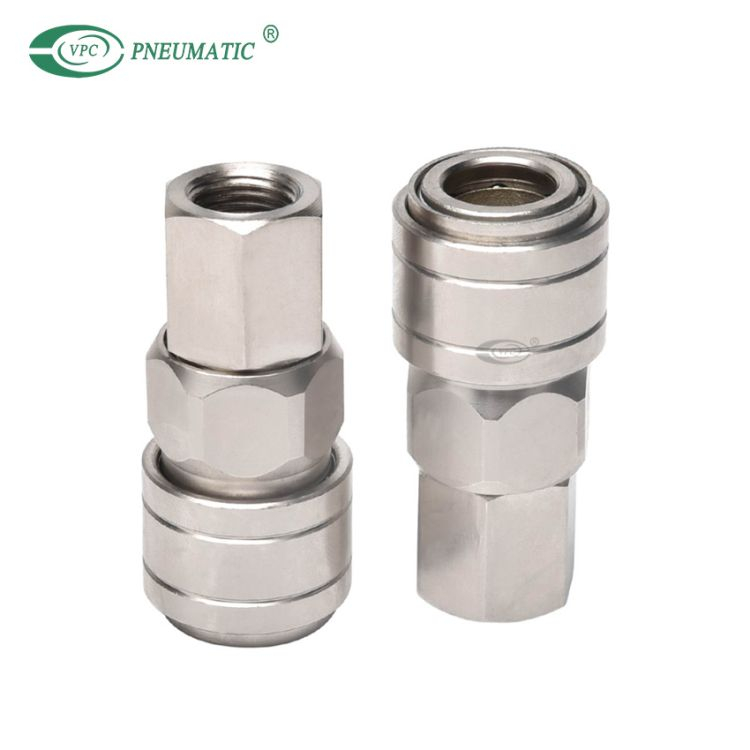

SM Series Quick Coupler

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  1. Light and easy to use for it's made of stainless steel or iron.
  2. Used for piping of compressed air connections.
  3. Used for air tool equipped with drive and impact.
  • SM-20

  • VPC Pneumatic

  • 39174000

Thread:
Body Material:
Quality Warranty:
Availability:

Product Description

 Features

ㆍSafety Coupling with self-venting mechanism;

ㆍNo whiplash effect due to the self-venting which takes place during disconnection;

ㆍ Compact & robust design due to the hardened valve body.

ㆍLow connection forces

■ Applications

Pneumatic Tools;

Pneumatic Airline Systems;

ㆍAssembly Lines.


Product Specifications

Model
SM-20
SM-30
SM-40
SM-400
SM-600
SM-800
Size
1/4" PT Tube
3/8" PT Tube
1/2" PT Tube
1/2" PT Tube
3/4" PT Tube
1" PT Tube
Working Medium
Water or Air
Working Pressure Range
0 to 150Psi
Working Temperature Range
-20 to 107℃(-4F--225F)
Air Flow
35 SCFM at 100 PSIG inlet with 10 PSIG pressure drop
Tube Material
Nylon, PU Tube, PA Hose, etc
