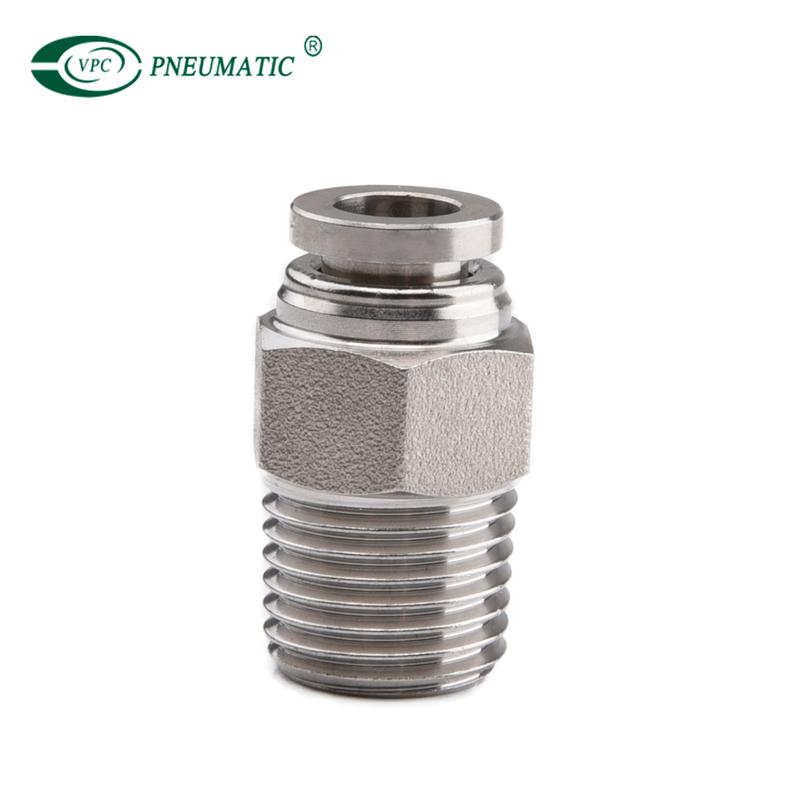

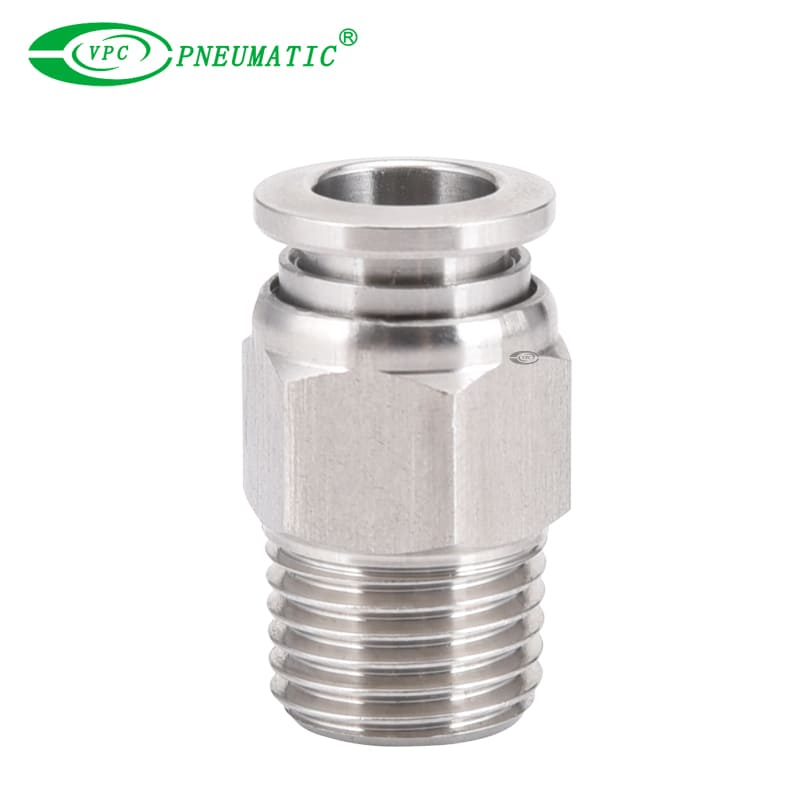

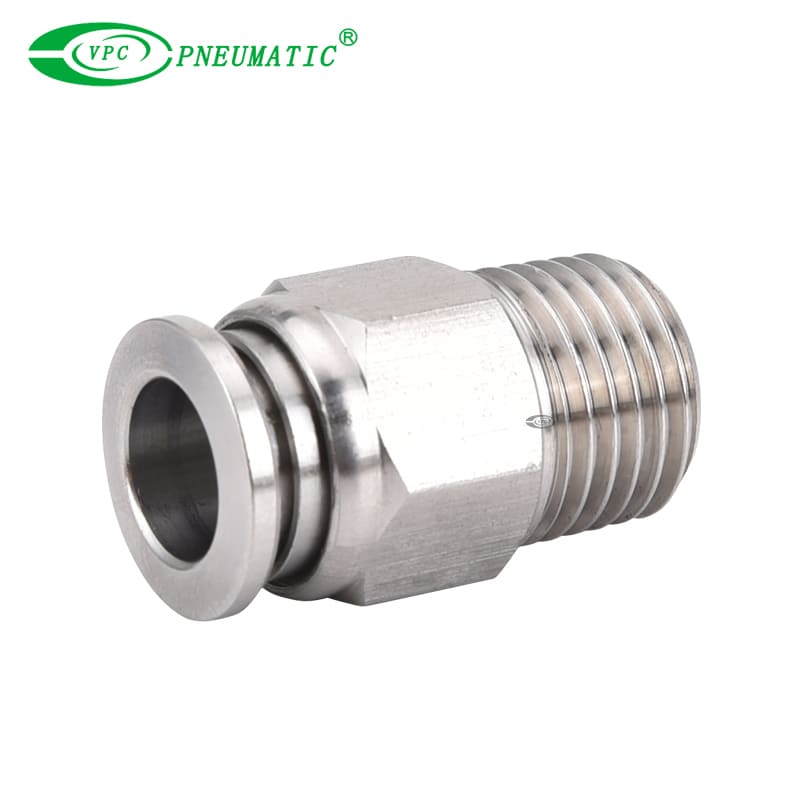

SSPC Stainless Steel Male Thread Straight Fitting

SSPC Stainless Steel Male Thread Straight Fitting

Name: SSPC Stainless Steel Male Thread Straight Fitting
Brand: VPC Pneumatic
SKU: 527847478
Rating: 5.0 (12 reviews)

·Suitable for all those applications where brass nickel-plated and acetal fittings are banned, the new AISI 316L fitting is conceived to withstand corrosive environments (substances), to channel aggressive fluids and to be used in the food and chemical industries.
·Stainless Steel fittings line is standard equipped with FPM seals that will assure endurance at the highest temperatures.

Model:
SSPC04-M5
Brand:
VPC Pneumatic
Code:
39174000

Applicable tube:	PA,PE,PU,FEP,PFA
Thread:	M, R, Rc, UNF, NPT or G
Availability:



Inquire Add to Basket

Product Description

■ Internal Structure

stainless steel pneumatic fittings drawing

■ Symbol

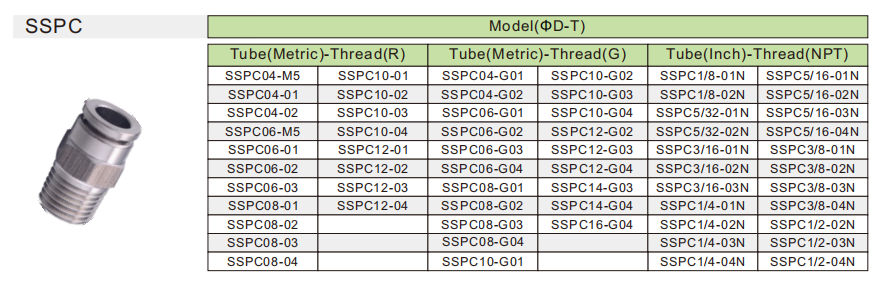

one touch fittings pneumatic ordering code

■ Tube Size

Tube (Metric)

Tube (Inch)

Code

5/32

3/16

1/14

5/16

3/8

1/2

Tube Outside

Ф4

Ф6

Ф8

Ф10

Ф12

Ф14

Ф16

Ф5/32

Ф3/16

Ф1/14

Ф5/16

Ф3/8

Ф1/2

■ Thread

Thread (Metric)
Code	M5	M6	M8	M10	M12	M14	M16	M20
Thread	M5×0.8	M6×1.0	M8×1.0	M10×1.0	M12×1.25	M14×1.5	M16×1.5	M20×1.5

55° Thread (R)
Code	01	02	03	04	06
Thread	R1/8	R1/4	R3/8	R1/2	R3/4

55° Thread (G)
Code	G01	G02	G03	G04	G06
Thread	G1/8	G1/4	G3/8	G1/2	G3/4

Thread (UNF)		US Thread 60°
Code	U10	01N	02N	03N	04N	06N
Thread	10-32UNF	NPT1/8	NPT1/4	NPT3/8	NPT1/2	NPT3/4

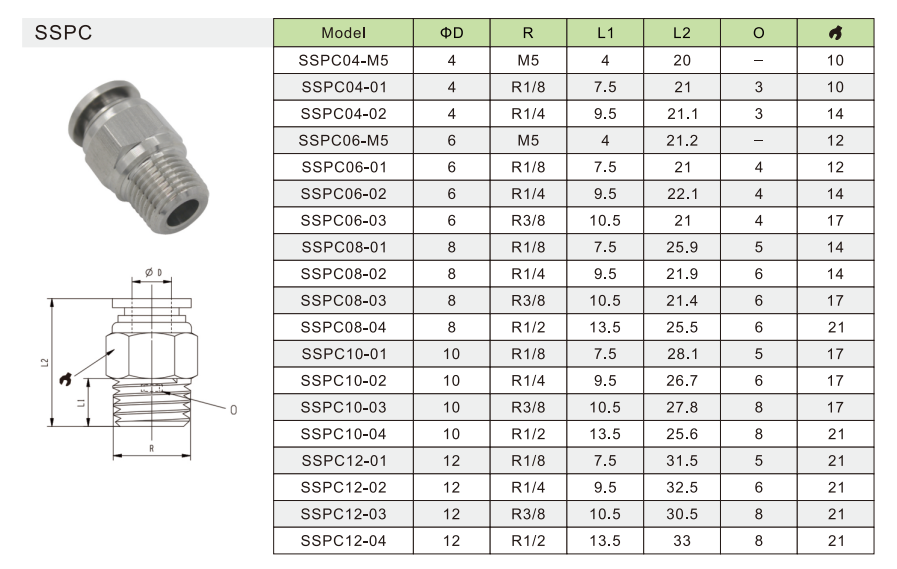

Product Specifications

■ Specification

Working medium	Air, N₂, Water, Steam
Working pressure	0 to 1.5 MPa
Proof pressure	2.0 MPa
Working temperature	-20 to 140°C (No freezing)
Applicable tube	Nylon, PU, FEP, PFA
