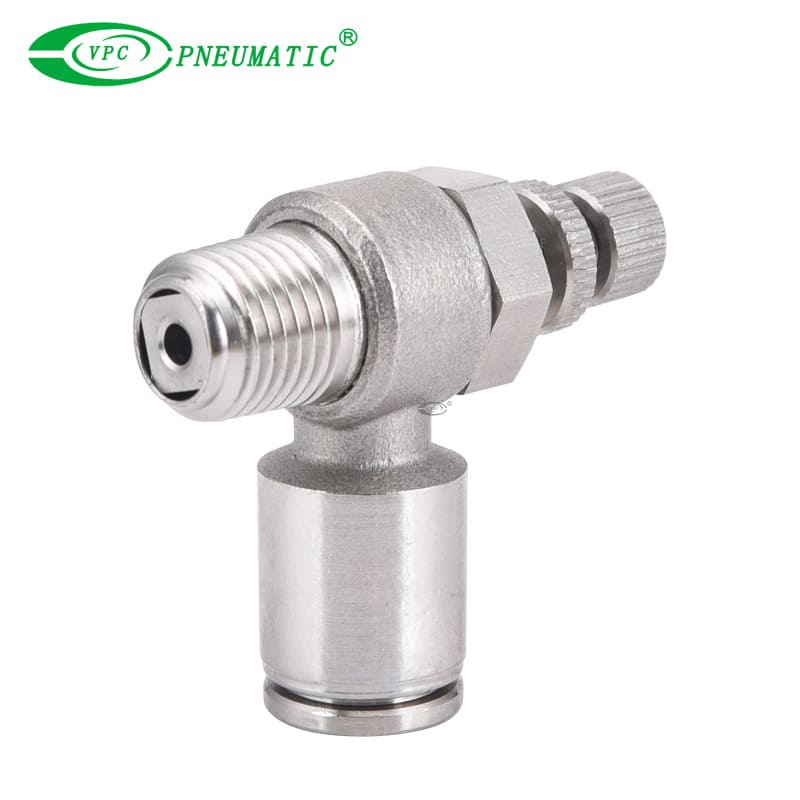

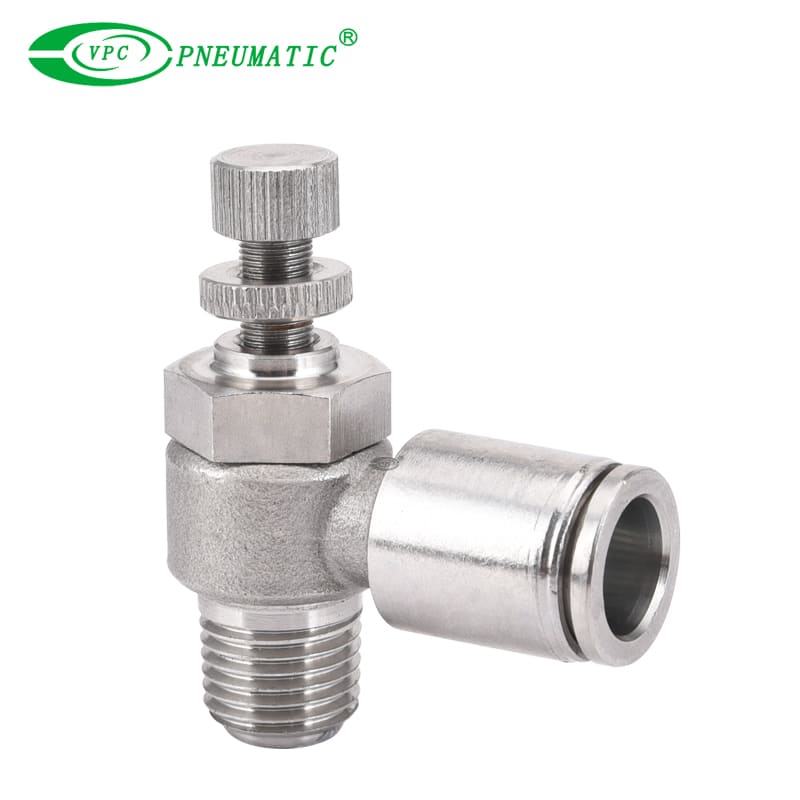

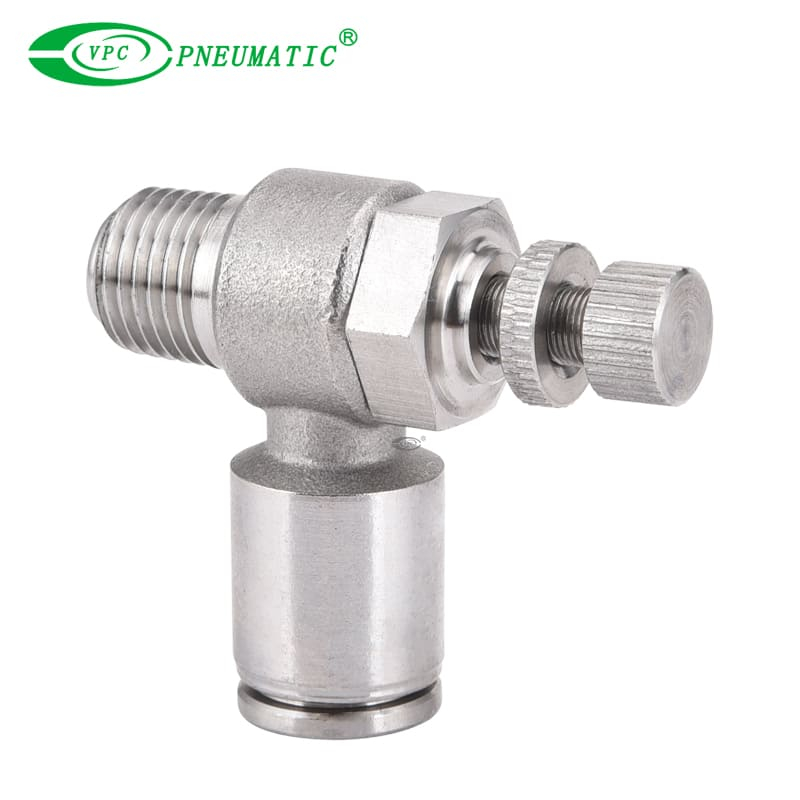

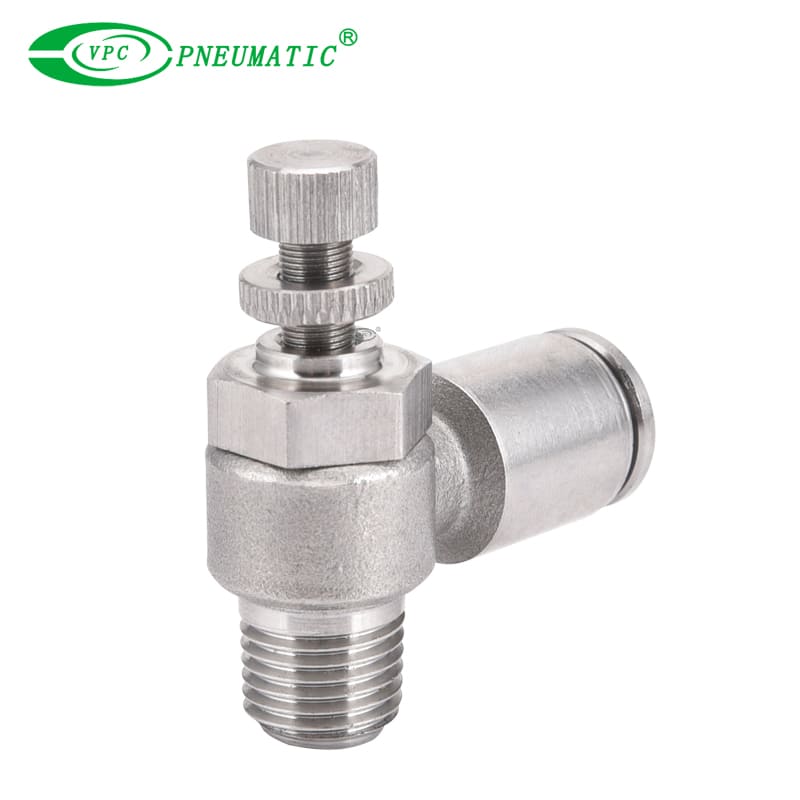

Product Description
1. High Corrosion Resistance: Constructed of 316L stainless steel with molybdenum, it effectively resists chloride and acidic corrosion.
2. Rugged Construction: High-strength metal construction withstands higher operating pressures and temperatures.
3. Leak-Proof Design: Precision threads and seals ensure excellent airtightness at the joints.
4. Sanitary Surface Treatment: Smooth, burr-free interior and exterior surfaces, suitable for food-grade and cleanroom environments.
5. Various Connection Options: Quick-connect, threaded, and compression fittings are available to meet diverse system requirements.
6. Alternative to brass/nickel-plated fittings: Providing a longer service life in applications requiring higher corrosion and rust resistance.
■ Internal Structure

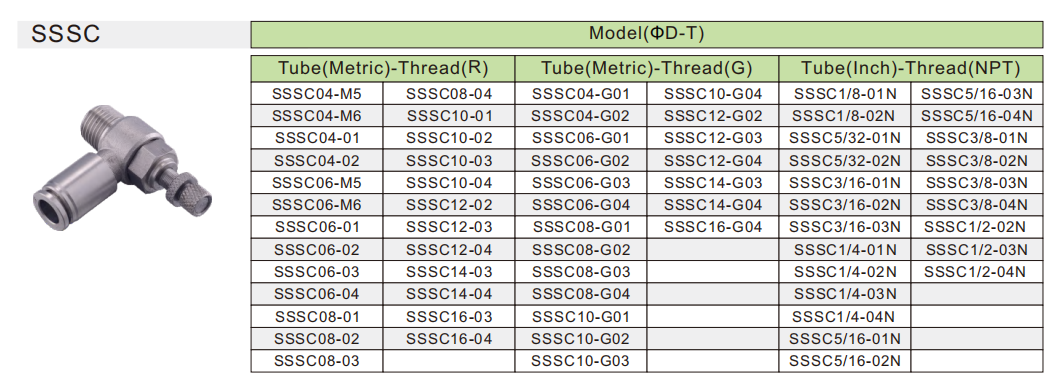

■ Tube Size
| Tube (Metric) | Tube (Inch) | ||||||||||||
| Code | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 5/32 | 3/16 | 1/14 | 5/16 | 3/8 | 1/2 |
| Tube Outside | Ф4 | Ф6 | Ф8 | Ф10 | Ф12 | Ф14 | Ф16 | Ф5/32 | Ф3/16 | Ф1/14 | Ф5/16 | Ф3/8 | Ф1/2 |
■ Thread
| Thread (Metric) | ||||||||
| Code | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 |
| Thread | M5×0.8 | M6×1.0 | M8×1.0 | M10×1.0 | M12×1.25 | M14×1.5 | M16×1.5 | M20×1.5 |
| 55° Thread (R) | |||||
| Code | 01 | 02 | 03 | 04 | 06 |
| Thread | R1/8 | R1/4 | R3/8 | R1/2 | R3/4 |
| 55° Thread (G) | |||||
| Code | G01 | G02 | G03 | G04 | G06 |
| Thread | G1/8 | G1/4 | G3/8 | G1/2 | G3/4 |
| Thread (UNF) | US Thread 60° | |||||
| Code | U10 | 01N | 02N | 03N | 04N | 06N |
| Thread | 10-32UNF | NPT1/8 | NPT1/4 | NPT3/8 | NPT1/2 | NPT3/4 |
Product Specifications
| Working medium | Air, N2, Water, Steam |
| Working pressure | 0 to 1.5 MPa |
| Proof pressure | 2.0 MPa |
| Working temperature | -20 to 140°C (No freezing) |
| Applicable tube | Nylon, PU, FEP, PFA |

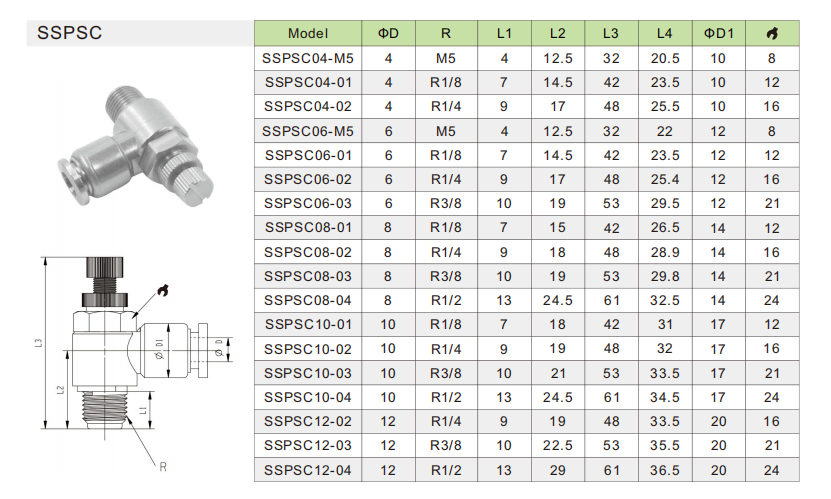

Main Dimensions
