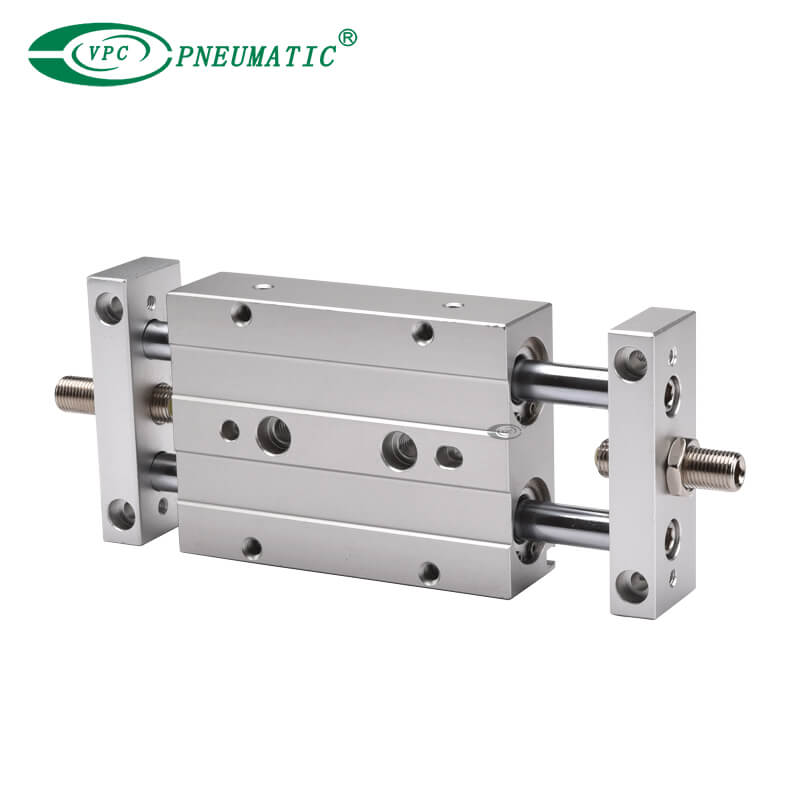

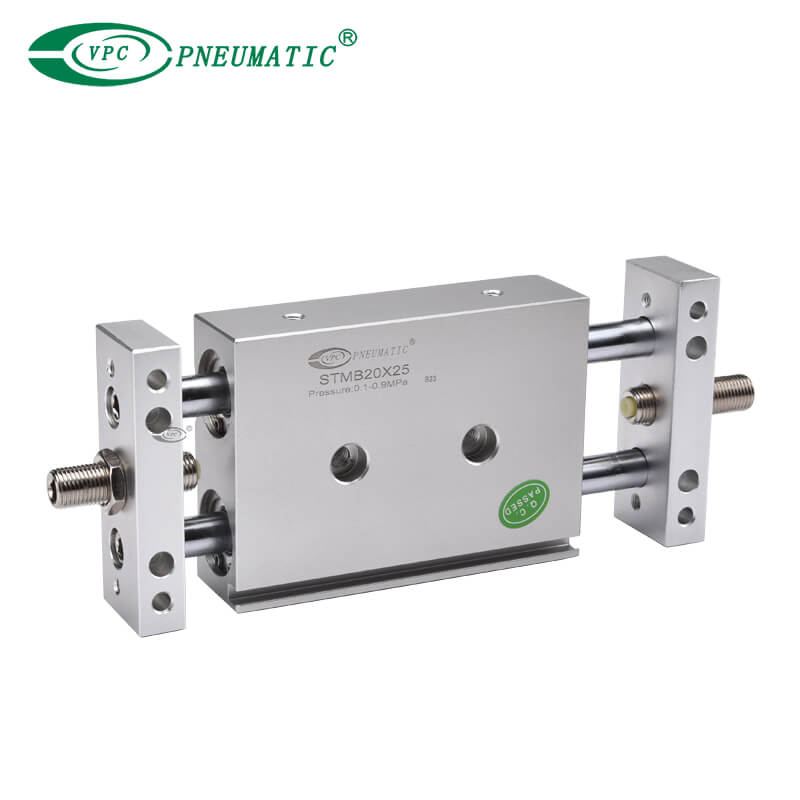

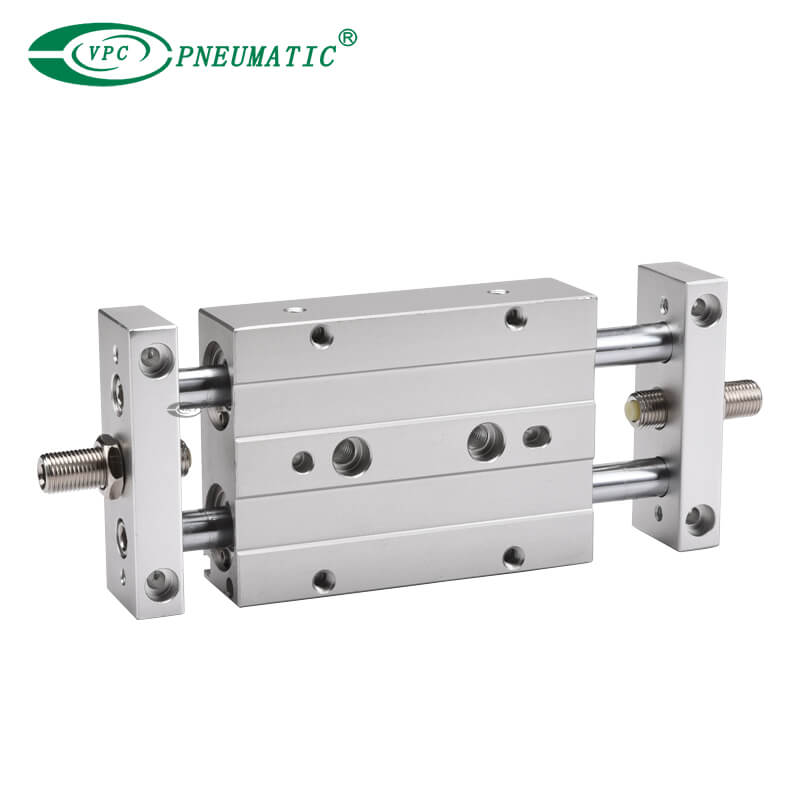

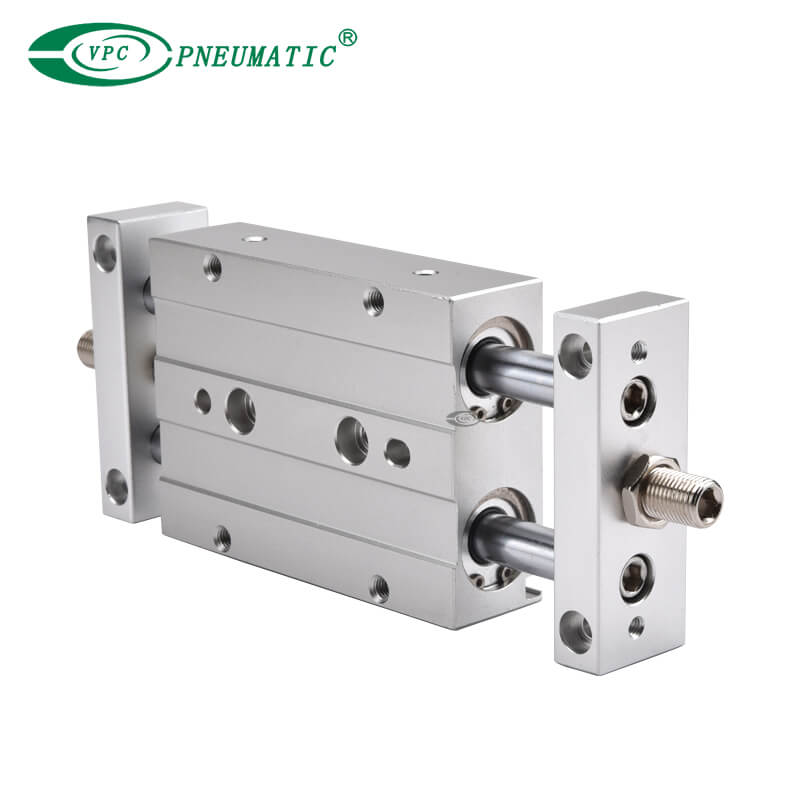

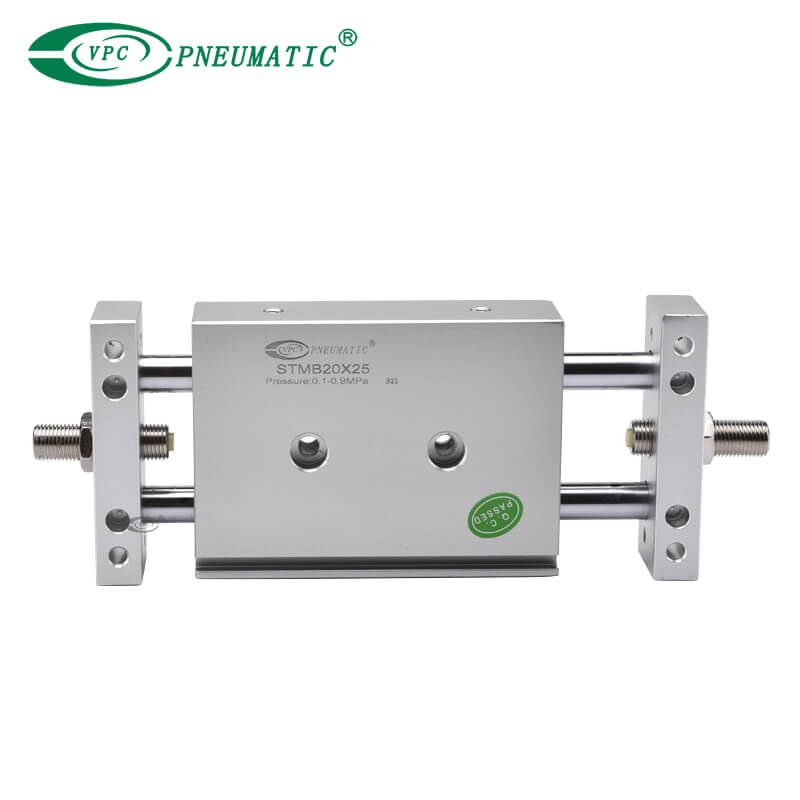

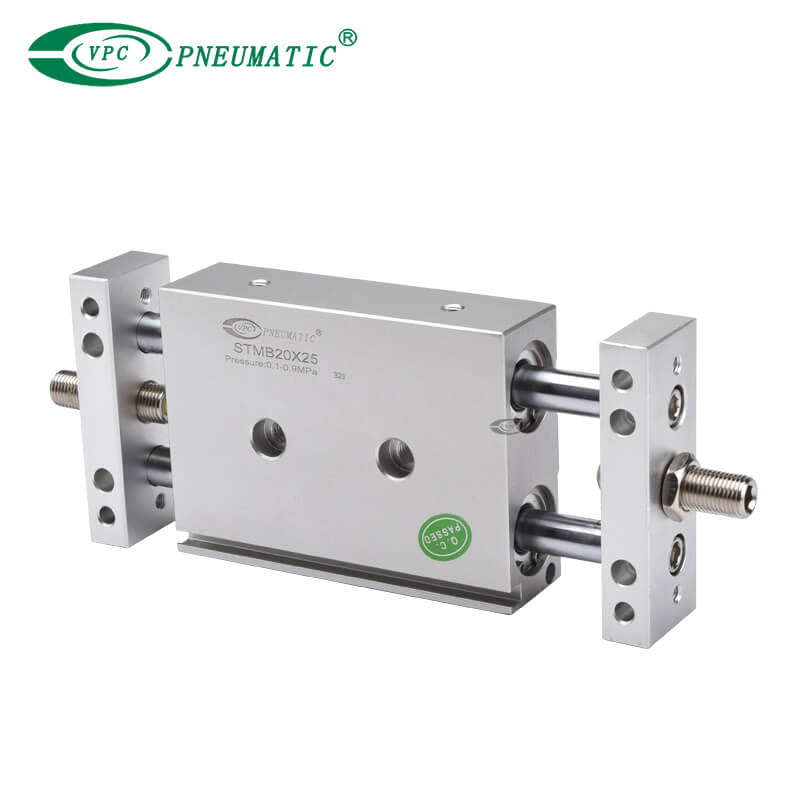

The STM Series is a dual piston, double rod actuator with a non-rotating accuracy of ± 0.1°. The STM slide bearing type provides lateral stability protecting it from side load impacts.

  • STM

  • VPC Pneumatic

  • 8412310090

Working medium:
Air
Acting type:
Double acting
Working pressure:
0.1 to 1.0Mpa
Working temperature:
-20 to 70℃
Speed ranges:
30 to 500mm/s
Availability:
Inquire Add to Basket

Product Description

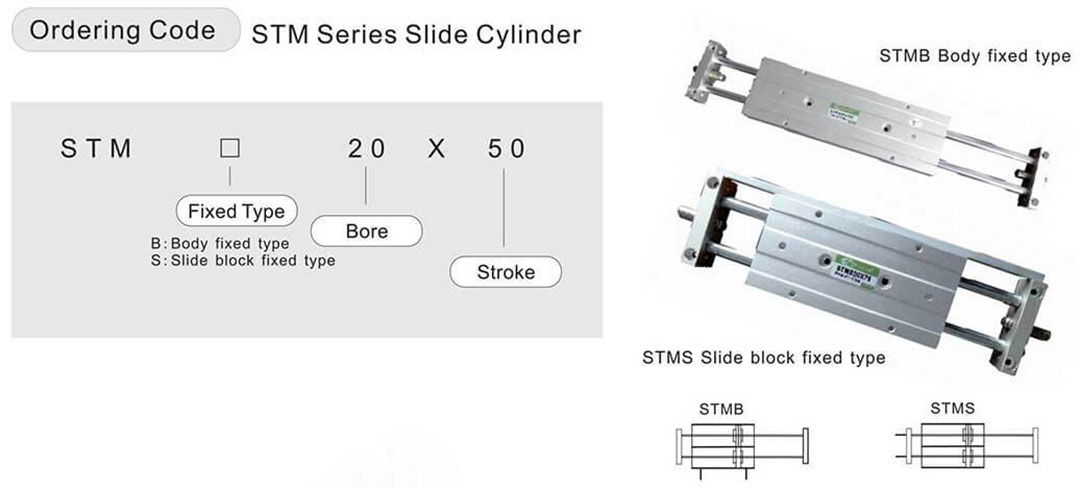

STM参数-1

Product Specifications

Bore(mm)10162025
Working medium
Clean air(40μm Filteration)
Acting typedouble acting
Working pressure range0.1 to 1.0Mpa
Guaranteed pressure

1.5Mpa

Working temperature-20 to 70℃
Speed range30 to 500mm/s
Stroke tolerance+1.0mm

   0

Cushion typeshock absorber(Optional)
No-rotating accuracy±0.1°
±0.05°
Port sizeM5X0.8
G1/8

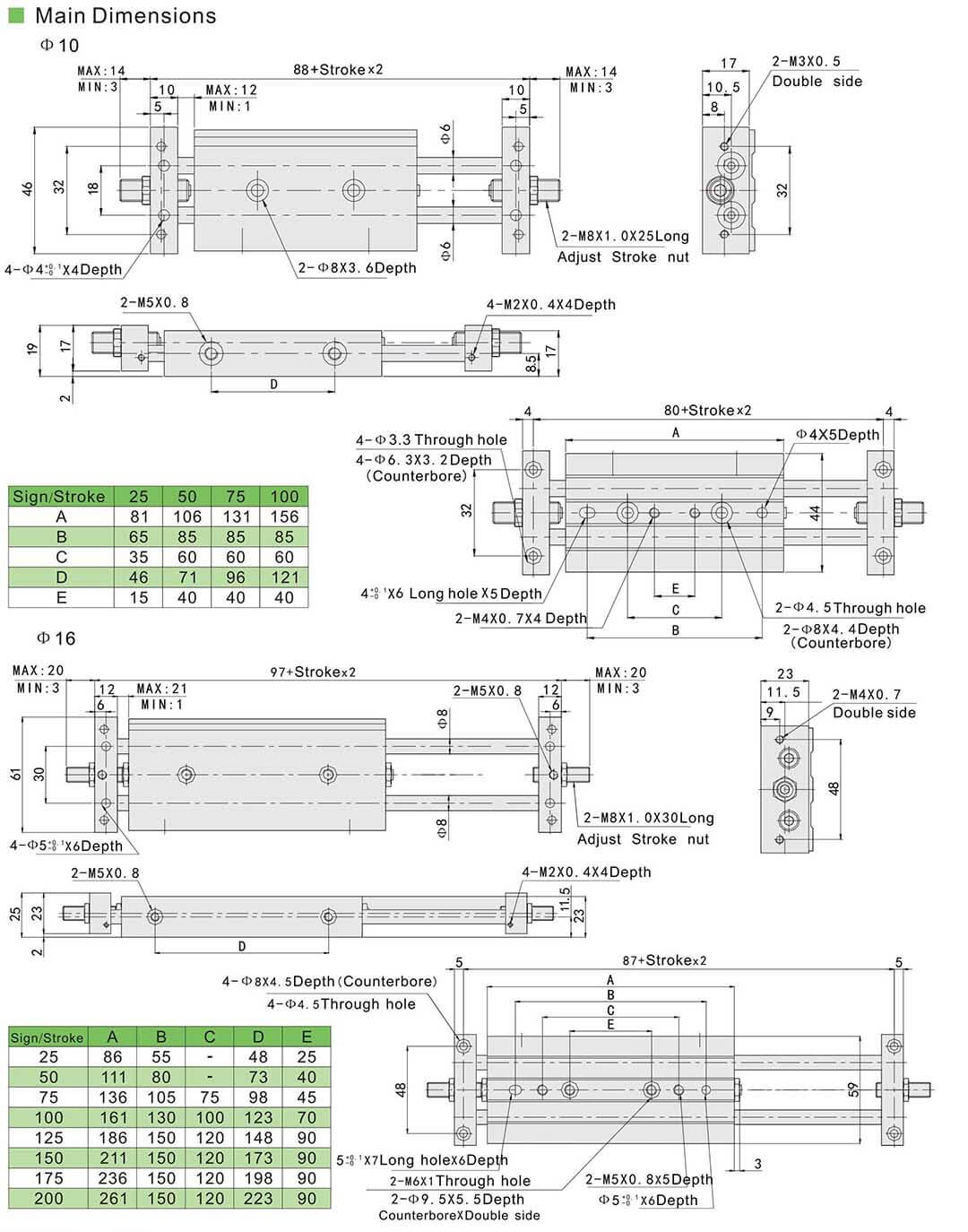

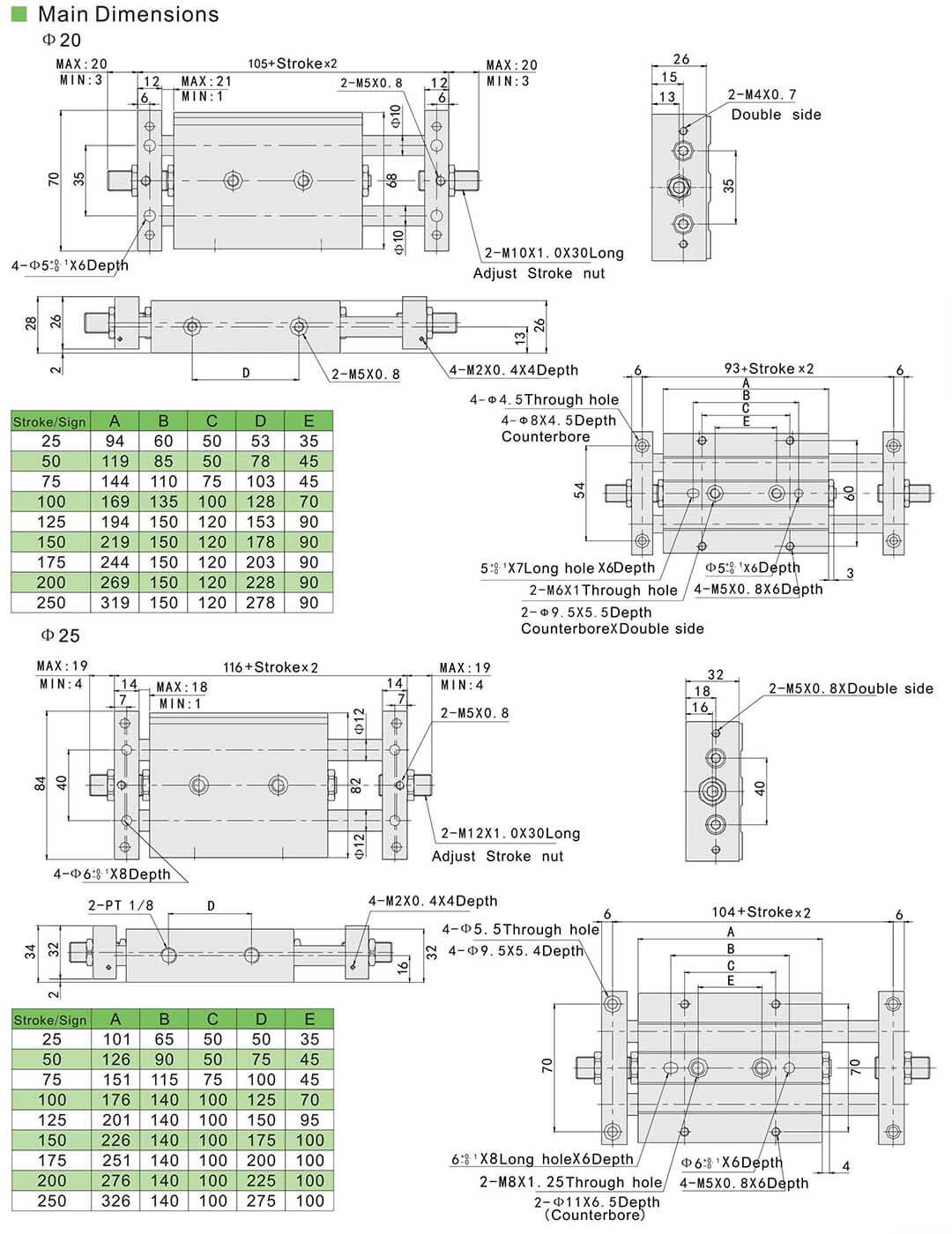

Main Dimensions

STM参数-2STM参数-3
