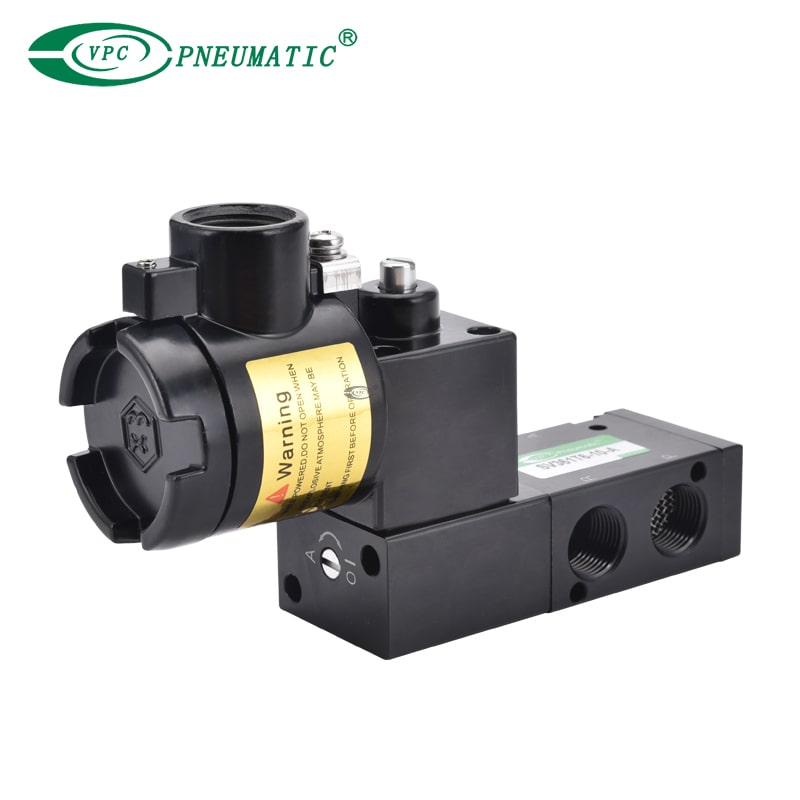

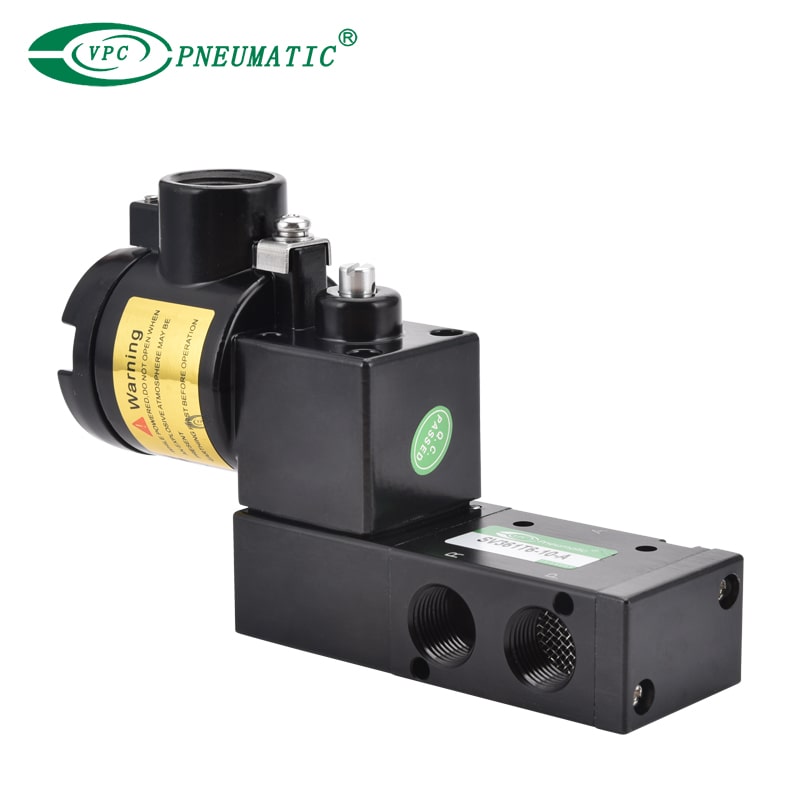

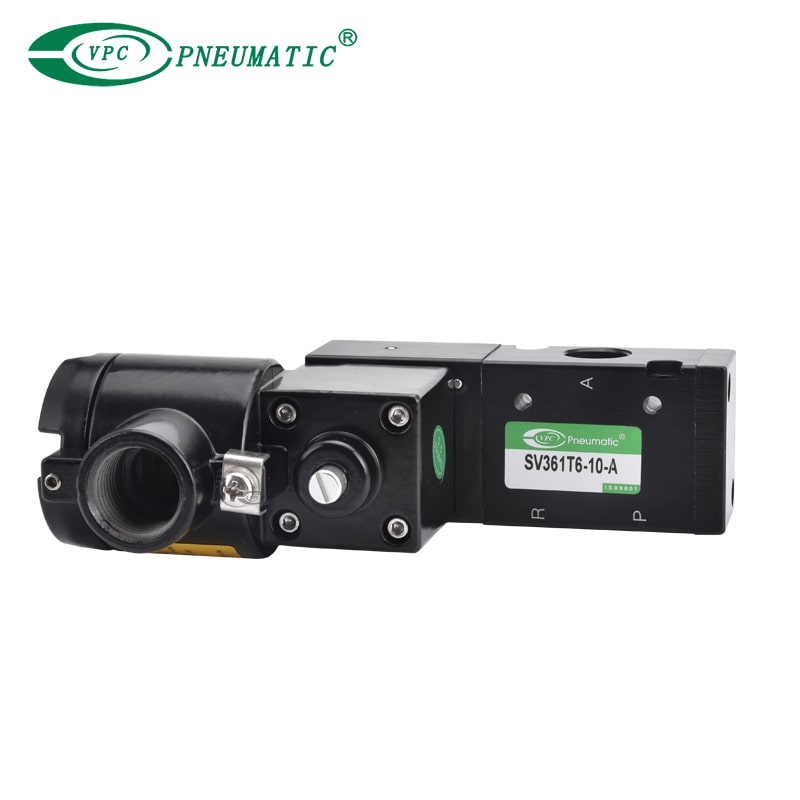

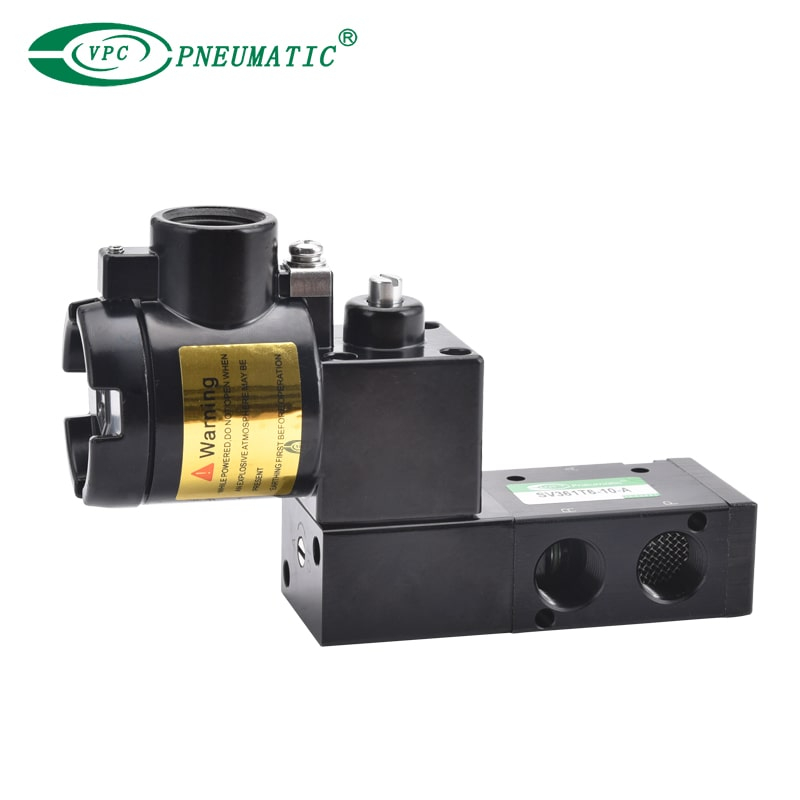

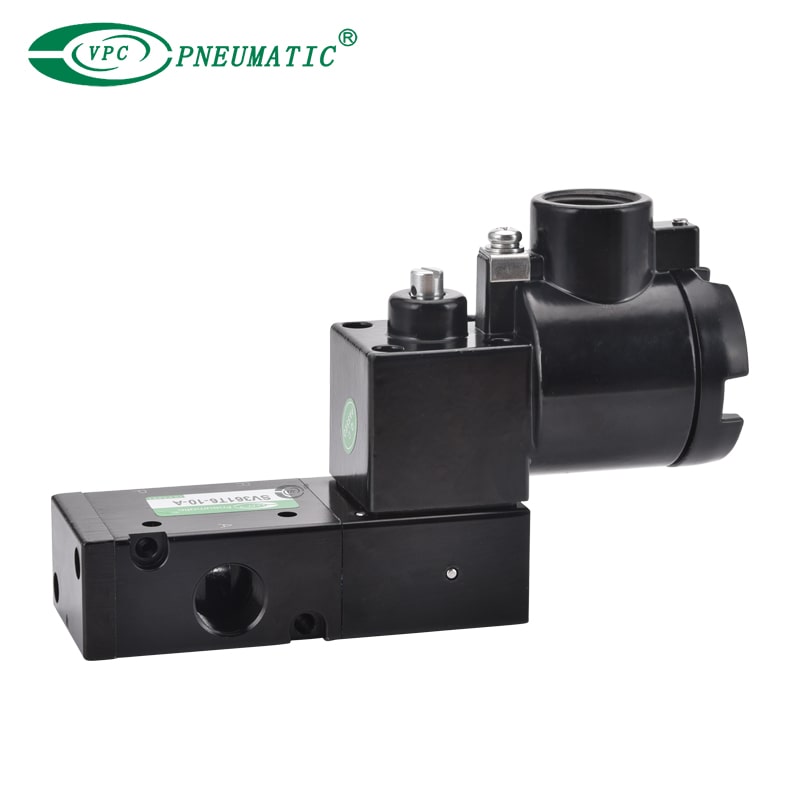

SV561T6 Aluminum Explosion-proof Solenoid Valve

■ Product Feature

1. Certified for Hazardous Environments

Designed for Zone 1 & Zone 2 (gas) and Zone 21 & Zone 22 (dust) applications, the SV561T6 complies with ExdⅡCT6 and DIPA20 TA, T6 explosion-proof standards, ensuring maximum safety in explosive atmospheres.

2. Durable & Corrosion-Resistant Construction

The valve body is manufactured from anodized extruded aluminum, featuring a 316 stainless steel coil cover to enhance resistance to chemical corrosion and harsh industrial environments.

3. Zero Differential Pressure Start-Up

Equipped with an advanced internal structure that allows operation even at zero pressure difference, offering reliable control 45in low-pressure or fluctuating systems.

4. Wide Voltage Compatibility & High Insulation Coil

Supports multiple voltage options (e.g., 24VDC, 110/220VAC), with H-class insulation and 100% ED rating for continuous duty—ideal for systems requiring uninterrupted solenoid operation.

5. Flexible Mounting & Universal Port Threads

Compatible with BSP 1/4", G1/4” and NPT1/4” port connections, ensuring seamless integration into existing pneumatic circuits or new system builds. Optional M20 x 1.5 cable entries provide versatility in installation.

6. Extended Service Life

Designed for long-term use with low wear sealing components (NBR) and high-precision machining. Tested to exceed 10 million cycles under standard working conditions.

7. Low Power Consumption, Quick Response

Optimized coil design ensures fast switching while maintaining low power draw (only 3.5W at 24VDC), reducing energy costs and system heat generation.

Industries & Applications

1. Oil & Gas Plants: For remote or automatic pneumatic actuation in explosion-risk zones.

2. Chemical & Petrochemical Systems: Safe air control in flammable gas or vapor handling.

3. Marine & Offshore Equipment: Corrosion-resistant valve body ideal for shipboard air systems.

4. Textile, Dusty & Paint Spray Environments: Operates effectively in dust-laden atmospheres with high ignition risk.

5. Hazardous Area Industrial Automation: Used in ATEX-rated machinery for position control, actuator switching, and safety interlocks.

Valve Specification

Solenoid Specification

※ If you need drawings or more detailed technical specifications of SV561T6, please contact VPC.
