SY3000 Series Solenoid Valve SY3000 Series Solenoid Valve

loading

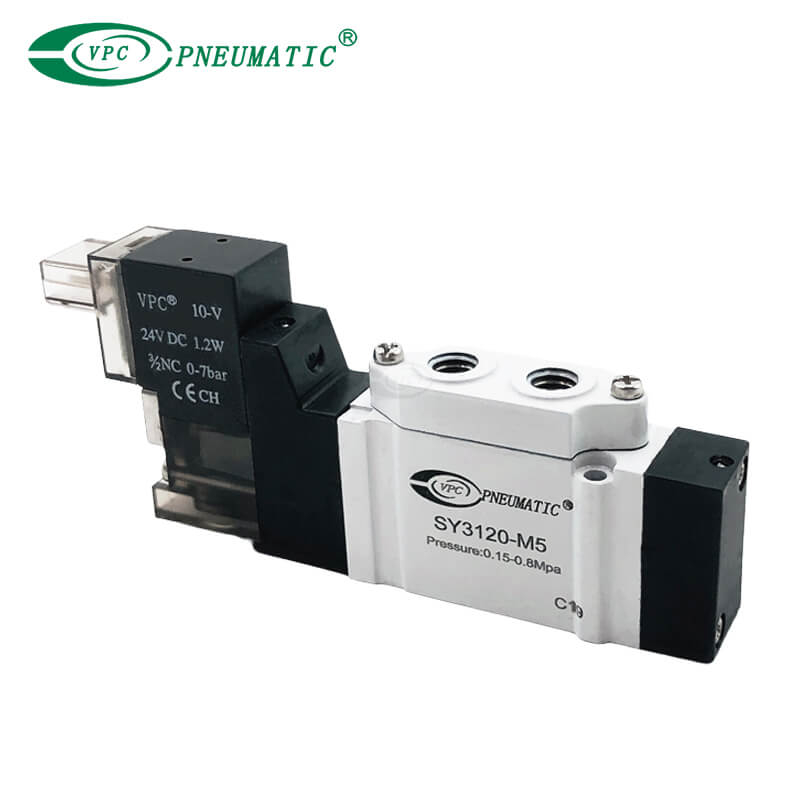

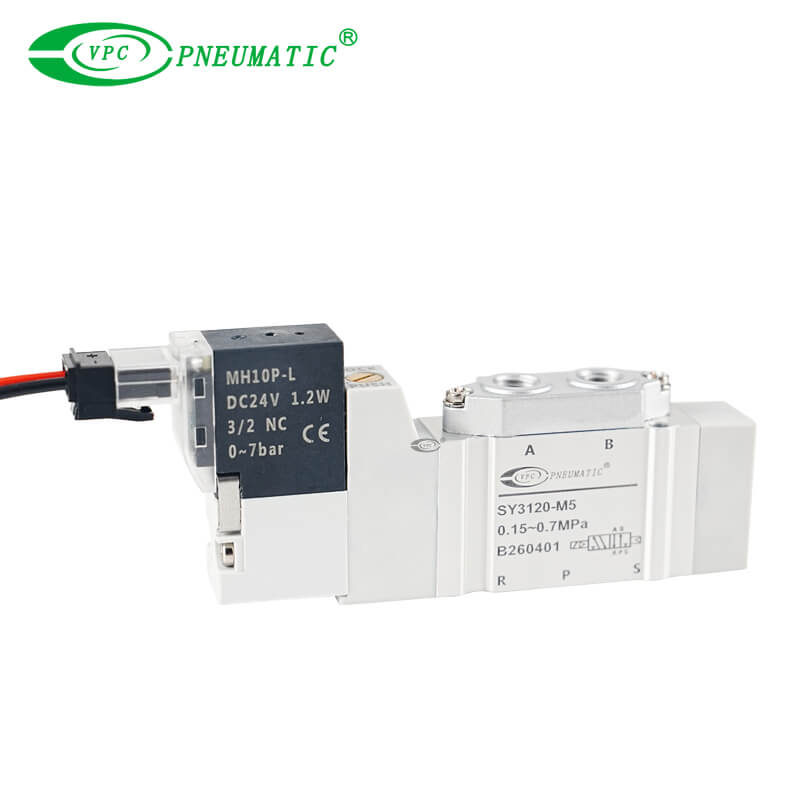

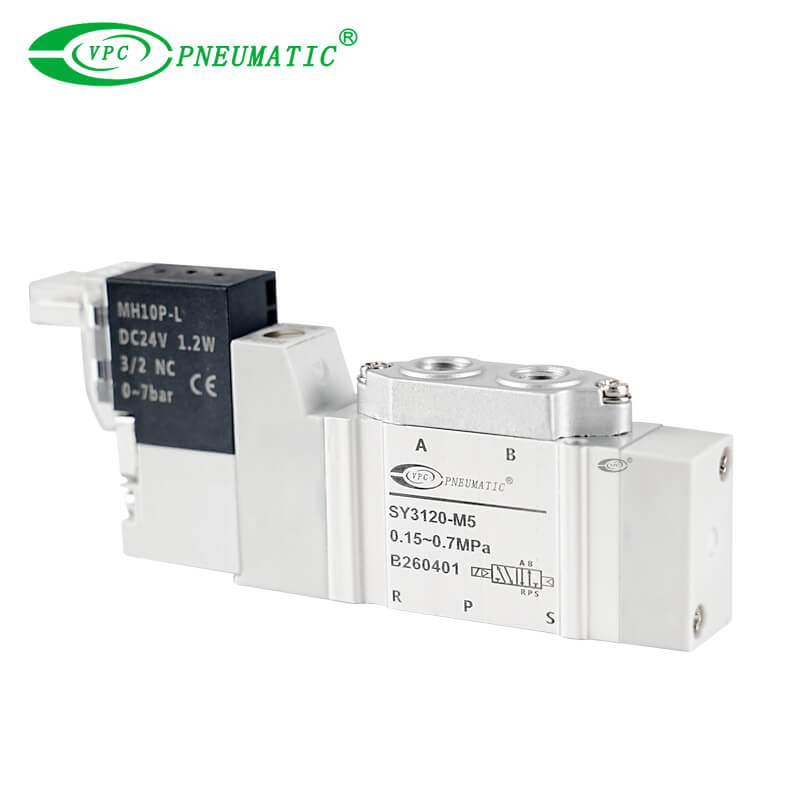

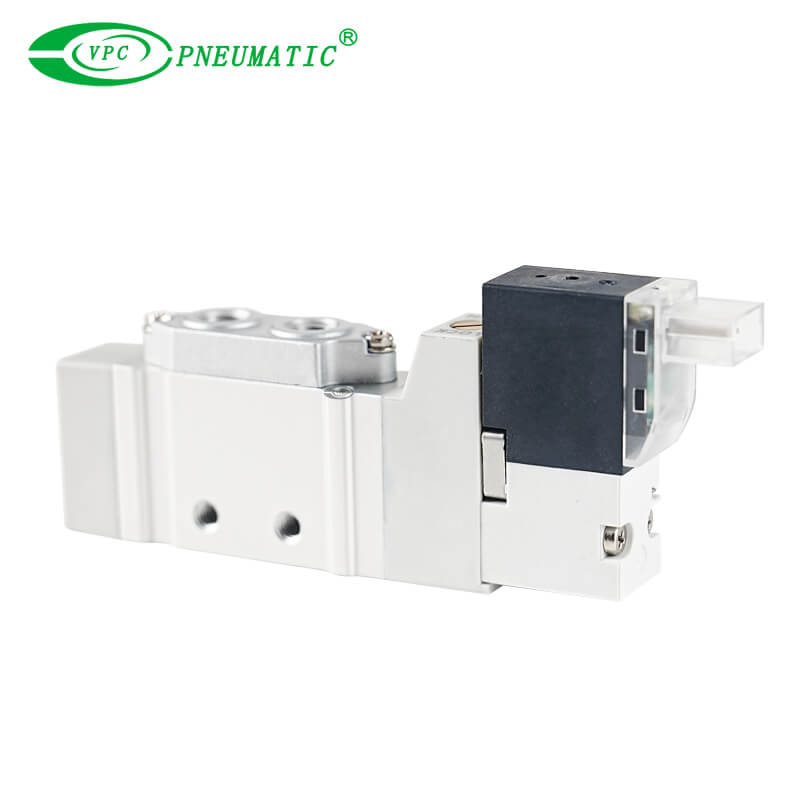

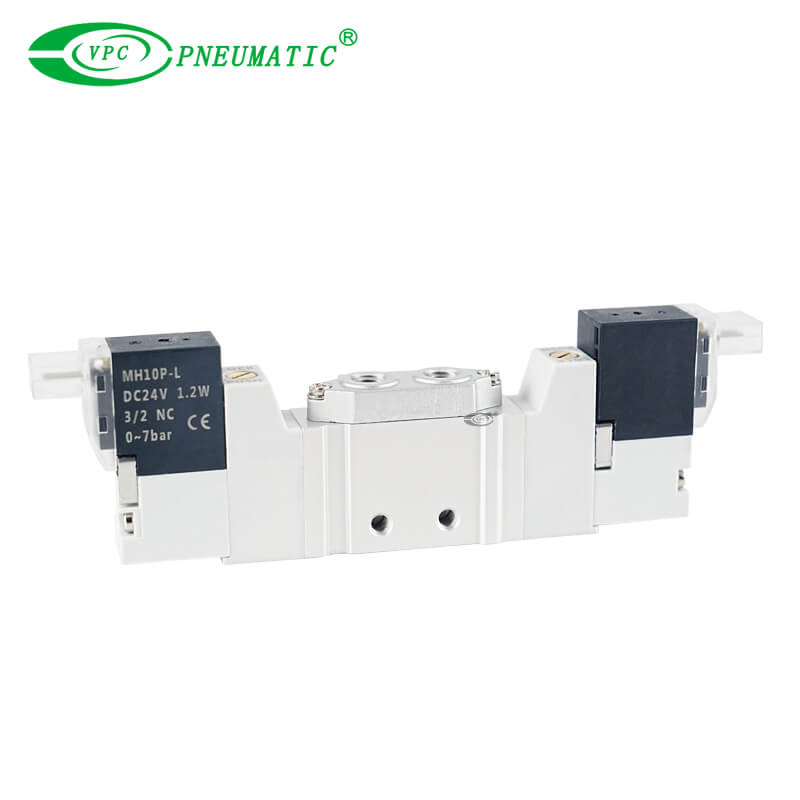

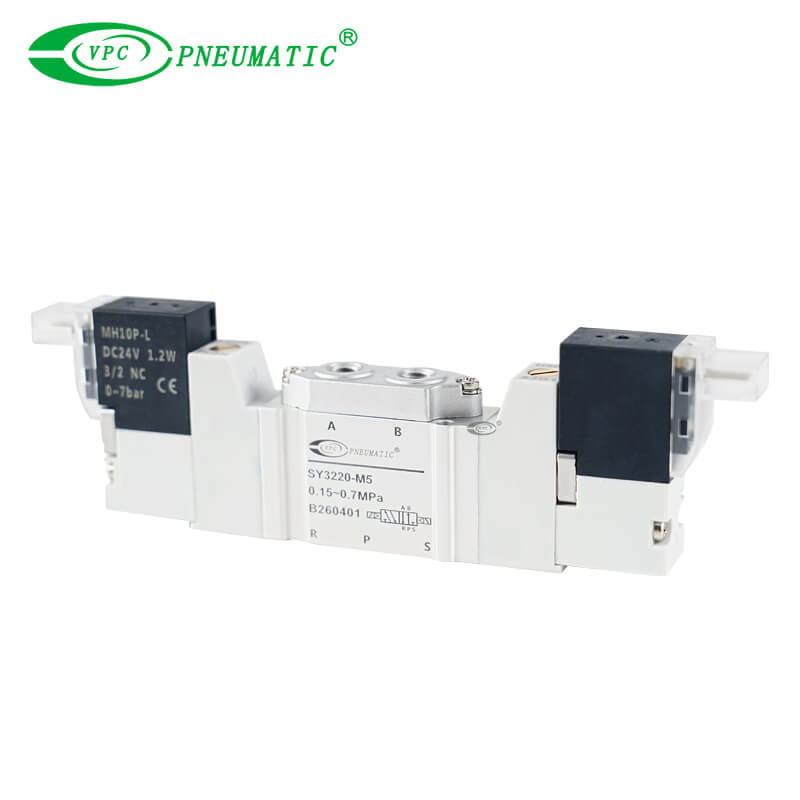

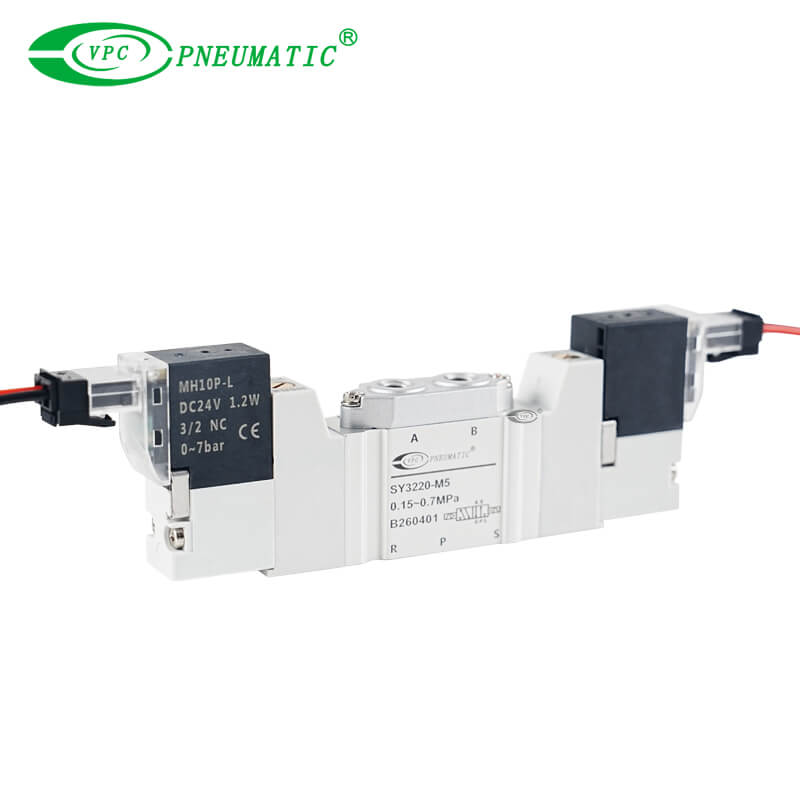

SY3000 Series Solenoid Valve

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

  • High-precision pilot head 5s/time, high sensitivity, no stuck；

  • Built-in protection circuit against surge,directly connected to PLC without additional intermediate relay；

  • No spring air reset structure design, fast response speed,no fatigue, long life;

  • Single, Double coils are optional , can be arbitrarily matched;

  • Multiple valve bases integrated.

  • SY3000

  • VPC Pneumatic

  • 8412909000

Working medium:
Clean air
Working pressure:
0.15 to 0.7Mpa
Working temperature:
-10 to 60℃
Protective class:
IP65
Installation type:
Free
Availability:
Inquire Add to Basket

Product Description

SY 参数-1

Product Specifications


Model


SY3120


SY3220

SY3320


SY5120


SY5220

SY5320
SY3420SY5420
SY3520SY5520
Working mediumClean air
Working Pressure0.15 to 0.7Mpa0.1 to 0.7Mpa0.2 to 0.7Mpa0.15 to 0.7Mpa0.1 to 0.7Mpa0.2 to 0.7Mpa
Working temperature-10 to 60℃
Max operating frequency10Hz10Hz10Hz3Hz5Hz3Hz
Response time＜12ms＜12ms＜15ms＜19ms＜19ms＜32ms
Exhaust wayCentralized exhaust
LubricationNot necessary
Installation typeFree
Impact resistance vibration resistance150/30m/s²
Protective classIP65
Joint sizeM51/8"


Main Dimensions

SY 参数-2
