| Working medium: | |
|---|---|
| Working pressure: | |
| Working temperature: | |
| Protective class: | |
| Installation type: | |
Product Description

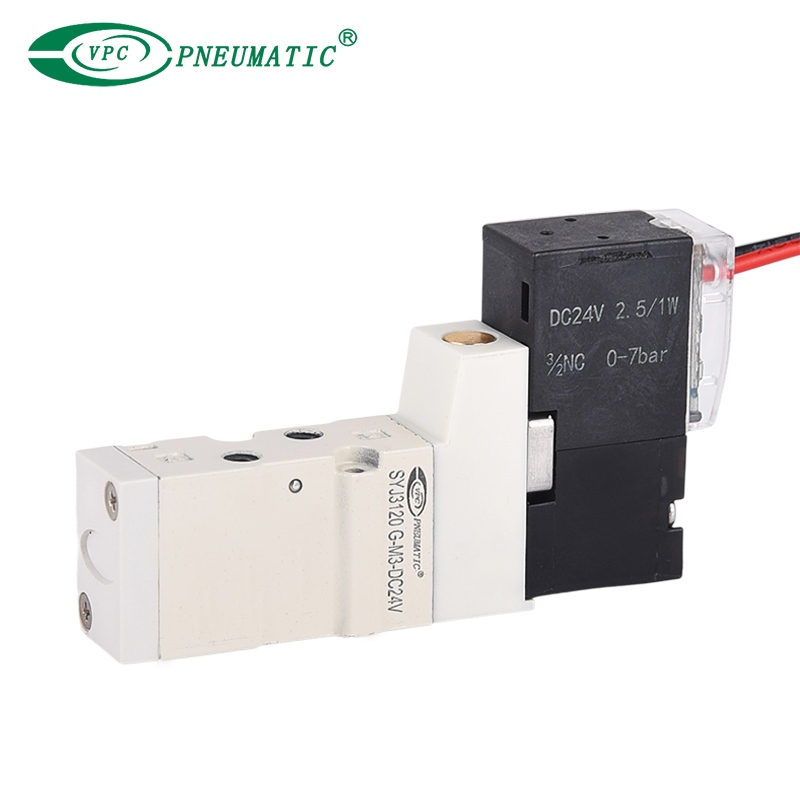

1. SYJ3000 series solenoid valves feature a compact form factor that effectively reduces space requirements.
2. Suitable for manifold mounting or individual stand-alone valves for increased engineering flexibility.
3. Low-power pilot solenoid valve design with standard power consumption of only 0.5 W.
4. Reduced heat generation improves performance and reduces operating costs.
5. Supports direct control via PLC output relays without additional circuitry.
6. All electrical connections are equipped with indicator lights and surge suppression for improved reliability.
7. Can be mounted on a pedestal manifold or on a sub-panel to meet different engineering needs.
8. Flexible configuration options for a wide range of application scenarios.
Product Specifications
| Model | SYJ3120 | SYJ3220 |
| Working medium | Clean air (40um filteration) | |
| Working pressure | 0.15 to 0.7MPa | 0.1 to 0.7MPa |
| Working temperature | -10 to 50℃ | |
| Max operating frequency | 10Hz | |
| Response time | <15ms | |
| Exhaust way | Individual exhaust for the pilot valve, Common exhaust for the pilot and main valve | |
| Lubrication | Not required | |
| Installation type | Unrestricted | |
| Impact resistance Vibration resistance | 150/30 m/s² | |
| Life time expectancy | More than 50 million times | |
| Overcurrent protection circuit | Non-polar type is a varistor | |
| Protective class | IP65 | |
| Joint size | M3 | |
Main Dimensions
