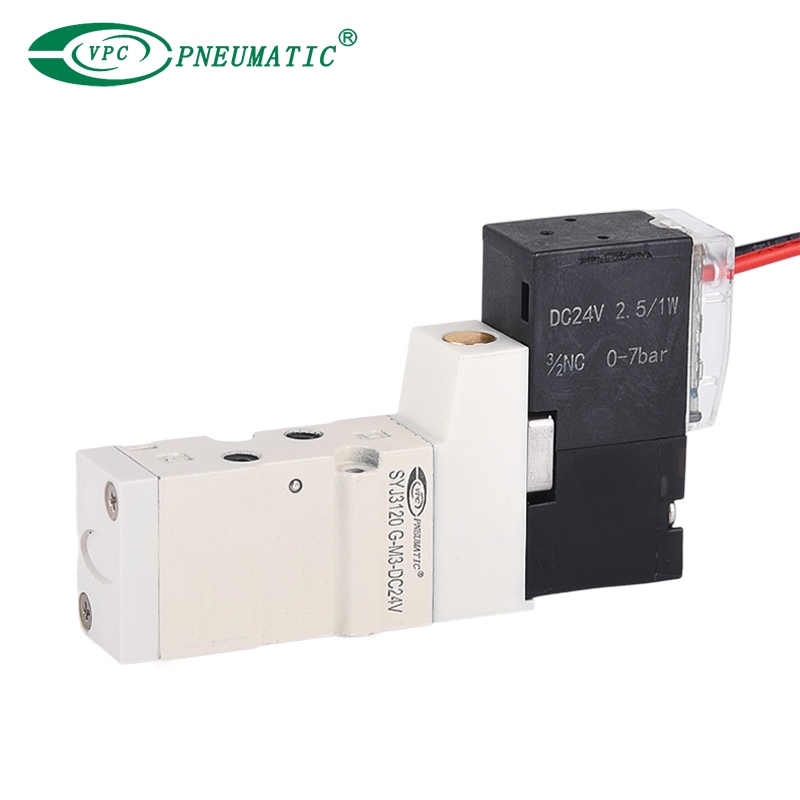

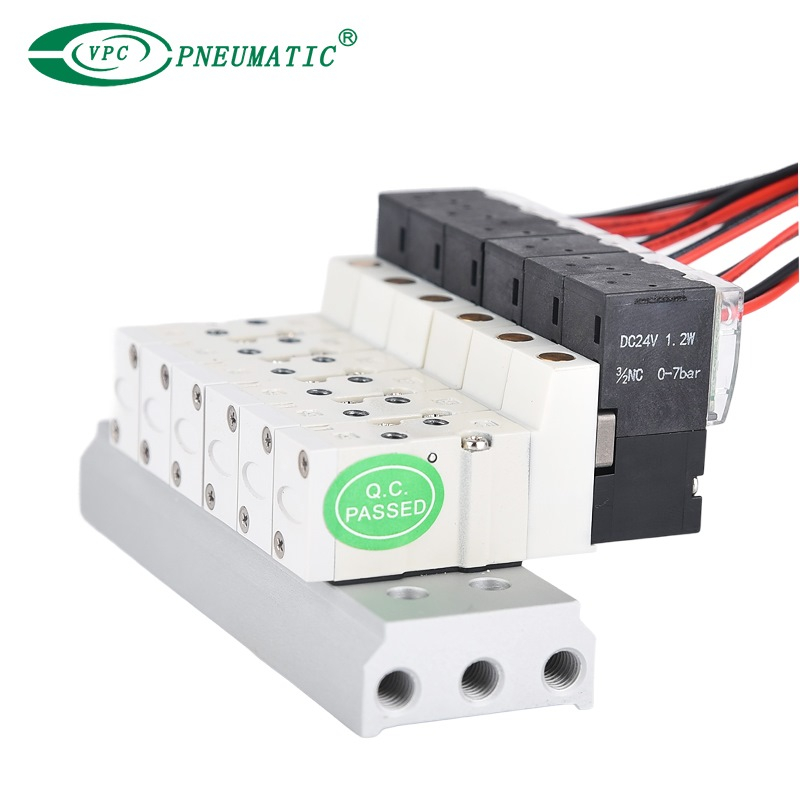

SYJ3000 Series Solenoid Valve Manifold

■ Product Feature

1. SYJ3000 series solenoid valves feature a compact form factor that effectively reduces space requirements.

2. Suitable for manifold mounting or individual stand-alone valves for increased engineering flexibility.

3. Low-power pilot solenoid valve design with standard power consumption of only 0.5 W.

4. Reduced heat generation improves performance and reduces operating costs.

5. Supports direct control via PLC output relays without additional circuitry.

6. All electrical connections are equipped with indicator lights and surge suppression for improved reliability.

7. Can be mounted on a pedestal manifold or on a sub-panel to meet different engineering needs.

8. Flexible configuration options for a wide range of application scenarios.

■ Symbol

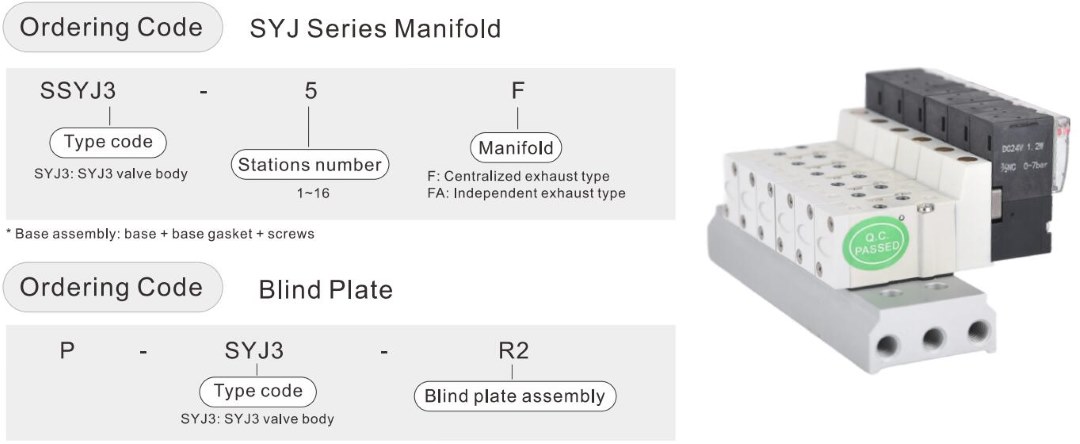

* Blind plate assembly: blind plate + gasket + screws

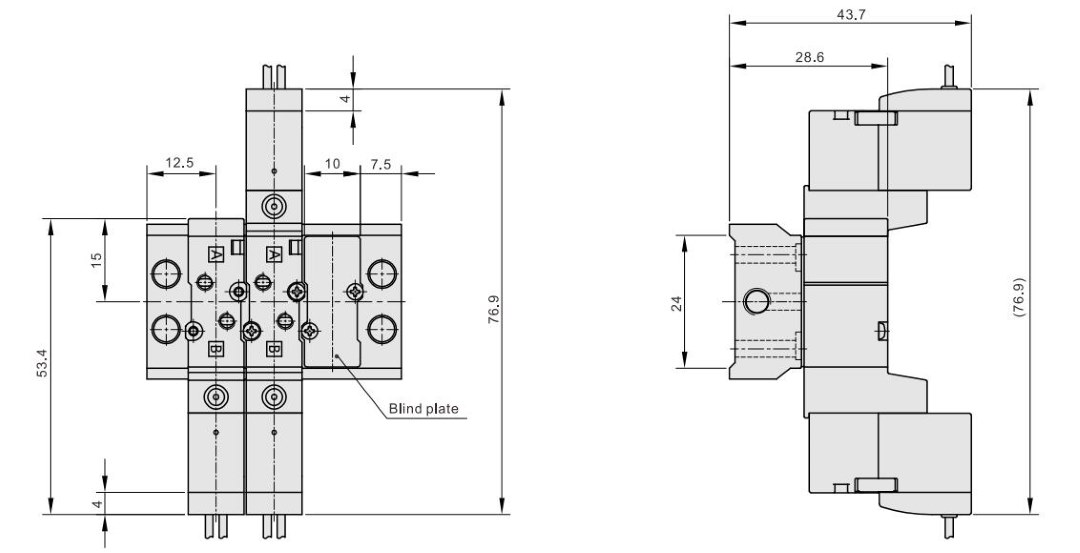

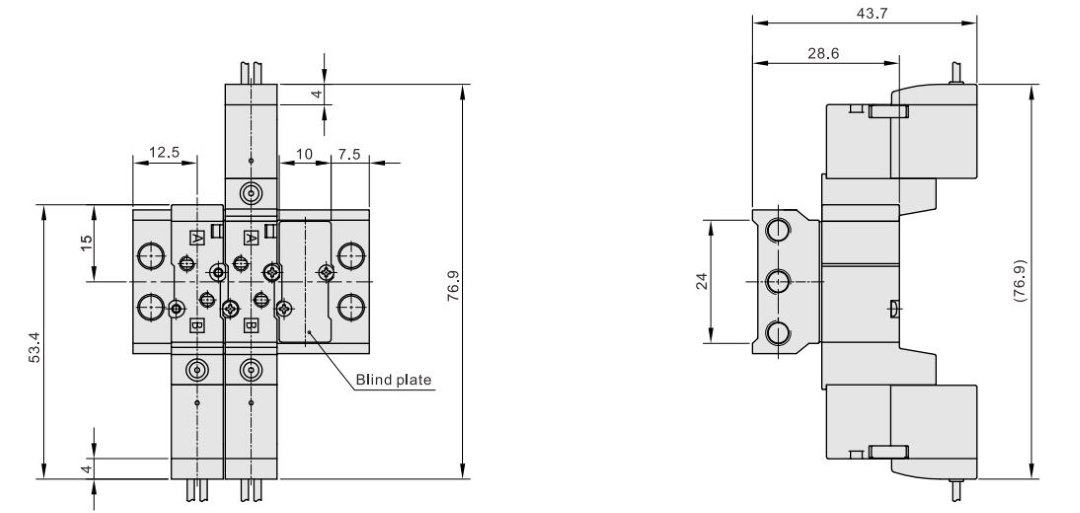

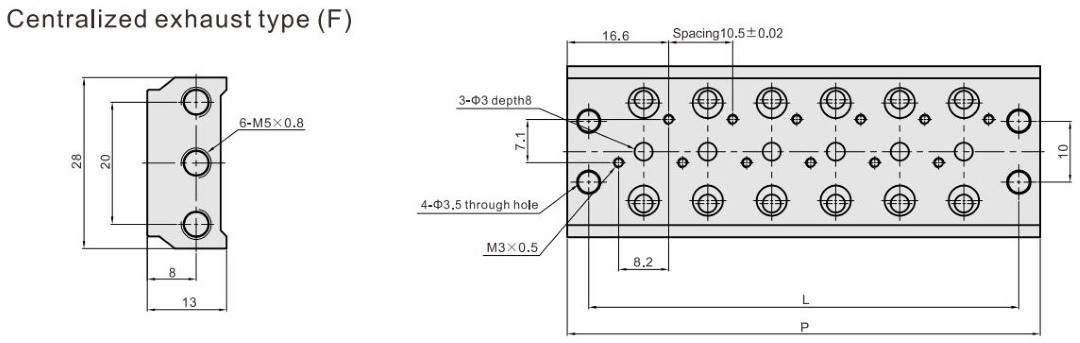

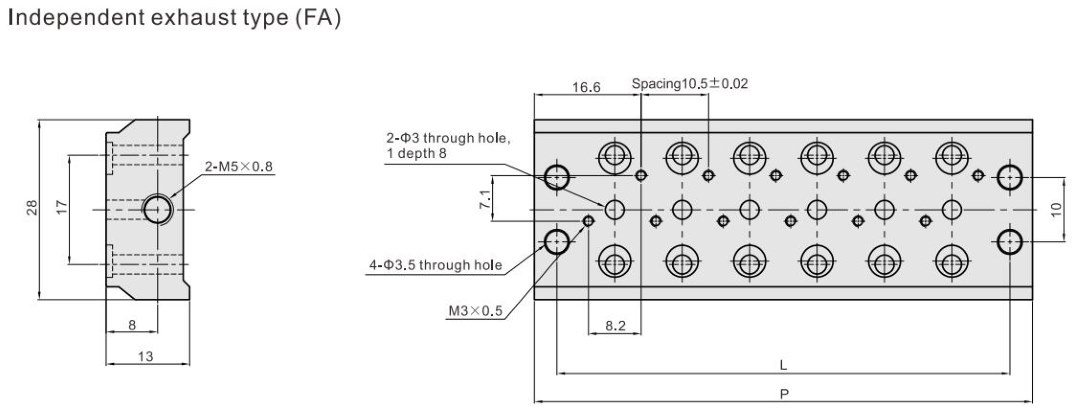

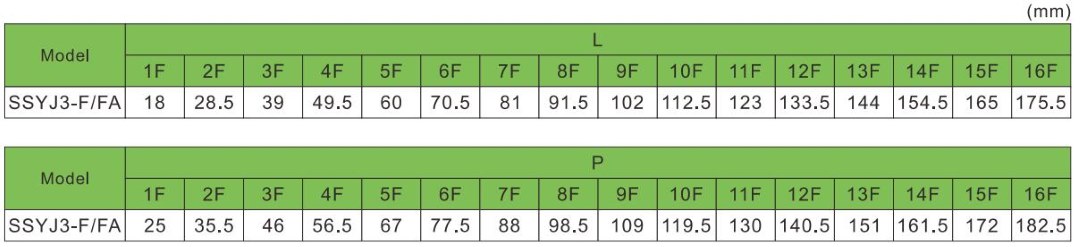

■ Main Dimensions
