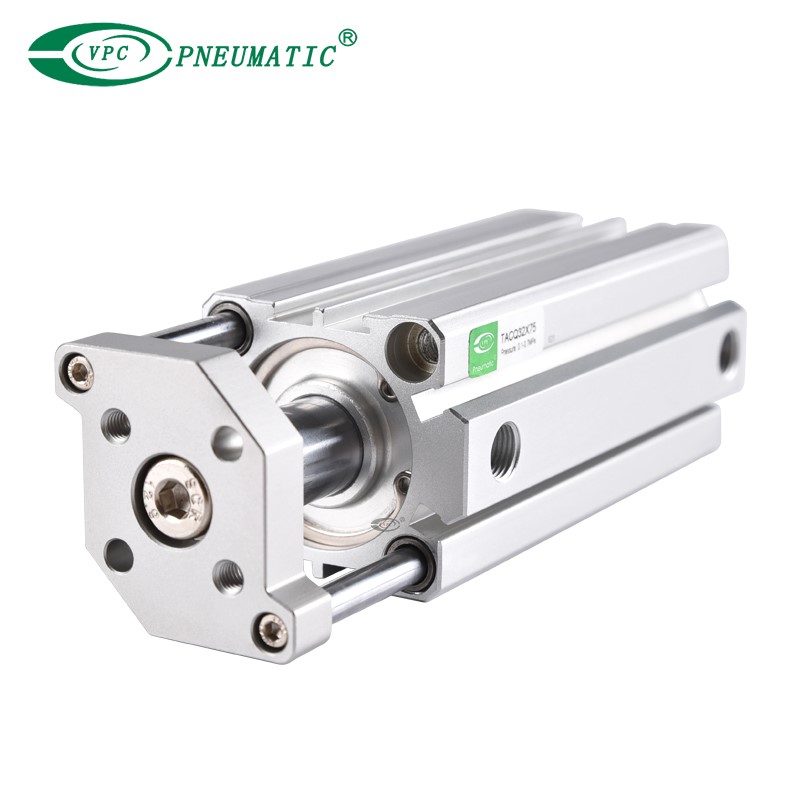

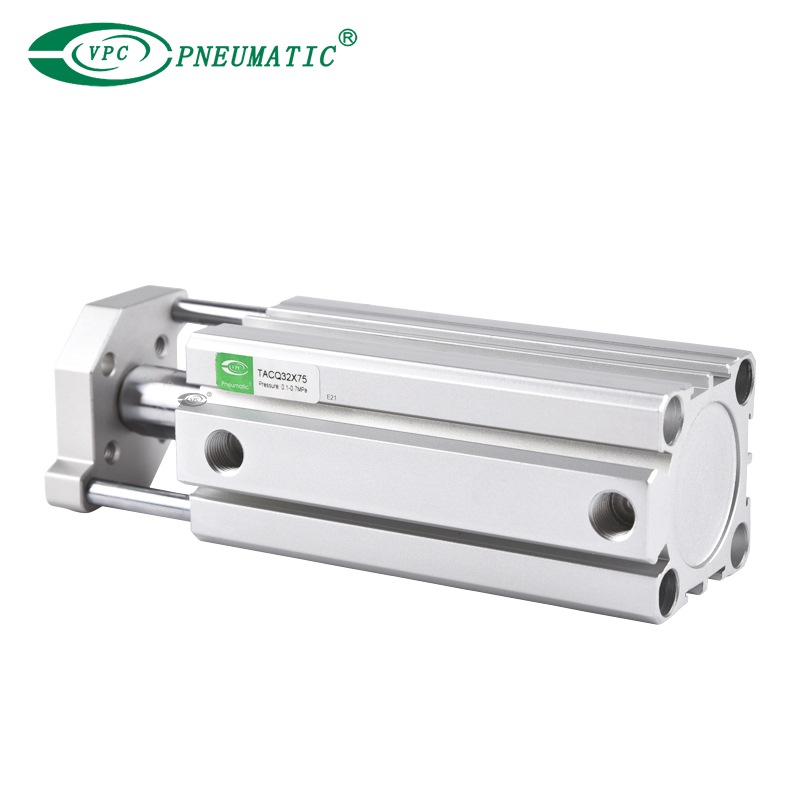

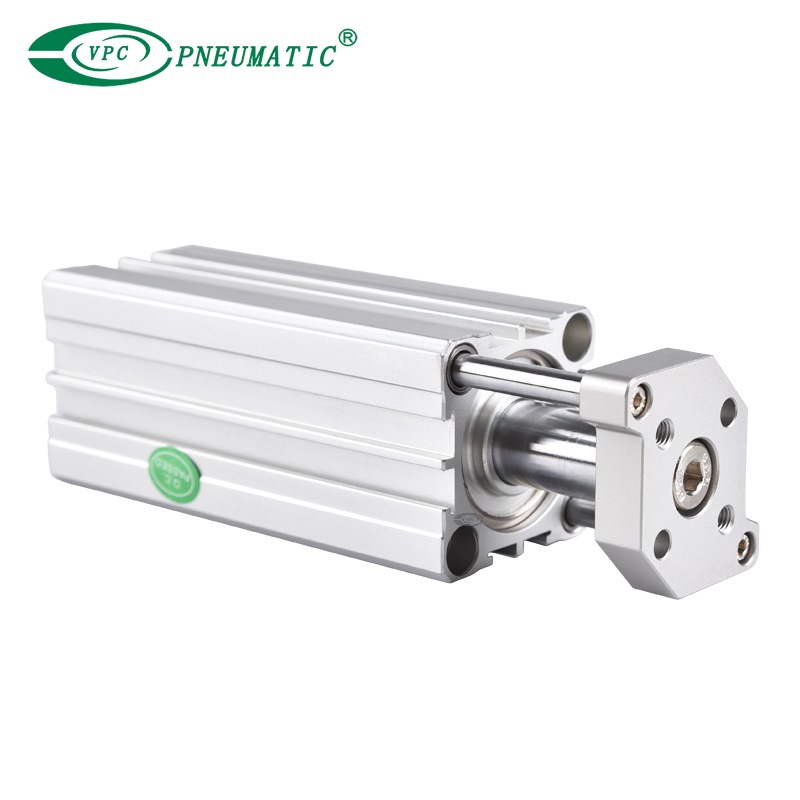

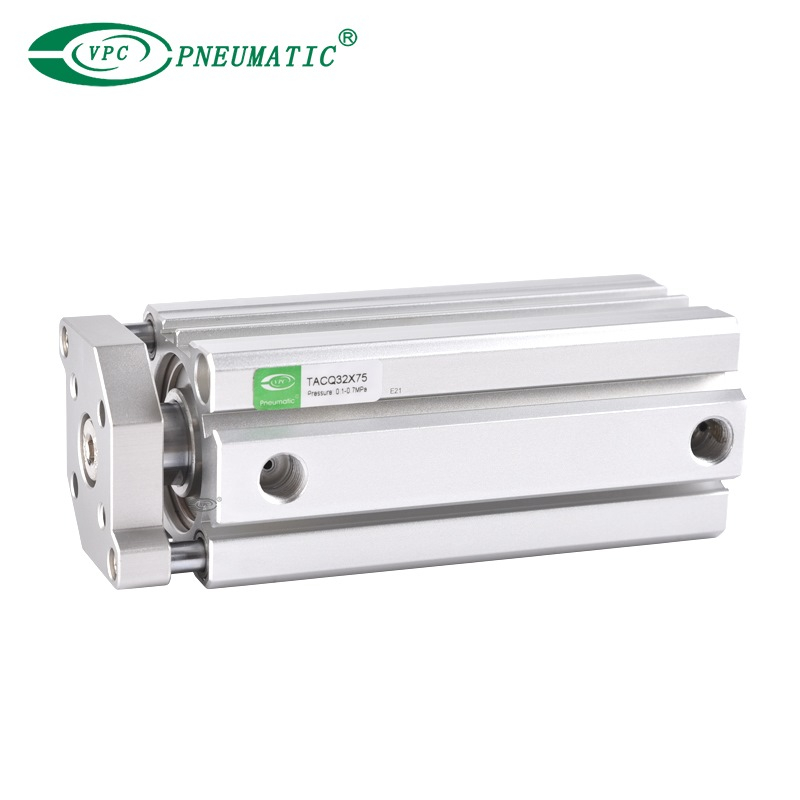

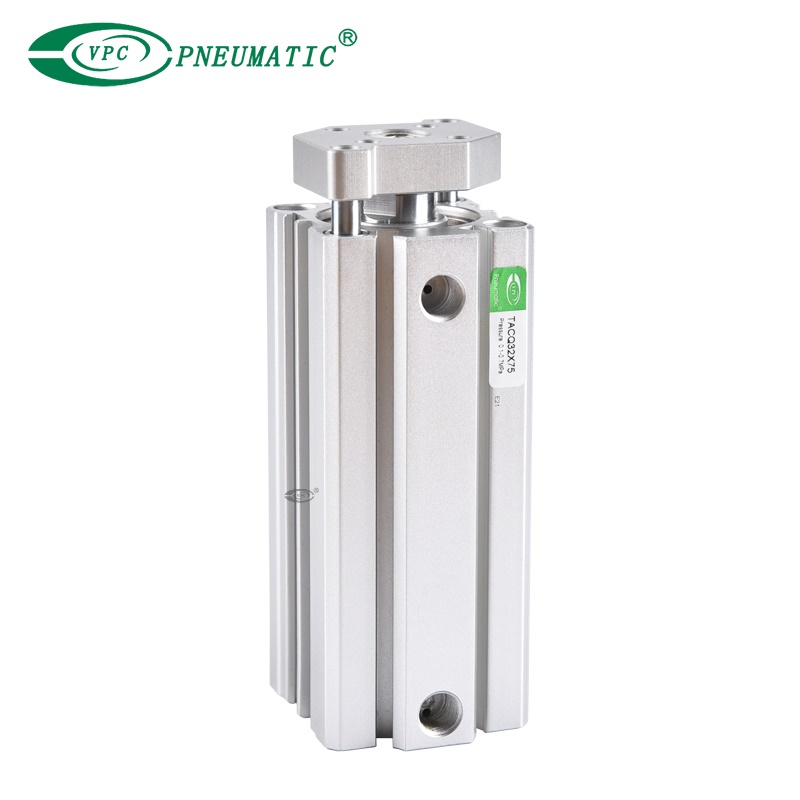

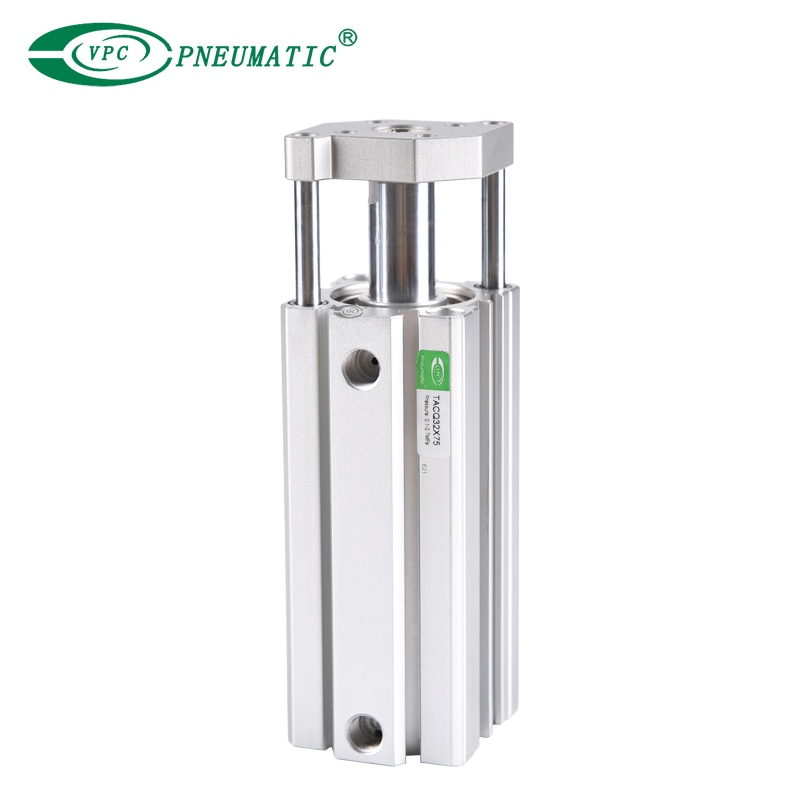

TACQ Series Compact Guided Air Cylinder

TACQ compact cylinders conform to JIS standards, using a C clip to connect the cylinder body and back cover or front cover, adopting a riveted structure to connect the piston and piston rod, making it compact and reliable.

Model:
TACQ
Brand:
VPC Pneumatic

Bore size:	12 to 100 mm
Stroke:	5 to 100 mm
Thread type:	G, NPT, Rc
Availability:



Inquire Add to Basket

Product Description

■ Product Feature

1. JIS standard is implemented and with guider.

2. C clip is adopted to connect the cylinder body and back cover or front cover to make it compact and reliable.

3. The seal of piston adopts heterogeneous two-way seal structure. It has compact dimension and the function of greasel reservation.

4. Compact structure can effectively save installation space.

5. There are magnetic switch slots around the cylinder body, which is convenient to install inducting switch.

6. Double rod non-rotating structure enables to bear large working load and lateral load.

Product Specifications

Bore size(mm)	12	16	20	25	32	40	50	63	80	100
Acting type	Double acting
Working medium	Air
Working pressure	0.1 to 1.0MPa
Proof pressure	1.5 MPa
Working temperature	﹣20 to 80 ℃
Speed range	30 to 500 mm/s
Stroke tolerance	+1.0 0
Cushion type	Bumper
Port size	M5x0.8				1/8"		1/4"		3/8"
Non-rotating tolerance	±0.2°		±0.1°
