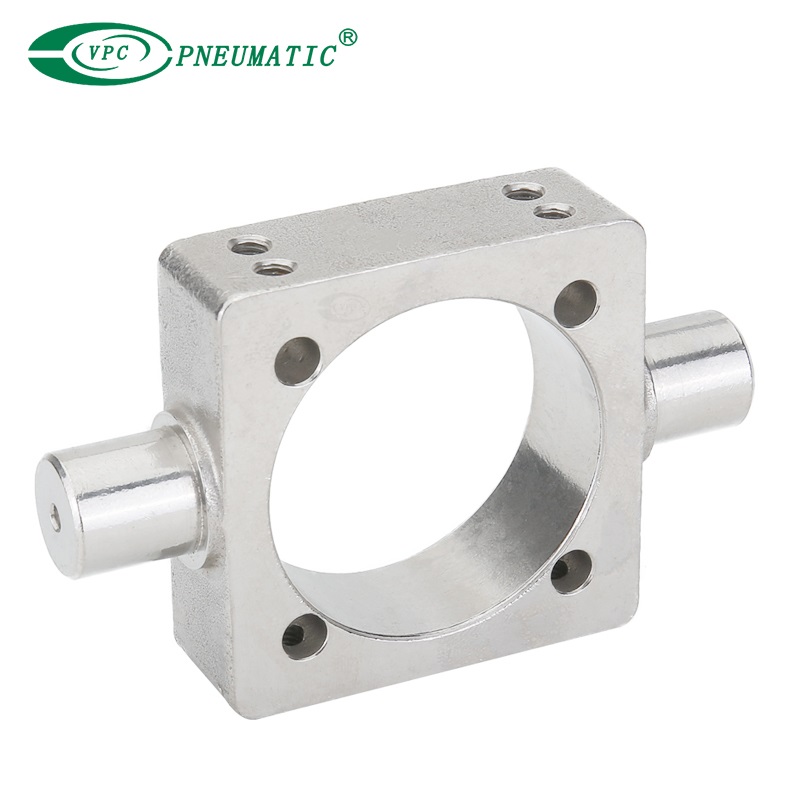

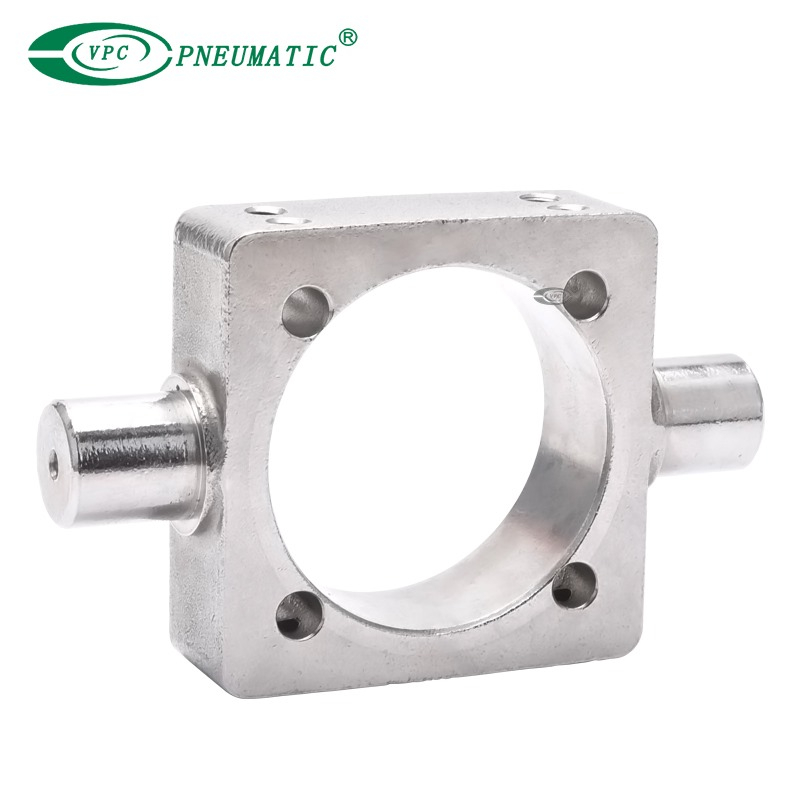

pneumatic cylinder trunnion mount
pneumatic cylinder trunnion mount pneumatic cylinder trunnion mount
trunnion mounting bracket trunnion mounting bracket

loading

TC Stainless Steel Center Trunnion Mounting Bracket for SI Pneumatic Cylinder

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
Stainless Steel Center Trunnion Mount for Pneumatic Cylinder Material: Stainless Steel Application: For the food, chemical industry
  • TC-M

  • VPC

  • 8412909000

Availability:

Product Description



Bore HA HB HC HD HE HF HI HJ HQ HR HT HP
40 110 80 45.5 22 109 86 81.5 50 23 2 12 12
50 110 80 55.5 22 122 99 88 50 23 2 12 12
63 110 80 68.5 22 134 111 94 50 23 2 12 12
80 120 85 87.5 22 160 137 127 70 23 2 14 14
100 120 85 107.5 22 178 155 136 70 23 2 14 14



Pneumatic Air Cylinder Accessories TC - M Central Trunnion M Type With BracketPneumatic Air Cylinder Accessories TC - M Central Trunnion M Type With Bracket
