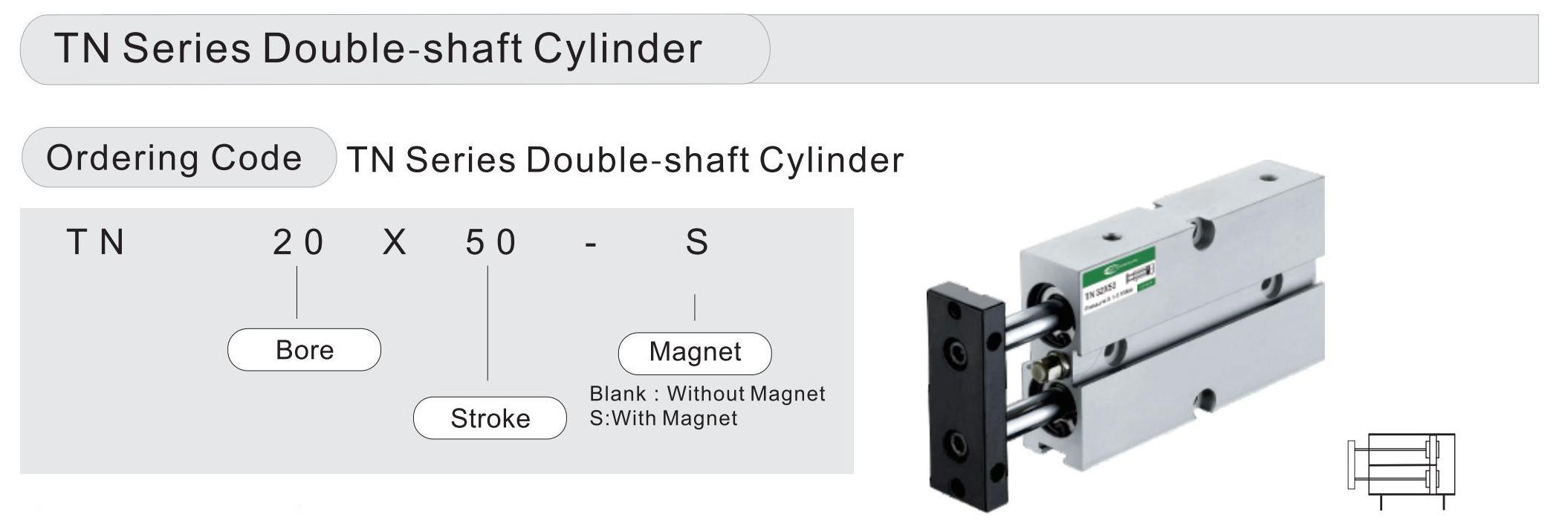

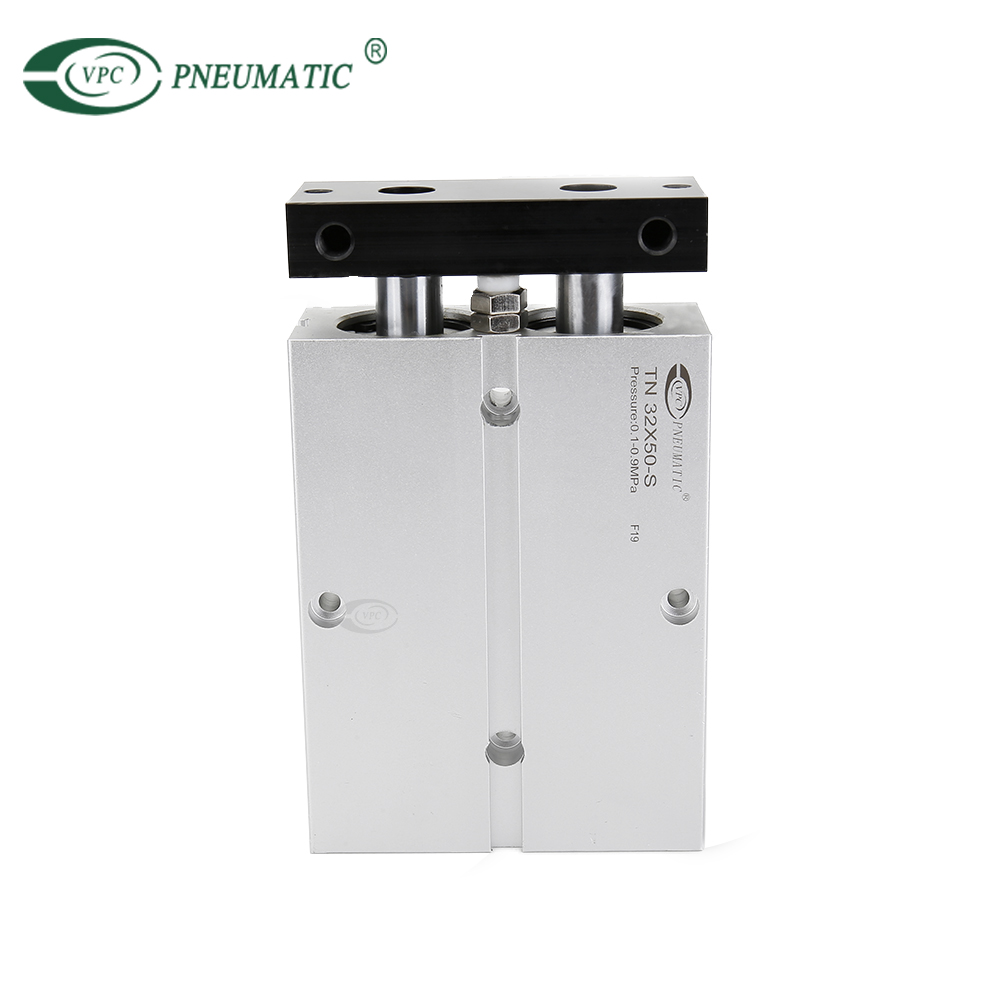

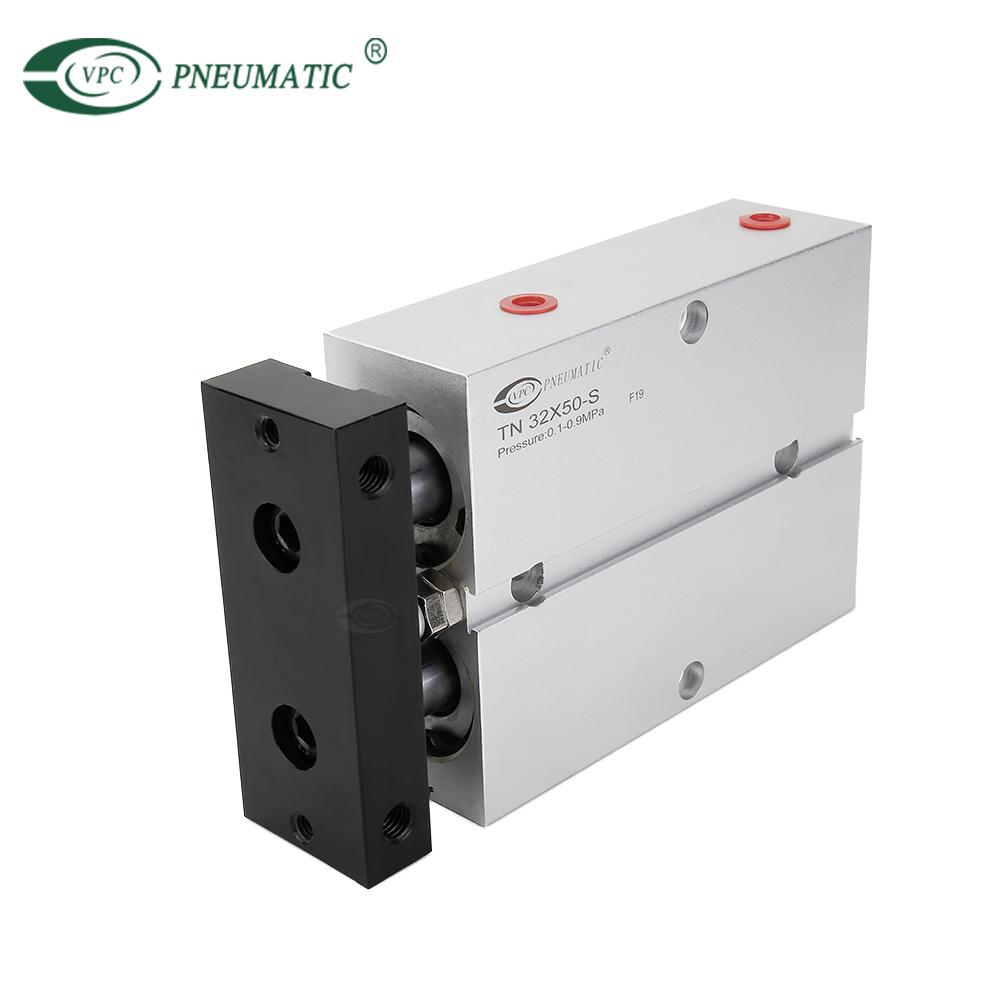

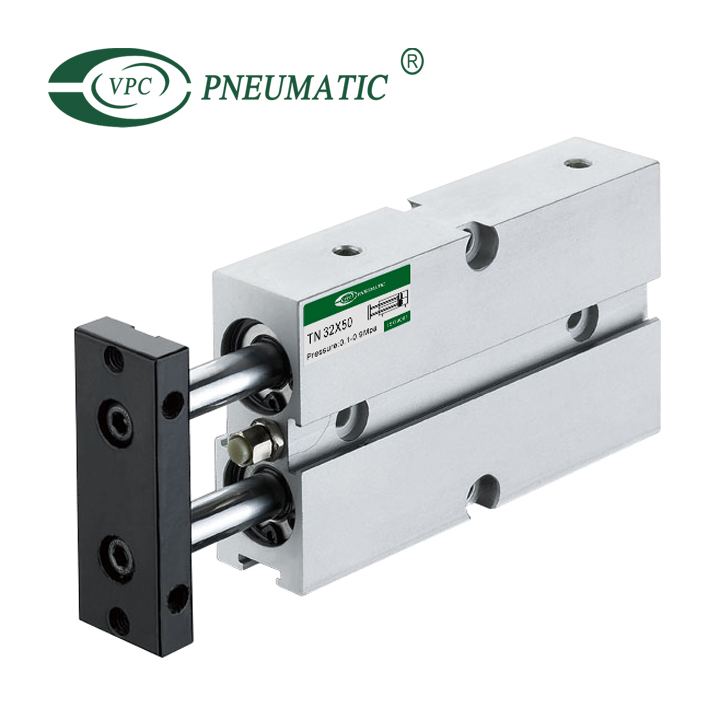

TN Series Double-shaft Cylinder

The non-rotation accuracy of TN series double shaft cylinder, TN dual rod guide cylinder can reach 0.3 degrees in the 40 ūm filtered air. The bore has 10 mm, 16 mm, 20 mm, 25 mm, 32 mm five types together. Normally it is without magnet. Magnet is optional.
Working medium:
Acting type:
Working pressure:
Working temperature:
Speed range:
  • TN
  • VPC Pneumatic
  • 8412310090

Product Description

TN参数-1

Product Specifications

Bore(mm)1016202532
Working MediumClean Air(40μm Filteration)
Acting TypeDouble Acting
Working pressure range0.1 to 0.9Mpa
Guaranteed pressure1.5Mpa
Working temperature-5 to 70℃
Speed range30 to 500mm/s
Adjustable stroke-10 to 0mm
Cushion typeRubber Cushion
No rotating accuracy0.4°0.3°
Port SizeM5X0.8
G1/8

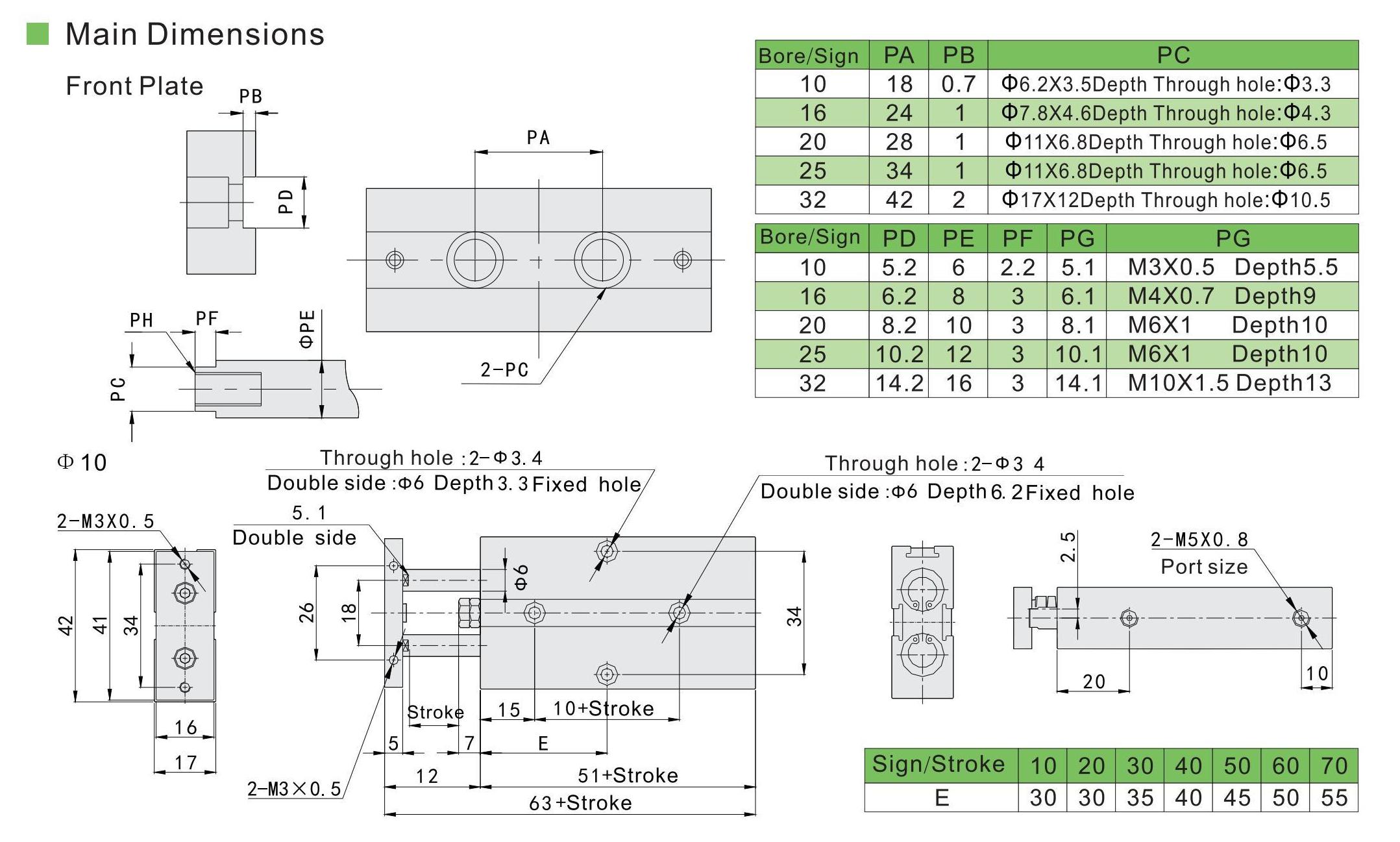

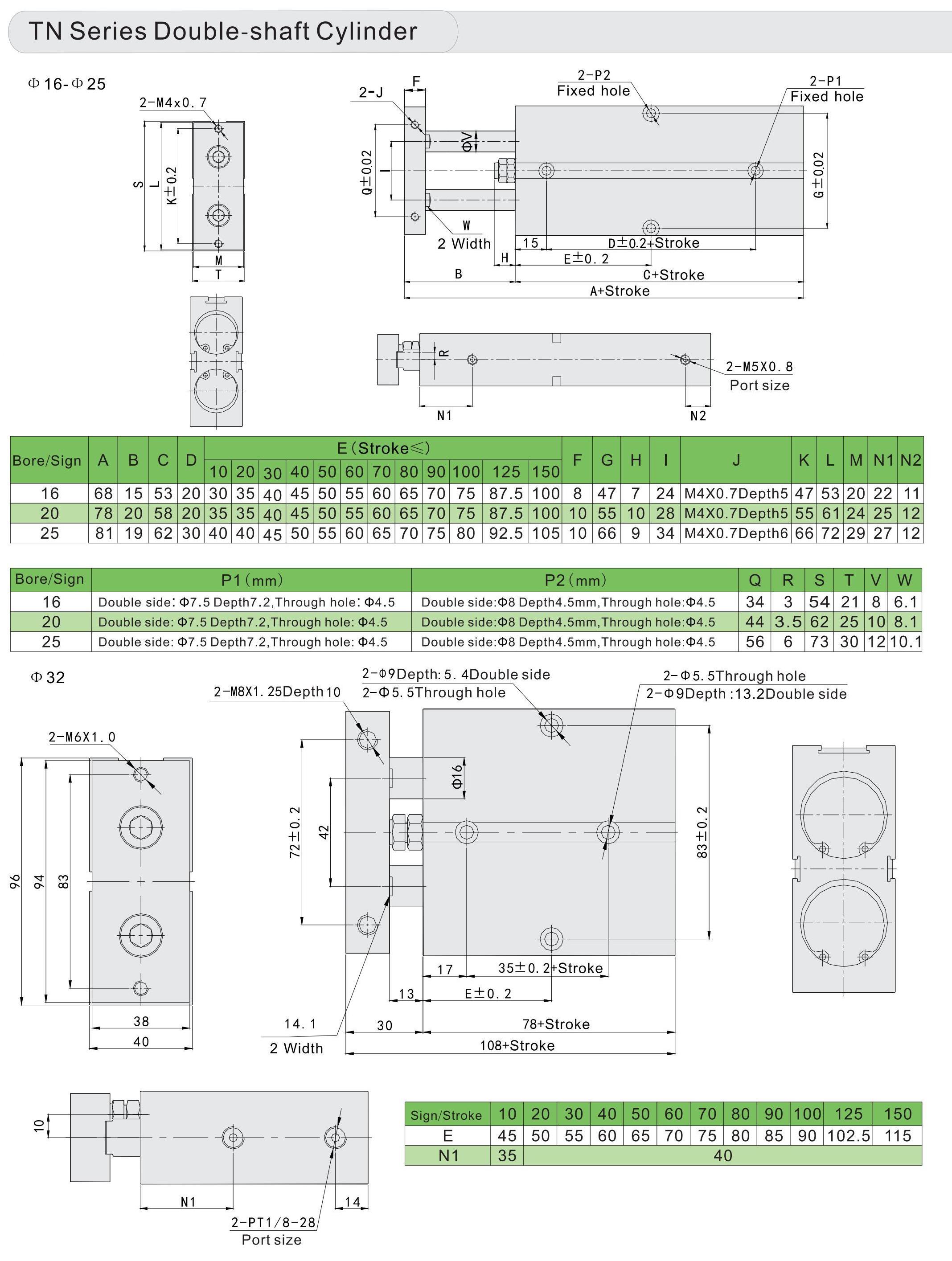

Main Dimensions

TN参数-2TN参数-3
