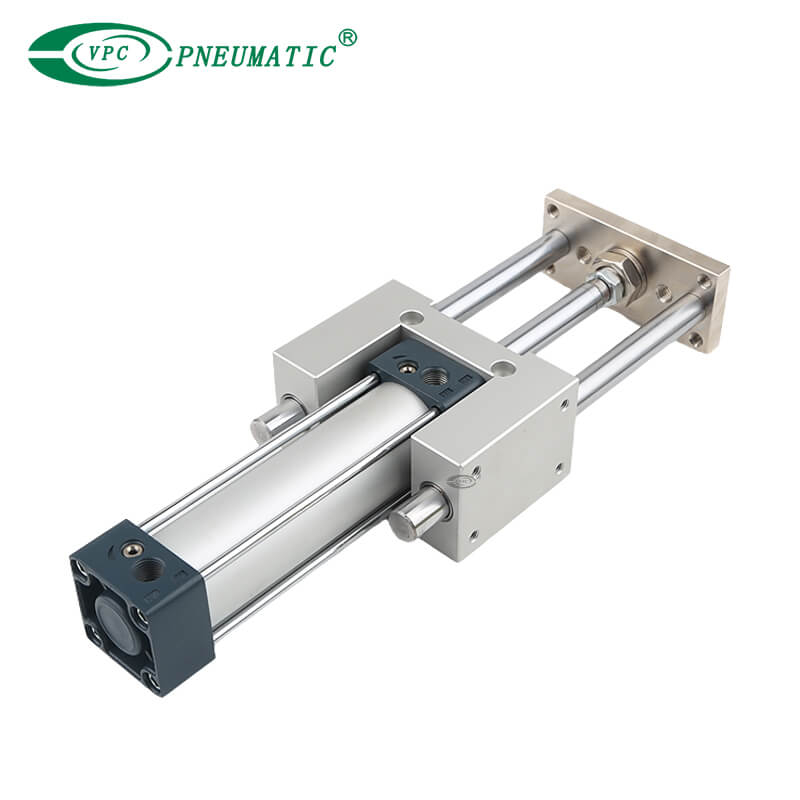

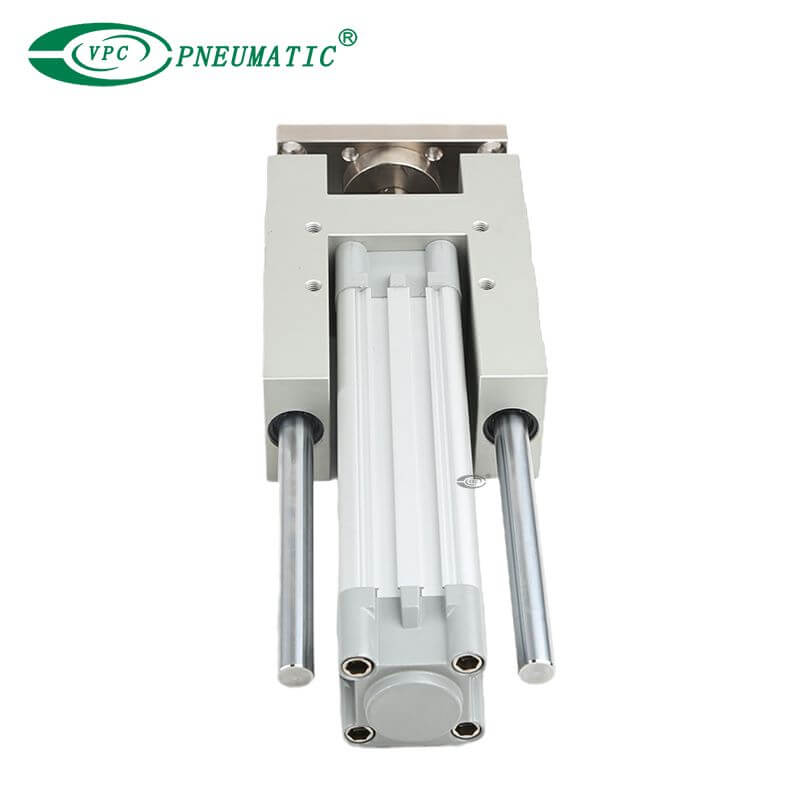

TSAI series cylinders with guide frame is a new type of cylinder that combines a guide frame and a standard cylinder. Double guide rods guided by brass bearings or linear bearings, with high resistance to torque and lateral loads. Can be combined with standard air cylinders of various bore sizes.
Brass bearing: It is suitable for the action that has radial load resistance with greater torsion stiffness.
Linear bearing: It is suitable for push-up action, or where high precision and high load capacity are required, especially for occasions requiring low friction.

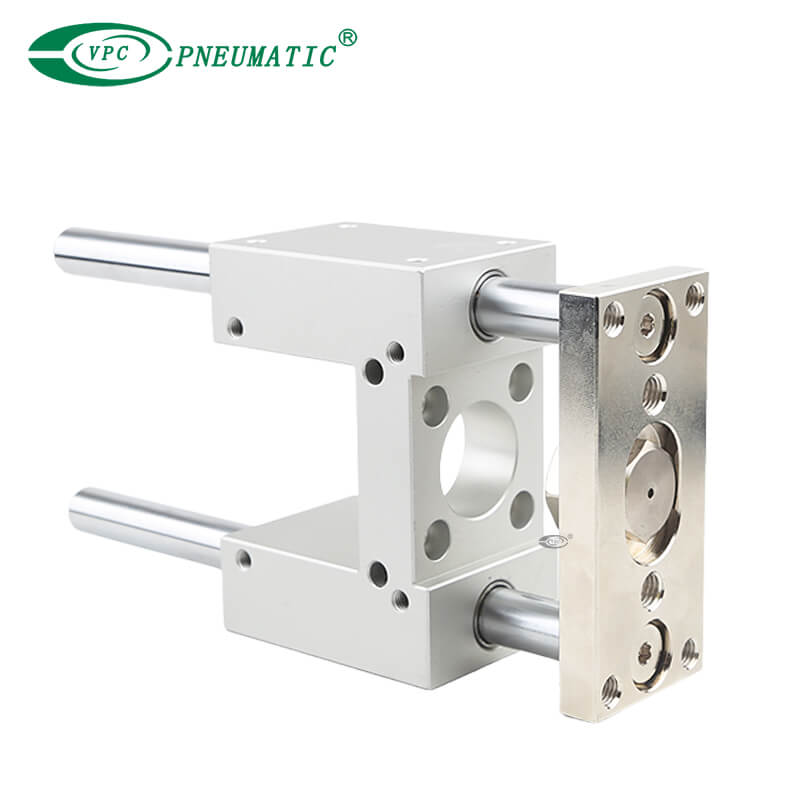

2. The special design of the guide frame body provides a multi-directional mounting
3. The buffer adjustment of cylinder is smooth and steady.
4. According to the actual use requirements, combined with sensor holder can to change the sensor installation location.
Product Specifications
Bore size(mm)
32
40
50
63
80
100
Acting type
Double acting
Working medium
Clean air
Working pressure
0.15~1.0MPa
Proof pressure
1.5MPa
Temperature
-20~70
Speed range
30~500 mm/s
Stroke tolerance
0~250 >250
Cushion type
Variable cushion
Port size
1/8"
1/4"
3/8"
1/2"
※ If you need drawings or more detailed technical specifications of TSAI cylinders with guide frame, please contact VPC.
