Home / Products / Solenoid Valve / General Purpose Solenoid Valve / UW Series 2/2 Way Normal Close Direct-acting High Pressure Solenoid Valve
UW Series 2/2 Way Normal Close Direct-acting High Pressure Solenoid Valve UW Series 2/2 Way Normal Close Direct-acting High Pressure Solenoid Valve

loading

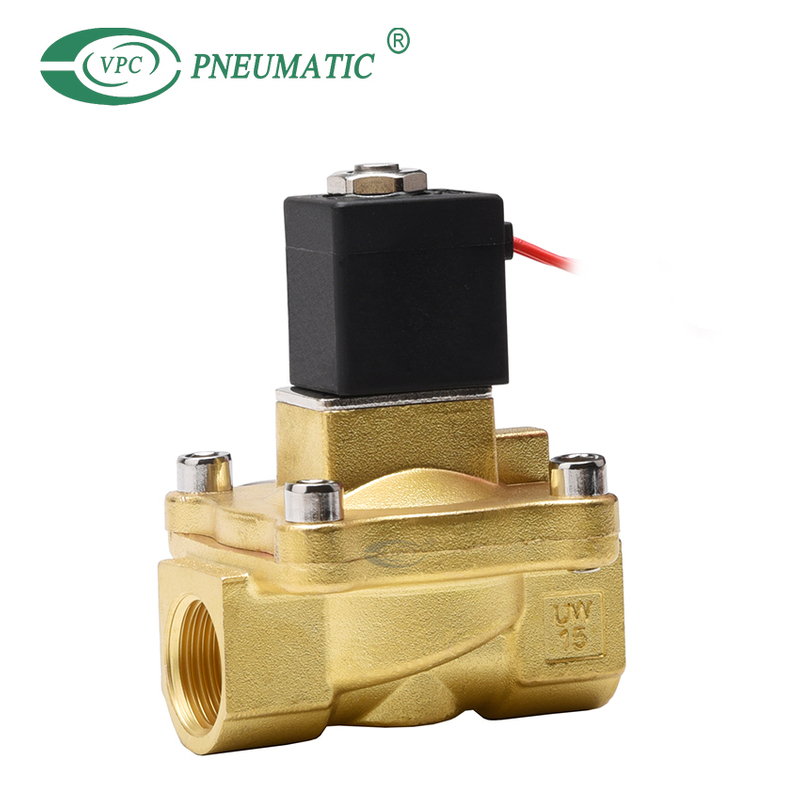

UW Series 2/2 Way Normal Close Direct-acting High Pressure Solenoid Valve

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  1. Normal close,available body:brass,SS304,SS316;
  2. Multiple seals are available for different medium;
  3. To reduce the power consumpiton of 80% energy-saving;
  4. 2W valve upgrade, higher pressure, max. pressure 16bar;
  5. Diaphragm pilot solenoid valve.

  • UW160-15

  • VPC Pneumatic

  • 8481804090

Working medium:
Air/Gas/Water/Oil
Availability:
Inquire Add to Basket

Product Specifications

Model
UW160-15
Working Medium
Air、Water、Oil、Gas
Acting Type
Direc Acting Type
Control Style
Normal Close/Normal Open
Orifice
16mm
CV Value
4.8
Joint Size
G1/2"
Working Pressure
Air:0~0.7Mpa ; Water:0~0.5Mpa ; Oil:0~0.5Mpa; Gas:0~0.7Mpa
Max.Pressure
1.6Mpa
Working Temperature
-5~80℃（The temperature can reach -5~150℃ if change the seal）
Valve Body
Brass
Seal Material
NBR、VITON
