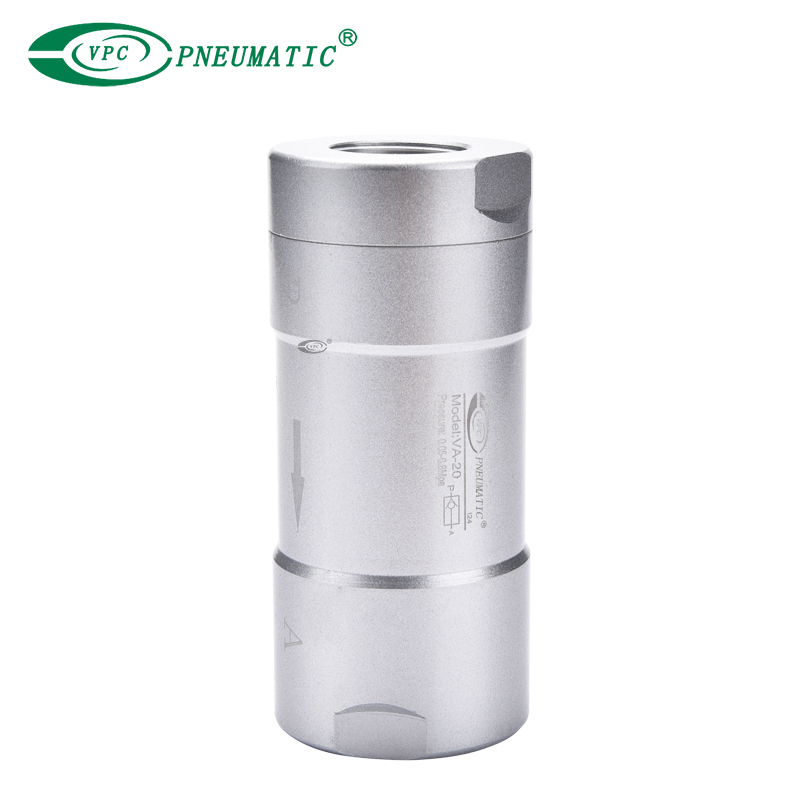

VA Series One Way Valve

Share to:
  • Aluminium in line check valve for air and inert gases;
  • Installation in pneumatic systems where backflow prevention is needed;
  • Can install in any direction.
  • VA-08
  • VPC Pneumatic
  • 8412909000
Working medium:
Working pressure:
Working temperature:
Body Material:
Quality Warranty:
Availability:

Product Description

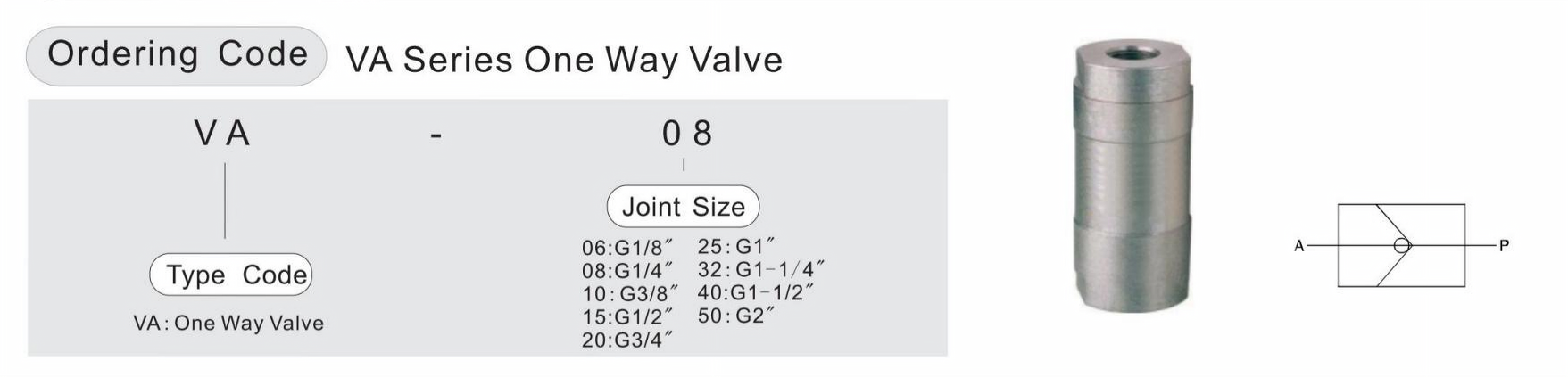

VA 参数-1

Product Specifications

ModelVA-06VA-08VA-10VA-15VA-20VA-25VA-32VA-40VA-50
Working MediumClean air(40μm Filteration)
Acting typeExternal control
Working Pressure0.05 to 0.8Mpa
Max.Pressure1.2Mpa
Working Temperature0 to 55℃
Joint SizeG1/8"G1/4"G3/8"G1/2"G3/4"G1"G1"-1/4"G1"-1/2"G2"

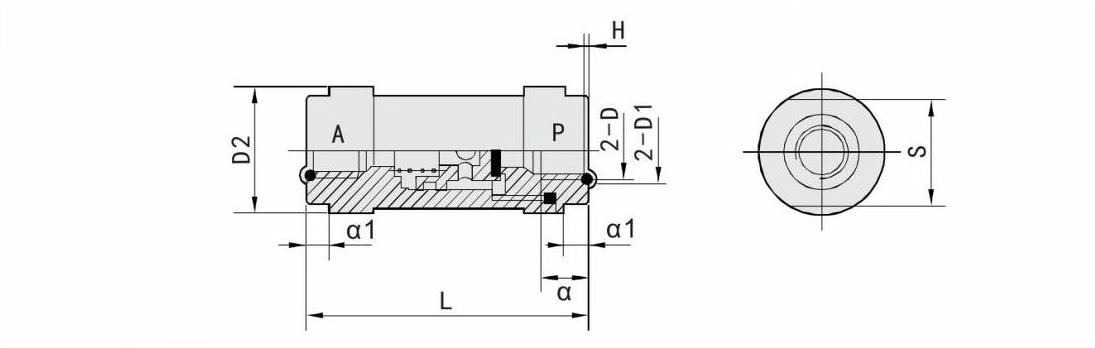

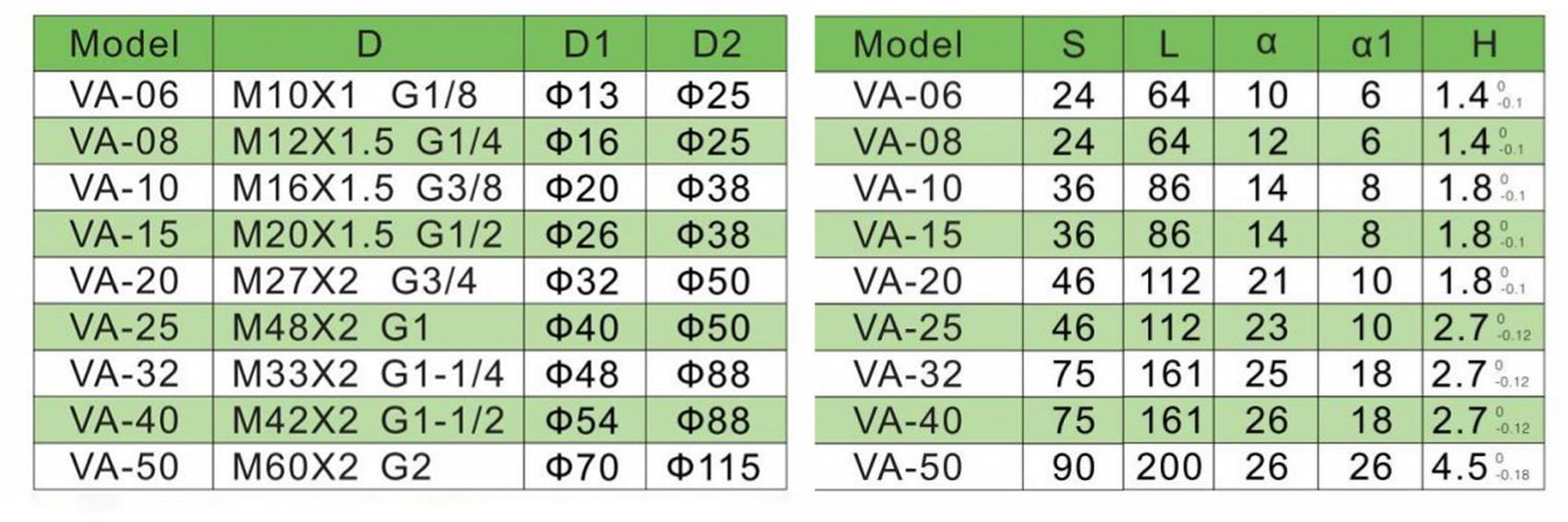

Main Dimensions

VA 参数-2未标题-1
