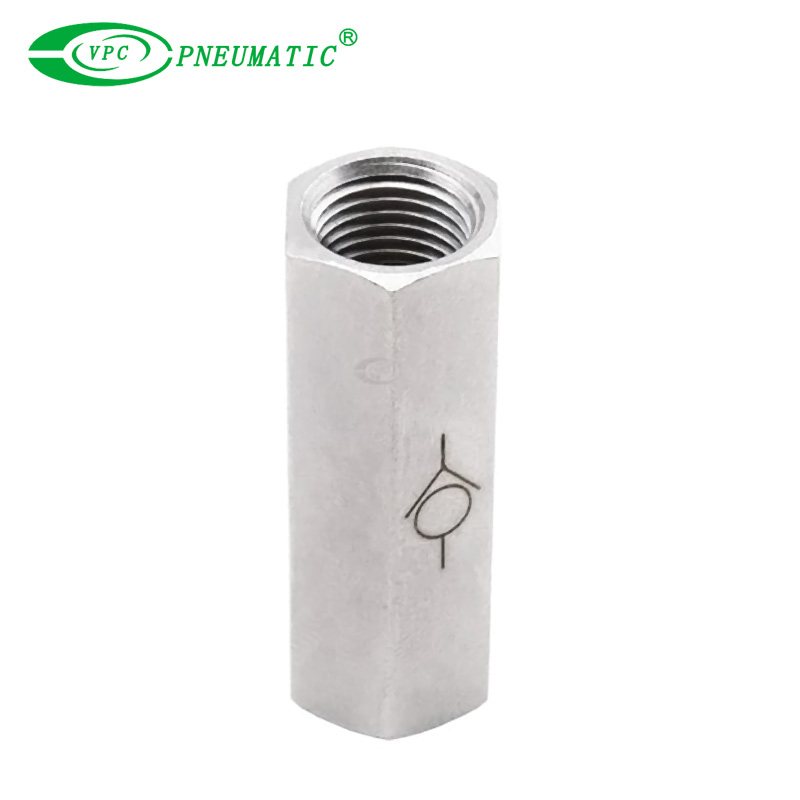

VAM Series One Way Valve

Share to:
  • Aluminium in line check valve for air and inert gases;
  • Installation in pneumatic systems where backflow prevention is needed;
  • Can install in any direction.
  • VAM-08
  • VPC Pneumatic
  • 8412909000
Working medium:
Working pressure:
Working temperature:
Body Material:
Quality Warranty:
Availability:

Product Description

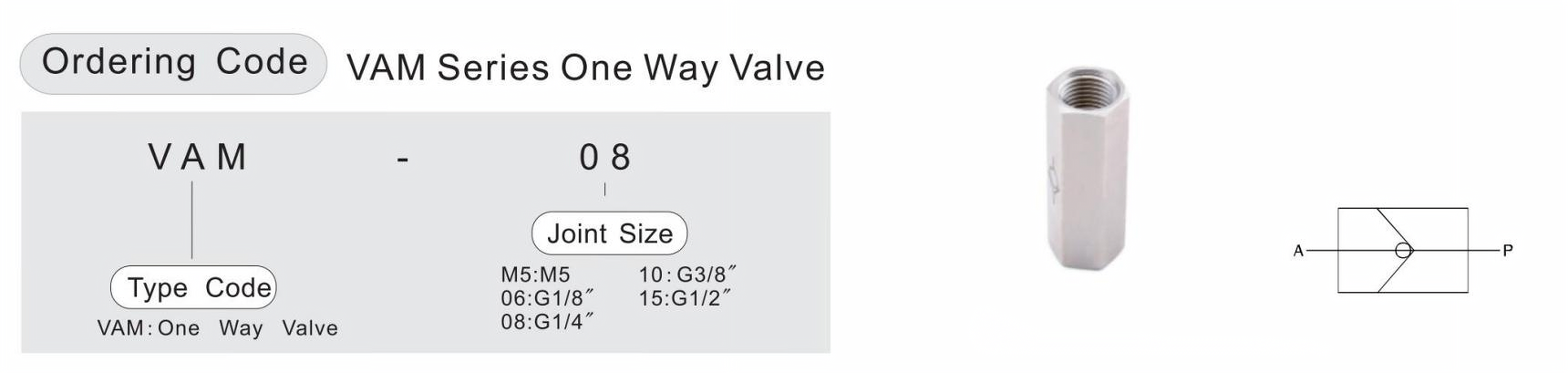

VAM 参数-1

Product Specifications

ModelVAM-M5VAM-06VAM-08VAM-10VAM-15
Working MediumClean air(40μm Filteration)
Acting typeExternal control
Working Pressure0.05 to 1.2Mpa
Working Temperature0 to 60℃
Joint SizeM5
G1/8"G1/4"G3/8"G3/4"

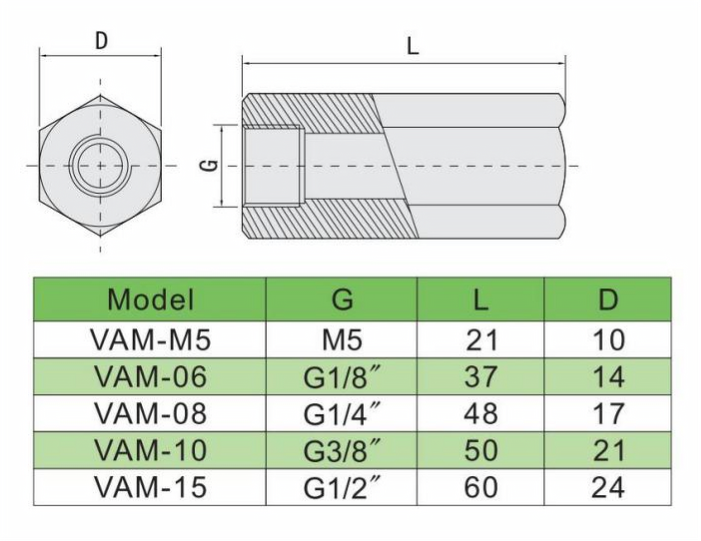

Main Dimensions

VAM 参数-2
