| Working medium: | |
|---|---|
| Working temperature: | |
| Working pressure: | |
| Body Material: | |
| Acting type: | |

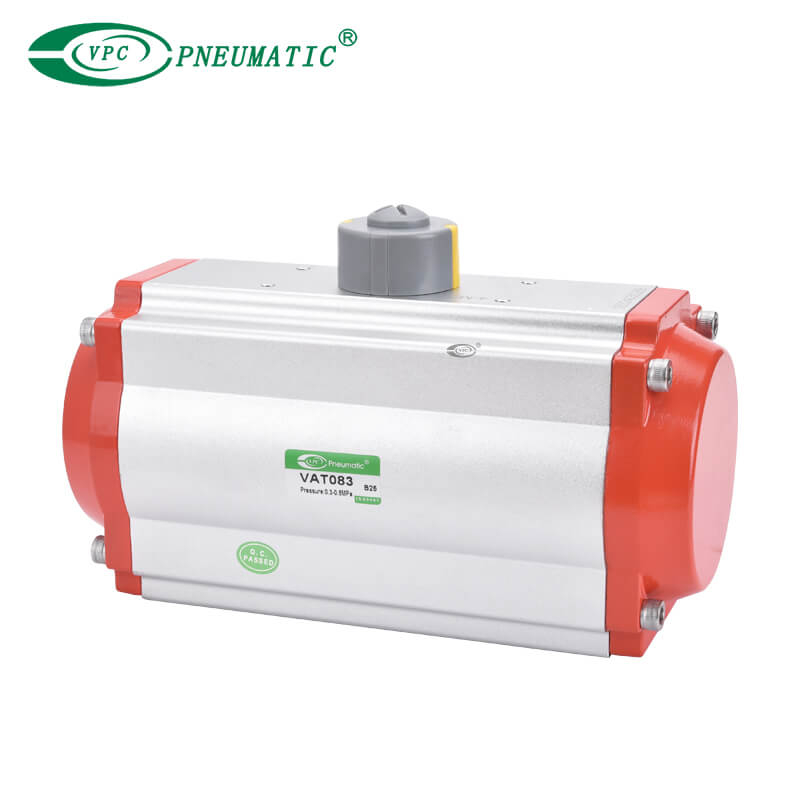

Product Description
Through research,development and design,VAT series pneumatic actuators incorporate the latest mechanical technology, material,and innovative ideas.The product proudly boasts the following features:
﹡Full conformance to the latest specification:ISO5211 DIN3337 VD\VDE3845andNAMUR.
﹡The extruding high intensity aluminum body possess a honed internal surface coated with hone anode oxygenation for long life,low coefficient of friction and swift performance.
﹡Excellent,compact and modernized construction along with multi-specifications make the selection both economic and beneficial.
﹡All acting surfaces adopt high quality bearings,resulting in low friction,high cycle life and no noise.
﹡The two independent external travel stop adjustment bolts can easily and precisely adjust ±5 at both open and close directions.
﹡Same outline actuator have the functional modes of double acting and spring,and the spring return has the normal-open and normal-close styles.
﹡Multi-function position indicator with NUMER is convenient for mounting accessories.
﹡Pre-compressed load spring is convenient for safe mounting and tear down procedures.
﹡Die-casting aluminum pistons and end caps have high intersity and light weight.
﹡Different O-rings materials are available for high and low temperature.
﹡According to different demands we can offer Multi-travel rotations(e.g. 120 135 180 )and three position actuators.
﹡Solenoid valves are easily mounted without any connecting plank.
Operating Conditions
■Operating Media
* Dry or lubricated air,or inertia gas,which should be compatible with inside parts and lubricant of the cylinder.
* The temperature of the operating media is a minimum of -20°C
* The dimension of the impurity particle is at the largest of 30μ .If the positioner is needed,the dimension may be at the largest of 5μ.
Type | VAT Series Pneumatic Actuators | |
Air Source Pressure | 3bar to 8bar | |
Operating Temperature | Standard | -20℃~+80℃ |
Low temperature | -40℃~+80℃ | |
High temperature | -20℃~160℃ | |

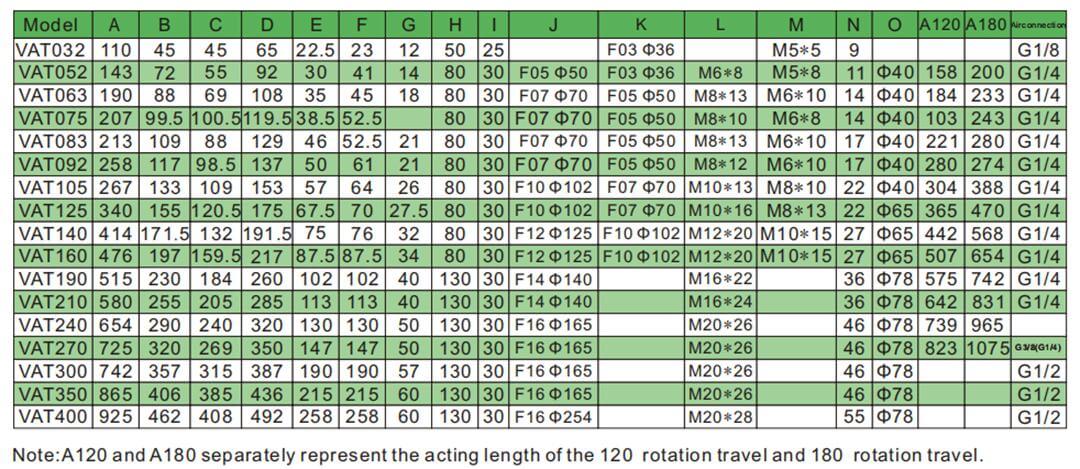

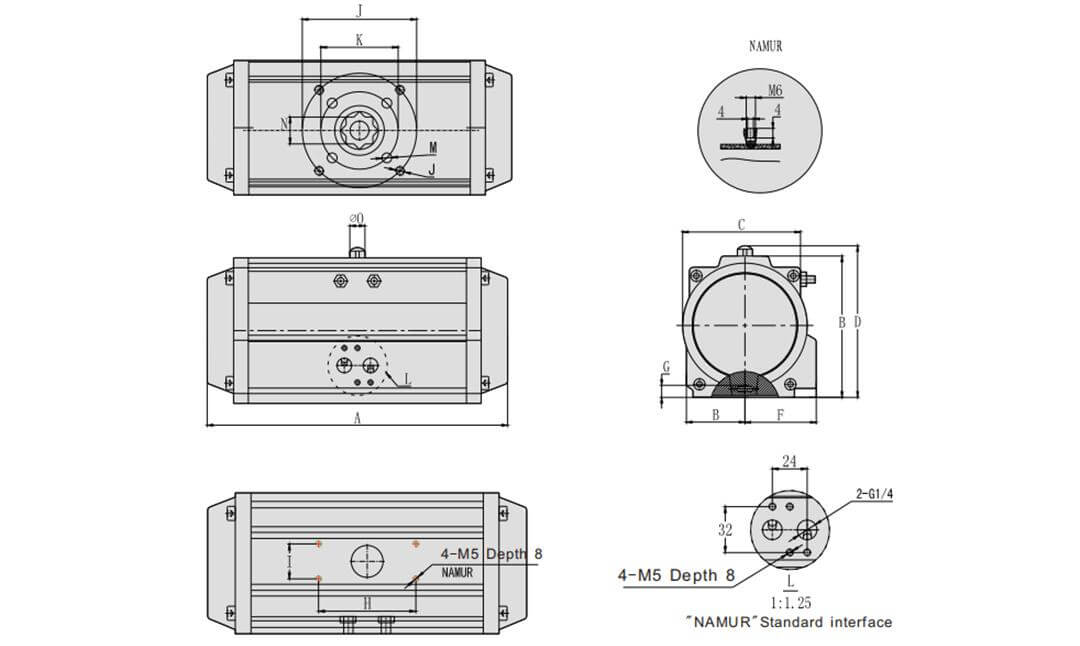

Main Dimensions
