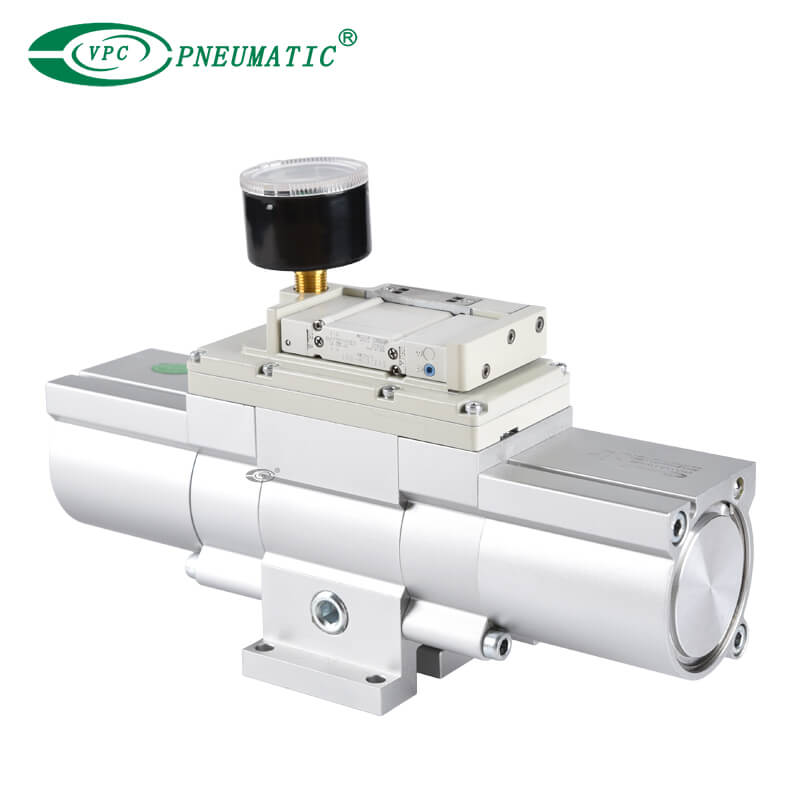

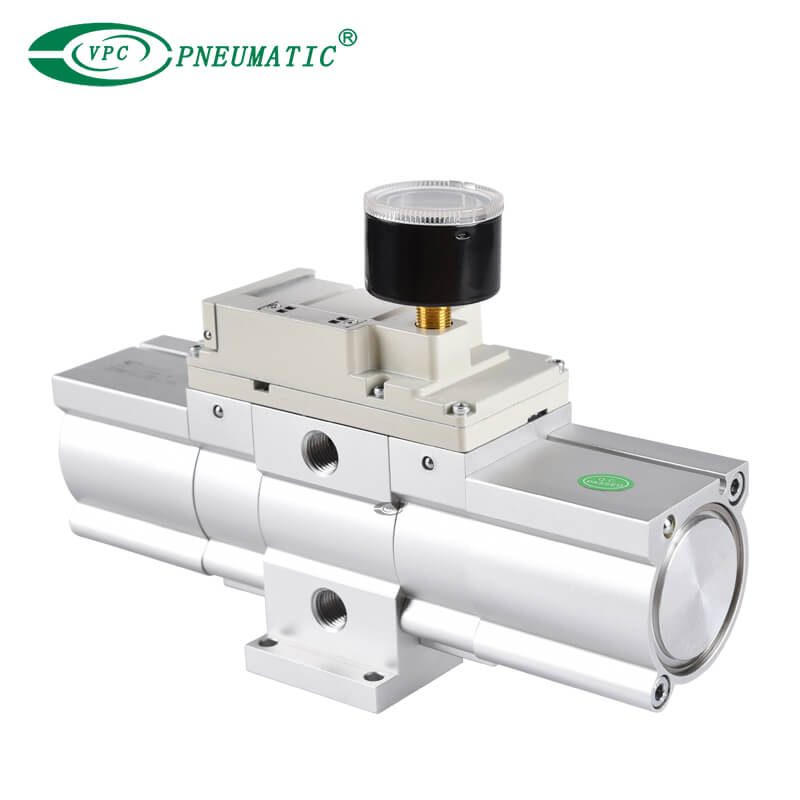

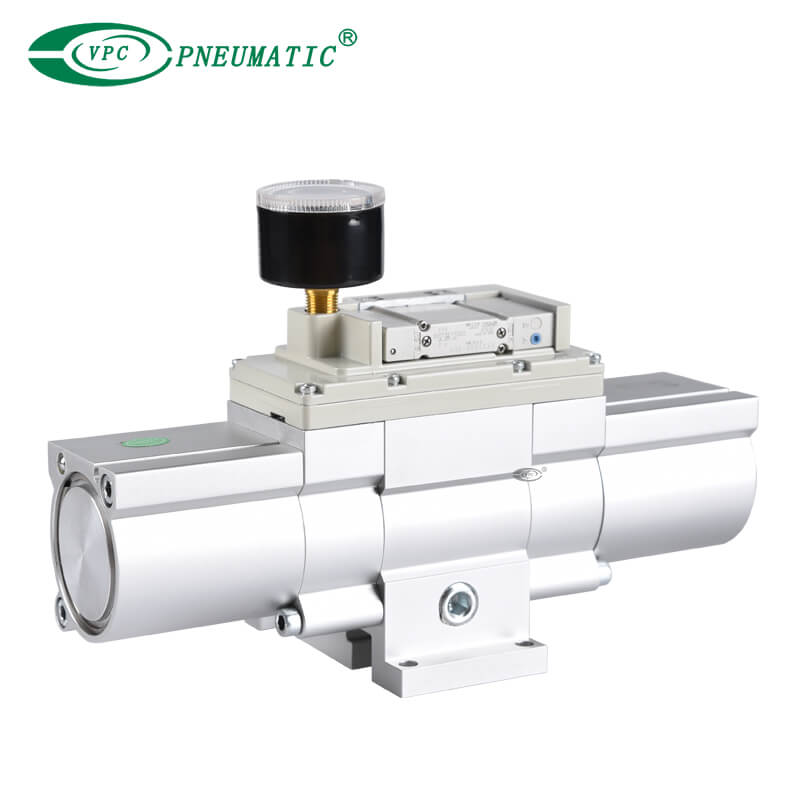

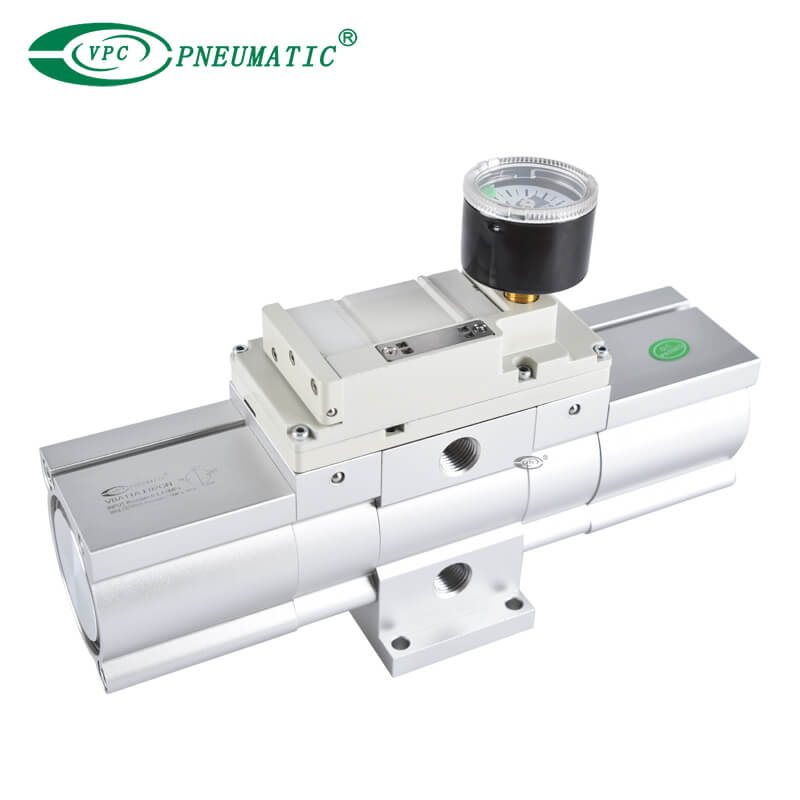

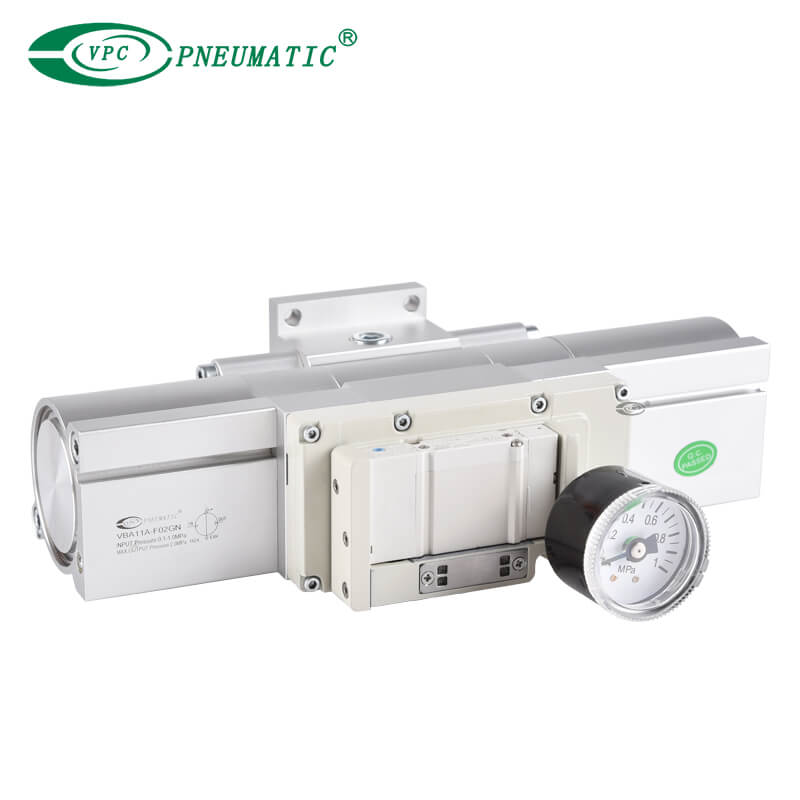

VBA11A Series High Efficiency Booster Regulator

Booster Regulator Body Material::	Aluminum Alloy
Set Pressure:	116 to 290 psi
Pressure Increase ratio:	4x
Max. flow rate:	90 L/min (ANR)
Availability:



Inquire Add to Basket

Product Description

■ Product Feature

1. Easy adjustment of output pressure.

2. Boosts local line pressure without requiring additional power.

3. Possible to get a maximum of double pressure by connecting air with a factory line. (VBA11A: maximum 4 times)

4. Space-saving type that directly connects air tanks and booster regulators.

Product Specifications

Nominal size	VBA10A	VBA11A
Port size	1/4
Pressure increase ratio	2 times (Fixed)	4 times (Fixed)
Max. flow rate	250 L/min (ANR)	90 L/min (ANR)
Set pressure	0.4 to 1.4 MPa	0.8 to 2.0 MPa
Pressure adjustment mechanism	Fixed type (Without pressure adjustment mechanism)
Installation	Horizontal Vertical
