VBAT10A-FSV-Q
VPC Pneumatic
Bbooster Regulator Body Material: | |
---|---|
Working pressure: | |
Tank capacity: | |
Tank Material: | |
Availability: | |

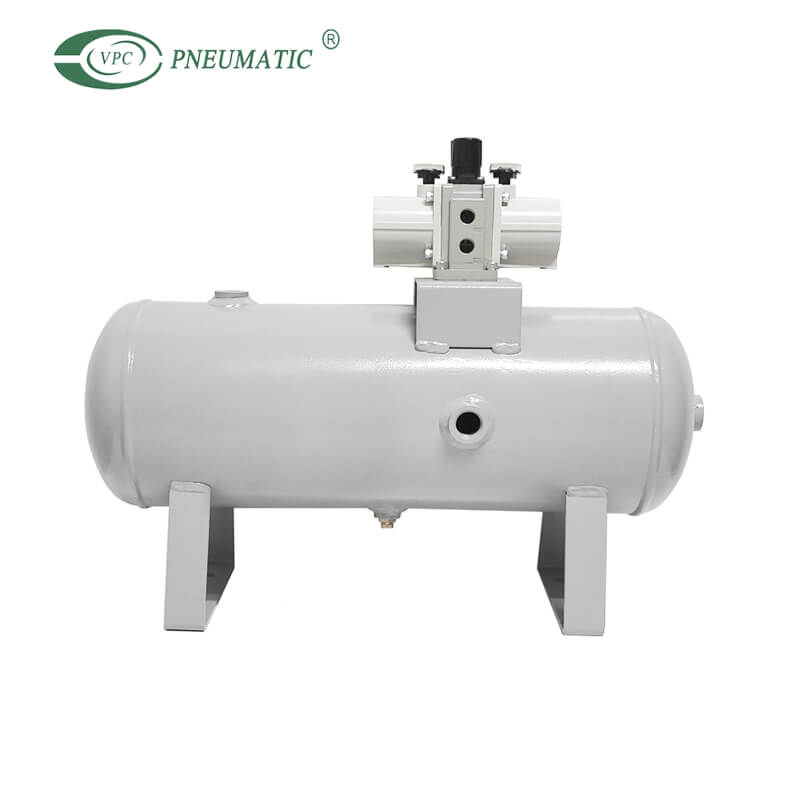

Product Description

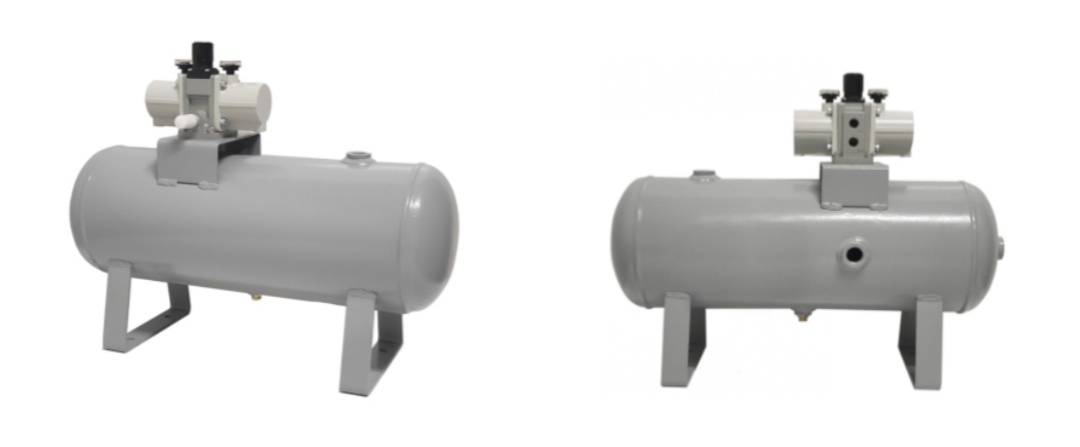

The VBAT-Q tanks are CE certified for use in Europe and other countries that require compliance with the European Pressure Equipment Directive (PED).
1. Compact connections are possible with booster regulators.
2. Easy installation.
3. Low heat generation. Very little heat is generated because no electricity is used, and there is impact on cylinders, solenoid valves, etc.
4. It can be used alone as a tank.
5. Also partially compatible with overseas standards.
* When used as a single unit (not connected with a booster regulator) and pressurized at over 1 MPa at normal temperatures.

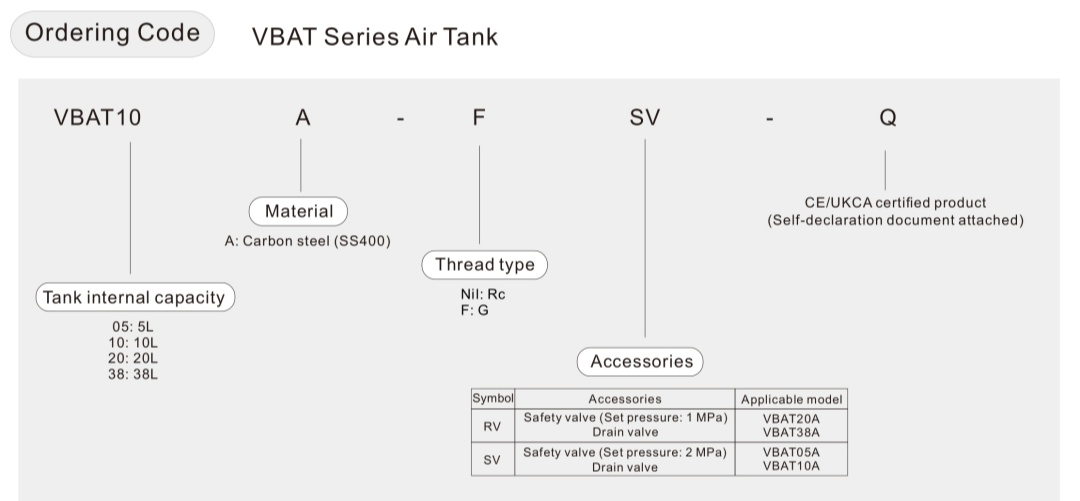

Product Specifications
Model | VBAT05A□-SV-Q | VBAT10A□-SV-Q | VBAT20A□-RV-Q | VBAT38A□-RV-Q |
Working medium | Compressor air | |||
Tank capacity | 5 L | 10 L | 20 L | 38 L |
Max. operating pressure | 2.0 MPa | 1.0 MPa | ||
IN port size | 3/8 | 1/2 | 3/4 | |
OUT port size | 3/8 | 1/2 | 1/2 | 3/4 |
Proof pressure | 3.3 MPa | 1.6 MPa | ||
Working temperature | 0 to 75 ℃ | |||
Installation | Horizontal (Floor mounting) | |||
Weight | 6.6 Kg | 10 Kg | 14 Kg | 21 Kg |
Meterial | Carbon steel (SS400) | |||
Paint | Outside: Silver paint, Inside: Rustproof paint |
*1) Accessories are included in the same container.
*2) Scratches, scrapes, blotches, and uneven color maybe present on the surface, but they do not affect the function or performance of the product.
Model | VBAT05A□-SV-Q | VBAT10A□-SV-Q | VBAT20A□-RV-Q | VBAT38A□-RV-Q |
Accessory kit | VBAT5A-Y-2 | VBAT10A-Y-2 | VBAT20A-Y-2 | |

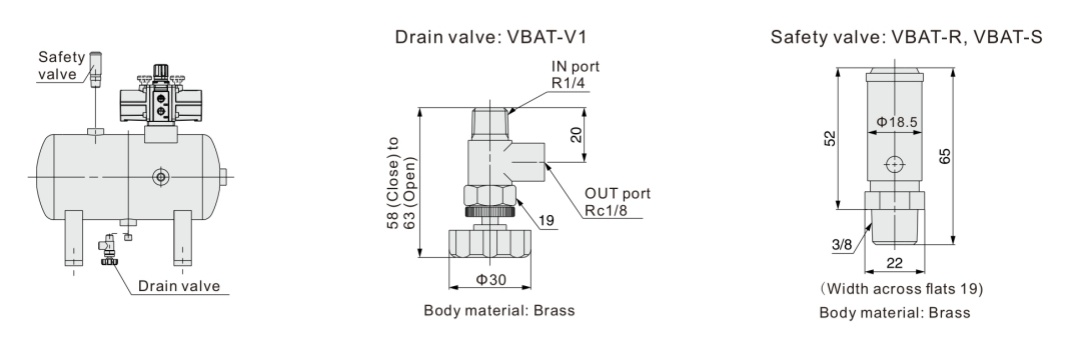

Safty valve | VBAT-S (Set pressure: 2 MPa) | VBAT-R (Set pressure: 1 MPa) | ||
Drain valve | VBAT-V1 |
The Accessory Kit is a Set of Nos. ① to ⑤.
No. | Model | VBAT5A-Y-2 | VBAT10A-Y-2 | VBAT20A-Y-2 |
Description | Quantity | |||
① | Busging assembly (with O-ring) | 1 | 1 | 1 |
② | Hexagon socket head taper screwed plug (for drain port) | 1 | 1 | 1 |
③ | Hexagon socket head cap screw | 4 | 4 (VBA1□A) 4 (VBA2□A) | 4 |
④ | Anchor bolt/nut | — | — | 4 |
⑤ | Hexagon socket head taper screwed plug (for safety valve port) | 1 | 1 | 1 |
Main Dimensions

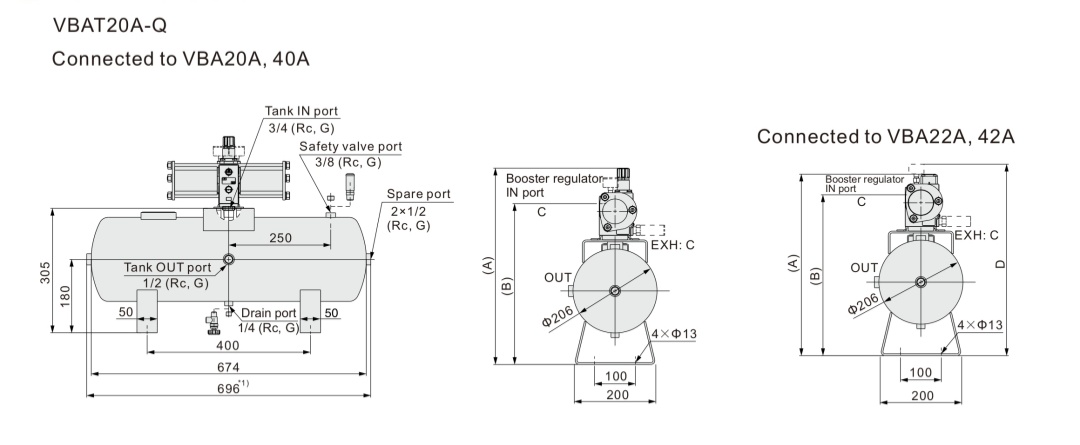

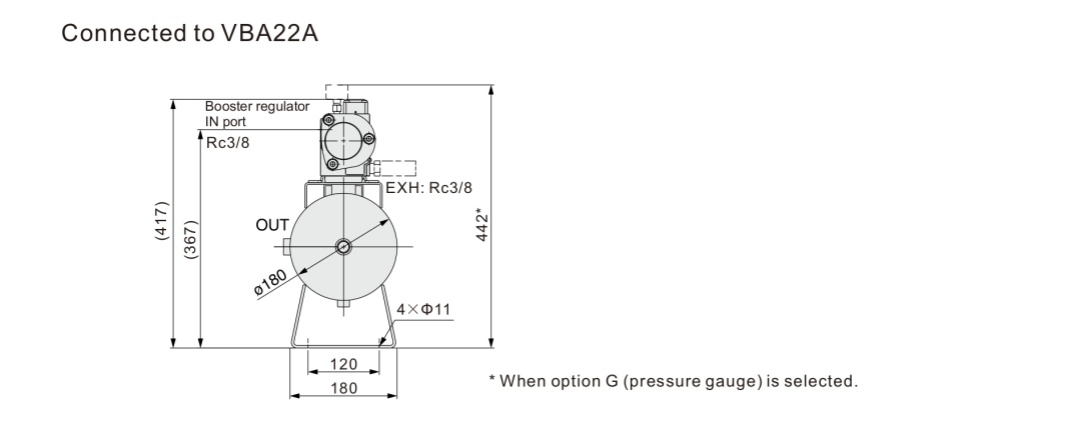

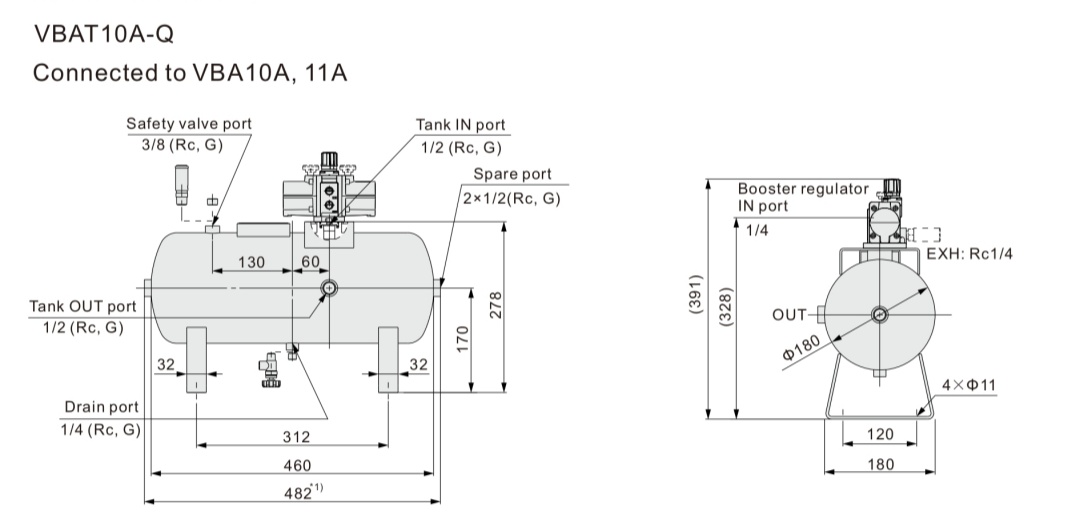

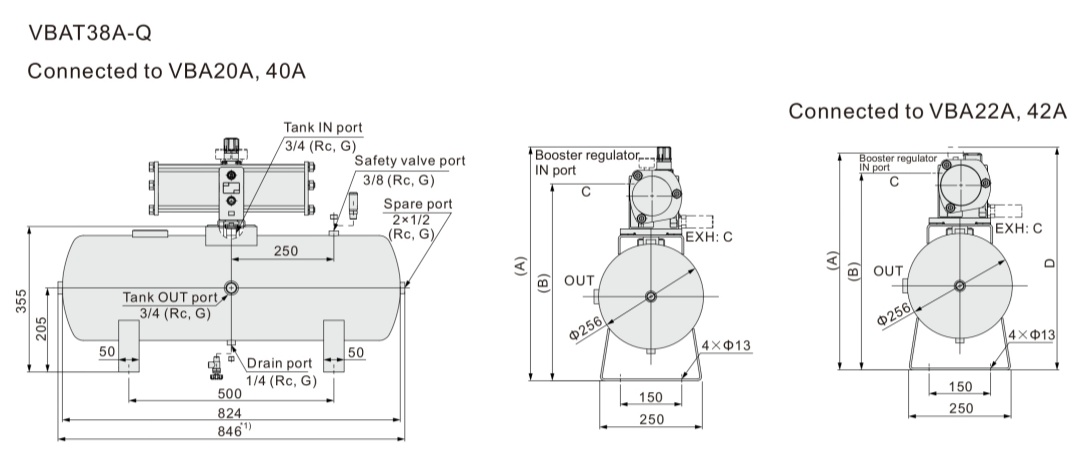

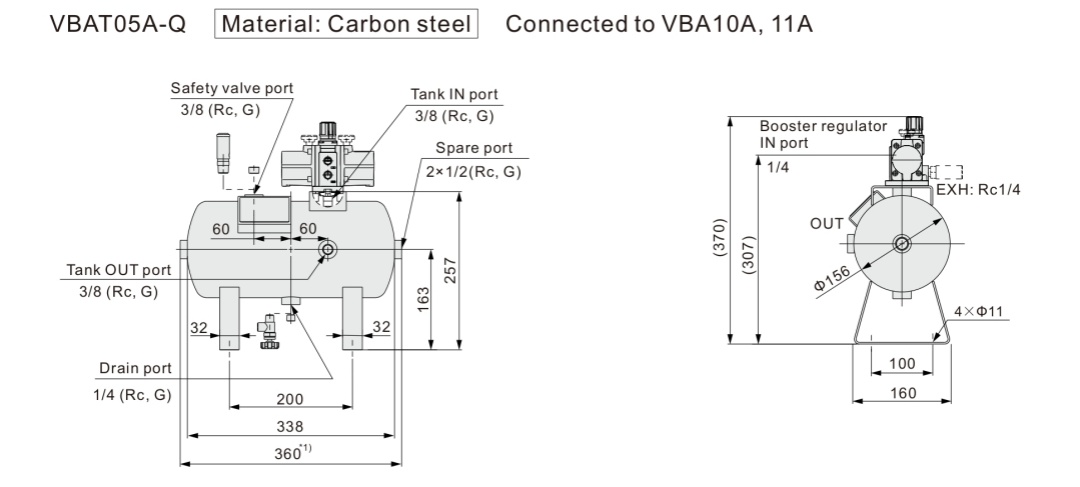

■ Main Dimensions
*1) The length may be longer than the specification if the plugs mounted on the tank are not fit to the end.
*2) The plug in the spare port has been firmly secured with adhesive. When removing the plug to use the port, be careful so as not to damage the plug.
*1) The length may be longer than the specification if the piugs mounted on the tank are not fit to the end.
*2) The plug in the spare port has been firmly secured with adhesive. When removing the plug to use the port, be careful so as not to damage the plug.
*1) The length may be longer than the specification if the plugs mounted on the tank are not fit to the end.
*2) The plug in the spare port has been firmly secured with adhesive. When removing the plug to use the port, be careful so as not to damage the plug.
(mm)
Booster regulator mode | A | B | C | D* |
VBA20A | 481 | 394 | Rc3/8 | — |
VBA40A | 520 | 429.8 | Rc1/2 | — |
VBA22A | 444 | 394 | Rc3/8 | 469 |
VBA42A | 477 | 429.8 | Rc1/2 | 493 |
*1) The length may be longer than the specification if the plugs mounted on the tank are not fit to the end.
*2) The plug in the spare port has been firmly secured with adhesive. When removing the plug to use the port, be careful so as not to damage the plug.
(mm)
Booster regulator mode | A | B | C | D* |
VBA20A | 531 | 444 | Rc3/8 | — |
VBA40A | 570 | 479.8 | Rc1/2 | — |
VBA22A | 494 | 444 | Rc3/8 | 519 |
VBA42A | 527 | 479.8 | Rc1/2 | 543 |
