VBP Series Basic Vacuum Ejectors

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

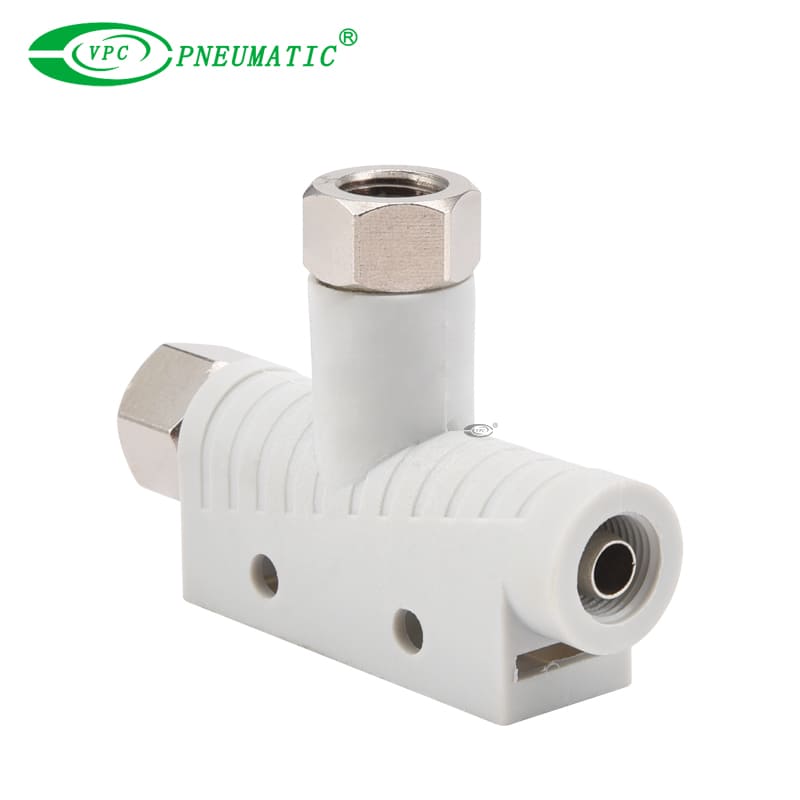

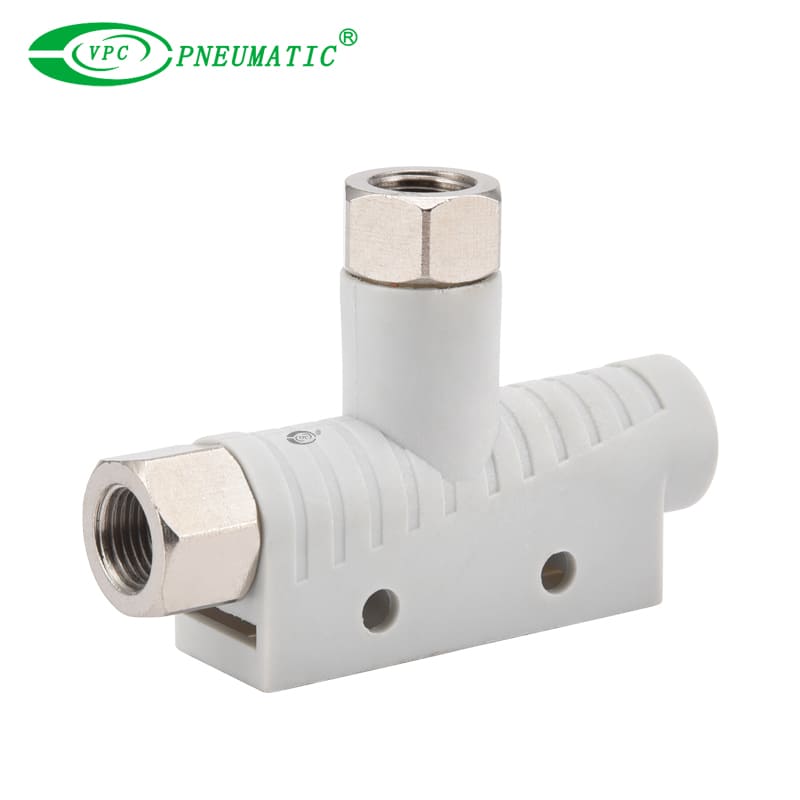

VBP Serie basic vacuum generator features an ultra-lightweight plastic body, making it perfect for dynamic applications like robotics. Its efficient design ensures low air consumption and quiet operation with a built-in silencer. The straight-through, in-line design allows for simple installation directly in the vacuum line or mounted in a row for multi-point suction. A simple, reliable vacuum ejector for fast handling.
  • VBP10

  • VPC Pneumatic

  • 8481804090

Working medium:
Working temp.:
Availability:

Product Description

 Product Feature

1. All-in-One Integrated Design

Combines the vacuum ejector, control valves, filter, and silencer into a single, compact body. This eliminates complex piping and wiring, simplifying system design and reducing installation time.

2. High-Efficiency Performance

Features advanced ejector technology to deliver high suction flow and rapid vacuum generation while minimizing compressed air consumption, offering a highly efficient alternative to a traditional vacuum pump.

3. Modular & Scalable Design

Available as a standalone unit or easily mounted on a manifold for centralized, multi-point vacuum systems. This provides maximum flexibility for machine design and future expansion.

4. Integrated Control & Feedback

Includes integrated supply/release valves for precise control of grip-and-release cycles. An optional digital pressure switch provides real-time system feedback and allows for setting precise vacuum levels.


Applications

1. Robotic Handling & End-of-Arm Tooling (EOAT)

Its compact, lightweight design makes this vacuum generator ideal for mounting directly on robot arms, minimizing inertia and enabling fast, precise movements.

2. Automated Pick & Place Systems

Fast response times and high suction flow ensure reliable gripping and releasing of components in high-speed assembly and packaging lines.

3. Material Handling & Clamping

Suitable for a wide range of applications, including sheet metal handling, wood clamping, and plastics thermoforming, providing a reliable on-demand vacuum source.



Product Specifications

■ Specification

Model Nozzle
diameter
(mm)
Rated air
supply pressure
(bar)
Max.
vacuum level
(-kPa)
Max.
vacuum flow
(NL/min)
Air
consumption
(NL/min)
Noise
level
[dB(A)]
Working
temperature
(℃)

Recommended hose dia.

(mm)

Air supply Vacuum
VBP10 1 4.5 85 38
50 59 0 to 60 Ф  Ф 8
VBP15 1.5 4.5 85 72 110 65 0 to 60 Ф 6 Ф 8

※ Note: Max.operating pressure 7bar, standard operating pressure 4.5bar

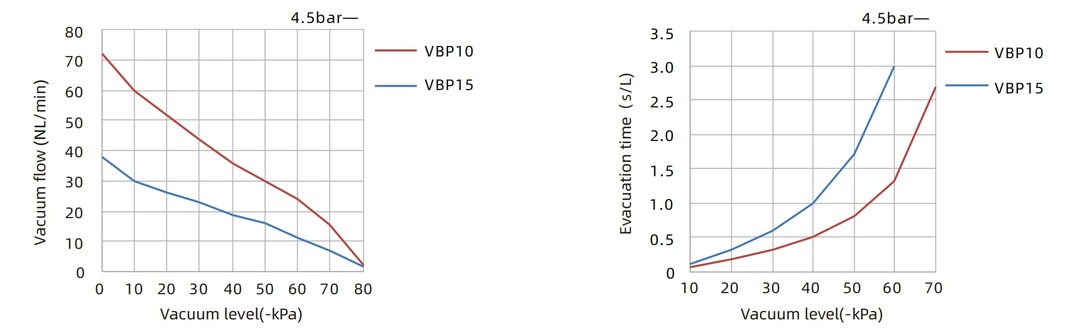

 Vacuum flow (NL/min) at different vacuum levels (-kPa)

Model Air supply
pressure
(bar)
Air
consumption
(NL/min)
0
10 20 30 40 50 60 70 80 Max.
vacuum level
(-kPa)
VBP10 4.5
50
38
30 26
23
18.6
16
11
7.0
1.8
85
VBP15 4.5 110 72 60 52 44 36 30 24 15.5 2.2 85




 Evacuation time(s/L) to reach different vacuum levels(-kPa)

Model Air supply
pressure
(bar)
Air
consumption
(NL/min)
10
20
30
40
50
60
70
Max.
vacuum level
(-kPa)
VBP10 4.5
50
0.13 0.33 0.6 1 1.72 3 - 85
VBP15 4.5 110 0.06 0.18 0.32 0.52 0.81 1.32 2.7 85

Vacuum generator symbol
