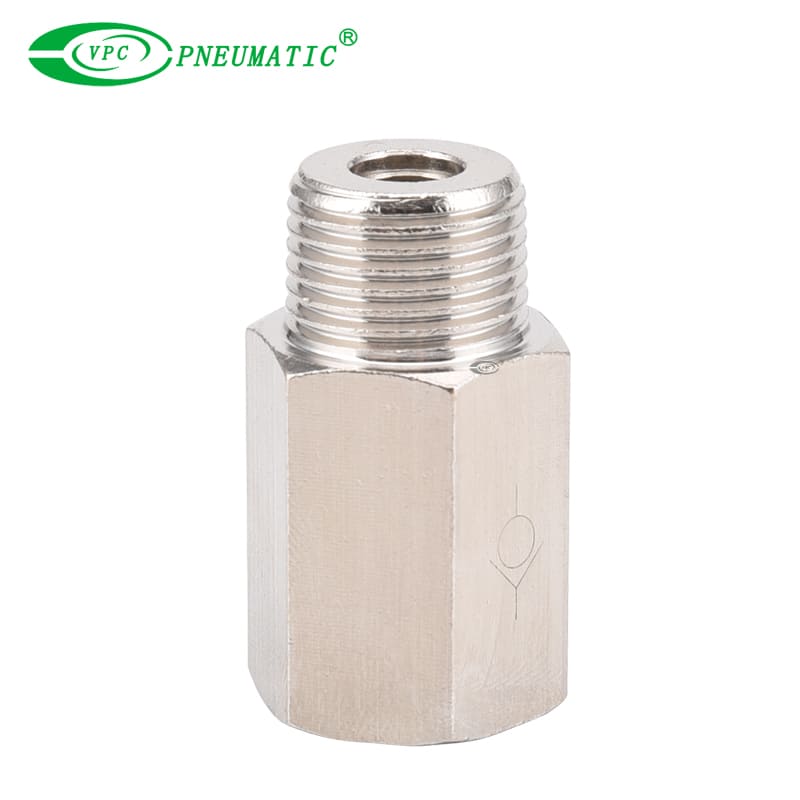

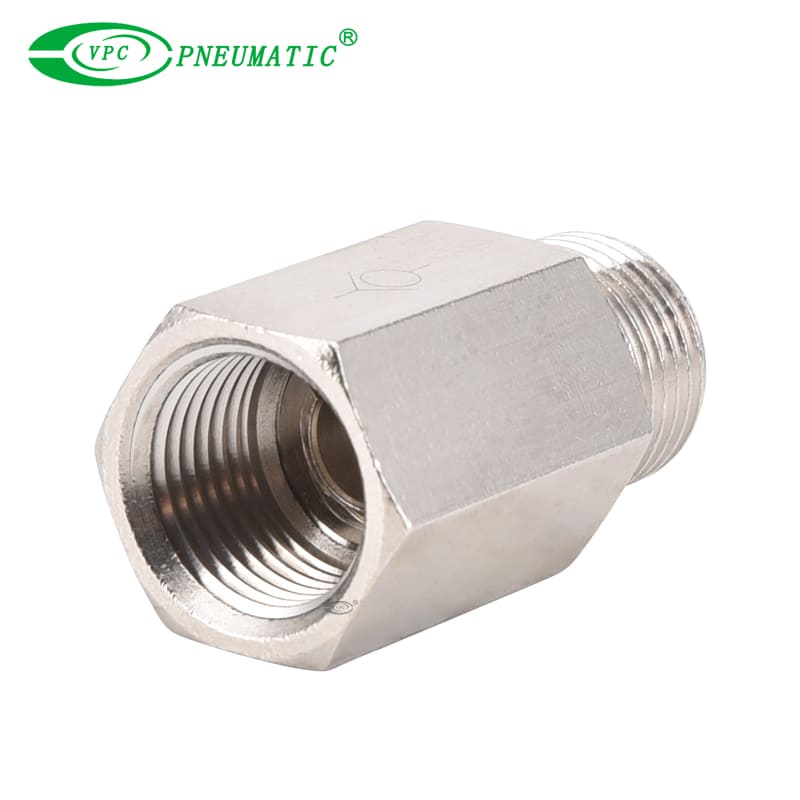

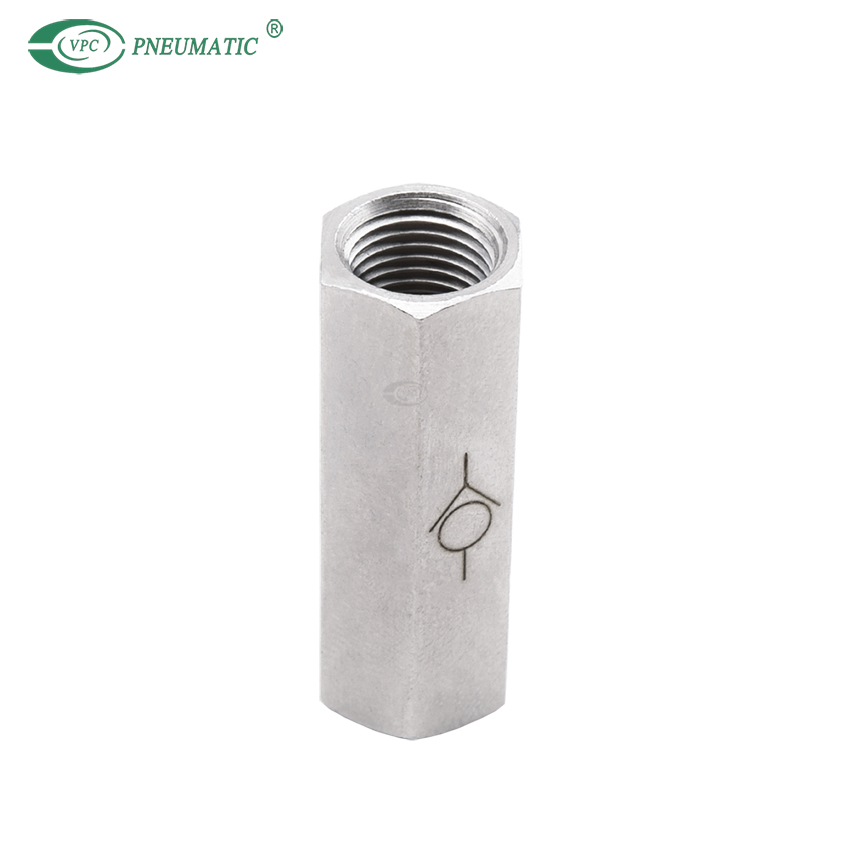

VCVPF Check Valve

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  1. Uni-directionality of airflow is maintained while the flow of air in the opposite direction is completely prevented.
  2. Constant input and output air pressure is achieved due to the controlled directionality of airflow.
  3. Suitable for the pneumatic applications under low operational pressure conditions.

  • VCVPF04-04

  • VPC Pneumatic

  • 39174000

Applicable tube:
PU, Nylon
Body Material:
Nickel Plated Brass
Availability:
Inquire Add to Basket

Product Description

■Specification

FluidAir(No other gases or liquids)
Working pressure range0 to 284 Psi0 to 20Kgf/㎠ (0∼1960kPa)
Negative pressure-29.5 inHg-750 mmHg(10Torr)
Temperature range32 to 176℉0 to 80℃
Applicable tube materialPolyurethane and Nylon


Product Specifications

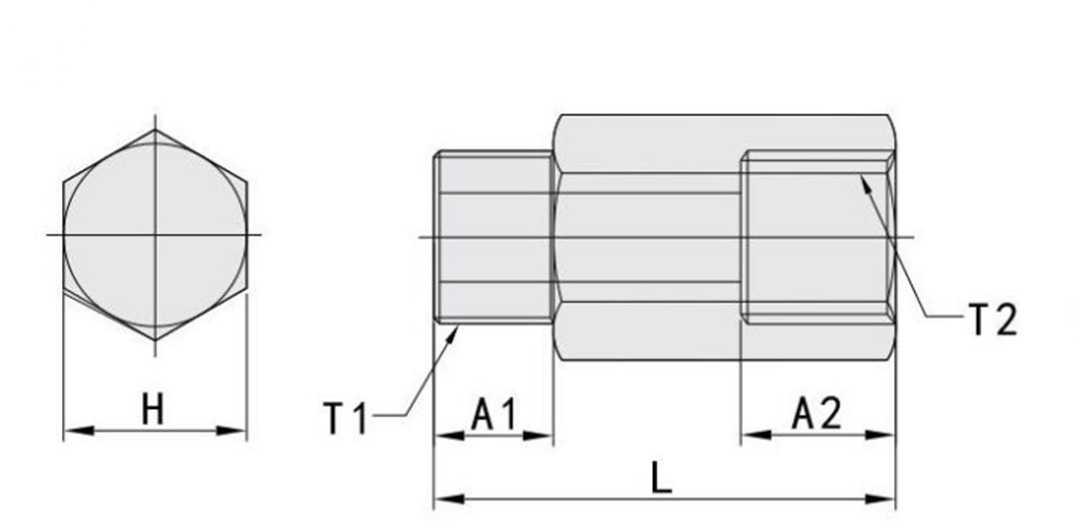

Model T1 T2 L A1 A2 H
VCVPF01-01 R1/8 R1/8 28.1 8 8 12
VCVPF02-02 R1/4 R1/4 34.1 11 11 17
VCVPF03-03 R3/8 R3/8 53.8 12 12 22
VCVPF04-04 R1/2 R1/2 60.0 14 14 24

brass one way check valve

PDF Download

download Check Valve.pdf
