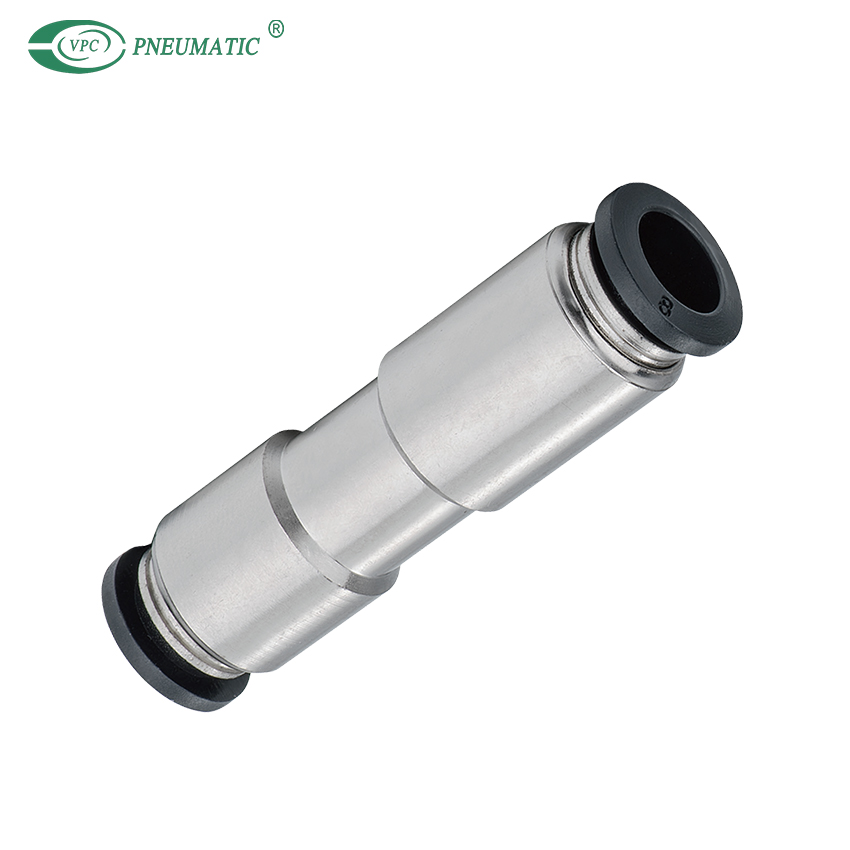

VCVPU Check Valve

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  1. Uni-directionality of airflow is maintained while the flow of air in the opposite direction is completely prevented.
  2. Constant input and output air pressure is achieved due to the controlled directionality of airflow.
  3. Suitable for the pneumatic applications under low operational pressure conditions.

  • VCVPU06

  • VPC Pneumatic

  • 39174000

Applicable tube:
PU, Nylon
Body Material:
Nickel Plated Brass
Availability:
Inquire Add to Basket

Product Description

■Specification

FluidAir(No other gases or liquids)
Working pressure range0∼284Psi0∼20Kgf/㎠(0∼1960kPa)
Negative pressure-29.5inHg-750mmHg(10Torr)
Temperature range32∼176℉0∼80℃
Applicable tube materialPolyurethane and Nylon

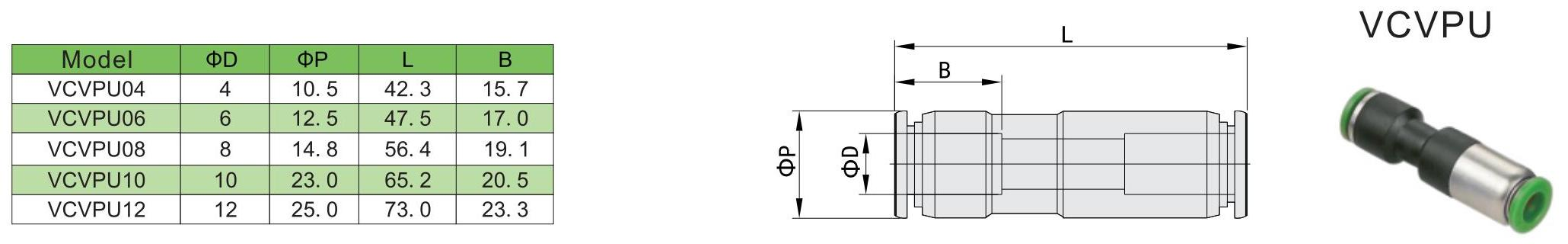

Product Specifications

VCPU check valve

PDF Download

download Check Valve.pdf
