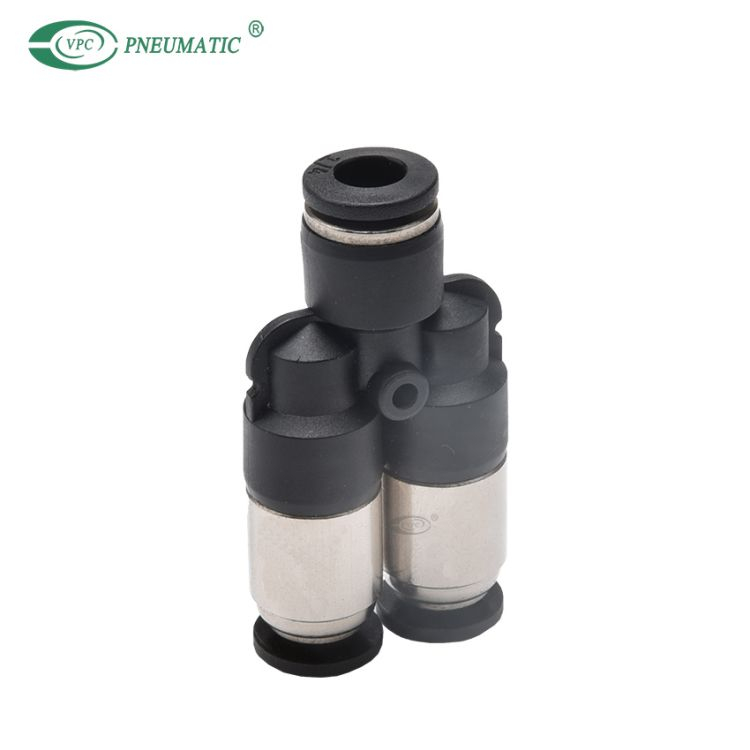

VCVPY Series Y Type Pneumatic Union Connector Check Valve

Name: VCVPY Series Y Type Pneumatic Union Connector Check Valve
Brand: VPC Pneumatic
SKU: 518388858
Rating: 5.0 (93 reviews)

Check valves permit airflow in one direction;
Used for maintaining the output pressure at a constant level.

Model:
VCVPY06
Brand:
VPC Pneumatic
Code:
39174000

Applicable tube:	PU, Nylon, PA, PE hose
Body material:	Plastic and Brass
Availability:



Inquire Add to Basket

Product Description

■ Product Features

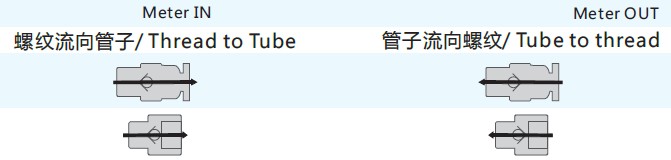

1. The check valves permit airflow in one direction but stops in the reverse direction.

2. The check valves work at the pressure of 0.1kgf/c㎡, keep 1.42 PSI in vacuum and connect at a low pressure.
3.Nickel-Plated brass body ensures anti-corrosion and anti-contamination.

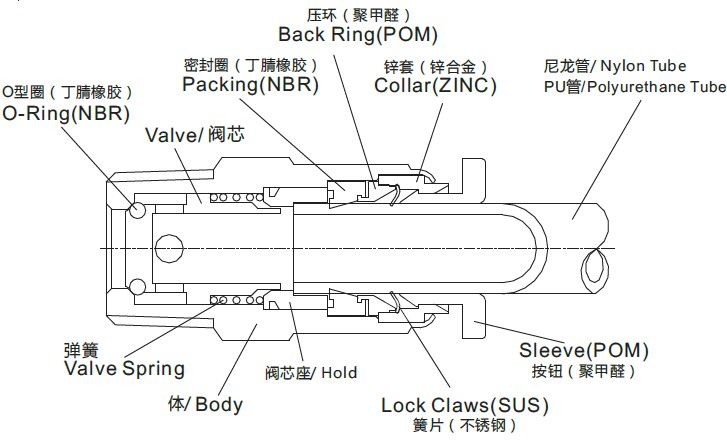

4. Fittings are equipped with a Gasket, O-ring and Teflon-treatment on the thread.

Working Medium	Air, Vaccum
Working Pressure	0~1.0Mpa
Negative pressure	-750mmHg(-750Torr)
Max Pressure	1.5Mpa
Working Temperature	0~60°C
Applicable	PA Hose (Nylon), PU Hose (Polyurethane) etc.
