Product Description
Robust Pressure Handling
Rated for working pressures up to 870 psi, this fitting is designed for stable performance in high-pressure pneumatic or fluid systems.
Durable Brass Construction
Made from industrial-grade brass, offering excellent resistance to corrosion, vibration, and mechanical wear.

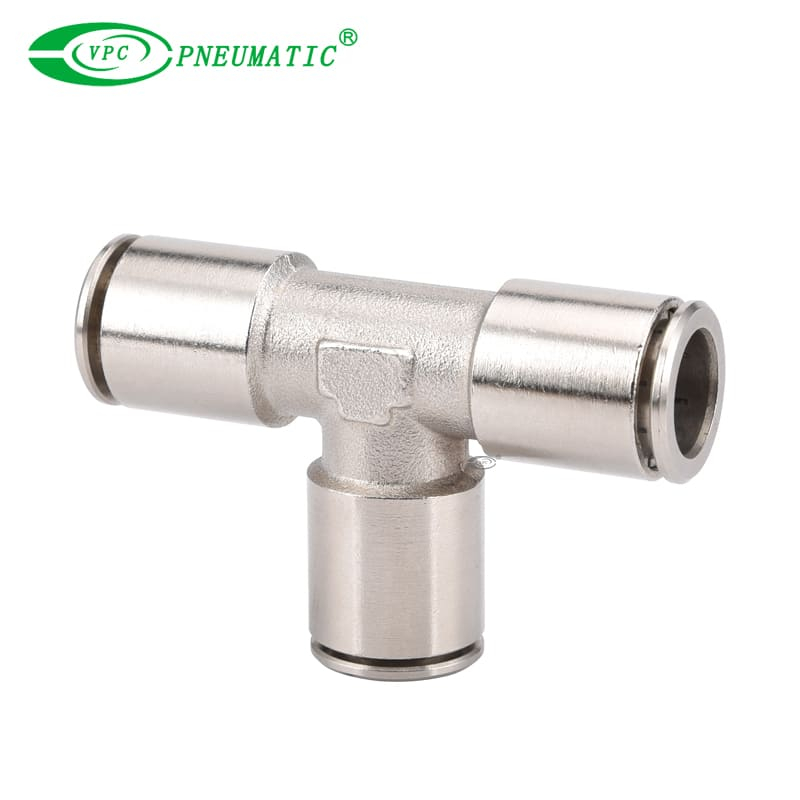

T-Type Design
Efficiently splits or redirects flow within confined pneumatic circuits, ideal for compact system layouts.
Precision Threading
Machined to tight tolerances to ensure secure, leak-free connections; available in NPT or BSPT thread options.
Compact Form Factor
Engineered for space-saving installations without compromising flow capacity or mechanical strength.
Applications
High-pressure pneumatic control systems
Industrial automation and machinery
Hydraulic test benches
Automotive and heavy-duty suspension systems
Air compressors and vacuum systems
Custom OEM assemblies requiring reliable high-pressure connectors

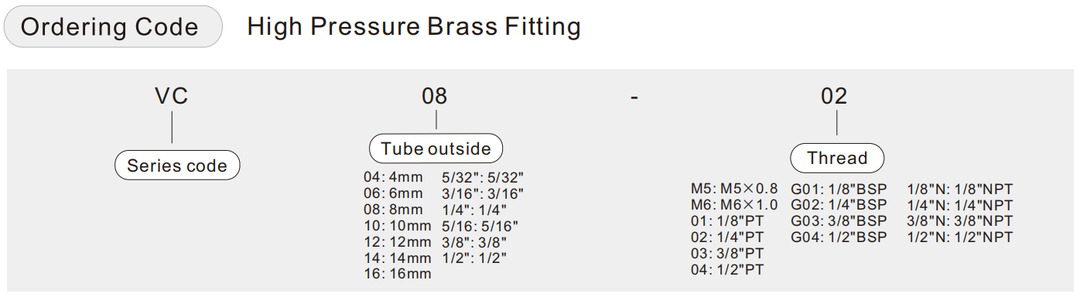

■ Tube Size
| Tube (Metric) | Tube (Inch) | ||||||||||||
| Code | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 5/32 | 3/16 | 1/14 | 5/16 | 3/8 | 1/2 |
| Tube Outside | Ф4 | Ф6 | Ф8 | Ф10 | Ф12 | Ф14 | Ф16 | Ф5/32 | Ф3/16 | Ф1/14 | Ф5/16 | Ф3/8 | Ф1/2 |
■ Thread
| Thread (Metric) | ||||||||
| Code | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 |
| Thread | M5×0.8 | M6×1.0 | M8×1.0 | M10×1.0 | M12×1.25 | M14×1.5 | M16×1.5 | M20×1.5 |
| 55° Thread (R) | |||||
| Code | 01 | 02 | 03 | 04 | 06 |
| Thread | R1/8 | R1/4 | R3/8 | R1/2 | R3/4 |
| Thread (UNF) | US Thread 60° | |||||
| Code | U10 | 01N | 02N | 03N | 04N | 06N |
| Thread | 10-32UNF | NPT1/8 | NPT1/4 | NPT3/8 | NPT1/2 | NPT3/4 |
Product Specifications
| Working medium | Air, Water |
| Max. working pressure | 6 Mpa (870 psi) |
| Working temperature | -20 to 70 ℃ |
| Applicable Tube | PA11, PA12, PA6, PU (98 Shore A) |
| Model | Tube Size(mm) |
| VE04 | 4 |
| VE06 | 6 |
| VE08 | 8 |
| VE10 | 10 |
| VE12 | 12 |
| VE14 | 14 |
| VE16 | 16 |
