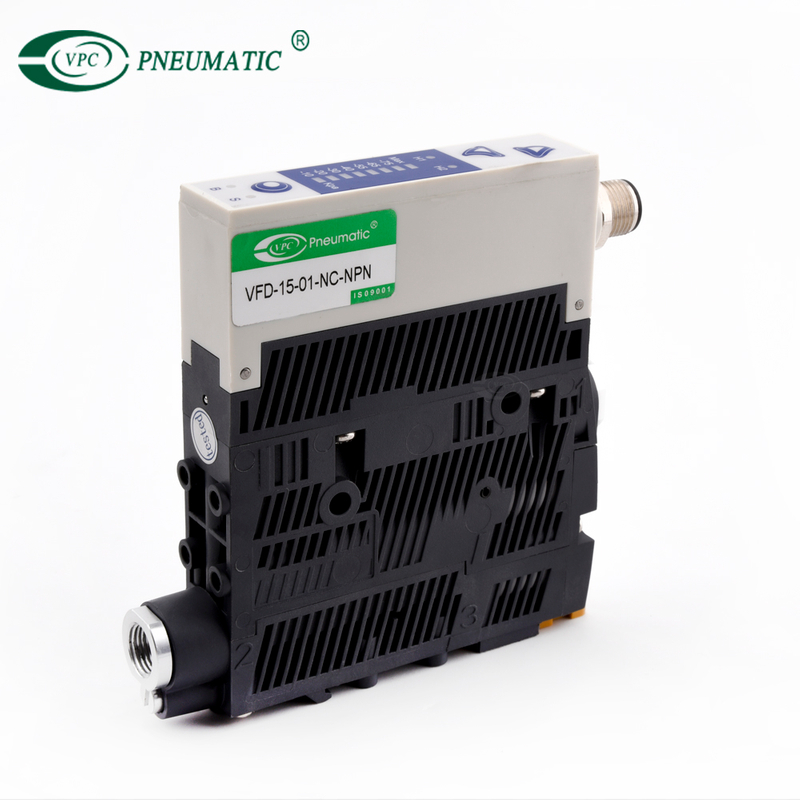

VFD Series Compact Ejectors

Share to:
  1. Compact ejector for handling of airtight and slightly porous workpieces;
  2. Generation and monitoring of the vacuum in automated systems;
  3. Use in robot handling and on linear axes;
  4. Pick and place applications with shortest cycle times;
  5. For systems with limited space and high dynamics when gripping parts;
  6. Typically for use in fully automated small parts handling applications.
  • VFD-15-10-NC-NPN
  • VPC Pneumatic
  • 8481804090
Working medium:
Suction rate :
Max. vacuum:
Body Material:
Availability:

Product Description

Product Highlights
  • Eco nozzle technology allows high suction rate with minimized compressed air consumption

  • Integrated air saving function reduces compressed air consumption by up to 80 %

  • IO-Link simplifies commissioning and access to device and process data

  • Vacuum parameters on bright display or LED bar display very easy to read

Nozzle size15mm
ConnectionG1/8"(1)-G1/8"(2)
Electrical connectionMale connect M12, 5 pol
Suction rate (max.)65.5 l/min
Air consumption suction98 L/min
Pressure range (operating pressure)3.0bar  to 6.0 bar
Max. vacuum-850 mbar
Control valveNormally open
FunctionDigital air-saving function
Construction shape vacuum switchSwitches to +


Product Specification

VFD-15-10-NC-NPN

  • Basic module made of high strength plastic and open silencer (6)

  • Display screen or LED bar display (1)

  • Keyboard (2) makes it easy to set the system parameters

  • Electrical connection (3) via standard M12 plug with metal thread

  • Integrated pneumatic valves for switching functions NO or NC

  • Screw (4) to adjust blow off for lightweight pieces, pneumatic connection (5), optional mounting to DIN rails (7)
