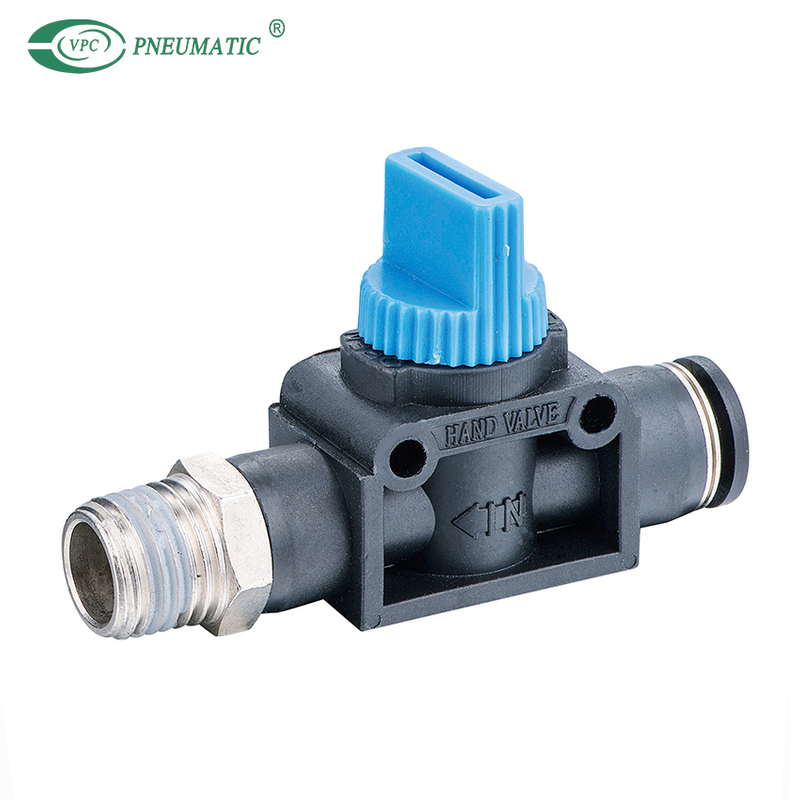

VHVFS Hand Valve Fitting

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  1. The source of pressure can be completely shut off by simply turning the knob.
  2. Three-way directional control configuration releases the residual internal pressure on the output side when manually closed.
  3. Ideal for inspecting or repairing any devices without compromising the safety.
  4. Directionality of airflow may be selected from the tubing or threaded input side to the tubing or threaded output side.

  • VHVFS02-06

  • VPC Pneumatic

  • 39174000

Applicable tube:
PA, PE, PU, FEP, PFA
Thread:
NPT, G, Rc, BSP
Availability:
Inquire Add to Basket

Product Description

■Internal Structure

on off air valveon off valve pneumatic

Applicable fluid type Air, Vacuum
Working pressure range 0 to 150 PSI 0 to 10Bar
Working temperature range 0 ℉ to 160℉ 0℃ to 60℃
Vacuum rating to 28''Hg
Recommanded tubings Nylon, PE, PU, FEP, PFA


Product Specifications

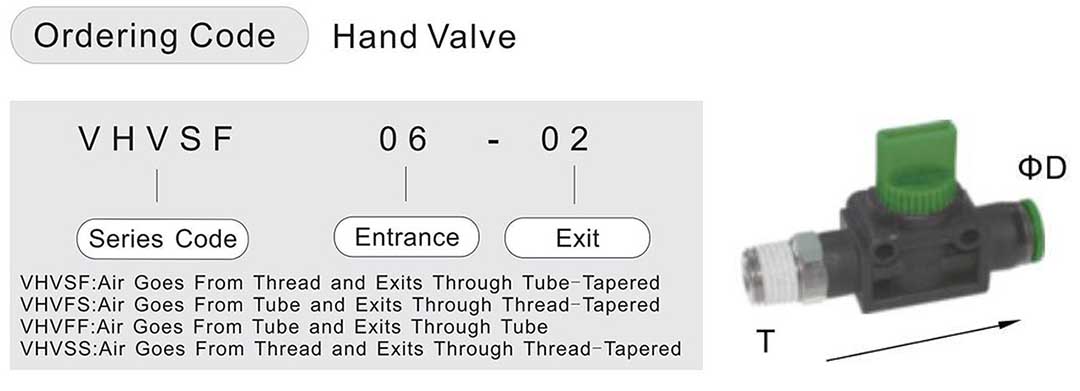

Model (T-ФD)
Thread (R) - Tube (Metric)
VHVSF01-06
VHVSF02-10
VHVSF02-12
VHVSF02-06
VHVSF03-10
VHVSF03-12
VHVSF03-06
VHVSF04-10
VHVSF04-12
VHVSF01-08


VHVSF02-08


VHVSF03-08



PDF Download

download Hand Valve.pdf
