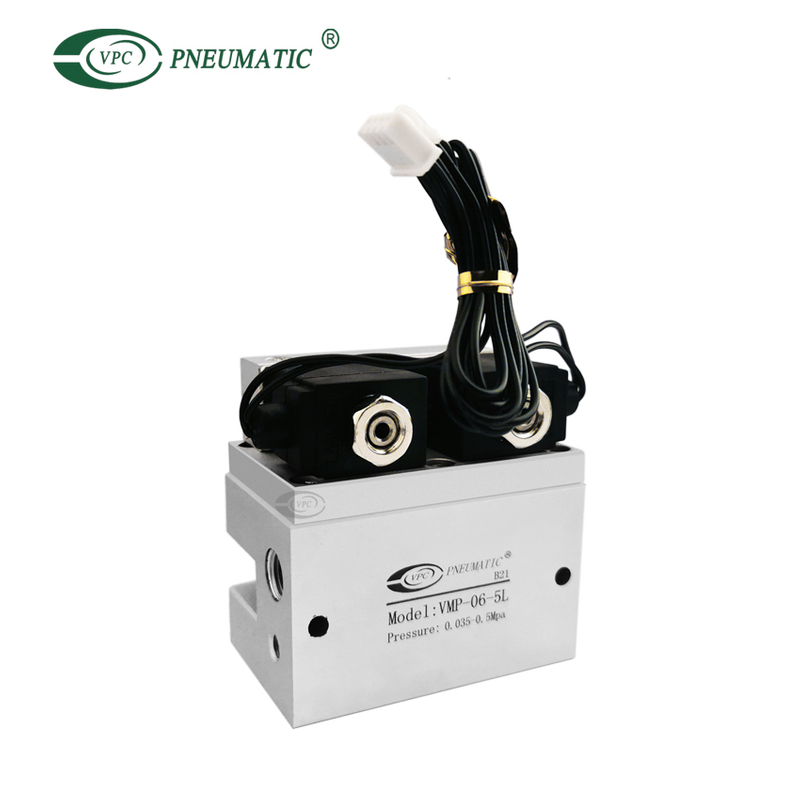

VMP Series 2/4 Way Diaphragm Oxygen Concentrator Valves

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  1. Suitable for 5L, 8L, 10L oxygen generators;
  2. Aluminum Surface is polished and hard anodized;
  3. Energy saving and environmental protection with big low rate,safety and precision;
  4. Can work at the low pressure,smartness for on and off,good seal performance.

  • VMP-06-5L

  • VPC

  • 8412310090

Power:
Solenoid
Standard voltage:
DC 12v
Availability:
Inquire Add to Basket

Product Specifications

Model
VMP-06
Working medium
Compressed 40 Micron Filtered Air
Body material
Aluminum Alloy
Ways
Two Position - Four Way
Port Size
G1/4
Motion Pattern
Diaphram Pilot
Working Pressure
0.35 to 0.05MPa
Operating Temperature
-5 to 80℃
Voltage Tolerance
±10%
Standard Voltage12V DC, 24V DC
Insulation&Protection Class
F Class, IP65
