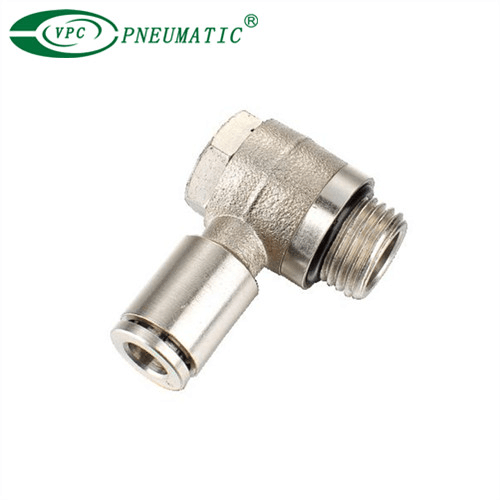

VMPH-G Brass Male Thread Banjo Fitting with O-Ring

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  1. Compact and lightweight, the VMPH-G one-touch fitting uses electroless nickel plated brass components as standard specification.
  2. VMPH-G fittings can be used with fluid, and in environments having a large temperature change. Applicable tube sizes are Ø3.2 to Ø16 and 1/8" to 1/2".

  • VMPH 06-G02

  • VPC Pneumatic

  • 39174000

Applicable tube:
PA,PE,PU,FEP,PFA
Thread:
BSPP
Material:
Nickel plated brass
Availability:
Inquire Add to Basket

Product Description

■Internal Structure

brass one touch fitting

Applicable fluid type Air, Water(No Drinking Water),Vacuum
Working pressure range -14 to 150 PSI -0.99 to 10Bar
Working temperature range -4 ℉ to 160℉ -15℃ to 71℃
Vacuum rating 0 to 28''Hg
Recommanded tubings PA,PE,PU,FEP,PFA


Product Specifications

ModelTube Size(mm)Thread
VMPH04-G014
G1/8
VMPH06-G016G1/8
VMPH06-G026G1/4
VMPH08-G018G1/8
VMPH08-G028G1/4
VMPH08-G038G3/8
VMPH10-G0210G1/4
VMPH10-G0310G3/8
VMPH12-G0312G3/8
VMPH12-G0412G1/2
