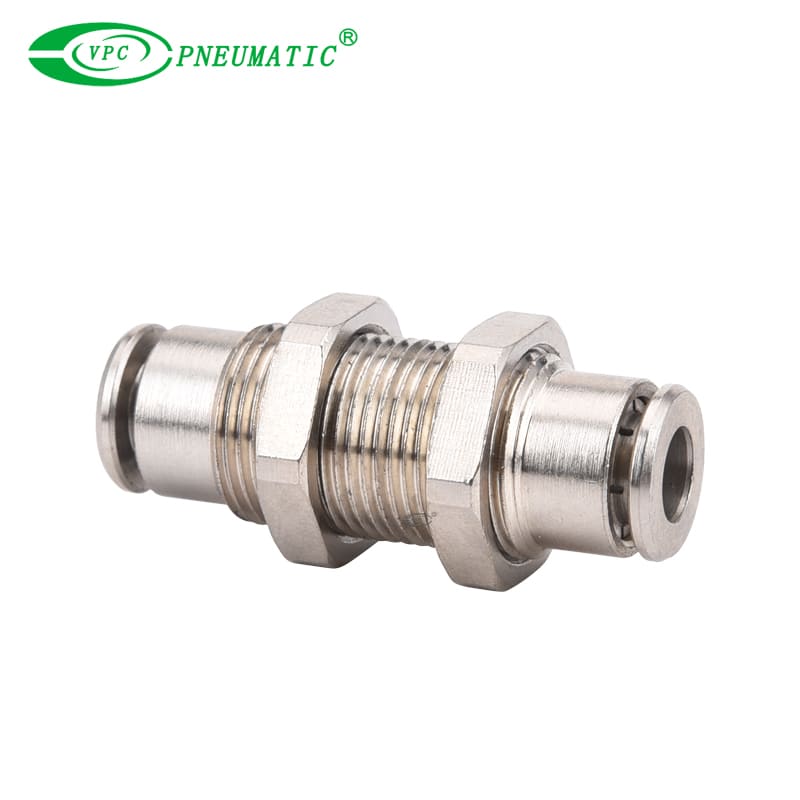

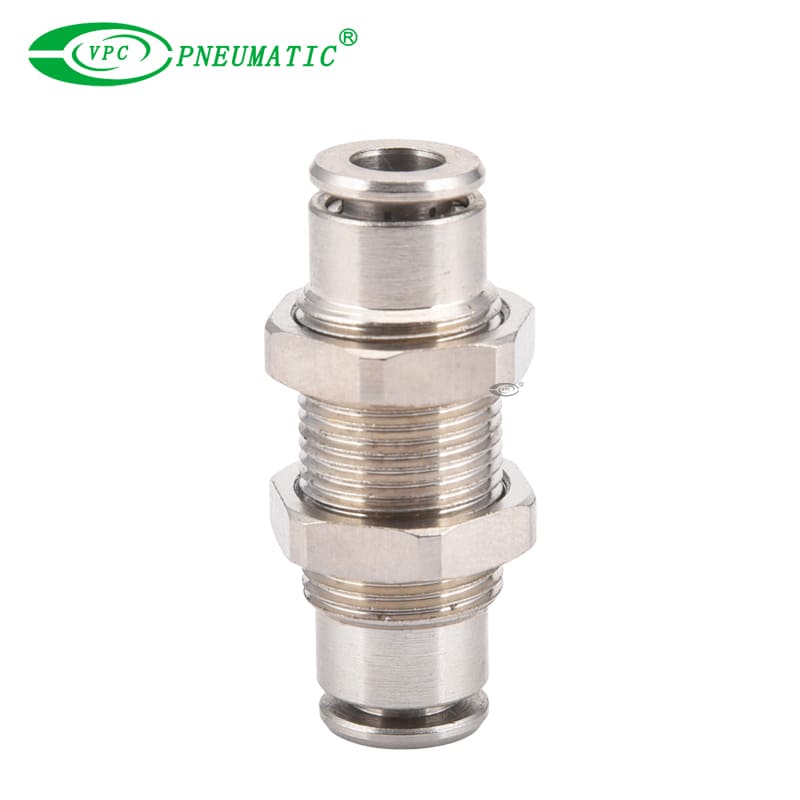

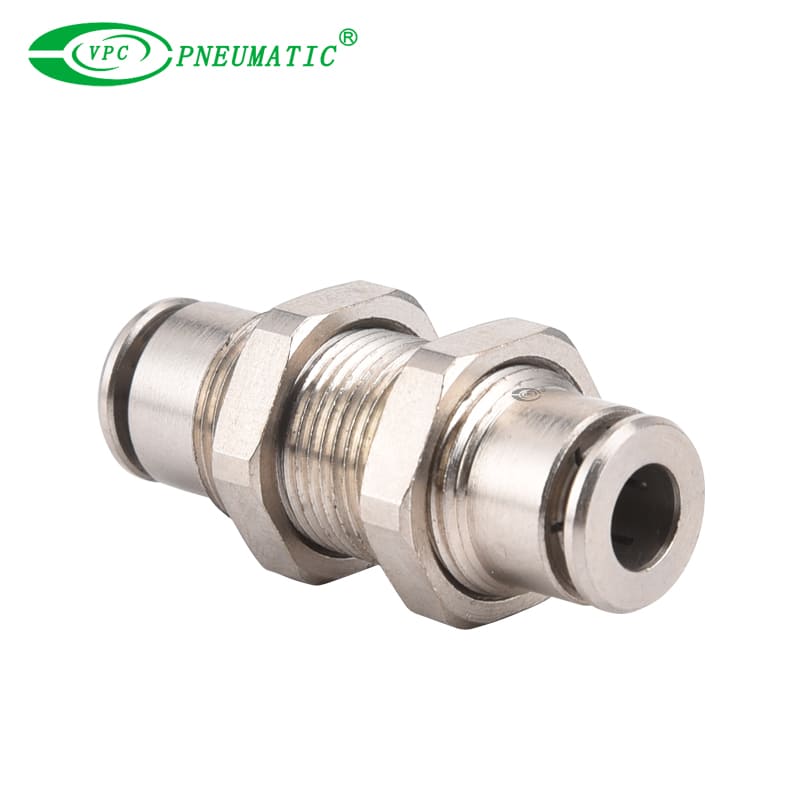

VMPM Brass Bulkhead Fitting

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  1. Compact and lightweight, the VMPM one-touch fitting uses electroless nickel plated brass components as standard specification.
  2. VMPM fittings can be used with fluid, and in environments having a large temperature change. Applicable tube sizes are Ø3.2 to Ø16 and 1/8" to 1/2".
  3. VMPM Series is available with M, R, Rc, UNF, NPT or G connection threads.

  • VMPM 10

  • VPC Pneumatic

  • 39174000

Applicable tube:
PA, PE, PU, FEP, PFA tube
Thread:
M, R, Rc, UNF, NPT or G
Material:
Nickel plated brass
Availability:
Inquire Add to Basket

Product Description

■ Internal Structure

brass one touch fitting

Applicable fluid type Air, Water(No Drinking Water), Vacuum
Working pressure range -14 to 150 PSI -0.99 to 10Bar
Working temperature range -4 ℉ to 160℉ -15℃ to 71℃
Vacuum rating 0 to 28''Hg
Recommanded tubings PA,PE,PU,FEP,PFA

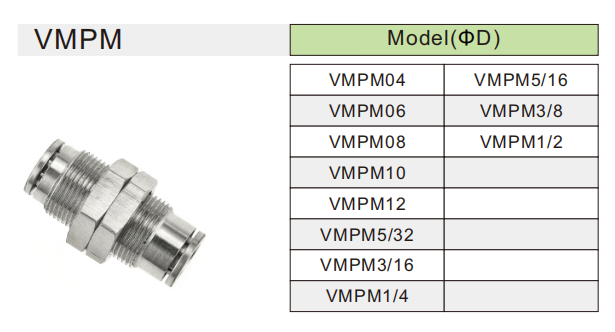

Product Specifications

ModelTube Size(MM)
VMPM044
VMPM066
VMPM088
VMPM1010
VMPM1212

PDF Download

download Brass One Touch-in Fitting.pdf
