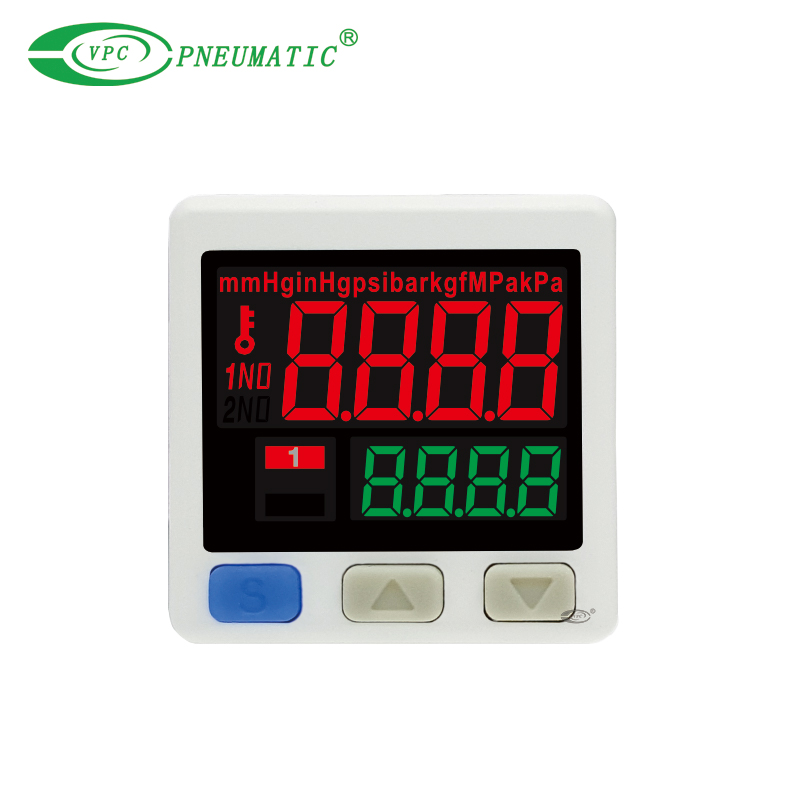

VP-02
VPC Pneumatic
8481804090
| Availability: | |
|---|---|
Product Description
Designed for maximum cost-effectiveness
Integrated basic leak detection function
Integrated basic vacuum suction algorithm
Integrated ultra-fast leak detection function
Integrated ultra-fast switching output response
Product Specification
| Model | VP-01/02/04P (High-pressure type) | VP-01/02/04C (Low-pressure type) | VP-10P (High-pressure type) | VP-10C (Low-pressure type) | VP-15/04P (High-pressure type) | VP-15/04C (Low-pressure type) | |
| Rated pressure range | -0.101–1.0 MPa | -101.3–101.3 kPa | -0.101–1.0 MPa | -101.3–101.3 kPa | -0.101–1.0 MPa | -101.3–101.3 kPa | |
| Set pressure range | -0.105–1.0 MPa | -105–105 kPa | -0.105–1.0 MPa | -105–105 kPa | -0.105–1.0 MPa | -105–105 kPa | |
| Proof pressure | 1.5 MPa | 500 kPa | 1.5 MPa | 500 kPa | 1.5 MPa | 500 kPa | |
| Applicable fluid | Non-corrosive, non-combustible gases; compliant with ISO 8573-1:2010 [7:4:4] | ||||||
| Power supply voltage | 12–24 V DC ±10% | ||||||
| Current consumption | 45 mA max. (no load) | ||||||
| Display resolution by pressure unit | kPa | 1 | 0.1 | 1 | 0.1 | 1 | 0.1 |
| MPa | 0.001 | — | 0.001 | — | 0.001 | — | |
| kgf/cm² | 0.01 | 0.001 | 0.01 | 0.001 | 0.01 | 0.001 | |
| bar | 0.01 | 0.001 | 0.01 | 0.001 | 0.01 | 0.001 | |
| psi | 0.1 | 0.01 | 0.1 | 0.01 | 0.1 | 0.01 | |
| mmHg | — | 1 | — | 1 | — | 1 | |
| inHg | — | 0.1 | — | 0.1 | — | 0.1 | |
| Switch output *1 | NPN open-collector output Max. load current: 100 mA Max. supply voltage: 30 V DC Internal voltage drop: 1.5 V or less | PNP open-collector output Max. load current: 100 mA Max. supply voltage: 24 V DC Internal voltage drop: 1.5 V or less | |||||
| Analog voltage output *1 | Output voltage: 1–5 V ±2.5% F.S. Linearity: ±1% F.S. Output impedance: approx. 1 kΩ | Output voltage: 1–5 V ±2.5% F.S. Linearity: ±1% F.S. Output impedance: approx. 1 kΩ | None | ||||
| Analog current output *1 | None | Output current: 4–20 mA ±2.5% F.S. Linearity: ±1% F.S. Load resistance: max. 300 Ω @ 12 V; 600 Ω @ 24 V | None | ||||
| MODBUS function *2 | None | Available | |||||
| Display accuracy | ±2% F.S. ±1 digit (at 25 ±3°C) | ||||||
| Repeatability | ±0.2% F.S. ±2 digits | ||||||
| Response time | 2.0 ms, 50 ms, 100 ms, 250 ms, 500 ms, 2000 ms, 3000 ms, 5000 ms selectable | 1 ms, 2.0 ms, 50 ms, 100 ms, 250 ms, 500 ms, 2000 ms, 3000 ms, 5000 ms selectable *3 | 2.0 ms, 50 ms, 100 ms, 250 ms, 500 ms, 2000 ms, 3000 ms, 5000 ms selectable | ||||
| Display | 3-color display (red, orange, yellow-green); sampling rate: 4 times/s | ||||||
| Temperature characteristics | ±2% F.S. (reference temperature: 25°C; within 0–50°C operating range) | ||||||
| Operating environment | 0–50°C (no condensation, no freezing); 35–85% RH (non-condensing) | ||||||
| Storage environment | -10–50°C (no condensation, no freezing); 35–85% RH (non-condensing) | ||||||
| Degree of protection | IP40 | ||||||
| Port / piping specification | Female thread: M5 Male thread: R1/8 (Asian standard, BSPT 1/8) Direct push-in fitting: optional Ø4 mm or Ø6 mm tube; straight or 90° elbow | ||||||
| Weight | Approx. 70 g (including power cable) | Approx. 85 g (including power cable) | |||||
| Accessories | 1 power cable with terminals | ||||||
*1) Output type corresponds one-to-one with the product model.
*2) MODBUS is supported only by the VP-15 series.
*3) 1 ms response time is available only when SUPERSPEED mode is enabled.
