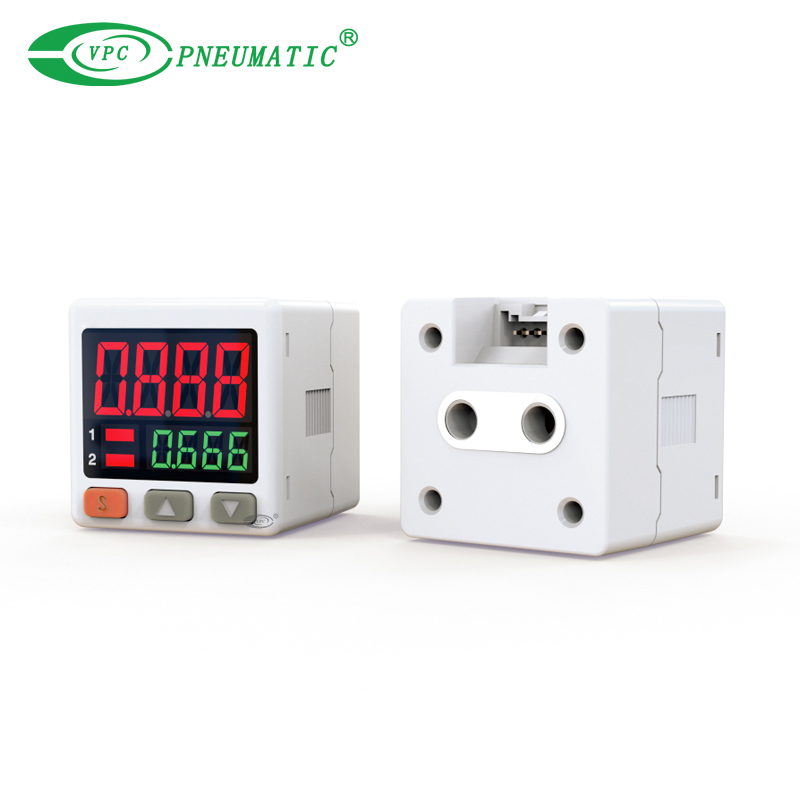

VP-04
VPC Pneumatic
8481804090
| Availability: | |
|---|---|
Product Description
Exceptional cost performance
Space-saving design with simplified piping and wiring
Simple, intuitive, and efficient operation
Optional communication function for industrial connectivity
Dual pressure inputs for independent measurement or differential pressure detection
Multiple pressure range combinations available for diverse applications
Product Specification
| Model | VP-01/02/04P (High-pressure type) | VP-01/02/04C (Low-pressure type) | VP-10P (High-pressure type) | VP-10C (Low-pressure type) | VP-15/04P (High-pressure type) | VP-15/04C (Low-pressure type) | |
| Rated pressure range | -0.101–1.0 MPa | -101.3–101.3 kPa | -0.101–1.0 MPa | -101.3–101.3 kPa | -0.101–1.0 MPa | -101.3–101.3 kPa | |
| Set pressure range | -0.105–1.0 MPa | -105–105 kPa | -0.105–1.0 MPa | -105–105 kPa | -0.105–1.0 MPa | -105–105 kPa | |
| Proof pressure | 1.5 MPa | 500 kPa | 1.5 MPa | 500 kPa | 1.5 MPa | 500 kPa | |
| Applicable fluid | Non-corrosive, non-combustible gases; compliant with ISO 8573-1:2010 [7:4:4] | ||||||
| Power supply voltage | 12–24 V DC ±10% | ||||||
| Current consumption | 45 mA max. (no load) | ||||||
| Display resolution by pressure unit | kPa | 1 | 0.1 | 1 | 0.1 | 1 | 0.1 |
| MPa | 0.001 | — | 0.001 | — | 0.001 | — | |
| kgf/cm² | 0.01 | 0.001 | 0.01 | 0.001 | 0.01 | 0.001 | |
| bar | 0.01 | 0.001 | 0.01 | 0.001 | 0.01 | 0.001 | |
| psi | 0.1 | 0.01 | 0.1 | 0.01 | 0.1 | 0.01 | |
| mmHg | — | 1 | — | 1 | — | 1 | |
| inHg | — | 0.1 | — | 0.1 | — | 0.1 | |
| Switch output *1 | NPN open-collector output Max. load current: 100 mA Max. supply voltage: 30 V DC Internal voltage drop: 1.5 V or less | PNP open-collector output Max. load current: 100 mA Max. supply voltage: 24 V DC Internal voltage drop: 1.5 V or less | |||||
| Analog voltage output *1 | Output voltage: 1–5 V ±2.5% F.S. Linearity: ±1% F.S. Output impedance: approx. 1 kΩ | Output voltage: 1–5 V ±2.5% F.S. Linearity: ±1% F.S. Output impedance: approx. 1 kΩ | None | ||||
| Analog current output *1 | None | Output current: 4–20 mA ±2.5% F.S. Linearity: ±1% F.S. Load resistance: max. 300 Ω @ 12 V; 600 Ω @ 24 V | None | ||||
| MODBUS function *2 | None | Available | |||||
| Display accuracy | ±2% F.S. ±1 digit (at 25 ±3°C) | ||||||
| Repeatability | ±0.2% F.S. ±2 digits | ||||||
| Response time | 2.0 ms, 50 ms, 100 ms, 250 ms, 500 ms, 2000 ms, 3000 ms, 5000 ms selectable | 1 ms, 2.0 ms, 50 ms, 100 ms, 250 ms, 500 ms, 2000 ms, 3000 ms, 5000 ms selectable *3 | 2.0 ms, 50 ms, 100 ms, 250 ms, 500 ms, 2000 ms, 3000 ms, 5000 ms selectable | ||||
| Display | 3-color display (red, orange, yellow-green); sampling rate: 4 times/s | ||||||
| Temperature characteristics | ±2% F.S. (reference temperature: 25°C; within 0–50°C operating range) | ||||||
| Operating environment | 0–50°C (no condensation, no freezing); 35–85% RH (non-condensing) | ||||||
| Storage environment | -10–50°C (no condensation, no freezing); 35–85% RH (non-condensing) | ||||||
| Degree of protection | IP40 | ||||||
| Port / piping specification | Female thread: M5 Male thread: R1/8 (Asian standard, BSPT 1/8) Direct push-in fitting: optional Ø4 mm or Ø6 mm tube; straight or 90° elbow | ||||||
| Weight | Approx. 70 g (including power cable) | Approx. 85 g (including power cable) | |||||
| Accessories | 1 power cable with terminals | ||||||
*1) Output type corresponds one-to-one with the product model.
*2) MODBUS is supported only by the VP-15 series.
*3) 1 ms response time is available only when SUPERSPEED mode is enabled.
