VPC-FD Series Valve Terminal

Name: VPC-FD Series Valve Terminal
Brand: VPC Pneumatic
Rating: 5.0 (91 reviews)

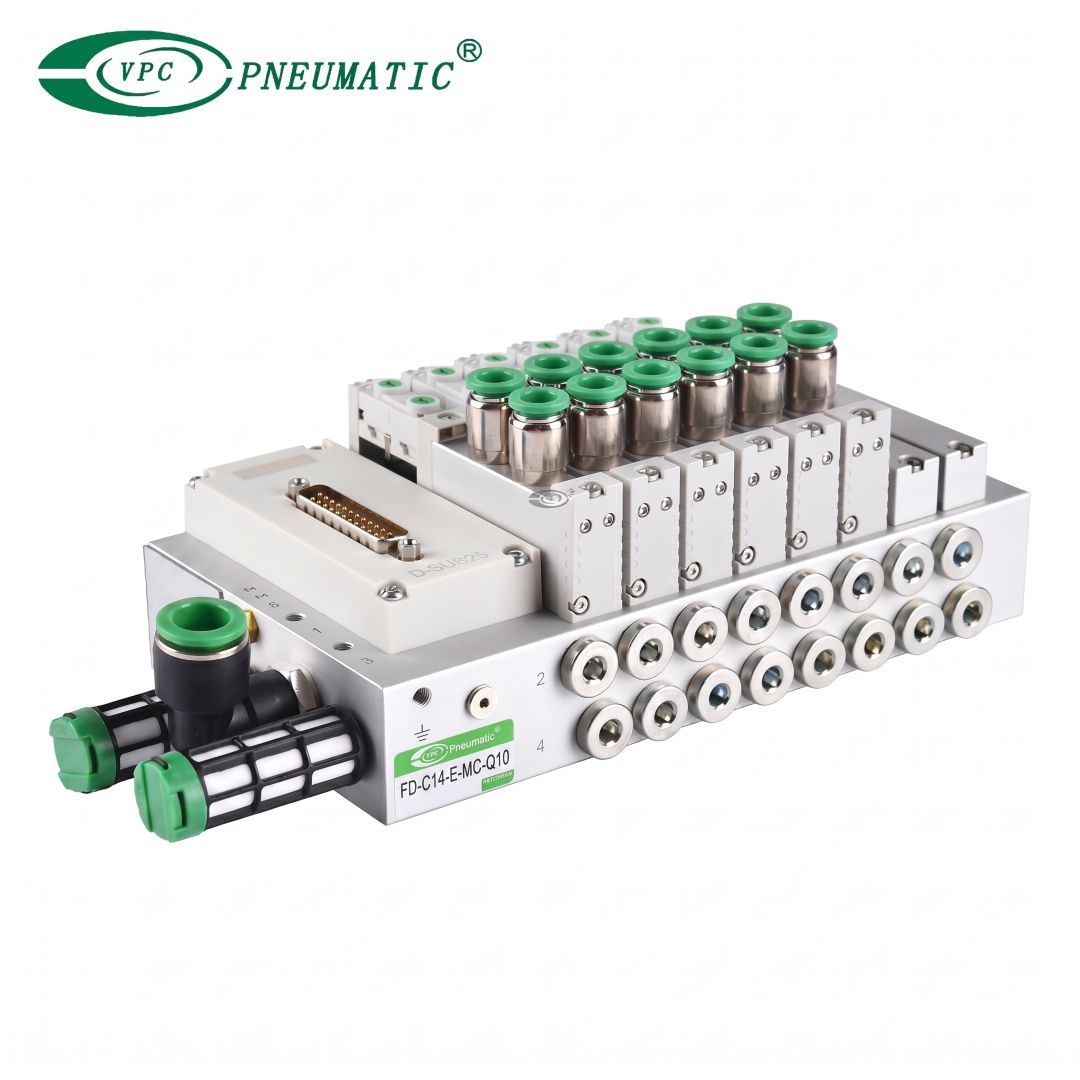

VPC-FD valve terminal is a compact pneumatic control unit that integrates multiple solenoid valves into one manifold for centralized control, with flexible electrical communication options such as multi-pin, IO-Link, and fieldbus connectivity. It helps reduce wiring, save installation space, simplify maintenance, and improve automation efficiency in industrial systems.

Model:
VPC-FD
Brand:
VPC Pneumatic
Code:
8412909000

Availability:



Inquire Add to Basket

Product Description

■ Product Feature

1. For modular pneumatic control systems.

2. Indicator lightis visible at all angles for quick troubleshooting.

3. Extremely flexibility and expansibility.

4. Up to 24 valve positions.

5. 14mm and 10mm widths with various functions optional.

6. Protection class IP65.

7. Reduced power consumption by 70%.

8. Internal and external pilot structure available.

■ Symbol

VPC-FD Series Valve Terminal

Product Specifications

Positions		4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 20, 24
Electrical connection		D-SUB25 pin
Voltage		24VDC ±10%
Power consumption		Single coil Instant Max 1.2W
Flow rate		Max 600L/min (According to the valve type)

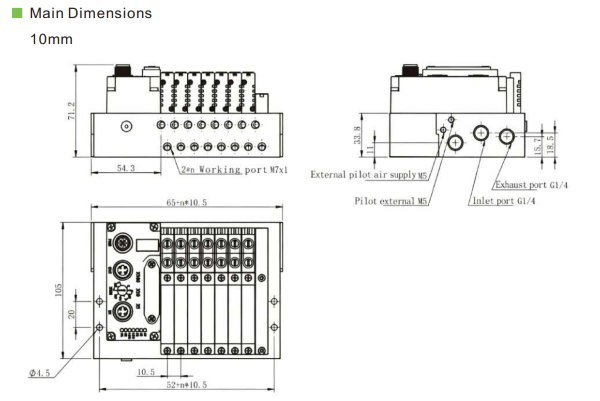

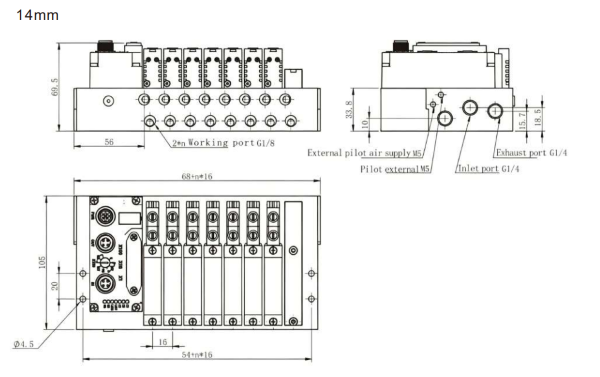

Working port		10mm: Supply=Exhaust=G1/4" Working=M7*1	14mm: Supply=Exhaust=G1/4" Working=G1/8"
Working pressure	Pilot pressure	Refer to P6 FDF valve specification
