Product Description

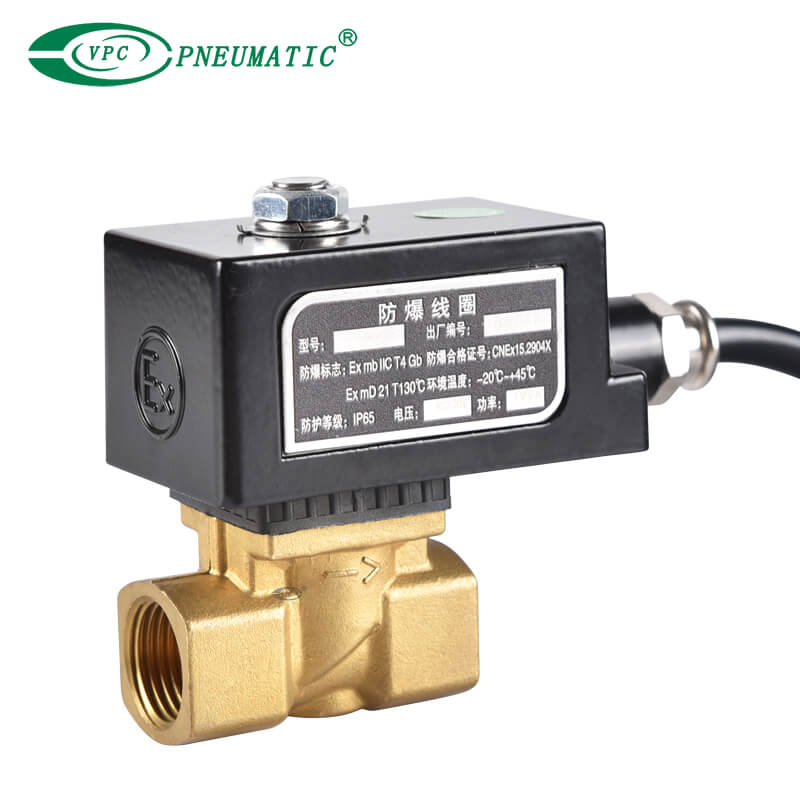

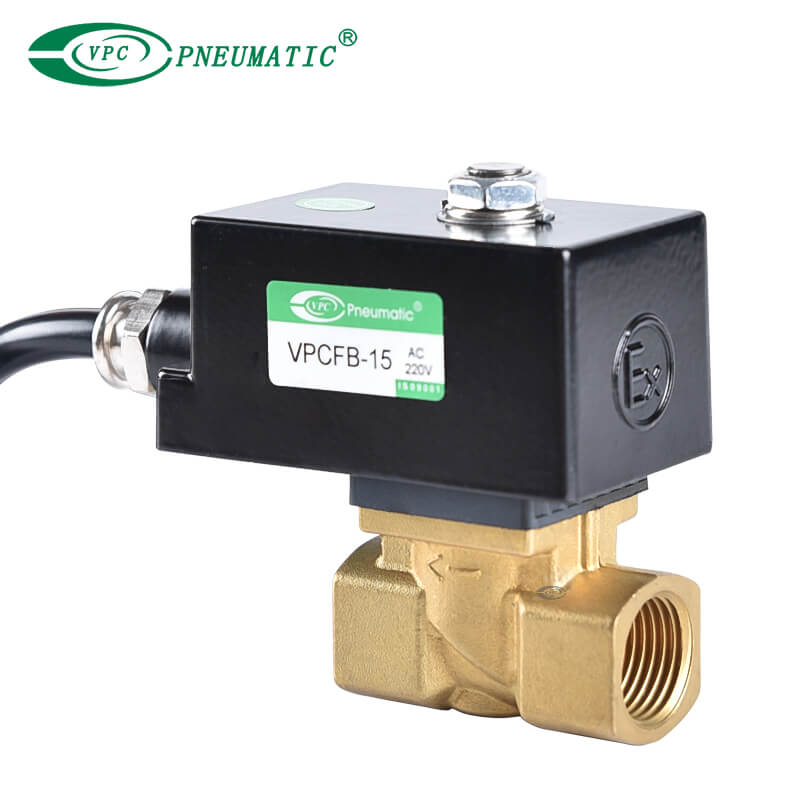

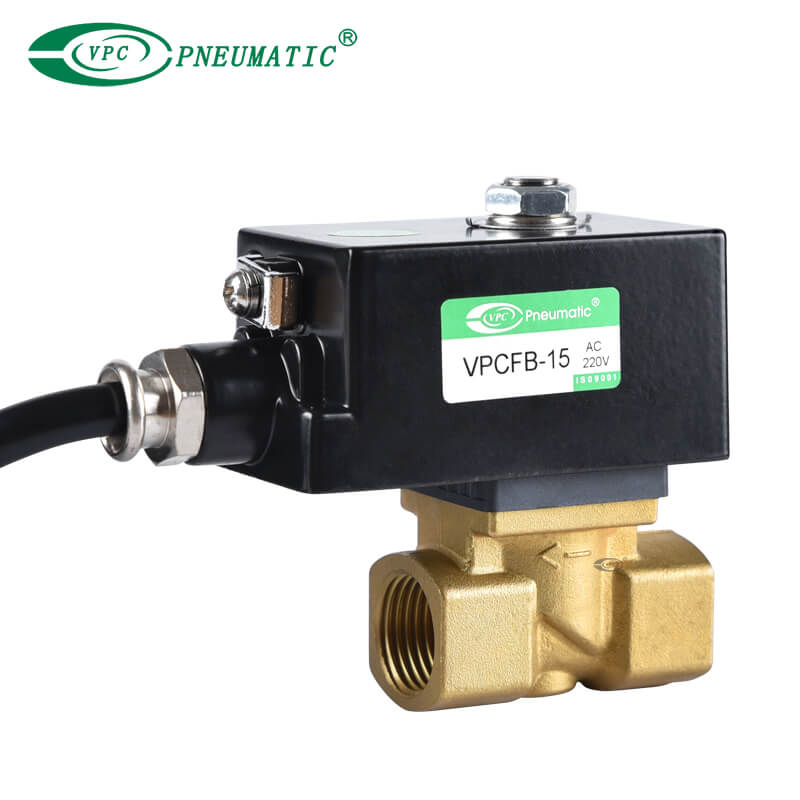

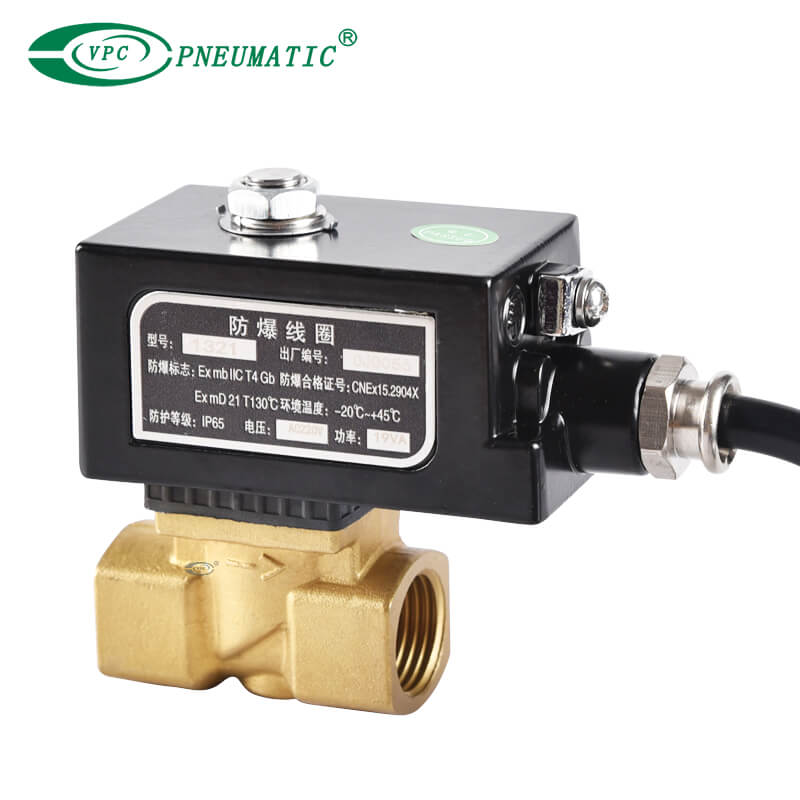

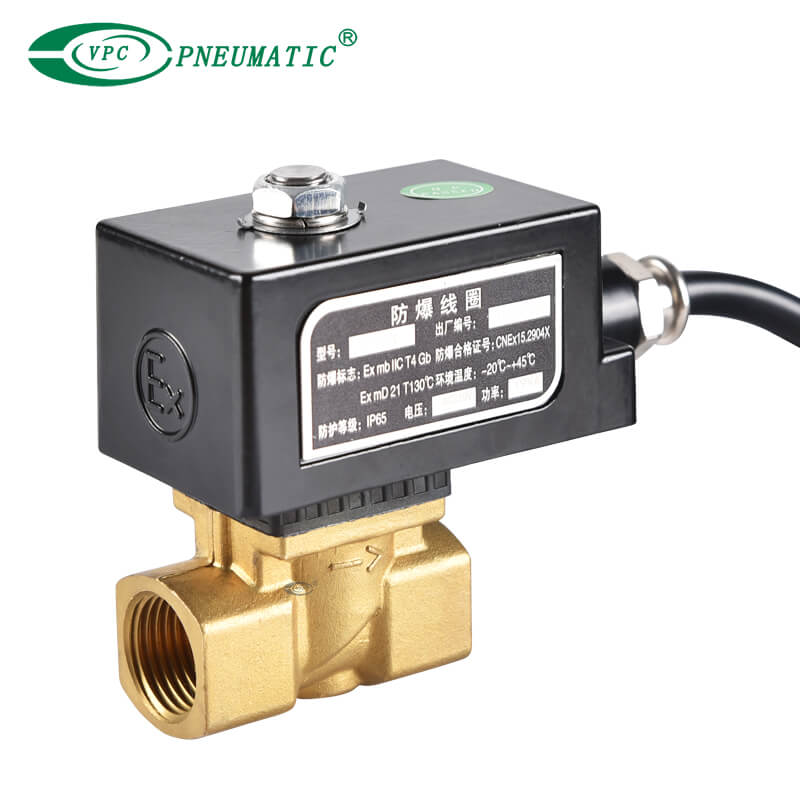

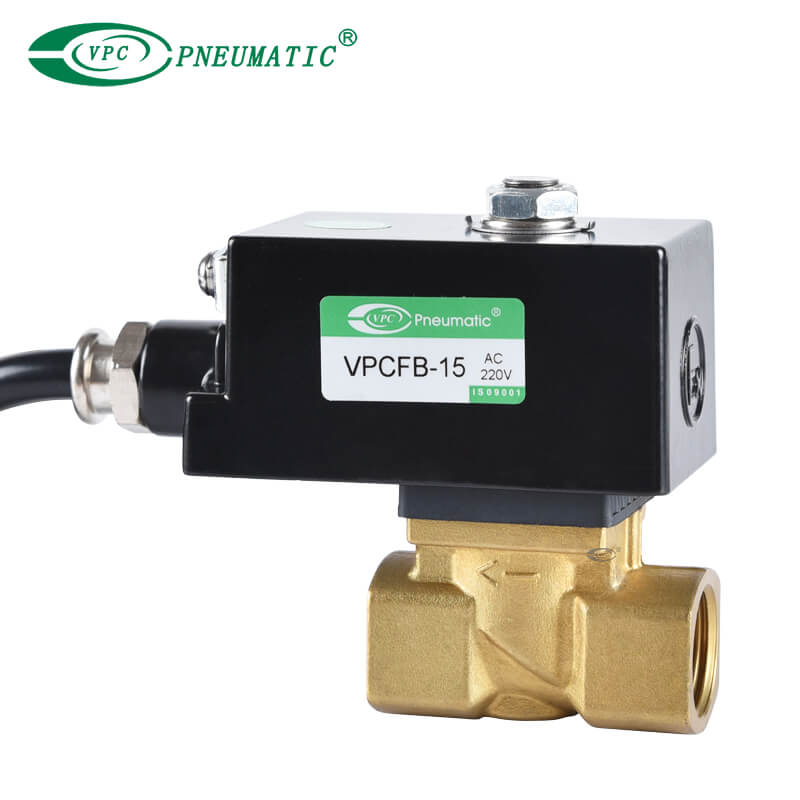

1. Explosion-proof coils: Equipped with IECEx and ATEX certified explosion-proof coils to ensure safe operation in potentially explosive environments.
2. Rugged: brass and stainless steel valve body options.
3. Standard sealing material is NBR, optional sealing materials EPDM (water, steam, acid and alkaline media environment), VITON (oil, fuel, solvents and other organic media environment), PTFE (strong corrosive media environment).

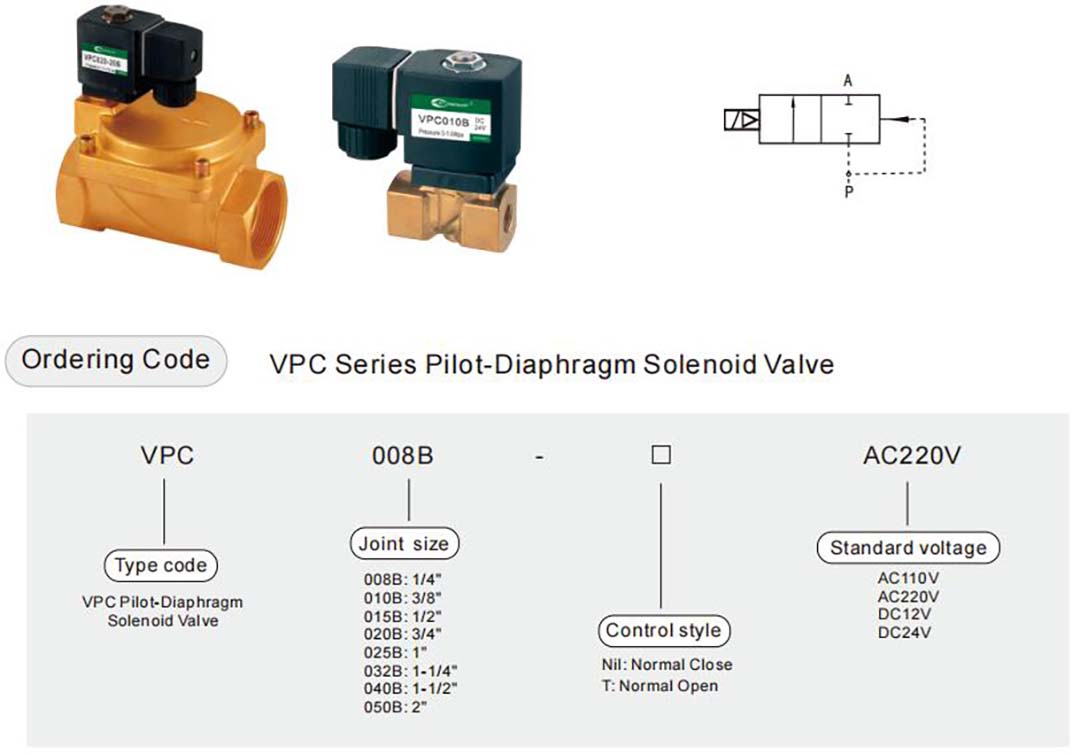

Product Specifications
| Acting type | Pilot type |
| Control type | Normal close (Standard)，Normal open (Optional) |
| Thread type | G (Standard), NPT, Rc plate connection (Optional) |
| Working medium | Air, Water, Neutral fluid |
| Medium viscosity | ≤21 mm2/s |
| Valve body | Brass |
| Seal material | NBR (Standard), FKM and EPDM (Optional) |
| Working temperature | NBR: -10 to 80°C, FKM: -10 to 110°C, EPDM: -20 to 120°C |
| Ambient temperature | -10 to 50 °C (Explosion-proof: -20~40 ℃) |
| Rated voltage | AC220V(50-60 Hz), DC24V (0 Hz) |
| Voltage range | ± 10% |
| Enclosure | IP65 |
| Mounting | Keep the coil facing up |
| Optional | Explosion-proof, cooling energy-saving coils/connector, timing switch |
| Model | Orifice | Joint size | Working pressure | KV value |
| VPC008B/VPC008BT | 10mm | G1/4" | 0.02 to 1.0 Mpa | 1.9 m³/h |
| VPC010B/VPC010BT | 10mm | G3/8" | 0.02 to 1.0 Mpa | 1.9 m³/h |
| VPC015B/VPC015BT | 10mm | G1/2" | 0.02 to 1.0 Mpa | 1.9 m³/h |
| VPC015-14B | 14mm | G1/2" | 0.02 to 1.0 Mpa | 3.6 m³/h |
| VPC020B | 14mm | G3/4" | 0.02 to 1.0 Mpa | 3.6 m³/h |
| VPC020-20B | 20mm | G3/4" | 0.03 to 1.6 Mpa | 8.3 m³/h |
| VPC025B | 20mm | G1" | 0.03 to 1.6 Mpa | 8.3 m³/h |
| VPC032B | 40mm | G1-1/4" | 0.03 to 1.6 Mpa | 20 m³/h |
| VPC040B | 40mm | G1-1/2" | 0.03 to 1.6 Mpa | 25 m³/h |
| VPC050B | 50mm | G2" | 0.03 to 1.6 Mpa | 39 m³/h |

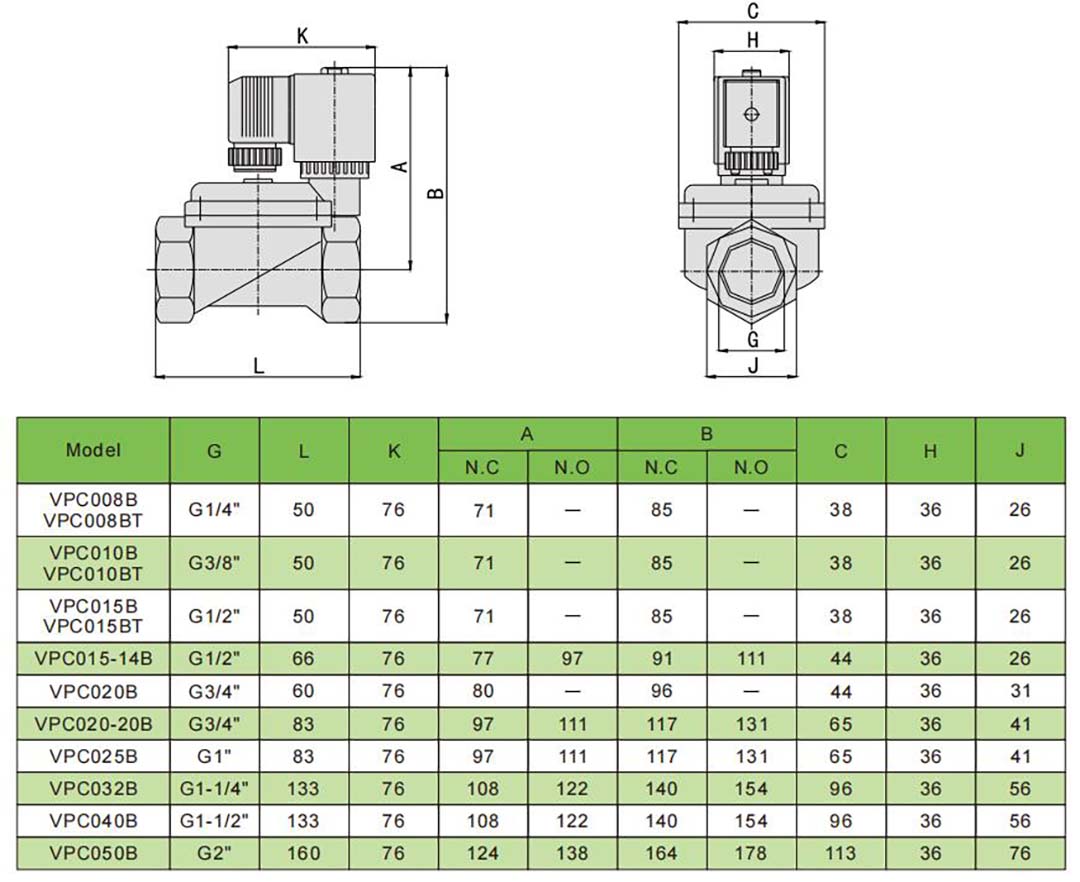

Main Dimensions
