| Working medium: | |
|---|---|
| Type: | |
| Working temperature: | |
| Ambient temperature: | |
| Body Material: | |
Product Description
Product Specifications
| Acting type | Pilot type |
| Control type | Normal close (Standard)，Normal open (Optional) |
| Thread type | G (Standard), NPT, Rc plate connection (Optional) |
| Working medium | Air, Water, Neutral fluid |
| Medium viscosity | ≤21㎜²/s |
| Valve body | Brass |
| Seal material | NBR(Standard), FKM, EPDM(Optional) |
| Working temperature | NBR: -10~80°C FKM: -10~110℃ EPDM: -20~120℃ |
| Ambient temperature | -10~50°C (Explosion-proof: -20~120℃) |
| Rated voltage | AC220V(50-60 Hz), DC24V (0 Hz) |
| Voltage range | ± 10% |
| Enclosure | IP65 |
| Mounting | Keep the coil facing up |
| Optional | Explosion-proof, cooling energy-saving coils/connector, timing switch |

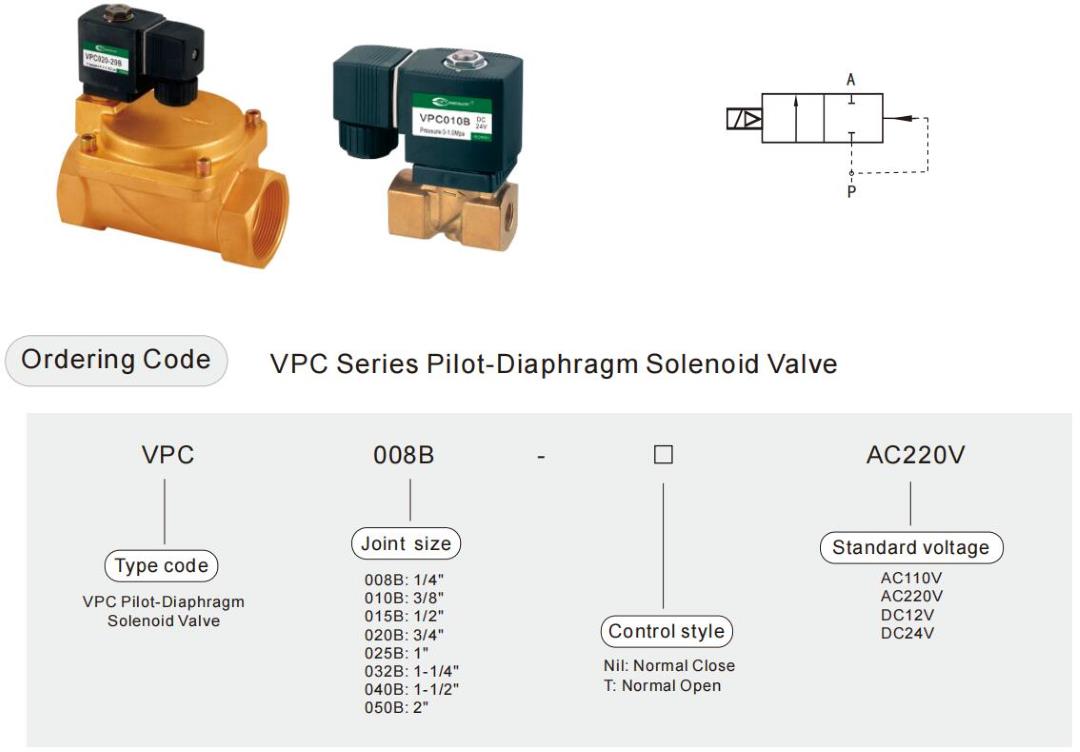

| Model | Orifice | Joint size | Working pressure | KV value |
| VPC008B/VPC008BT | 10mm | G1/4" | 0.02~1.0 Mpa | 1.9 m³/h |
| VPC010B/VPC010BT | 10mm | G3/8" | 0.02~1.0 Mpa | 1.9 m³/h |
| VPC015B/VPC015BT | 10mm | G1/2" | 0.02~1.0 Mpa | 1.9 m³/h |
| VPC015-14B | 14mm | G1/2" | 0.02~1.0 Mpa | 3.6 m³/h |
| VPC020B | 14mm | G3/4" | 0.02~1.0 Mpa | 3.6 m³/h |
| VPC020-20B | 20mm | G3/4" | 0.03~1.6 Mpa | 8.3 m³/h |

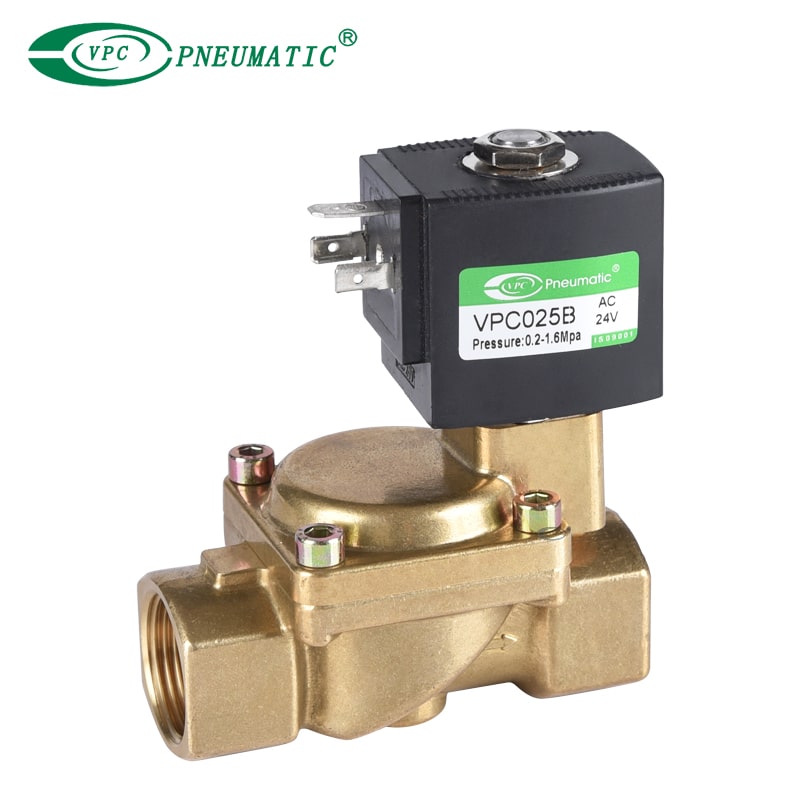

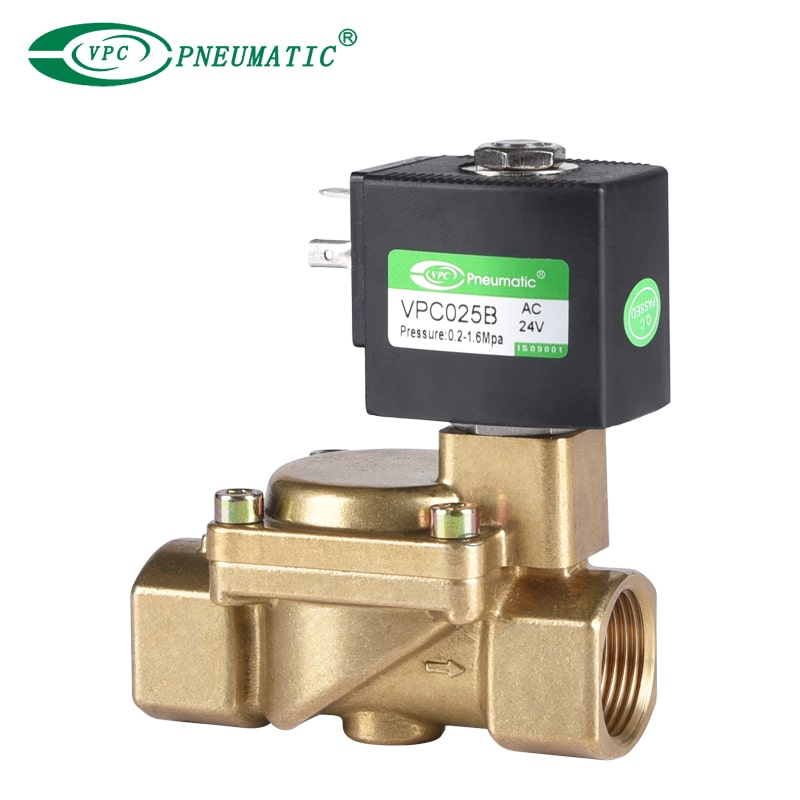

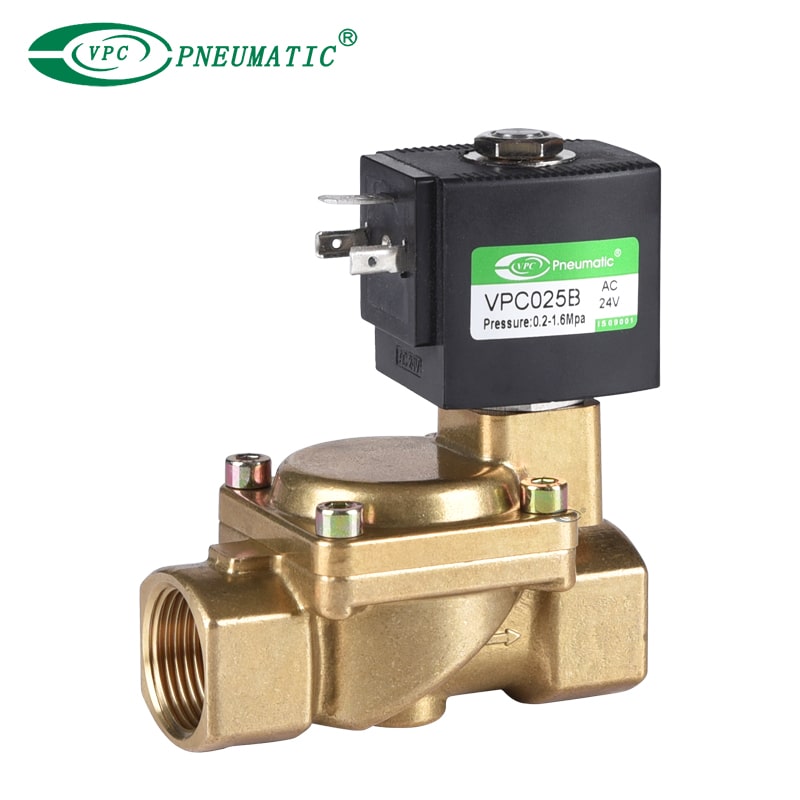

| VPC025B | 20mm | G1" | 0.03~1.6 Mpa | 8.3 m³/h |
| VPC032B | 40mm | G1-1/4" | 0.03~1.6 Mpa | 20 m³/h |
| VPC040B | 40mm | G1-1/2" | 0.03~1.6 Mpa | 25 m³/h |
| VPC050B | 50mm | G2" | 0.03~1.6 Mpa | 39 m³/h |

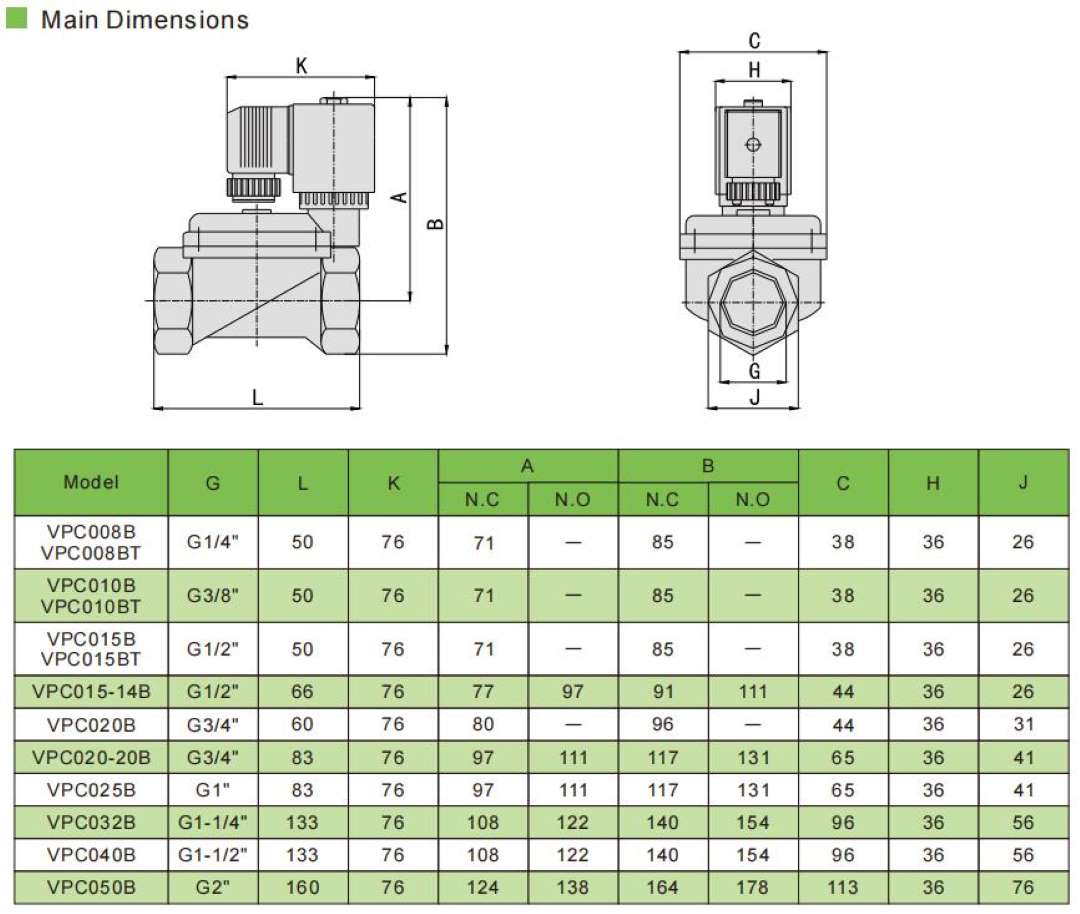

Main Dimensions
