Product Description
1. Direct acting and normally closed type 2/2 way solenoid valve. Its high sensibility allows it to change direction quickly.
2. Direct acting and small orifice valve has an orifice 1 to 14mm.
3. Explosion-proof coil, cooling energy-saving coils/connector, and timing switch optional.
4. It is compact, small and lightweight. Easy to install and dismantle.
Product Specifications
| Acting type | Direct acting type |
| Control type | Normal close |
| Thread type | G (Standard), NPT, Rc plate connection (Optional) |
| Working medium | Air, Water, Neutral fluid |
| Medium viscosity | ≤21mm2/s |
| Valve body | Brass |
| Seal material | NBR (Standard), FKM, EPDM (Optional) |
| Working temperature | NBR: -10~80C FKM: -10~110℃ EPDM: -20~120C |
| Ambient temperature | -10~50°C (Explosion-proof: -20~40℃) |
| Rated voltage | AC220V(50-60Hz), DC24V (0Hz) |
| Voltage range | ± 10% |
| Enclosure | IP65 |
| Mounting | Keep the coil facing up |
| Optional | Explosion-proof, cooling energy-saving coils/connector, timing switch |

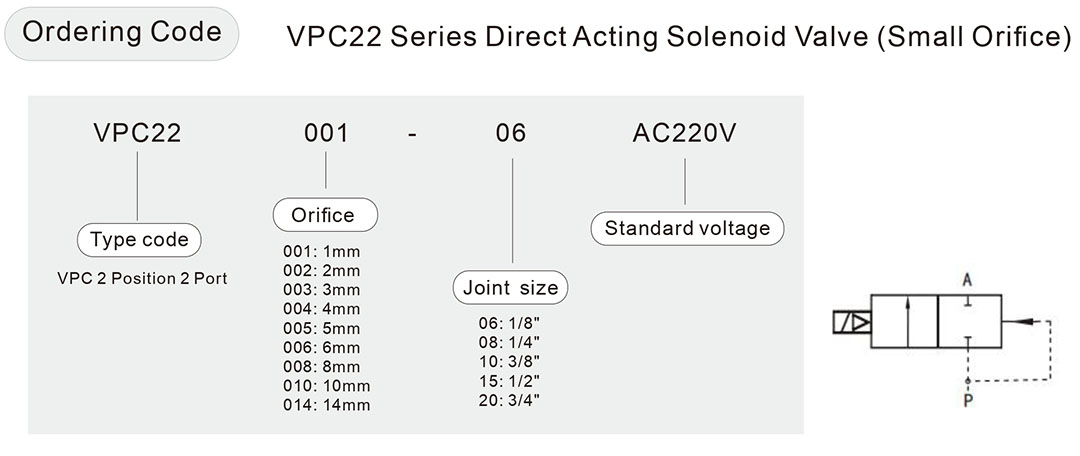

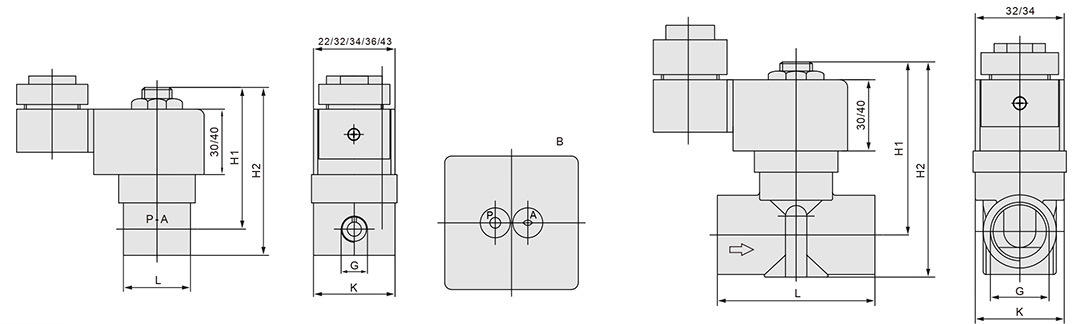

Main Dimensions
| Model | Joint size (G) | Orifice (mm) | KV value (m³/h) | Working pressure (MPa) | Main dimensions | |||
| L | K | H1 | H2 | |||||
| VPC2201-06 | 1/8 | 1 | 0.02 | 0~0.8 | 20 | 25 | 49 | 56 |
| VPC2201-06A | 1/8 | 1 | 0.02 | 0~0.4 | 32 | 32 | 59 | 67 |
| VPC2202-06 | 1/8 | 2 | 0.09 | 0~1.0 | 32 | 32 | 51 | 58 |
| VPC2202-06A | 1/8 | 2 | 0.09 | 0~2.5 | 32 | 32 | 61 | 68 |
| VPC2202-06B | 1/8 | 2 | 0.09 | 0~4.0 | 32 | 32 | 61 | 68 |
| VPC2203-06 | 1/8 | 3 | 0.2 | 0~0.4 | 32 | 32 | 51 | 58 |
| VPC2203-06A | 1/8 | 3 | 0.2 | 0~1.0 | 32 | 32 | 61 | 68 |
| VPC2203-06B | 1/8 | 3 | 0.2 | 0~2.5 | 32 | 32 | 61 | 68 |
| VPC2202-08 | 1/4 | 2 | 0.09 | 0~1.0 | 46 | 32 | 51 | 60 |
| VPC2202-08A | 1/4 | 2 | 0.09 | 0~2.5 | 46 | 32 | 61 | 70 |
| VPC2202-08B | 1/4 | 2 | 0.09 | 0~4.0 | 46 | 32 | 61 | 70 |
| VPC2203-08 | 1/4 | 3 | 0.2 | 0~0.4 | 46 | 32 | 51 | 60 |
| VPC2203-08A | 1/4 | 3 | 0.2 | 0~1.0 | 46 | 32 | 61 | 70 |
| VPC2203-08B | 1/4 | 3 | 0.2 | 0~2.5 | 46 | 32 | 61 | 70 |
| VPC2204-08 | 1/4 | 4 | 0.3 | 0~0.1 | 46 | 32 | 51 | 60 |
| VPC2204-08A | 1/4 | 4 | 0.3 | 0~0.6 | 46 | 32 | 61 | 70 |
| VPC2204-08B | 1/4 | 4 | 0.3 | 0~1.0 | 46 | 32 | 61 | 70 |
| VPC2204-10A | 3/8 | 4 | 0.3 | 0~0.6 | 55 | 32 | 73 | 87 |
| VPC2204-10B | 3/8 | 4 | 0.3 | 0~1.0 | 55 | 32 | 73 | 87 |
| VPC2205-10A | 3/8 | 5 | 0.47 | 0~0.25 | 55 | 32 | 73 | 87 |
| VPC2205-10B | 3/8 | 5 | 0.47 | 0~0.6 | 55 | 32 | 73 | 87 |
| VPC2206-10A | 3/8 | 6 | 0.68 | 0~0.16 | 55 | 32 | 73 | 87 |
| VPC2206-10B | 3/8 | 6 | 0.68 | 0~0.4 | 55 | 32 | 73 | 87 |
| VPC2208-10A | 3/8 | 8 | 1.2 | 0~0.1 | 55 | 32 | 73 | 87 |
| VPC2208-10B | 3/8 | 8 | 1.2 | 0~0.25 | 55 | 32 | 73 | 87 |
| VPC2210-15A | 1/2 | 10 | 1.9 | 0~0.06 | 55 | 32 | 73 | 87 |
| VPC2210-15B | 1/2 | 10 | 1.9 | 0~0.16 | 55 | 32 | 73 | 87 |
| VPC2204-15A | 1/2 | 4 | 0.3 | 0~0.6 | 55 | 32 | 73 | 87 |
| VPC2204-15B | 1/2 | 4 | 0.3 | 0~1.0 | 55 | 32 | 73 | 87 |
| VPC2205-15A | 1/2 | 5 | 0.47 | 0~0.25 | 55 | 32 | 73 | 87 |
| VPC2205-15B | 1/2 | 5 | 0.47 | 0~0.6 | 55 | 32 | 73 | 87 |
| VPC2206-15A | 1/2 | 6 | 0.68 | 0~0.16 | 55 | 32 | 73 | 87 |
| VPC2206-15B | 1/2 | 6 | 0.68 | 0~0.4 | 55 | 32 | 73 | 87 |
| VPC2208-15A | 1/2 | 8 | 1.2 | 0~0.1 | 55 | 32 | 73 | 87 |
| VPC2208-15B | 1/2 | 8 | 1.2 | 0~0.25 | 55 | 32 | 73 | 87 |
| VPC2214-15A | 1/2 | 14 | 2.2 | 0~0.025 | 58 | 41 | 79.5 | 95 |
| VPC2214-15B | 1/2 | 14 | 2.2 | 0~0.04 | 58 | 41 | 79.5 | 95 |
| VPC2214-20A | 3/4 | 14 | 2.2 | 0~0.025 | 58 | 41 | 79.5 | 95 |
| VPC2214-20B | 3/4 | 14 | 2.2 | 0~0.04 | 58 | 41 | 79.5 | 95 |
※ The A and B in the model number represent different valve bodies and different working pressures.
