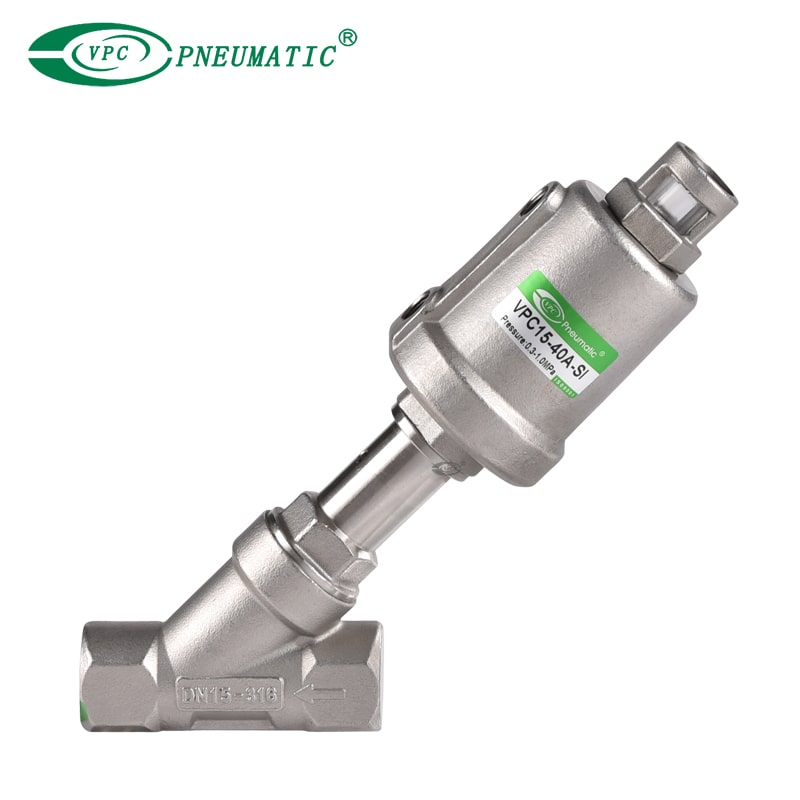

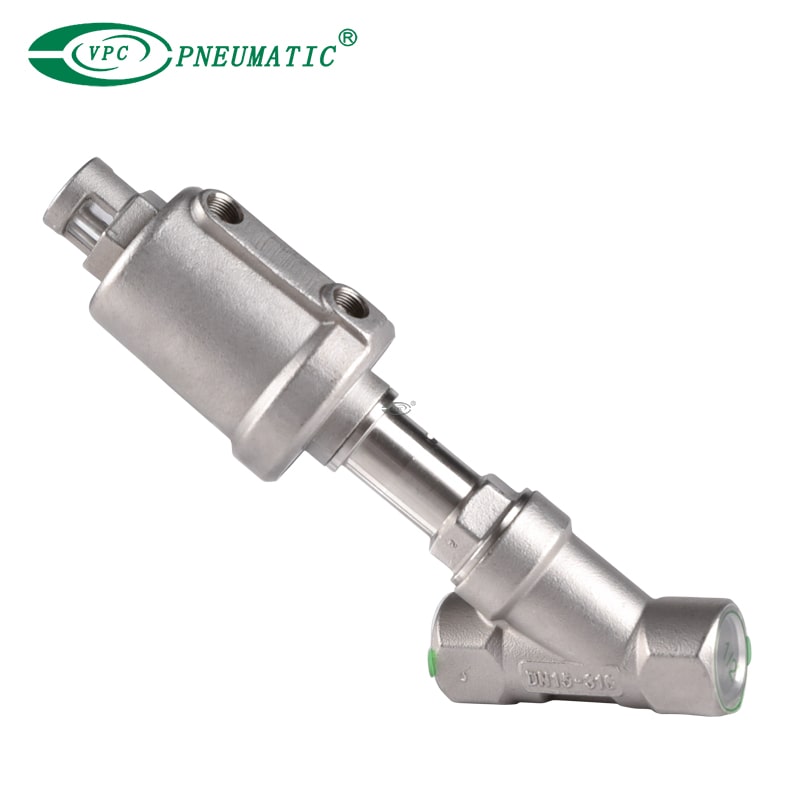

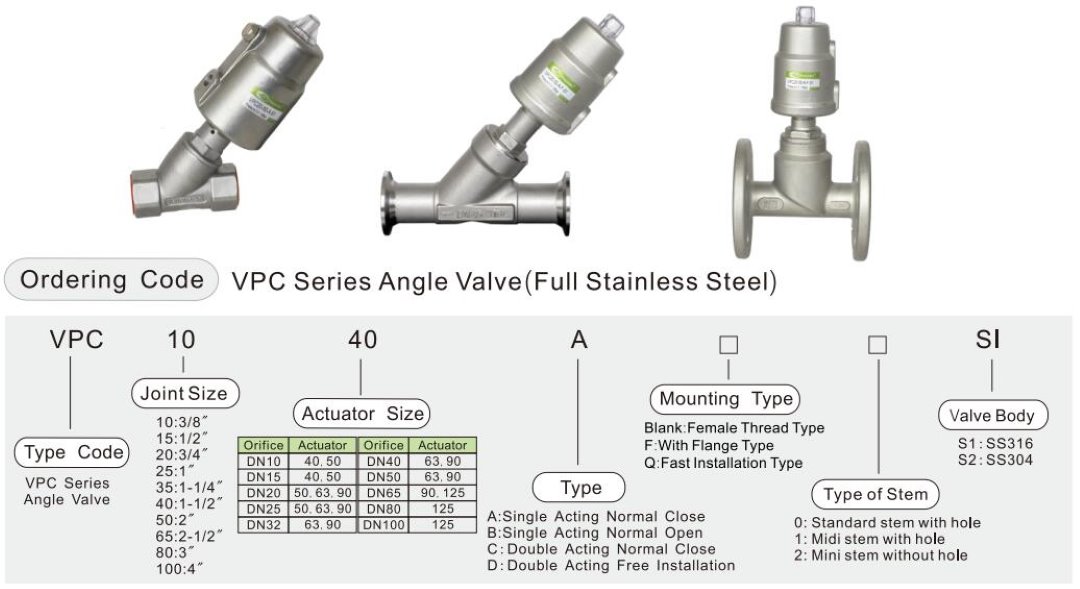

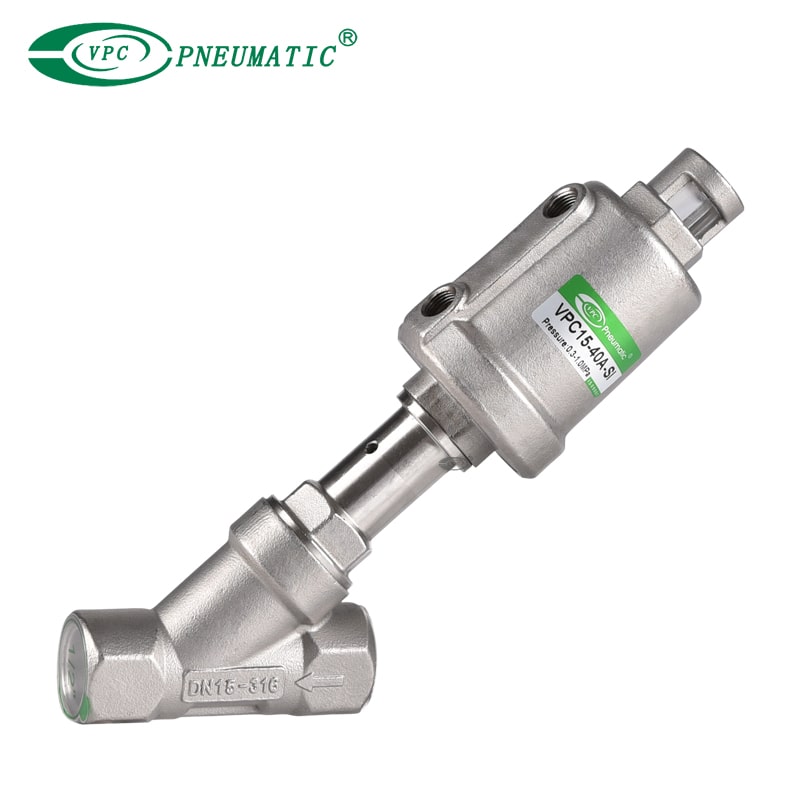

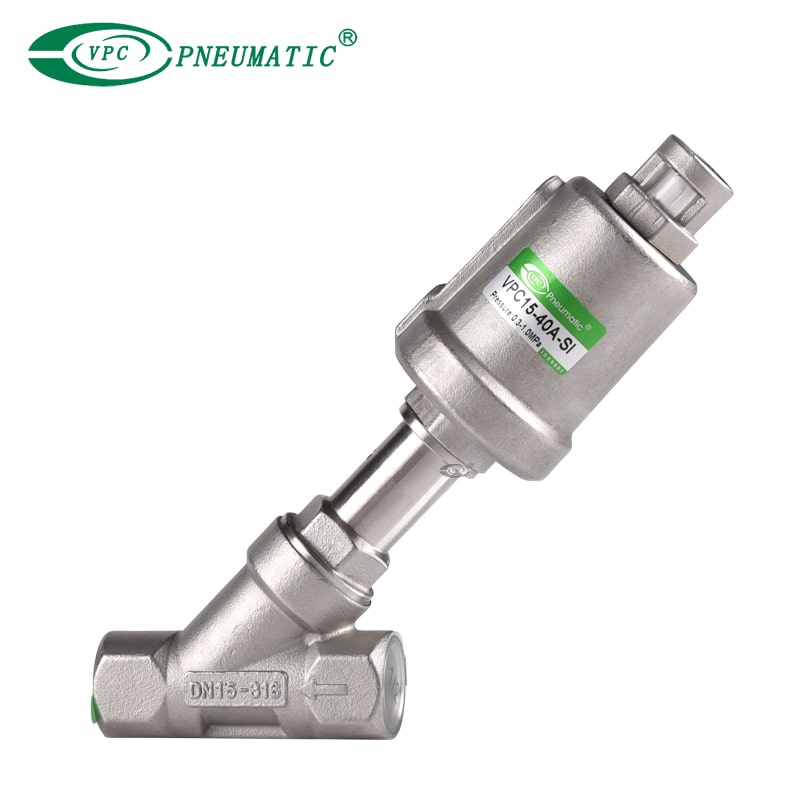

VPC Series Full Stainless Steel Pneumatic Angle Seat Valve

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  1. Flow optimised stainless steel body with various line connections.
  2. Trusted components for the longest lifetime.
  3. Stainless steel actuator suitable for demanding environments.
  4. Modular accessory program with stroke limitation and position feedback available.

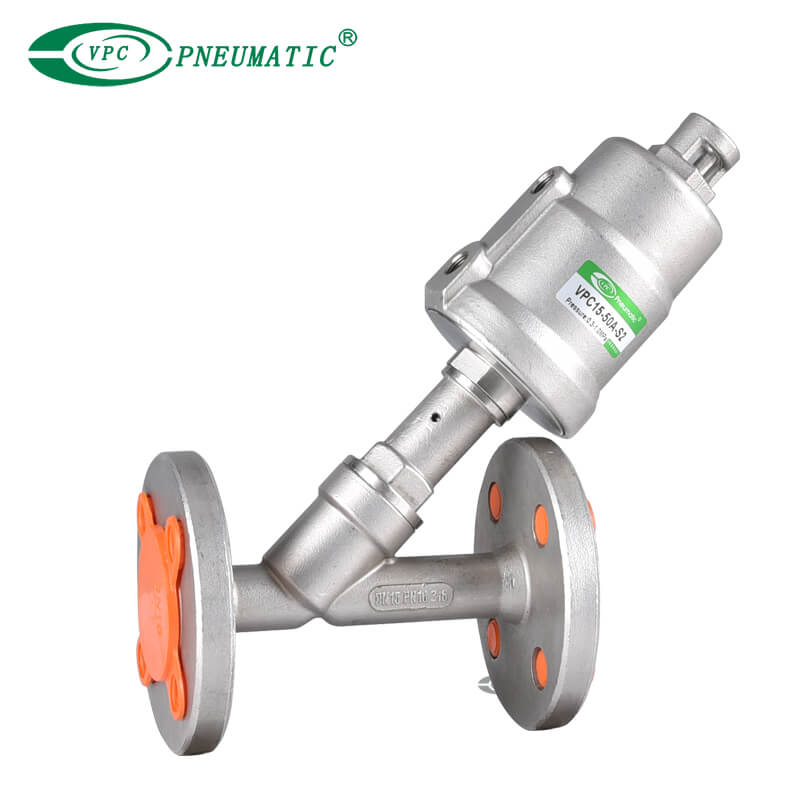

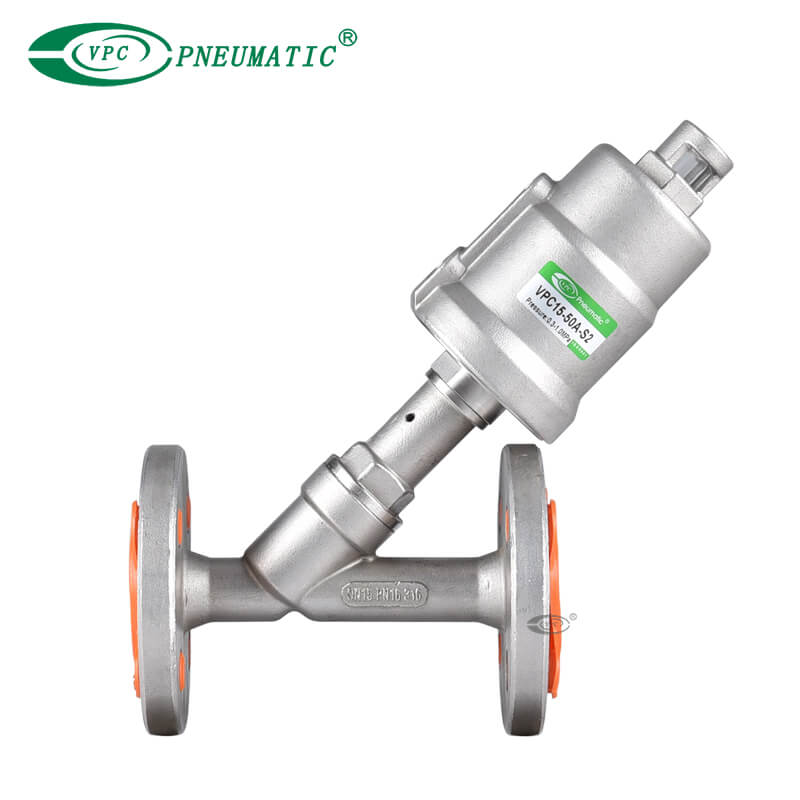

  • VPC15-50A-S2

  • VPC pneumatic

Body Material:
CF8M
Working Medium:
Air, Neutral gas
Availability:
Inquire Add to Basket

Product Description

angle seat valve

Product Specifications

■ Specification

Model VPC10-50A/B/C/D
Joint size DN10 to DN100
Thread G3/8'' to G4''
Body material CF8M
Actuator material CF8
Armature seal PTFE
Pision seal PTFE/FKM
Control pressure 0.3 to 1.0Mpa
Working temperature PTFE: -10°C to 180°C
Ambient temperature -10°C to 60°C
Medium viscidity ≤600mm2/s
Installation Arbitrary position
Control medium Air, Neutral Gas
Working medium Water, Netutral Gas or Liquid, Alcohol, Oil, Organic Solvent, Water Vapor, Weak Acid or Weak Base Solution

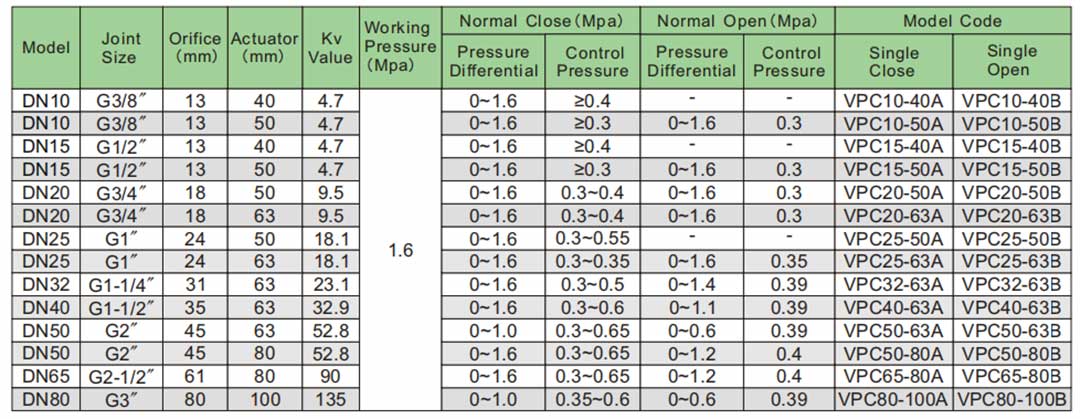

■ Single Acting Normal Close/Normal Open

angle seat piston valve

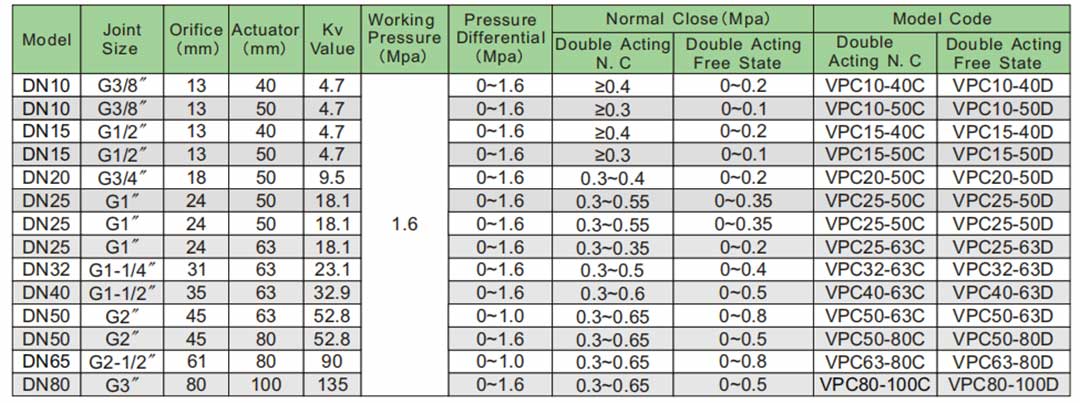

■ Double Acting Normal Close/Normal Open

pneumatic seat valve

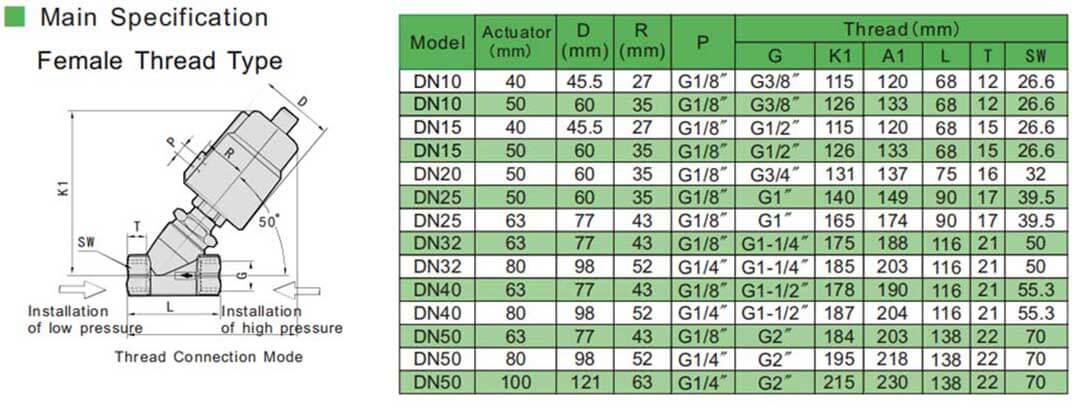

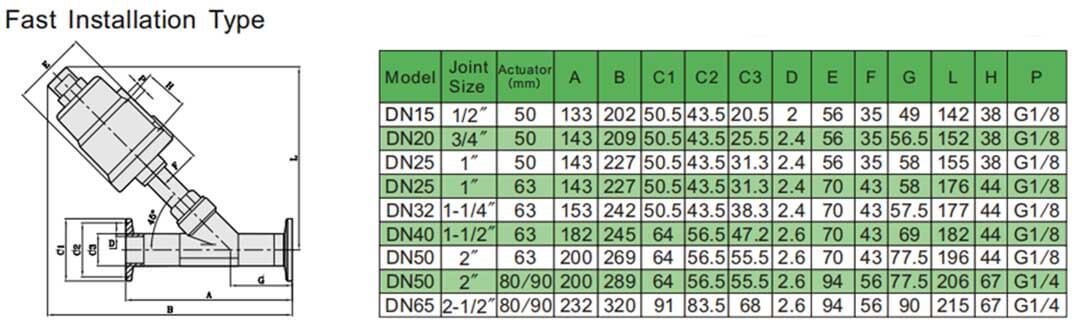

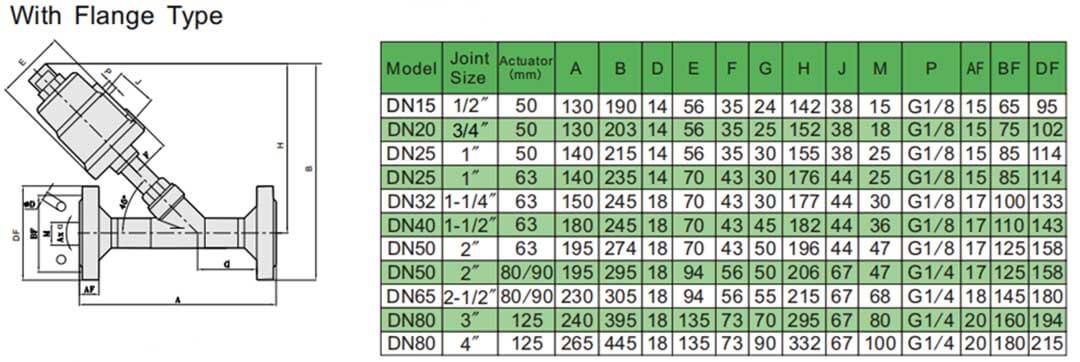

Main Dimensions

slanted seat valveangle seat valvevalve seat angle

PDF Download

download VPC Series Stainless Steel Angle Seat Valve.pdf
