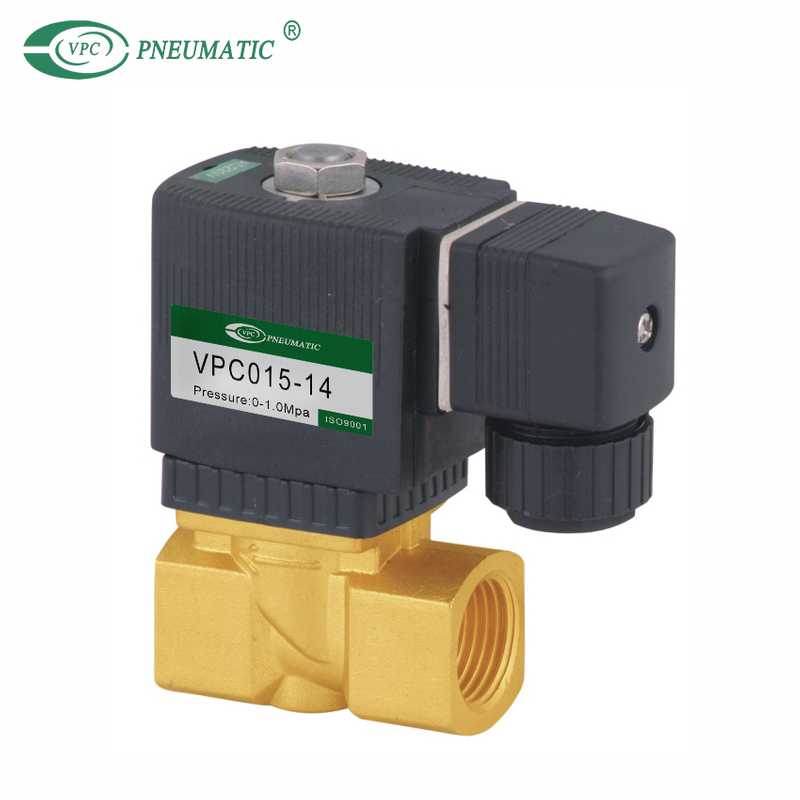

VPC Series Step Direct Acting Diaphragm Solenoid Valve

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  1. Normal close, available body:Brass;
  2. Multiple seals are available for different medium;
  3. Wide size range from1/4" to 1",with thread;

  • VPC015-14

  • VPC Pneumatic

  • 8481804090

Working medium:
Air/Gas/Water/Oil
Type:
Normal close
Working temperature:
-10 to 80℃
Ambient temperature:
-10 to 50℃
Body Material:
Brass,SS316
Availability:
Inquire Add to Basket

Product Description

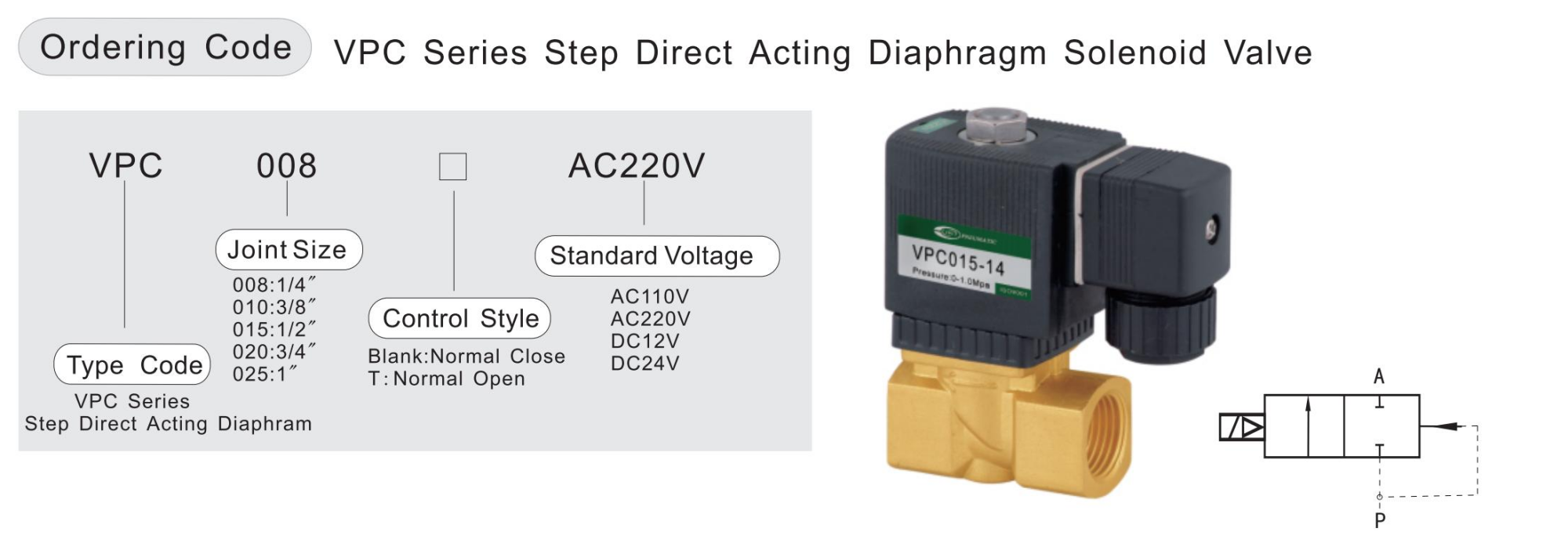

VPC step-order code


Product Specifications

  Model
  Orifice
  Joint Size
  Working Pressure
  KV Value
  Ambient Temp
  Working Temp
  VPC008/VPC008T
  10mm
  G1/4"
  0~1.0Mpa
  1.4m3 /h
  -10~50℃
  -10~80℃
  VPC010/VPC010T
  10mm
  G3/8"
  0~1.0Mpa
  1.4m3 /h
  VPC015/VPC015T
  10mm
  G1/2"
  0~1.0Mpa
  1.4m3 /h
  VPC015-14
  14mm
  G1/2"
  0~1.0Mpa
  2.52m3 /h
  VPC020
  14mm
  G3/4"
  0~1.0Mpa
  2.52m3 /h
  VPC020-20
  20mm
  G3/4"
  0~1.0Mpa
  5.0m3/h
  VPC025
  20mm
  G1"
  0~1.0Mpa
  5.0m3/h


Main Dimensions

VPC step-specification
