| Working medium: | |
|---|---|
| Control type: | |
| Working temperature: | |
| Ambient temperature: | |
| Body Material: | |

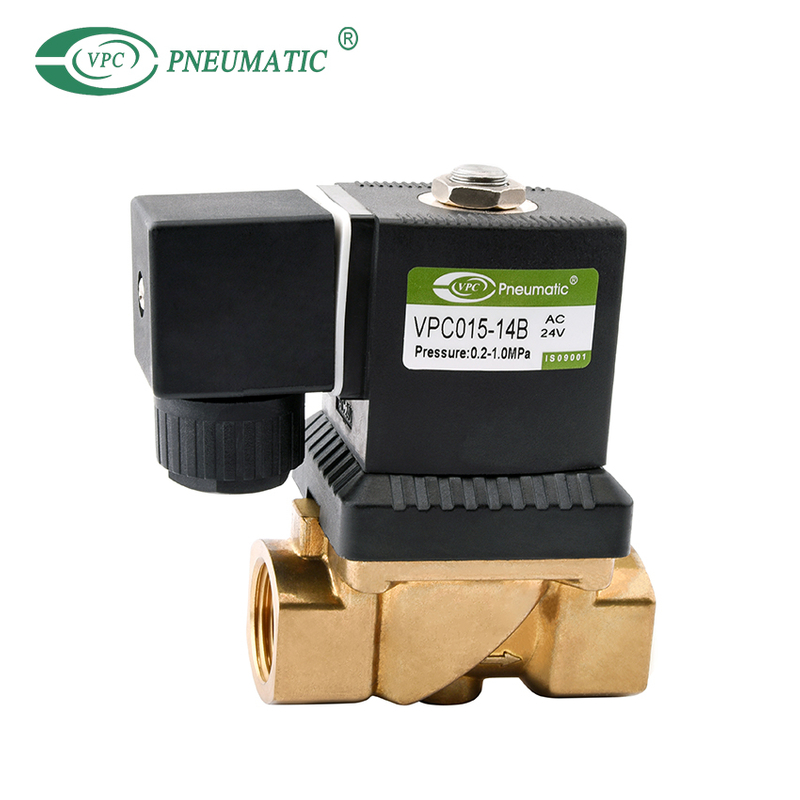

Product Description
1. Direct acting and normally closed type 2/2 way solenoid valve. Its high sensibility allows it to change direction quickly.
2. Direct acting and compact small valve has an orifice 4 to 14mm.
3. Explosion-proof coil, cooling energy-saving coils/connector, and timing switch optional.
4. It is compact, small and lightweight. Easy to install and dismantle.
Product Specifications
| Acting type | Direct acting type |
| Control type | Normal close |
| Thread type | G (Standard), NPT, Rc plate connection (Optional) |
| Working medium | Air, Water, Neutral fluid |
| Medium viscosity | ≤21mm2/s |
| Valve body | Brass |
| Seal material | NBR (Standard), FKM, EPDM (Optional) |
| Working temperature | NBR: -10~80C FKM: -10~110℃ EPDM: -20~120C |
| Ambient temperature | -10~50°C (Explosion-proof: -20~40℃) |
| Rated voltage | AC220V(50-60Hz), DC24V (0Hz) |
| Voltage range | ± 10% |
| Enclosure | IP65 |
| Mounting | Keep the coil facing up |
| Optional | Explosion-proof, cooling energy-saving coils/connector, timing switch |

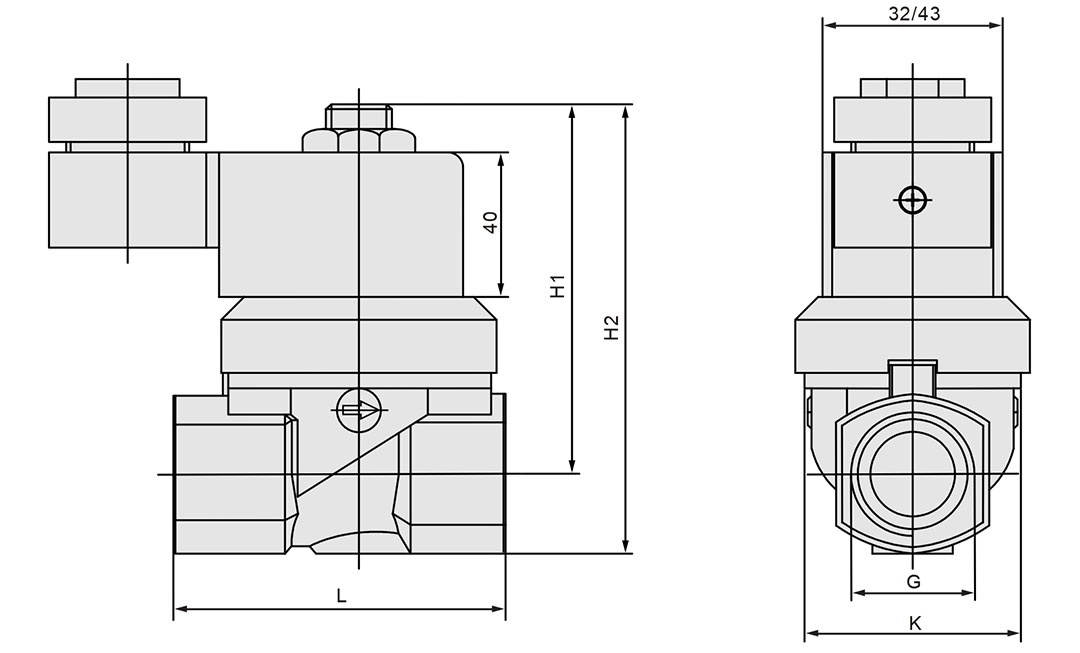

Main Dimensions
| Model | Joint size (G) | Orifice (mm) | KV value (m³/h) | Working pressure (MPa) | Main dimensions | ||
| L | C | B | |||||
| VPC2206-08 | 1/4 | 6 | 1.5 | 0~0.6 | 50 | 38 | 85 |
| VPC2206-10 | 3/8 | 6 | 1.5 | 0~0.6 | 50 | 38 | 85 |
| VPC2206-15 | 1/2 | 6 | 1.5 | 0~0.6 | 50 | 38 | 85 |
| VPC2210-08 | 1/4 | 10 | 1.9 | 0~0.1 | 50 | 38 | 85 |
| VPC2210-10 | 3/8 | 10 | 1.9 | 0~0.1 | 50 | 38 | 85 |
| VPC2210-15 | 1/2 | 10 | 1.9 | 0~0.1 | 50 | 38 | 85 |
| VPC2214-08 | 1/4 | 14 | 3.6 | 0~0.05 | 66 | 44 | 91 |
| VPC2214-10 | 3/8 | 14 | 3.6 | 0~0.05 | 66 | 44 | 91 |
| VPC2214-15 | 1/2 | 14 | 3.6 | 0~0.05 | 66 | 44 | 91 |
| VPC2214-20 | 3/4 | 14 | 3.6 | 0~0.05 | 60 | 44 | 96 |
