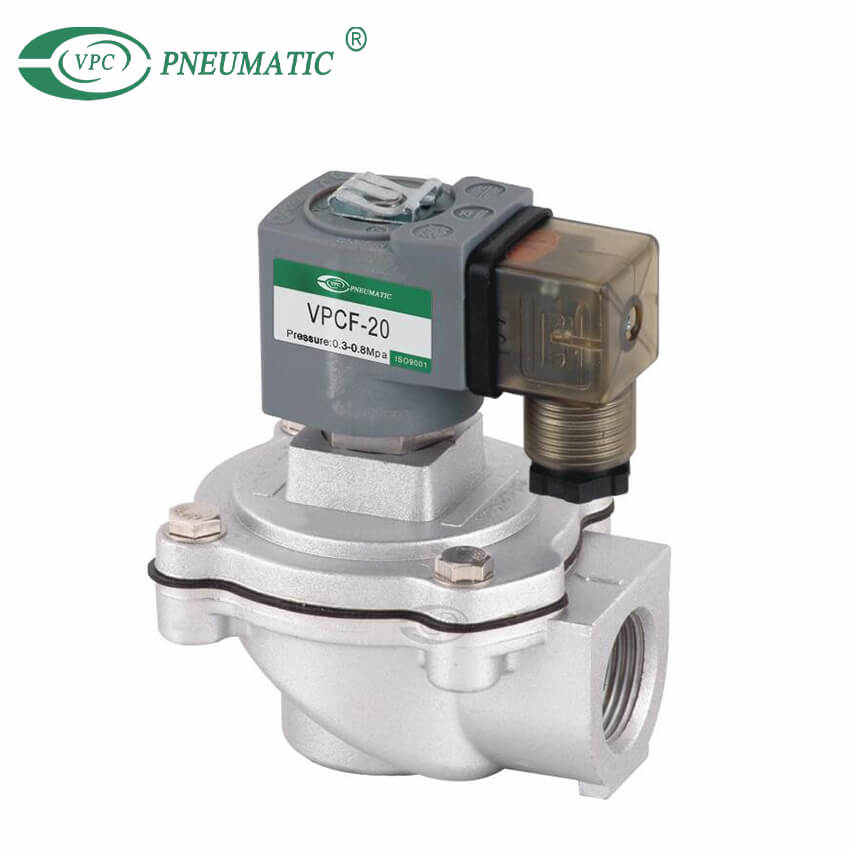

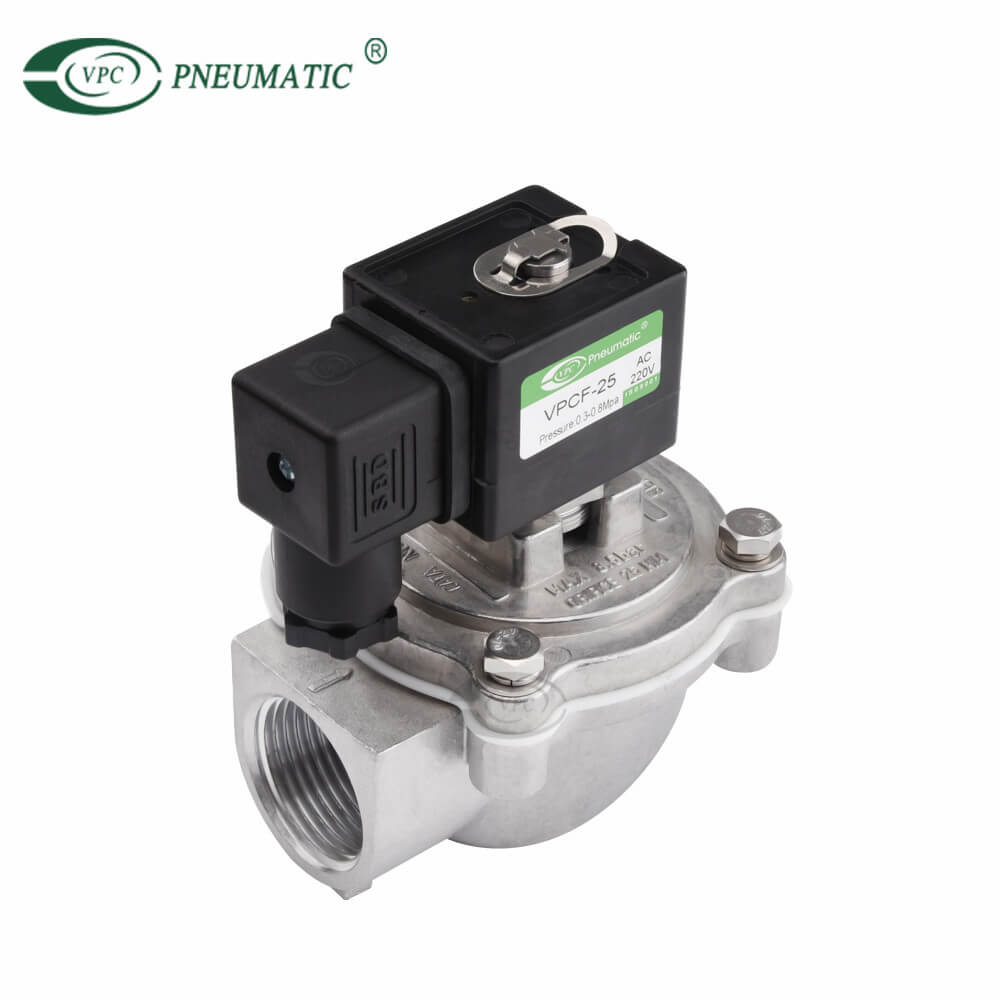

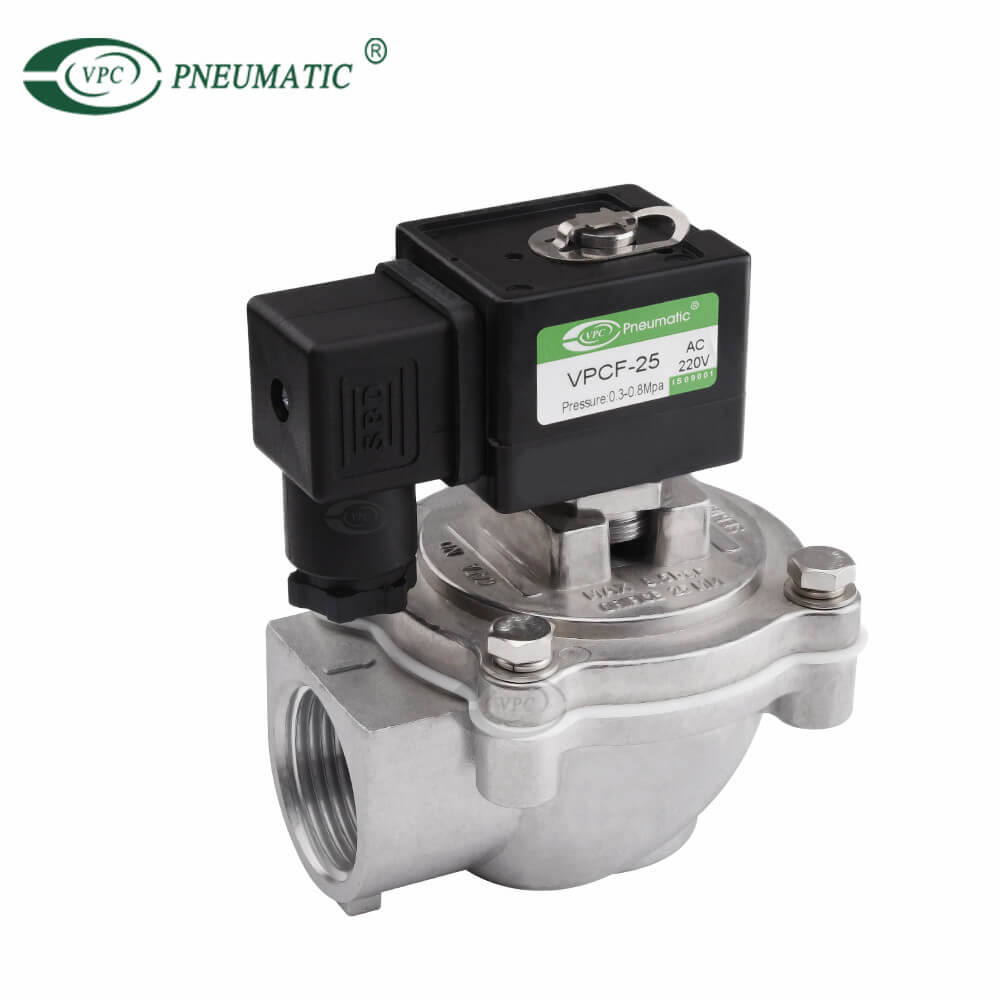

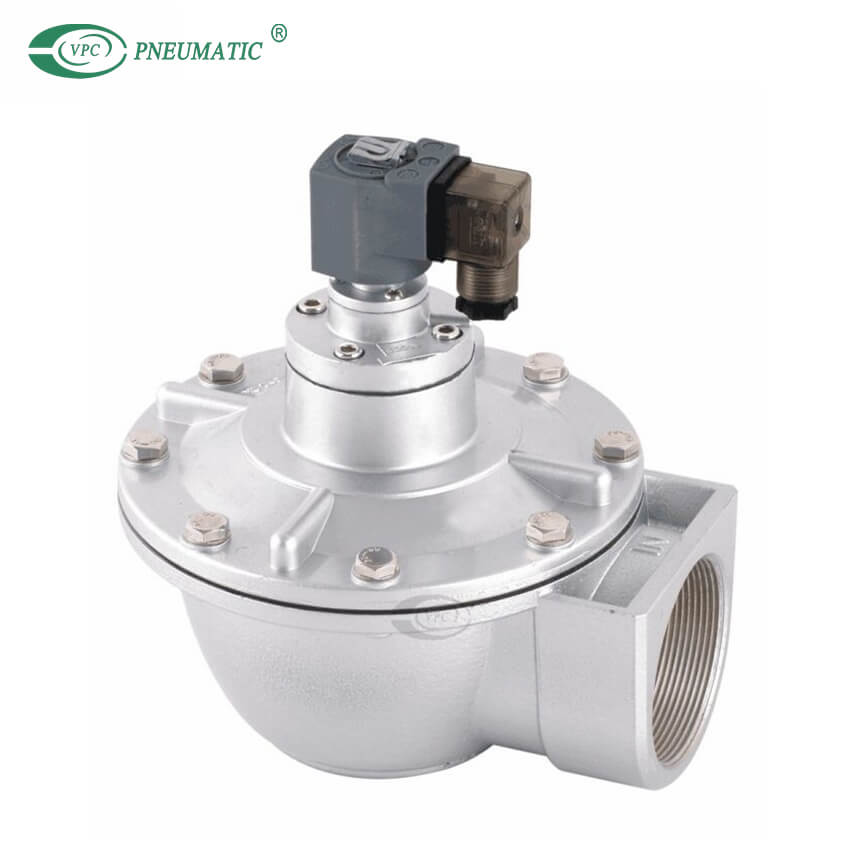

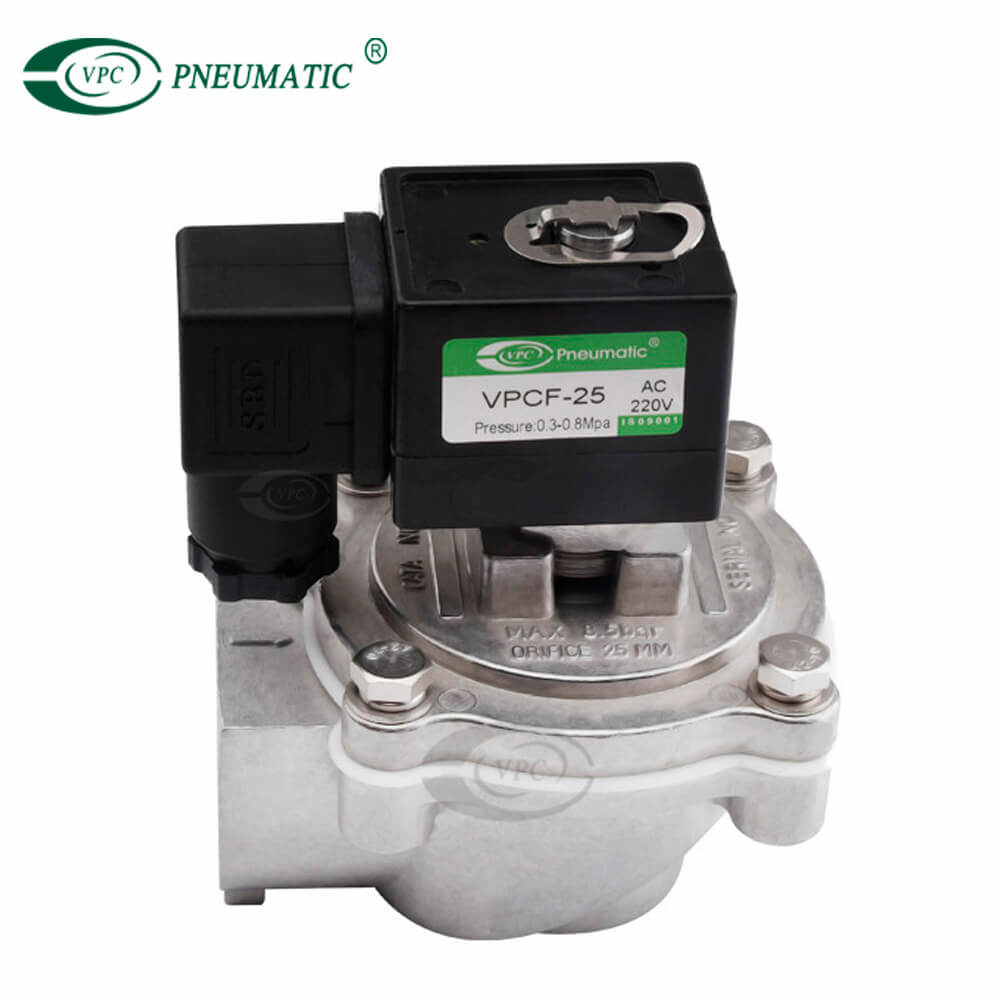

VPCF Series Electro-Magnetic Solenoid Valve

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
VPCF series Pulse Solenoid Valve for Dust Collector , fast opening, high flow, diaphragm type air valves with an integral solenoid pilot. These valves are made of die-cast aluminum with a specially designed angle body for multi-unit installation.
* Normal close,aluminium body.
* Especially for dusty collection.
* Bigger size form 1" to 3"
* Diaphragm pilot solenoid valve,with lower working pressure.

  • VPCF-25

  • VPC Pneumatic

  • 8481804090

Working medium:
Air
Type:
Normal close
Working temperature:
-10 to 55℃
Working pressure:
0.3 to 0.8Mpa
Body Material:
Aluminum alloy
Acting type:
Pilot type
Availability:
Inquire Add to Basket

Product Description

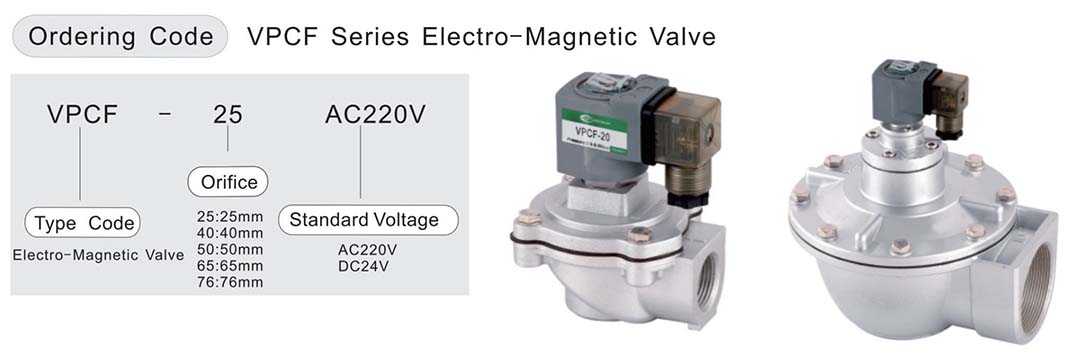

VPCF-order code

Product Specifications

Model
VPCF-25
VPCF-40
VPCF-50
VPCF-65
VPCF-76
Working Medium
Air
Acting Type
Pilot Type(Normal Close)
Working Pressure
0.3-0.8Mpa
MAX.Pressure
0.9Mpa
Working Temperature
-10~55℃
Voltage Range
-15~10%
Relative Humidity
≤85%
Service Life
≥1Million
Valve Body
Aluminum
Seal material
NBR
Orifice
Φ25
Φ40
Φ50
Φ65
Φ76
Joint Size
G1"
G1-1/2"
G2"
G2-1/2"
G3"

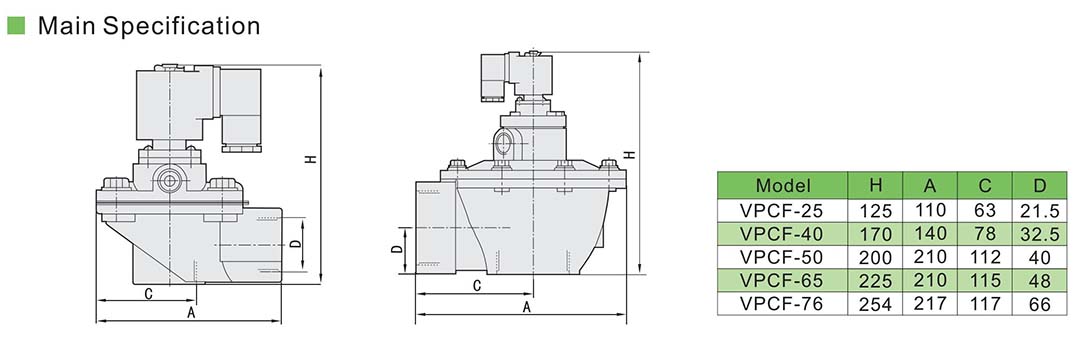

Main Dimensions

VPCF-specification
