Product Description
Product Specifications
Model | VPCT008 | VPCT010 | VPCT015 | VPCT020 | VPCT025 |
Working Medium | Neutral liquid gas or liquid | ||||
Acting Type | Pilot Type | ||||
Control Style | Normal Close | ||||
Orifice | 14mm | 20mm | 25mm | ||
KV Value | 2.52m³/h | 5.0m³/h | 8.5m³/h | ||
Working Pressure | 0.05~1.6Mpa | ||||
Working Viscidity | ≤21mm²/s | ||||
Ambient Temperature | -10~50℃ | ||||
Working Temperature | -10~180℃ | ||||
Valve Body | Brass | ||||
Seal Material | PTFE | ||||
Joint Size | G1/4" | G3/8" | G1/2" | G3/4" | G1" |

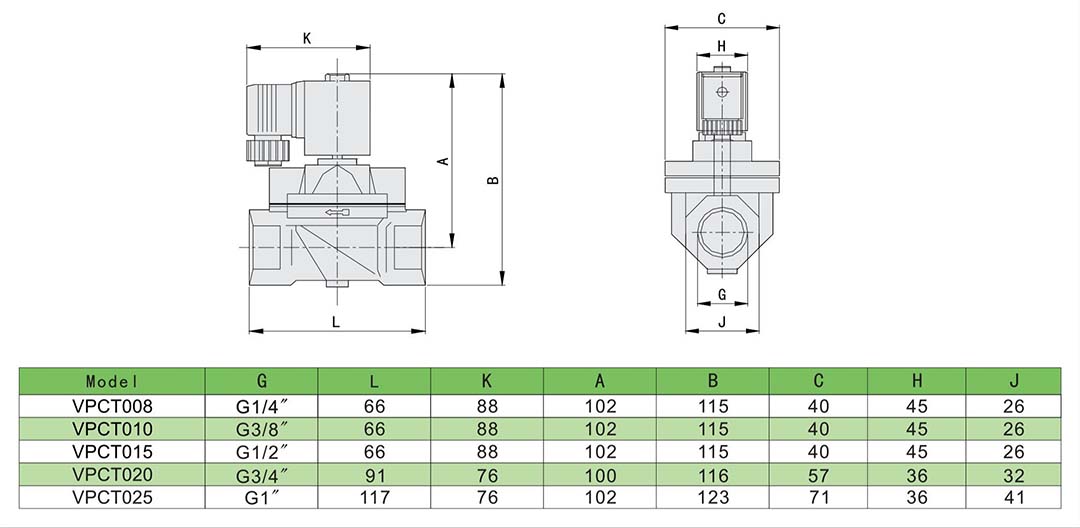

Main Dimensions
