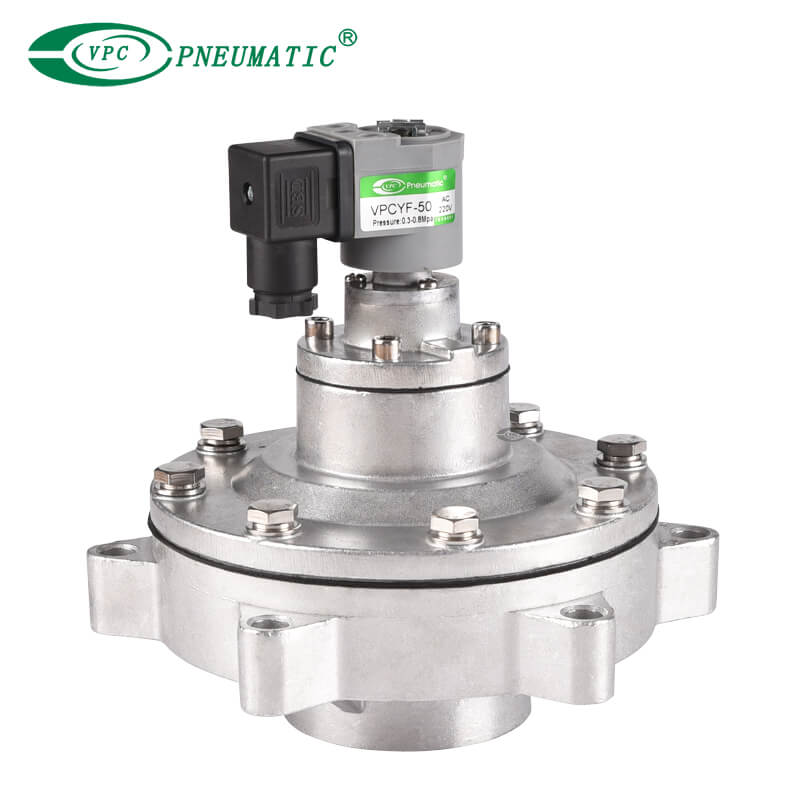

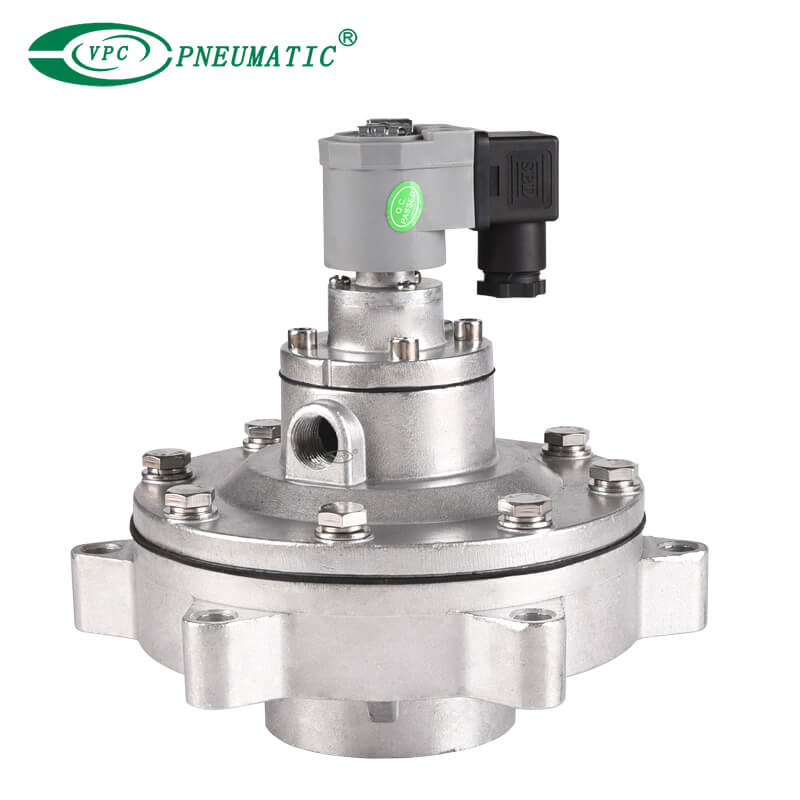

VPCYF Series Electro-Magnetic Solenoid Valve

Electromagnetic pulse valve, also called diaphragm valve acts as a"switch" for compressed air in the dust clean blowing system for pulse bag filters. It is controlled by the electric signals from the pulse-jet control device. This system cleans the filter bags cluster by cluster with high-pressure blowing to keep the pressure resistance of the baghouse within a pre-set range, and thus ensure the processing capability and the dust-collecting efficiency of the baghouse.

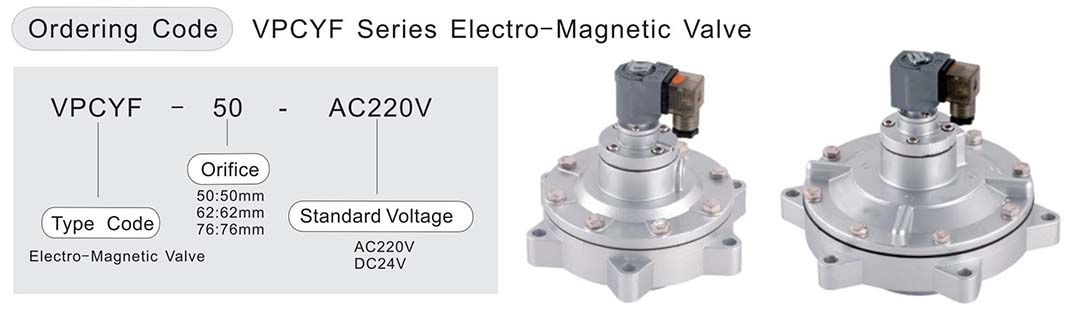

Model:
VPCYF-50
Brand:
VPC Pneumatic
Code:
8481804090

Working medium:	Air
Type:	Normal close
Working temperature:	-10 to 55℃
Working pressure:	0.2 to 0.8Mpa
Body Material:	Aluminum alloy
Acting type:	Pilot type
Availability:



Inquire Add to Basket

Product Description

pulse jet diaphragm valve

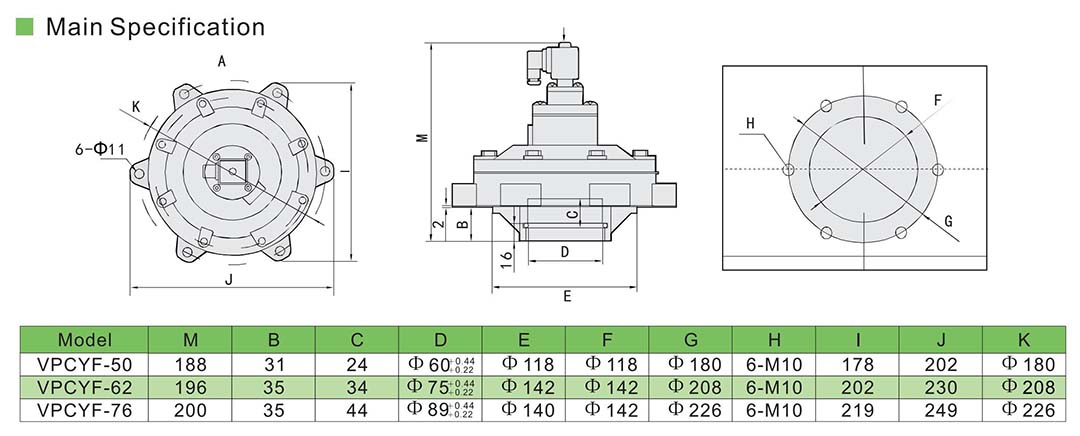

Product Specifications

Model	VPCYF-50	VPCYF-62	VPCYF-76
Working medium	Air
Acting type	Pilot Type(Normal Close)
Working pressure	0.2~0.8Mpa
Max. pressure	0.9Mpa
Working temperature	-10~55℃
Voltage range	-15~10%
Relative humidity	≤85%
Service life	≥1Million
Valve body	Aluminum
Seal material	NBR
Orifice	Φ50	Φ62	Φ76
Joint Size	Φ65	Φ80	Φ99
