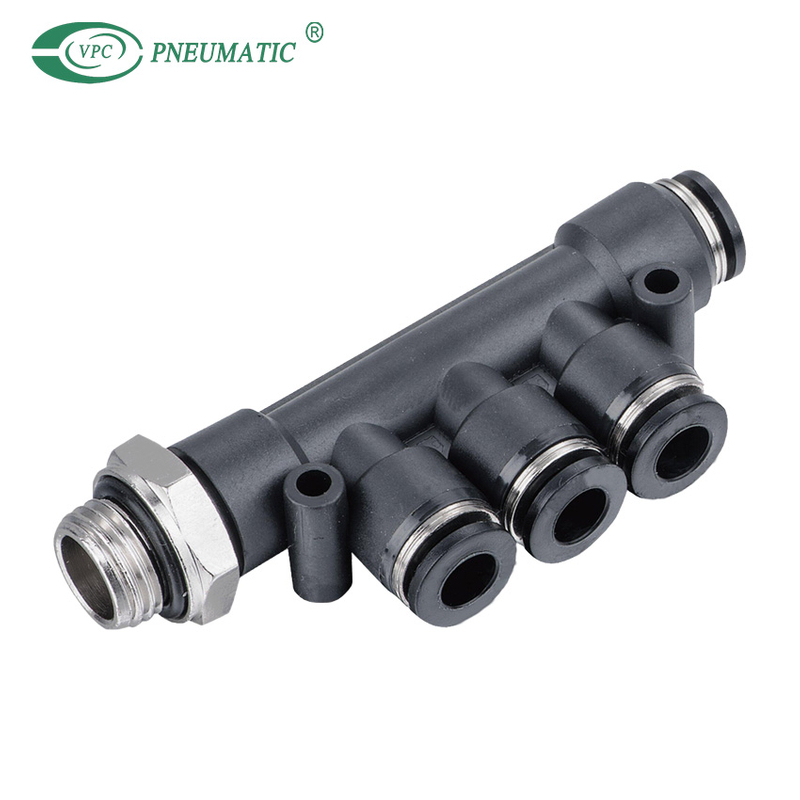

VPKD-G 5 Way Male Reducer Fitting with O-Ring

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  1. Easy to connect/disconnect tube by one touch.
  2. Elliptical sleeve makes it possible to apply and remove the tub e easily in confined space.
  • VPKD 06-04-G01

  • VPC Pneumatic

  • 39174000

Applicable tube:
Body color:
Availability:

Product Description

VPC-order code

Tube Size

Tube(Metric) Tube(Inch)
Code 4 6 8 10 12 14 16 5/32 3/16 1/14 5/16 3/8 1/2
Tube Outside

Ф4

Ф6 Ф8 Ф10 Ф12 Ф14 Ф16 Ф5/32 Ф3/16 Ф1/14 Ф5/16 Ф3/8 Ф1/2

Thread

Thread (Metric)
Code M5 M6 M8 M10 M12 M14 M16
M20
Thread M5×0.8 M6×1.0 M8×1.0 M10×1.0 M12×1.25 M14×1.5 M16×1.5 M20×1.5

55°Thread (R)
Code 01 02 03 04 06
Thread R1/8 R1/4 R3/8 R1/2 R3/4
55°Thread (G)
Code G01 G02 G03 G04 G06
Thread G1/8 G1/4 G3/8 G1/2 G3/4
Thread(UNF) US Thread 60°
Code U10 01N 02N 03N 04N 06N
Thread 10-32UNF NPT1/8 NPT1/4 NPT3/8 NPT1/2 NPT3/4


Product Specifications

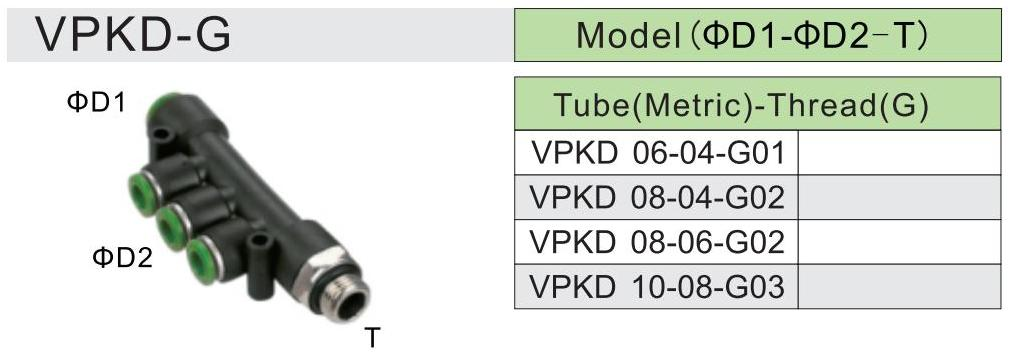

PKD-G specification
