| Applicable tube: | |
|---|---|
| Body color: | |
Product Description
■Tube Size
| Tube(Metric) | Tube(Inch) | ||||||||||||
| Code | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 5/32 | 3/16 | 1/14 | 5/16 | 3/8 | 1/2 |
| Tube Outside | Ф4 | Ф6 | Ф8 | Ф10 | Ф12 | Ф14 | Ф16 | Ф5/32 | Ф3/16 | Ф1/14 | Ф5/16 | Ф3/8 | Ф1/2 |
■Thread
| Thread (Metric) | ||||||||
| Code | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 |
| Thread | M5×0.8 | M6×1.0 | M8×1.0 | M10×1.0 | M12×1.25 | M14×1.5 | M16×1.5 | M20×1.5 |
| 55°Thread (R) | |||||
| Code | 01 | 02 | 03 | 04 | 06 |
| Thread | R1/8 | R1/4 | R3/8 | R1/2 | R3/4 |
| 55°Thread (G) | |||||
| Code | G01 | G02 | G03 | G04 | G06 |
| Thread | G1/8 | G1/4 | G3/8 | G1/2 | G3/4 |
| Thread(UNF) | US Thread 60° | |||||
| Code | U10 | 01N | 02N | 03N | 04N | 06N |
| Thread | 10-32UNF | NPT1/8 | NPT1/4 | NPT3/8 | NPT1/2 | NPT3/4 |
Product Specifications

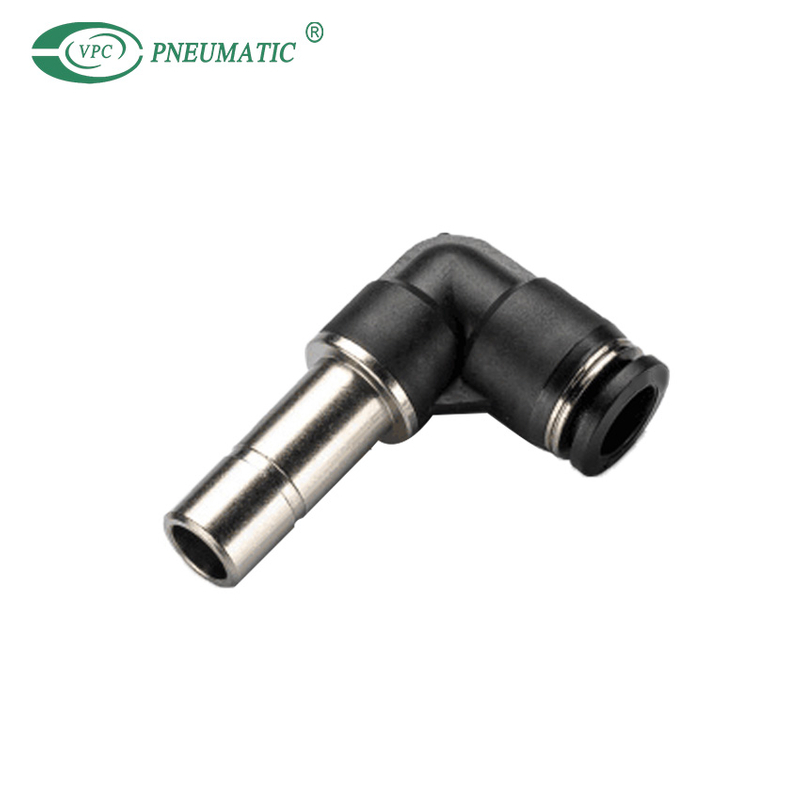

| Model(ФD) | |
| Tube(Metric) | Tube(Inch) |
| VPLJ04 | VPLJ5/32 |
| VPLJ06 | VPLJ3/16 |
| VPLJ08 | VPLJ1/4 |
| VPLJ10 | VPLJ5/16 |
| VPLJ12 | VPLJ3/8 |
| VPLJ1/2 | |
